Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Type	Material-Core	Inductance	Tolerance	CurrentRating(Amps)	Current-Saturation(Isat)	Shielding	DCResistance(DCR)	Q@Freq	Frequency-SelfResonant	Ratings	OperatingTemperature	InductanceFrequency-Test	Features	MountingType	Size/Dimension

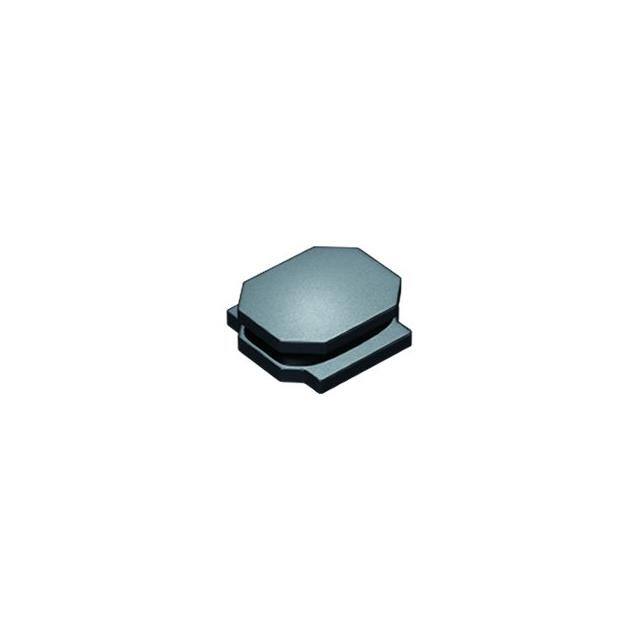

LLXBD4040MKL2R2M FIXED IND 2.2UH 1.2A 108MOHM SMD Taiyo Yuden	2,437	0.17	RFQ		1616 (4040 Metric)	Tape & Reel (TR)	LLXB	Active	Wirewound	Ferrite	2.2 µH	±20%	1.2 A	1.65A	Shielded	90mOhm	-	66MHz	-	-25°C ~ 120°C	100 kHz	-	Surface Mount	1616
LLXBD4040MKL220M FIXED IND 22UH 540MA 576MOHM SMD Taiyo Yuden	3,664	0.17	RFQ		1616 (4040 Metric)	Tape & Reel (TR)	LLXB	Active	Wirewound	Ferrite	22 µH	±20%	540 mA	510mA	Shielded	480mOhm	-	18MHz	-	-25°C ~ 120°C	100 kHz	-	Surface Mount	1616
LSXBD4040MKL100M FIXED IND 10UH 770MA 288MOHM SMD Taiyo Yuden	3,008	0.17	RFQ		Nonstandard	Tape & Reel (TR)	LSXB	Active	Wirewound	Ferrite	10 µH	±20%	770 mA	740mA	Shielded	240mOhm	-	28MHz	-	-25°C ~ 120°C	100 kHz	-	Surface Mount	-
LLXBD4040MKL6R8M FIXED IND 6.8UH 840MA 216MOHM SM Taiyo Yuden	2,047	0.17	RFQ		1616 (4040 Metric)	Tape & Reel (TR)	LLXB	Active	Wirewound	Ferrite	6.8 µH	±20%	840 mA	900mA	Shielded	180mOhm	-	35MHz	-	-25°C ~ 120°C	100 kHz	-	Surface Mount	1616
LLXBD4040MKL100M FIXED IND 10UH 770MA 288MOHM SMD Taiyo Yuden	3,211	0.17	RFQ		1616 (4040 Metric)	Tape & Reel (TR)	LLXB	Active	Wirewound	Ferrite	10 µH	±20%	770 mA	740mA	Shielded	240mOhm	-	28MHz	-	-25°C ~ 120°C	100 kHz	-	Surface Mount	1616
LLXBD4040MKL4R7M FIXED IND 4.7UH 960MA 168MOHM SM Taiyo Yuden	3,915	0.17	RFQ		1616 (4040 Metric)	Tape & Reel (TR)	LLXB	Active	Wirewound	Ferrite	4.7 µH	±20%	960 mA	1.05A	Shielded	140mOhm	-	45MHz	-	-25°C ~ 120°C	100 kHz	-	Surface Mount	1616
NRS5012T3R3MMGF FIXED IND 3.3UH 1.45A 192MOHM SM Taiyo Yuden	2,449	0.17	RFQ	Datasheet	2005 (5012 Metric)	Tape & Reel (TR),Cut Tape (CT)	NR, S Type	Active	Drum Core, Wirewound	Ferrite	3.3 µH	±20%	1.45 A	2.4A	Shielded	192mOhm Max	-	48MHz	-	-25°C ~ 125°C	100 kHz	-	Surface Mount	-
NRS5014TR47NMGG FIXED IND 470NH 3.3A 25 MOHM SMD Taiyo Yuden	3,177	0.17	RFQ	Datasheet	Nonstandard	Tape & Reel (TR)	NR, S Type	Active	Drum Core, Wirewound	Ferrite	470 nH	±30%	3.3 A	5.8A	Shielded	25mOhm Max	-	185MHz	-	-25°C ~ 120°C	100 kHz	-	Surface Mount	-
NRS5014T150MMGG FIXED IND 15UH 650MA 384MOHM SMD Taiyo Yuden	2,541	0.17	RFQ	Datasheet	Nonstandard	Tape & Reel (TR)	NR, S Type	Active	Drum Core, Wirewound	Ferrite	15 µH	±20%	650 mA	1.1A	Shielded	384mOhm Max	-	20MHz	-	-25°C ~ 120°C	100 kHz	-	Surface Mount	-
NRS5014T220MMGG FIXED IND 22UH 550MA 540MOHM SMD Taiyo Yuden	3,172	0.17	RFQ	Datasheet	Nonstandard	Tape & Reel (TR)	NR, S Type	Active	Drum Core, Wirewound	Ferrite	22 µH	±20%	550 mA	900mA	Shielded	540mOhm Max	-	16MHz	-	-25°C ~ 120°C	100 kHz	-	Surface Mount	-
LSXBD3030KKT150M FIXED IND 15UH 400MA 888MOHM SMD Taiyo Yuden	2,237	0.17	RFQ		Nonstandard	Tape & Reel (TR)	LSXB	Active	Wirewound	Ferrite	15 µH	±20%	400 mA	400mA	Shielded	740mOhm	-	30MHz	-	-25°C ~ 120°C	100 kHz	-	Surface Mount	-
LLXBD3030KKT220M FIXED IND 22UH 350MA 1.236OHM SM Taiyo Yuden	3,669	0.17	RFQ		1212 (3030 Metric)	Tape & Reel (TR)	LLXB	Active	Wirewound	Ferrite	22 µH	±20%	350 mA	350mA	Shielded	1.03Ohm	-	25MHz	-	-25°C ~ 120°C	100 kHz	-	Surface Mount	1212
LSXBD3030KKT1R5N FIXED IND 1.5UH 1.3A 96 MOHM SMD Taiyo Yuden	3,633	0.17	RFQ		Nonstandard	Tape & Reel (TR)	LSXB	Active	Wirewound	Ferrite	1.5 µH	±30%	1.3 A	1.2A	Shielded	80mOhm	-	98MHz	-	-25°C ~ 120°C	100 kHz	-	Surface Mount	-
LLXBD3030KKT100M FIXED IND 10UH 510MA 540MOHM SMD Taiyo Yuden	3,160	0.17	RFQ		1212 (3030 Metric)	Tape & Reel (TR)	LLXB	Active	Wirewound	Ferrite	10 µH	±20%	510 mA	500mA	Shielded	450mOhm	-	35MHz	-	-25°C ~ 120°C	100 kHz	-	Surface Mount	1212
LSXND5050MKT6R8MMG FIXED IND 6.8UH 1.1A 312MOHM SMD Taiyo Yuden	2,899	0.17	RFQ		Nonstandard	Tape & Reel (TR)	LSXN	Active	Wirewound	Ferrite	6.8 µH	±20%	1.1 A	1.7A	Shielded	312mOhm Max	-	36MHz	-	-25°C ~ 125°C	100 kHz	-	Surface Mount	-
LLXBD3030KKT330M FIXED IND 33UH 275MA 1.86OHM SMD Taiyo Yuden	3,014	0.17	RFQ		1212 (3030 Metric)	Tape & Reel (TR)	LLXB	Active	Wirewound	Ferrite	33 µH	±20%	275 mA	260mA	Shielded	1.55Ohm	-	20MHz	-	-25°C ~ 120°C	100 kHz	-	Surface Mount	1212
LSXND5050PKT3R3NMG FIXED IND 3.3UH 1.7A 96 MOHM SMD Taiyo Yuden	2,376	0.17	RFQ		Nonstandard	Tape & Reel (TR)	LSXN	Active	Wirewound	Ferrite	3.3 µH	±30%	1.7 A	2.35A	Shielded	96mOhm Max	-	48MHz	-	-25°C ~ 125°C	100 kHz	-	Surface Mount	-
LLXBD3030KKT4R7M FIXED IND 4.7UH 780MA 228MOHM SM Taiyo Yuden	2,838	0.17	RFQ		1212 (3030 Metric)	Tape & Reel (TR)	LLXB	Active	Wirewound	Ferrite	4.7 µH	±20%	780 mA	750mA	Shielded	190mOhm	-	56MHz	-	-25°C ~ 120°C	100 kHz	-	Surface Mount	1212
LSXND5050PKT100MMG FIXED IND 10UH 1.05A 240MOHM SMD Taiyo Yuden	3,061	0.17	RFQ		Nonstandard	Tape & Reel (TR)	LSXN	Active	Wirewound	Ferrite	10 µH	±20%	1.05 A	1.4A	Shielded	240mOhm Max	-	27MHz	-	-25°C ~ 125°C	100 kHz	-	Surface Mount	-

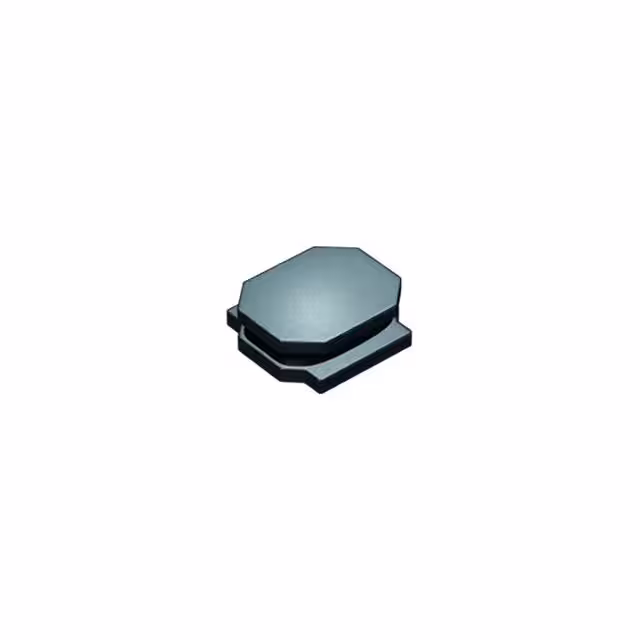

LLXBD3030KKT3R3M FIXED IND 3.3UH 940MA 168MOHM SM Taiyo Yuden	2,790	0.17	RFQ		1212 (3030 Metric)	Tape & Reel (TR)	LLXB	Active	Wirewound	Ferrite	3.3 µH	±20%	940 mA	870mA	Shielded	140mOhm	-	63MHz	-	-25°C ~ 120°C	100 kHz	-	Surface Mount	1212
