| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Material-Core | Inductance | Tolerance | CurrentRating(Amps) | Current-Saturation(Isat) | Shielding | DCResistance(DCR) | Q@Freq | Frequency-SelfResonant | Ratings | OperatingTemperature | InductanceFrequency-Test | Features | MountingType | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LAYPH10040DL100MGAFIXED IND 10UH 2A 35 MOHM SMD |
2,670 | 0.65 |
RFQ |
Nonstandard | Tape & Reel (TR) | LAYP | Active | Wirewound | Ferrite | 10 µH | ±20% | 2 A | 3.7A | Shielded | 29mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | |
|
LAYPH10040DL1R5NGAFIXED IND 1.5UH 3.3A 12 MOHM SMD |
3,701 | 0.65 |
RFQ |
Nonstandard | Tape & Reel (TR) | LAYP | Active | Wirewound | Ferrite | 1.5 µH | ±30% | 3.3 A | 8.6A | Shielded | 9.6mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | |
|

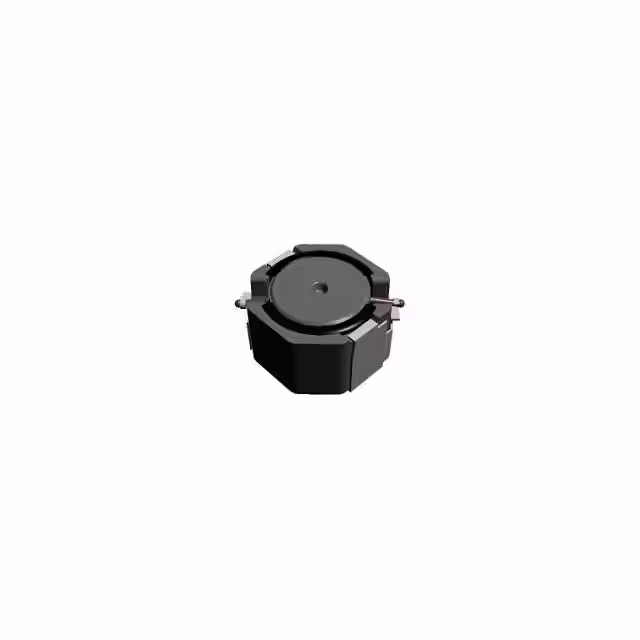

LAYPH10040DL6R8NGAFIXED IND 6.8UH 2.3A 31 MOHM SMD |
2,495 | 0.65 |
RFQ |
Nonstandard | Tape & Reel (TR) | LAYP | Active | Wirewound | Ferrite | 6.8 µH | ±30% | 2.3 A | 4.3A | Shielded | 24mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | |
|
NS12565T100MNFIXED IND 10UH 4.75A 23.88 MOHM |
3,265 | 0.67 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | NS | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 4.75 A | 6.96A | Shielded | 23.88mOhm Max | - | 15.8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
NS12565T101MNFIXED IND 100UH 1.81A 147.6 MOHM |
3,812 | 0.67 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | NS | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 1.81 A | 2.23A | Shielded | 147.6mOhm Max | - | 5.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
NS12565T221MNFIXED IND 220UH 1.18A 327.6 MOHM |
3,266 | 0.67 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | NS | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 1.18 A | 1.39A | Shielded | 327.6mOhm Max | - | 3.6MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
LSRNJ12565GL151MMYFIXED IND 150UH 1.54A 207.6 MOHM |
2,021 | 0.67 |
RFQ |
Nonstandard | Tape & Reel (TR) | LSRN | Active | Wirewound | Ferrite | 150 µH | ±20% | 1.54 A | 1.84A | Shielded | 208mOhm Max | - | 4.8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | |
|
LSRNJ12565GL2R0NMYFIXED IND 2UH 7.6A 9.6 MOHM SMD |
3,763 | 0.67 |
RFQ |
Nonstandard | Tape & Reel (TR) | LSRN | Active | Wirewound | Ferrite | 2 µH | ±30% | 7.6 A | 13.91A | Shielded | 9.6mOhm Max | - | 82.3MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | |
|
LSRNJ12565GL220MMYFIXED IND 22UH 3.91A 37.2MOHM SM |
2,755 | 0.67 |
RFQ |
Nonstandard | Tape & Reel (TR) | LSRN | Active | Wirewound | Ferrite | 22 µH | ±20% | 3.91 A | 4.87A | Shielded | 37.2mOhm Max | - | 12.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | |
|
LSRNJ12565GL330MMYFIXED IND 33UH 3.22A 46.8MOHM SM |
2,485 | 0.67 |
RFQ |
Nonstandard | Tape & Reel (TR) | LSRN | Active | Wirewound | Ferrite | 33 µH | ±20% | 3.22 A | 3.89A | Shielded | 46.8mOhm Max | - | 9.1MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | |
|
LSRNJ12565GL7R0NMYFIXED IND 7UH 5.21A 19.44MOHM SM |
2,158 | 0.67 |
RFQ |
Nonstandard | Tape & Reel (TR) | LSRN | Active | Wirewound | Ferrite | 7 µH | ±30% | 5.21 A | 7.93A | Shielded | 19.5mOhm Max | - | 24.6MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | |
|
LLRNJ12565GL2R0NMYFIXED IND 2UH 7.6A 9.6 MOHM SMD |
3,338 | 0.67 |
RFQ |
Nonstandard | Tape & Reel (TR) | LLRN | Active | Wirewound | Ferrite | 2 µH | ±30% | 7.6 A | 13.91A | Shielded | 8mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | |
|

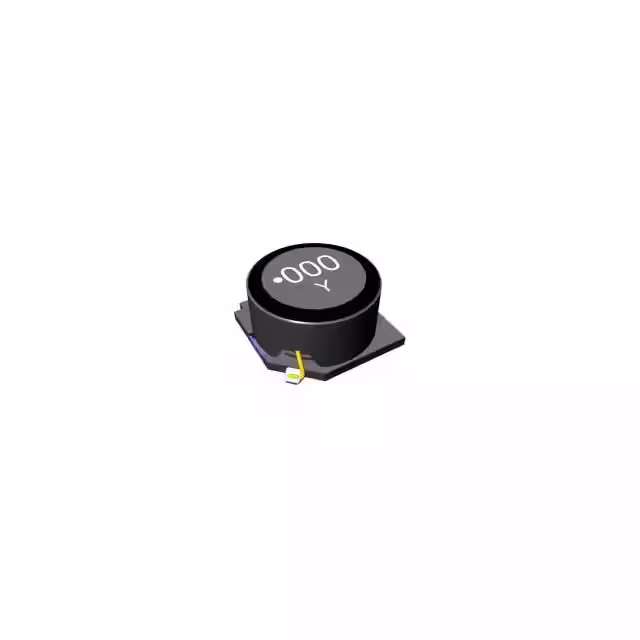

LLRNJ12565GL151MMYFIXED IND 150UH 1.54A 207.6 MOHM |
2,213 | 0.67 |
RFQ |
Nonstandard | Tape & Reel (TR) | LLRN | Active | Wirewound | Ferrite | 150 µH | ±20% | 1.54 A | 1.84A | Shielded | 173mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | |
|
LLRNJ12565GL220MMYFIXED IND 22UH 3.91A 37.2MOHM SM |
3,053 | 0.67 |
RFQ |
Nonstandard | Tape & Reel (TR) | LLRN | Active | Wirewound | Ferrite | 22 µH | ±20% | 3.91 A | 4.87A | Shielded | 31mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | |
|
LLRNJ12565GL470MMYFIXED IND 47UH 2.78A 69 MOHM SMD |
2,626 | 0.67 |
RFQ |
Nonstandard | Tape & Reel (TR) | LLRN | Active | Wirewound | Ferrite | 47 µH | ±20% | 2.78 A | 3.34A | Shielded | 57.5mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | |
|
LLRNJ12565GL221MMYFIXED IND 220UH 1.18A 327.6 MOHM |
3,971 | 0.67 |
RFQ |
Nonstandard | Tape & Reel (TR) | LLRN | Active | Wirewound | Ferrite | 220 µH | ±20% | 1.18 A | 1.39A | Shielded | 273mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | |
|
LLRNJ12565GL7R0NMYFIXED IND 7UH 5.21A 19.44MOHM SM |
3,977 | 0.67 |
RFQ |
Nonstandard | Tape & Reel (TR) | LLRN | Active | Wirewound | Ferrite | 7 µH | ±30% | 5.21 A | 7.93A | Shielded | 16.2mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | |
|
LLRNJ12565GL150MMYFIXED IND 15UH 4.33A 28.44 MOHM |
3,972 | 0.67 |
RFQ |
Nonstandard | Tape & Reel (TR) | LLRN | Active | Wirewound | Ferrite | 15 µH | ±20% | 4.33 A | 5.84A | Shielded | 23.7mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | |
|
LSRNJ12565GL101MMYFIXED IND 100UH 1.81A 147.6 MOHM |
3,930 | 0.67 |
RFQ |
Nonstandard | Tape & Reel (TR) | LSRN | Active | Wirewound | Ferrite | 100 µH | ±20% | 1.81 A | 2.23A | Shielded | 148mOhm Max | - | 5.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | |
|
LSRNJ12565GL470MMYFIXED IND 47UH 2.78A 69 MOHM SMD |
3,732 | 0.67 |
RFQ |
Nonstandard | Tape & Reel (TR) | LSRN | Active | Wirewound | Ferrite | 47 µH | ±20% | 2.78 A | 3.34A | Shielded | 69mOhm Max | - | 7.2MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
