| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Material-Core | Inductance | Tolerance | CurrentRating(Amps) | Current-Saturation(Isat) | Shielding | DCResistance(DCR) | Q@Freq | Frequency-SelfResonant | Ratings | OperatingTemperature | InductanceFrequency-Test | Features | MountingType | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTH7F-560K56UH AXIAL PWR LINE INDUCTOR |
120 | 3.55 |
RFQ |
Datasheet |
Axial | Tape & Reel (TR) | CTH7F | Active | - | - | 56 µH | ±10% | 800 mA | 1.7A | Unshielded | 130mOhm Max | - | 6MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial |
|
|
CTH7F-150K15UH AXIAL PWR LINE INDUCTOR |
110 | 3.55 |
RFQ |
Datasheet |
Axial | Tape & Reel (TR) | CTH7F | Active | - | - | 15 µH | ±10% | 1.3 A | 3.3A | Unshielded | 40mOhm Max | - | 12MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial |
|
|
CTH7F-153K15000UH AXIAL PWR LINE INDUCTOR |
107 | 3.55 |
RFQ |
Datasheet |
Axial | Tape & Reel (TR) | CTH7F | Active | - | - | 15 mH | ±10% | 40 mA | 100mA | Unshielded | 43Ohm Max | - | 230kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial |
|
|
CTH7F-120K12UH AXIAL PWR LINE INDUCTOR |
105 | 3.55 |
RFQ |
Datasheet |
Axial | Tape & Reel (TR) | CTH7F | Active | - | - | 12 µH | ±10% | 1.3 A | 3.6A | Unshielded | 40mOhm Max | - | 16MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial |
|

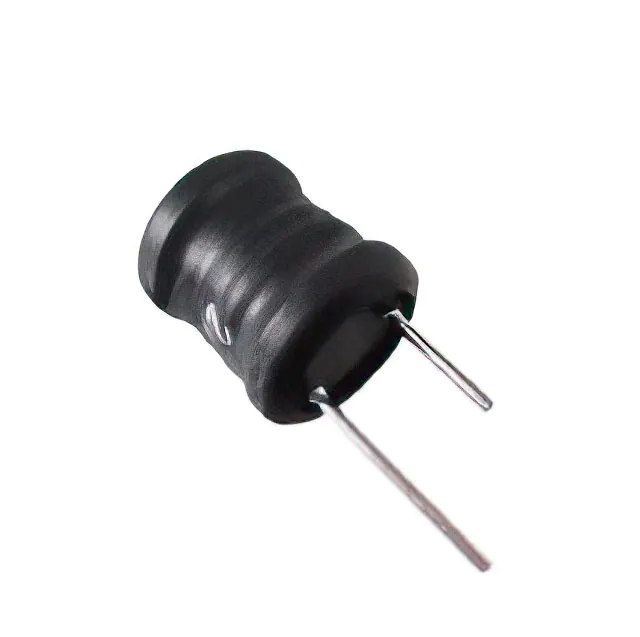

CTRL5480F-5-274K27000UH RADIAL FIXED INDUCTR |
484 | 4.03 |
RFQ |
Radial, Vertical Cylinder | Bulk | CTRL5480F-5 | Active | - | - | 270 mH | ±10% | 60 mA | 39mA | Unshielded | 174Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | |
|

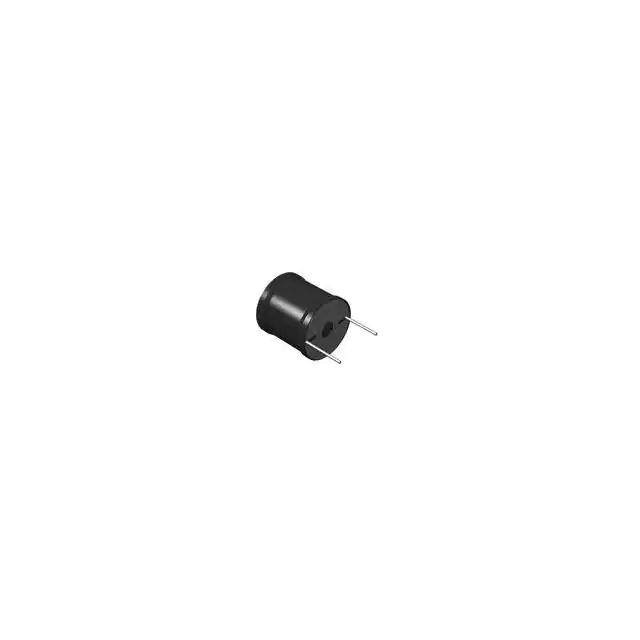

CTDR1F-820K82UH RADIAL DRUM CORE INDUCTOR |
202 | 4.56 |
RFQ |
Datasheet |
Radial, Vertical Cylinder | Bulk | CTDR1F | Active | Drum Core, Wirewound | - | 82 µH | ±10% | - | 2.8A | Unshielded | 83mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder |
|
CTH8RF-272K2700UH RADIAL PWR LINE INDUCTOR |
510 | 4.70 |
RFQ |
Datasheet |
Radial, Vertical Cylinder | Bulk | CTH8RF | Active | - | - | 2.7 mH | ±10% | 400 mA | 530mA | Unshielded | 2.1Ohm Max | - | 650kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial |
|
|
CTH8RF-271K270UH RADIAL PWR LINE INDUCTOR |
305 | 4.70 |
RFQ |
Datasheet |
Radial, Vertical Cylinder | Bulk | CTH8RF | Active | - | - | 270 µH | ±10% | 1.6 A | 1.6A | Unshielded | 210mOhm Max | - | 2MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial |
|
|
CTH8RF-101K100UH RADIAL PWR LINE INDUCTOR |
232 | 4.70 |
RFQ |
Datasheet |
Radial, Vertical Cylinder | Bulk | CTH8RF | Active | - | - | 100 µH | ±10% | 1.6 A | 2.8A | Unshielded | 90mOhm Max | - | 3MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial |
|

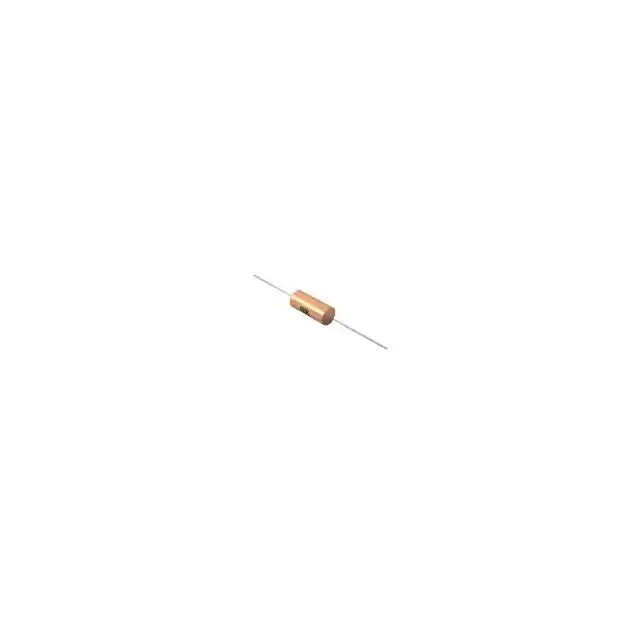

CTS4F-6R8J6.8UH XIALSHIELDED INDUCTOR |
2,503 | 4.90 |
RFQ |
Datasheet |
Axial | Tape & Reel (TR) | CTS4F | Active | Molded | - | 6.8 µH | ±5% | 560 mA | 560mA | Shielded | 750mOhm Max | 42 @ 7.9MHz | 62MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | Axial |
|
|
CTS4F-330J33UH XIALSHIELDED INDUCTOR |
2,500 | 4.90 |
RFQ |
Datasheet |
Axial | Tape & Reel (TR) | CTS4F | Active | Molded | - | 33 µH | ±5% | 505 mA | 190mA | Shielded | 930mOhm Max | 50 @ 2.5MHz | 33MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial |
|
|
CTS4F-222K2200UH XIALSHIELDED INDUCTOR |
2,135 | 4.90 |
RFQ |
Datasheet |
Axial | Tape & Reel (TR) | CTS4F | Active | Molded | - | 2.2 mH | ±10% | 103 mA | 27mA | Shielded | 22Ohm Max | 70 @ 250kHz | 2.2MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial |
|
|
CTS4F-103K100UH AXIAL SHELDED INDUCTR |
1,972 | 4.90 |
RFQ |
Datasheet |
Axial | Tape & Reel (TR) | CTS4F | Active | Molded | - | 10 mH | ±10% | 50 mA | 14mA | Shielded | 93Ohm Max | 70 @ 250kHz | 1.3MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial |
|
|
CTS4F-154K1500UH AXIAL SHELDED INDUCTR |
402 | 4.90 |
RFQ |
Datasheet |
Axial | Tape & Reel (TR) | CTS4F | Active | Molded | - | 150 mH | ±10% | 15 mA | 3mA | Shielded | 560Ohm Max | 30 @ 25kHz | 180kHz | - | -55°C ~ 125°C | 25 kHz | - | Through Hole | Axial |
|
|
CTS4F-101K100UH XIALSHIELDED INDUCTOR |
250 | 4.90 |
RFQ |
Datasheet |
Axial | Tape & Reel (TR) | CTS4F | Active | Molded | - | 100 µH | ±10% | 322 mA | 120mA | Shielded | 2.3Ohm Max | 65 @ 2.5MHz | 12MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial |
|
|
CTS4F-2R2J2.2UH XIALSHIELDED INDUCTOR |
150 | 4.90 |
RFQ |
Datasheet |
Axial | Tape & Reel (TR) | CTS4F | Active | Molded | - | 2.2 µH | ±5% | 1.29 A | 1.29A | Shielded | 140mOhm Max | 42 @ 7.9MHz | 108MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | Axial |
|
CTHR3F-500K50UH FILTER INDUCTOR |
1,900 | 4.91 |
RFQ |
Datasheet |
Radial, Horizontal Cylinder | Bulk | CTHRF | Active | Wirewound | - | 50 µH | ±10% | 5.6 A | 8A | Unshielded | 50mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial |
|
|
CTHR3F-100K10UH FILTER INDUCTOR |
648 | 4.91 |
RFQ |
Datasheet |
Radial, Horizontal Cylinder | Bulk | CTHRF | Active | Wirewound | - | 10 µH | ±10% | 9 A | 19A | Unshielded | 18mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial |
|
|

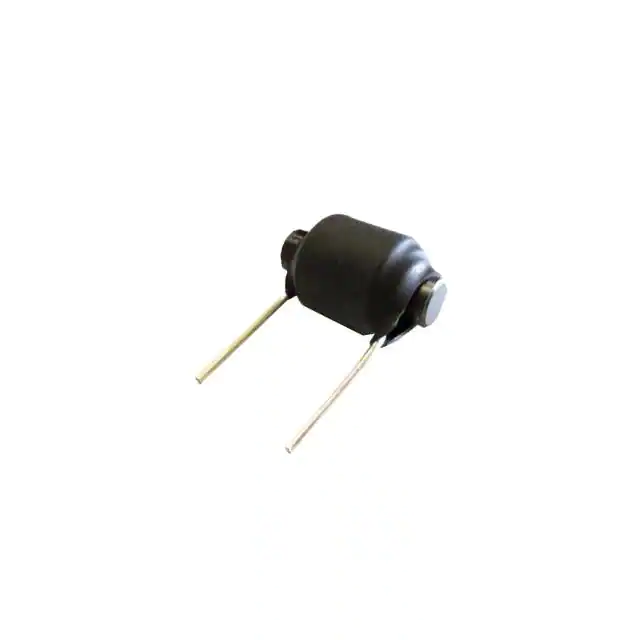

CTHR10F-500K50UH FILTER INDUCTOR |
880 | 5.32 |
RFQ |
Datasheet |
Radial, Horizontal Cylinder | Bulk | CTHRF | Active | Wirewound | - | 50 µH | ±10% | 11 A | 10A | Unshielded | 25mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial |
|

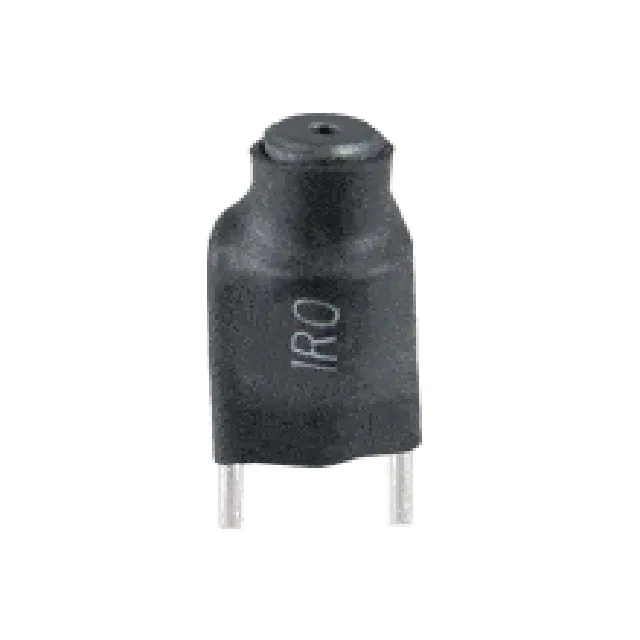

CTVF-0-221K-03220UH RADIAL POWER INDUCTOR |
105 | 5.69 |
RFQ |
Radial, Vertical Cylinder | Bulk | CTVF-0 | Active | Wirewound | - | 220 µH | ±10% | 2.1 A | - | Unshielded | 210mOhm Max | - | - | - | -55°C ~ 125°C | 15.75 kHz | - | Through Hole | Radial |
