| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Material-Core | Inductance | Tolerance | CurrentRating(Amps) | Current-Saturation(Isat) | Shielding | DCResistance(DCR) | Q@Freq | Frequency-SelfResonant | Ratings | OperatingTemperature | InductanceFrequency-Test | Features | MountingType | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

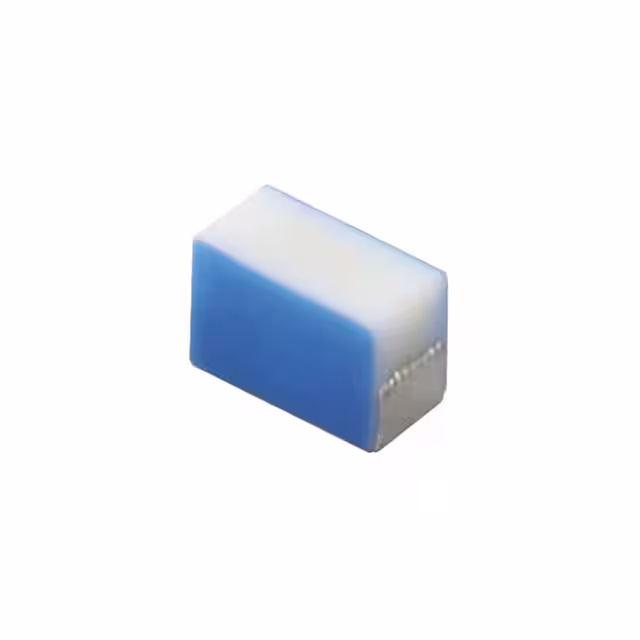

LQP03HQ2N0W02DFIXED IND 2NH 600MA 120MOHM SMD |
3,971 | 0.05 |
RFQ |
Datasheet |
0201 (0603 Metric) | Tape & Reel (TR) | LQP03 | Active | Thin Film | - | 2 nH | ±0.05nH | 600 mA | - | Unshielded | 120mOhm Max | 20 @ 500MHz | 9GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) |
|
LQP03HQ2N2W02DFIXED IND 2.2NH 600MA 0201 0.05N |
2,436 | 0.05 |
RFQ |
Datasheet |
0201 (0603 Metric) | Tape & Reel (TR) | LQP03 | Active | Thin Film | - | 2.2 nH | ±0.05nH | 600 mA | - | Unshielded | 120mOhm Max | 20 @ 500MHz | 9GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 |
|
|
LQP03HQ1N8W02DFIXED IND 1.8NH 800MA 0201 0.05N |
2,266 | 0.05 |
RFQ |
Datasheet |
0201 (0603 Metric) | Tape & Reel (TR) | LQP03 | Active | Thin Film | - | 1.8 nH | ±0.05nH | 800 mA | - | Unshielded | 80mOhm Max | 20 @ 500MHz | 10GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 |
|
|
LQP03HQ0N5W02DFIXED IND 0.5NH 1100MA 0201 0.05 |
2,024 | 0.05 |
RFQ |
Datasheet |
0201 (0603 Metric) | Tape & Reel (TR) | LQP03 | Active | Thin Film | - | 500 pH | ±0.05nH | 1.1 A | - | Unshielded | 40mOhm Max | 20 @ 500MHz | 20GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 |
|
LQW15AN23NJ00DFIXED IND 23NH 310MA 300MOHM SMD |
3,323 | 0.05 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR) | LQW15 | Active | Wirewound | Air | 23 nH | ±5% | 310 mA | - | Unshielded | 300mOhm Max | 25 @ 250MHz | 3.8GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - |
|
|
LQW15AN2N4D00DFIXED IND 2.4NH 850MA 50MOHM SMD |
2,540 | 0.05 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR) | LQW15 | Active | Wirewound | Air | 2.4 nH | ±0.5nH | 850 mA | - | Unshielded | 50mOhm Max | 20 @ 250MHz | 15GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - |
|
|
LQW15AN2N5D00DFIXED IND 2.5NH 850MA 50MOHM SMD |
2,732 | 0.05 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR) | LQW15 | Active | Wirewound | Air | 2.5 nH | ±0.5nH | 850 mA | - | Unshielded | 50mOhm Max | 20 @ 250MHz | 15GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - |
|
|
LQW15AN5N8D00DFIXED IND 5.8NH 700MA 120MOHM SM |
2,040 | 0.05 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR) | LQW15 | Active | Wirewound | Air | 5.8 nH | ±0.5nH | 700 mA | - | Unshielded | 120mOhm Max | 25 @ 250MHz | 8GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - |
|
|
LQW15AN72NJ00DFIXED IND 72NH 135MA 2.1 OHM SMD |
2,004 | 0.05 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR) | LQW15 | Active | Wirewound | Air | 72 nH | ±5% | 135 mA | - | Unshielded | 2.1Ohm Max | 20 @ 150MHz | 2.5GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - |
|
|
LQW15AN7N3J00DFIXED IND 7.3NH 570MA 130MOHM SM |
3,901 | 0.05 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR) | LQW15 | Active | Wirewound | Air | 7.3 nH | ±5% | 570 mA | - | Unshielded | 130mOhm Max | 25 @ 250MHz | 6GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - |
|
|
LQW15AN6N3D00DFIXED IND |
3,494 | 0.05 |
RFQ |
- | Tape & Reel (TR) | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
LQW15AN4N4D00DFIXED IND |
3,768 | 0.05 |
RFQ |
- | Tape & Reel (TR) | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
LQW15AN4N5D00DFIXED IND |
2,355 | 0.05 |
RFQ |
- | Tape & Reel (TR) | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
LQW15AN9N9J00DFIXED IND |
2,473 | 0.05 |
RFQ |
- | Tape & Reel (TR) | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
LQW15AN8N6J00DFIXED IND |
3,301 | 0.05 |
RFQ |
- | Tape & Reel (TR) | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
LQW15AN7N1J00DFIXED IND |
3,083 | 0.05 |
RFQ |
- | Tape & Reel (TR) | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
LQW15AN3N2D00DFIXED IND |
3,515 | 0.05 |
RFQ |
- | Tape & Reel (TR) | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
LQW15AN6N9J00DFIXED IND |
2,323 | 0.05 |
RFQ |
- | Tape & Reel (TR) | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
LQW15AN9N7J00DFIXED IND |
3,070 | 0.05 |
RFQ |
- | Tape & Reel (TR) | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
LQW15AN6N4D00DFIXED IND |
2,384 | 0.05 |
RFQ |
- | Tape & Reel (TR) | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
