Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Type	Material-Core	Inductance	Tolerance	CurrentRating(Amps)	Current-Saturation(Isat)	Shielding	DCResistance(DCR)	Q@Freq	Frequency-SelfResonant	Ratings	OperatingTemperature	InductanceFrequency-Test	Features	MountingType	Size/Dimension

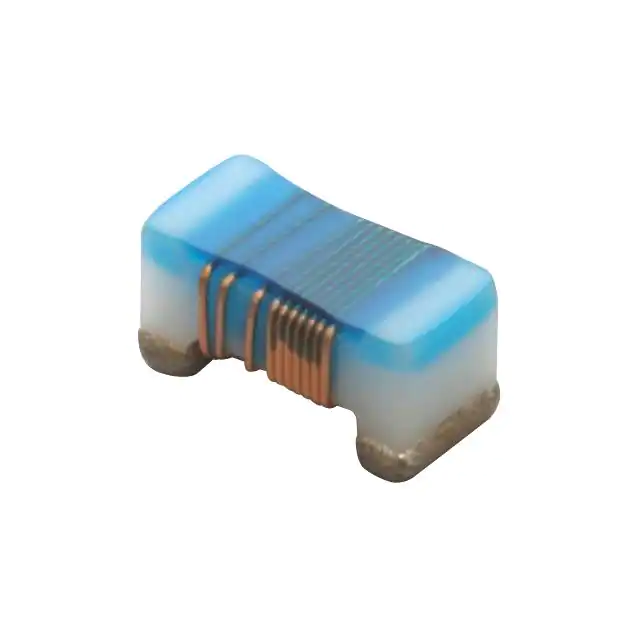

LQW15AN9N1G00D FIXED IND 9.1NH 540MA 140MOHM SM Murata Electronics	118,758	0.17	RFQ	Datasheet	0402 (1005 Metric)	Tape & Reel (TR),Cut Tape (CT)	LQW15	Active	Wirewound	Non-Magnetic	9.1 nH	±2%	540 mA	-	Unshielded	140mOhm Max	25 @ 250MHz	5.5GHz	-	-55°C ~ 125°C	100 MHz	-	Surface Mount	-
LQW15AN1N5B00D FIXED IND 1.5NH 1A 30 MOHM SMD Murata Electronics	75,746	0.17	RFQ	Datasheet	0402 (1005 Metric)	Tape & Reel (TR),Cut Tape (CT)	LQW15	Active	Wirewound	Non-Magnetic	1.5 nH	±0.1nH	1 A	-	Unshielded	30mOhm Max	10 @ 250MHz	18GHz	-	-55°C ~ 125°C	100 MHz	-	Surface Mount	-
LQW15AN4N3B00D FIXED IND 4.3NH 750MA 70MOHM SMD Murata Electronics	57,538	0.17	RFQ	Datasheet	0402 (1005 Metric)	Tape & Reel (TR),Cut Tape (CT)	LQW15	Active	Wirewound	Non-Magnetic	4.3 nH	±0.1nH	750 mA	-	Unshielded	70mOhm Max	25 @ 250MHz	10GHz	-	-55°C ~ 125°C	100 MHz	-	Surface Mount	-
LQW18ANR47J00D FIXED IND 470NH 75MA 7 OHM SMD Murata Electronics	256,911	0.16	RFQ	Datasheet	0603 (1608 Metric)	Tape & Reel (TR),Cut Tape (CT)	LQW18	Active	Wirewound	Non-Magnetic	470 nH	±5%	75 mA	-	Unshielded	7Ohm Max	30 @ 100MHz	700MHz	-	-55°C ~ 125°C	100 MHz	-	Surface Mount	0603 (1608 Metric)
LQW15AN3N3D10D FIXED IND 3.3NH 900MA 40MOHM SMD Murata Electronics	69,311	0.18	RFQ	Datasheet	0402 (1005 Metric)	Tape & Reel (TR),Cut Tape (CT)	LQW15	Active	Wirewound	Non-Magnetic	3.3 nH	±0.5nH	900 mA	-	Unshielded	40mOhm Max	30 @ 250MHz	12GHz	-	-55°C ~ 125°C	100 MHz	-	Surface Mount	-

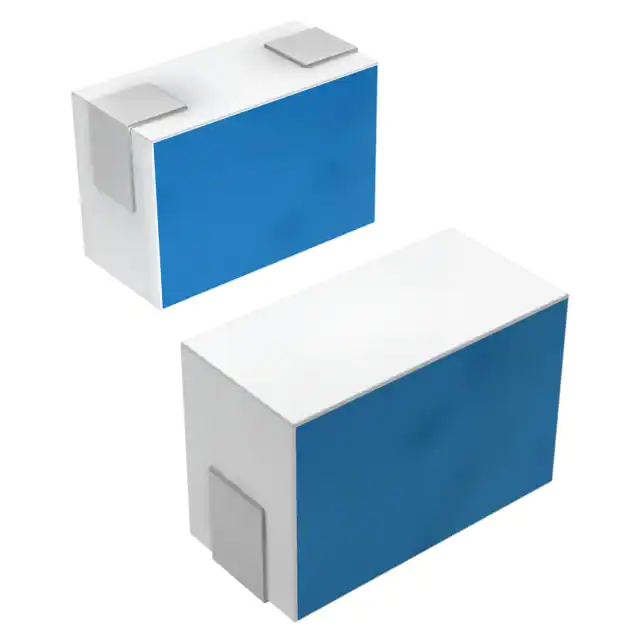

LQP03HQ2N3B02D FIXED IND 2.3NH 600MA 120MOHM SM Murata Electronics	382,680	0.18	RFQ	Datasheet	0201 (0603 Metric)	Tape & Reel (TR),Cut Tape (CT)	LQP03	Active	Thick Film	Non-Magnetic	2.3 nH	±0.1nH	600 mA	-	Unshielded	120mOhm Max	20 @ 500MHz	9GHz	-	-55°C ~ 125°C	500 MHz	-	Surface Mount	0201 (0603 Metric)
LQP03HQ4N7H02D FIXED IND 4.7NH 400MA 250MOHM SM Murata Electronics	359,446	0.18	RFQ	Datasheet	0201 (0603 Metric)	Tape & Reel (TR),Cut Tape (CT)	LQP03	Active	Thick Film	Non-Magnetic	4.7 nH	±3%	400 mA	-	Unshielded	250mOhm Max	20 @ 500MHz	7GHz	-	-55°C ~ 125°C	500 MHz	-	Surface Mount	0201 (0603 Metric)
LQP03HQ2N1B02D FIXED IND 2.1NH 600MA 120MOHM SM Murata Electronics	277,534	0.18	RFQ	Datasheet	0201 (0603 Metric)	Tape & Reel (TR),Cut Tape (CT)	LQP03	Active	Thick Film	Non-Magnetic	2.1 nH	±0.1nH	600 mA	-	Unshielded	120mOhm Max	20 @ 500MHz	9GHz	-	-55°C ~ 125°C	500 MHz	-	Surface Mount	0201 (0603 Metric)
LQW15AN2N2C10D FIXED IND 2.2NH 1A 27 MOHM SMD Murata Electronics	559,811	0.19	RFQ	Datasheet	0402 (1005 Metric)	Tape & Reel (TR),Cut Tape (CT)	LQW15	Active	Wirewound	Non-Magnetic	2.2 nH	±0.2nH	1 A	-	Unshielded	27mOhm Max	25 @ 250MHz	14GHz	-	-55°C ~ 125°C	100 MHz	-	Surface Mount	-
LQW15AN3N6C10D FIXED IND 3.6NH 900MA 40MOHM SMD Murata Electronics	130,000	0.19	RFQ	Datasheet	0402 (1005 Metric)	Tape & Reel (TR),Cut Tape (CT)	LQW15	Active	Wirewound	Non-Magnetic	3.6 nH	±0.2nH	900 mA	-	Unshielded	40mOhm Max	30 @ 250MHz	9.5GHz	-	-55°C ~ 125°C	100 MHz	-	Surface Mount	-
LQW15AN5N6C10D FIXED IND 5.6NH 800MA 51MOHM SMD Murata Electronics	25,492	0.19	RFQ	Datasheet	0402 (1005 Metric)	Tape & Reel (TR),Cut Tape (CT)	LQW15	Active	Wirewound	Non-Magnetic	5.6 nH	±0.2nH	800 mA	-	Unshielded	51mOhm Max	30 @ 250MHz	8GHz	-	-55°C ~ 125°C	100 MHz	-	Surface Mount	-

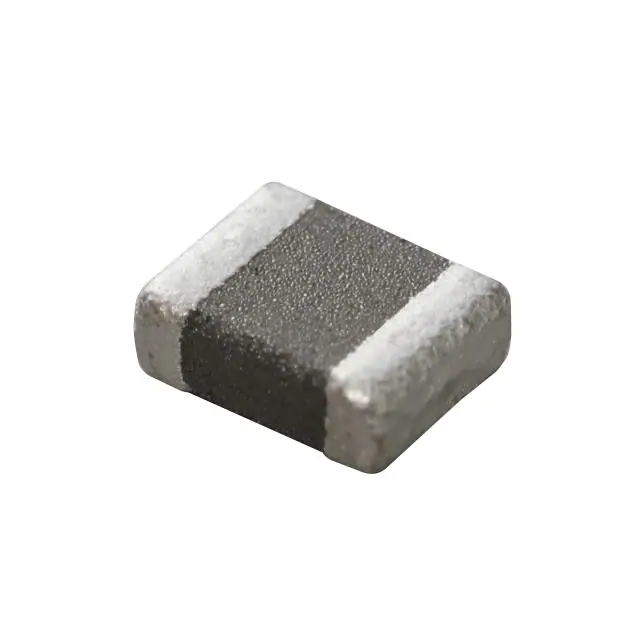

DFE2HCAH2R2MJ0L FIXED IND 2.2UH 1.9A 101MOHM SMD Murata Electronics	22,885	0.72	RFQ	Datasheet	1008 (2520 Metric)	Tape & Reel (TR),Cut Tape (CT)	DFE2H	Active	Drum Core, Wirewound	Metal	2.2 µH	±20%	1.9 A	2.5A	Shielded	101mOhm Max	-	-	AEC-Q200	-40°C ~ 150°C	1 MHz	-	Surface Mount	1008

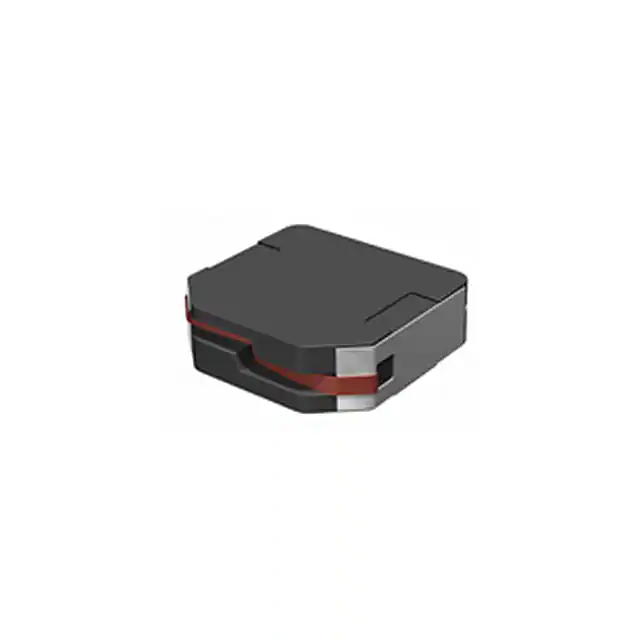

1227AS-H-2R2M=P2 FIXED IND 2.2UH 2.6A 47 MOHM SMD Murata Electronics	14,433	0.69	RFQ	Datasheet	Nonstandard	Tape & Reel (TR),Cut Tape (CT)	-	Active	Drum Core, Wirewound	Ferrite	2.2 µH	±20%	2.6 A	1.7A	Shielded	47mOhm Max	-	-	-	-40°C ~ 85°C	100 kHz	-	Surface Mount	-
LQW18AN22NG00D FIXED IND 22NH 500MA 170MOHM SMD Murata Electronics	55,200	0.17	RFQ	Datasheet	0603 (1608 Metric)	Tape & Reel (TR),Cut Tape (CT)	LQW18	Active	Wirewound	Non-Magnetic	22 nH	±2%	500 mA	-	Unshielded	170mOhm Max	40 @ 250MHz	4.6GHz	-	-55°C ~ 125°C	100 MHz	-	Surface Mount	0603 (1608 Metric)
LQW15AN3N3C80D FIXED IND 3.3NH 2A 30 MOHM SMD Murata Electronics	30,466	0.23	RFQ	Datasheet	0402 (1005 Metric)	Tape & Reel (TR),Cut Tape (CT)	LQW15	Active	Wirewound	Non-Magnetic	3.3 nH	±0.2nH	2 A	-	Unshielded	30mOhm Max	30 @ 250MHz	14GHz	-	-55°C ~ 125°C	100 MHz	-	Surface Mount	-
LQW15AN2N2B80D FIXED IND 2.2NH 2.53A 22MOHM SMD Murata Electronics	539,755	0.25	RFQ	Datasheet	0402 (1005 Metric)	Tape & Reel (TR),Cut Tape (CT)	LQW15	Active	Wirewound	Non-Magnetic	2.2 nH	±0.1nH	2.53 A	-	Unshielded	22mOhm Max	30 @ 250MHz	15.5GHz	-	-55°C ~ 125°C	100 MHz	-	Surface Mount	-
LQW15AN22NG80D FIXED IND 22NH 780MA 202MOHM SMD Murata Electronics	178,483	0.25	RFQ	Datasheet	0402 (1005 Metric)	Tape & Reel (TR),Cut Tape (CT)	LQW15	Active	Wirewound	Non-Magnetic	22 nH	±2%	780 mA	-	Unshielded	202mOhm Max	30 @ 250MHz	4.5GHz	-	-55°C ~ 125°C	100 MHz	-	Surface Mount	-

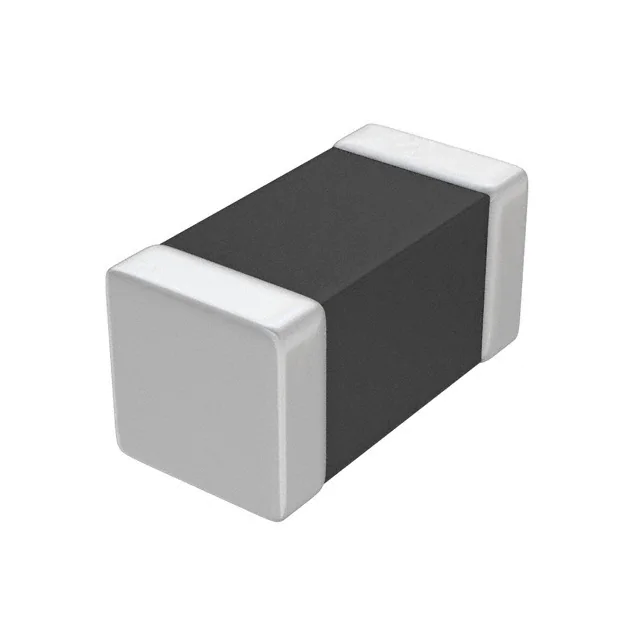

LQG18HNR10J00D FIXED IND 100NH 300MA 900MOHM SM Murata Electronics	255,076	0.24	RFQ	Datasheet	0603 (1608 Metric)	Tape & Reel (TR),Cut Tape (CT)	LQG18	Active	Multilayer	Air	100 nH	±5%	350 mA	-	Unshielded	900mOhm Max	12 @ 100MHz	800MHz	-	-40°C ~ 85°C	100 MHz	-	Surface Mount	0603 (1608 Metric)
LQM18PN4R7MFRL FIXED IND 4.7UH 620MA 550MOHM SM Murata Electronics	298,666	0.23	RFQ	Datasheet	0603 (1608 Metric)	Tape & Reel (TR),Cut Tape (CT)	LQM18	Active	Multilayer	Ferrite	4.7 µH	±20%	620 mA	-	Shielded	550mOhm Max	-	40MHz	-	-40°C ~ 85°C	1 MHz	-	Surface Mount	0603 (1608 Metric)
LQM21PN1R0MC0D FIXED IND 1UH 800MA 238 MOHM SMD Murata Electronics	182,773	0.23	RFQ	Datasheet	0805 (2012 Metric)	Tape & Reel (TR),Cut Tape (CT)	LQM21	Active	Multilayer	Ferrite	1 µH	±20%	800 mA	-	Shielded	238mOhm Max	-	90MHz	-	-55°C ~ 125°C	1 MHz	-	Surface Mount	0805 (2012 Metric)
