| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Material-Core | Inductance | Tolerance | CurrentRating(Amps) | Current-Saturation(Isat) | Shielding | DCResistance(DCR) | Q@Freq | Frequency-SelfResonant | Ratings | OperatingTemperature | InductanceFrequency-Test | Features | MountingType | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LQH55PN2R7NR0LFIXED IND 2.7UH 2.15A 40 MOHM |
3,345 | 0.00 |
RFQ |
Datasheet |
2220 (5750 Metric) | Cut Tape (CT) | LQH55 | Obsolete | Wirewound | - | 2.7 µH | ±30% | 2.15 A | 2.07A | Shielded | 40mOhm | - | 50MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - |
|
|
LQH55PN3R3NR0LFIXED IND 3.3UH 2A 44 MOHM SMD |
3,087 | 0.00 |
RFQ |
Datasheet |
2220 (5750 Metric) | Cut Tape (CT) | LQH55 | Obsolete | Wirewound | - | 3.3 µH | ±30% | 2 A | 2A | Shielded | 44mOhm | - | 35MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - |
|
|
LQH55PN4R7NR0LFIXED IND 4.7UH 1.75A 60 MOHM |
3,402 | 0.00 |
RFQ |
Datasheet |
2220 (5750 Metric) | Cut Tape (CT) | LQH55 | Obsolete | Wirewound | - | 4.7 µH | ±30% | 1.75 A | 1.4A | Shielded | 60mOhm | - | 30MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - |
|
|
LQH55PN6R8NR0LFIXED IND 6.8UH 1.45A 87 MOHM |
3,748 | 0.00 |
RFQ |
Datasheet |
2220 (5750 Metric) | Cut Tape (CT) | LQH55 | Obsolete | Wirewound | - | 6.8 µH | ±30% | 1.45 A | 1.2A | Shielded | 87mOhm | - | 25MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - |
|
|
LQH55PN100MR0LFIXED IND 10UH 1.25A 110 MOHM |
2,533 | 0.00 |
RFQ |
Datasheet |
2220 (5750 Metric) | Cut Tape (CT) | LQH55 | Obsolete | Wirewound | - | 10 µH | ±20% | 1.25 A | 1A | Shielded | 110mOhm | - | 20MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - |
|
|
LQH55PN220MR0LFIXED IND 22UH 850MA 260 MOHM |
3,422 | 0.00 |
RFQ |
Datasheet |
2220 (5750 Metric) | Cut Tape (CT) | LQH55 | Obsolete | Wirewound | - | 22 µH | ±20% | 850 mA | 670mA | Shielded | 260mOhm | - | 10MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - |
|
LQH3NPN4R7NJ0LFIXED IND 4.7UH 1.12A 156MOHM SM |
2,270 | 0.00 |
RFQ |
Datasheet |
1212 (3030 Metric) | Tape & Reel (TR),Cut Tape (CT) | LQH3 | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 1.12 A | 780mA | Shielded | 156mOhm Max | - | 65MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1212 (3030 Metric) |
|
|
LQH3NPN6R8NJ0LFIXED IND 6.8UH 850MA 252MOHM SM |
3,887 | 0.00 |
RFQ |
Datasheet |
1212 (3030 Metric) | Tape & Reel (TR),Cut Tape (CT) | LQH3 | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 850 mA | 700mA | Shielded | 252mOhm Max | - | 45MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1212 (3030 Metric) |
|
|
LQH3NPN100NJ0LFIXED IND 10UH 710MA 360MOHM SMD |
2,626 | 0.00 |
RFQ |
Datasheet |
1212 (3030 Metric) | Tape & Reel (TR),Cut Tape (CT) | LQH3 | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±30% | 710 mA | 560mA | Shielded | 360mOhm Max | - | 35MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1212 (3030 Metric) |
|
|
LQH3NPN150NJ0LFIXED IND 15UH 590MA 528MOHM SMD |
3,468 | 0.00 |
RFQ |
Datasheet |
1212 (3030 Metric) | Tape & Reel (TR),Cut Tape (CT) | LQH3 | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±30% | 590 mA | 440mA | Shielded | 528mOhm Max | - | 30MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1212 (3030 Metric) |
|
|
LQH3NPN220MJ0LFIXED IND 22UH 510MA 720MOHM SMD |
3,461 | 0.00 |
RFQ |
Datasheet |
1212 (3030 Metric) | Tape & Reel (TR),Cut Tape (CT) | LQH3 | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 510 mA | 350mA | Shielded | 720mOhm Max | - | 25MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1212 (3030 Metric) |
|
|
LQH3NPN330MJ0LFIXED IND 33UH 410MA 1.08OHM SMD |
2,901 | 0.00 |
RFQ |
Datasheet |
1212 (3030 Metric) | Tape & Reel (TR),Cut Tape (CT) | LQH3 | Obsolete | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 410 mA | 280mA | Shielded | 1.08Ohm Max | - | 20MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1212 (3030 Metric) |
|
|
LQH3NPN470MJ0LFIXED IND 47UH 350MA 1.56OHM SMD |
2,124 | 0.00 |
RFQ |
Datasheet |
1212 (3030 Metric) | Tape & Reel (TR),Cut Tape (CT) | LQH3 | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 350 mA | 200mA | Shielded | 1.56Ohm Max | - | 15MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1212 (3030 Metric) |
|

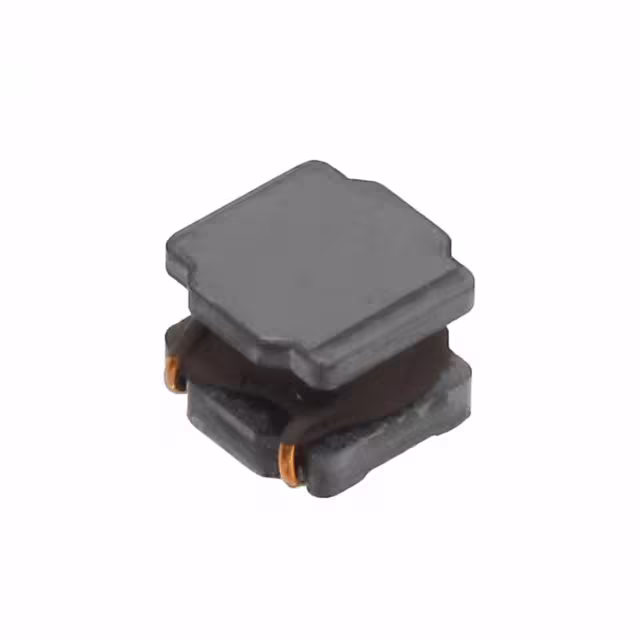

LQH6PPN1R0N43LFIXED IND 1UH 4.3A 9 MOHM SMD |
3,303 | 0.00 |
RFQ |
Datasheet |
2424 (6060 Metric) | Tape & Reel (TR),Cut Tape (CT) | LQH6 | Obsolete | Wirewound | - | 1 µH | ±30% | 4.3 A | 7.5A | Shielded | 9mOhm | - | 110MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - |
|
LQH6PPN1R5N43LFIXED IND 1.5UH 4.15A 10MOHM SMD |
3,493 | 0.00 |
RFQ |
Datasheet |
2424 (6060 Metric) | Tape & Reel (TR),Cut Tape (CT) | LQH6 | Obsolete | Wirewound | - | 1.5 µH | ±30% | 4.15 A | 6.5A | Shielded | 10mOhm | - | 60MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - |
|
LQH6PPN2R2N43LFIXED IND 2.2UH 4.1A 14 MOHM SMD |
3,556 | 0.00 |
RFQ |
Datasheet |
2424 (6060 Metric) | Tape & Reel (TR),Cut Tape (CT) | LQH6 | Obsolete | Wirewound | - | 2.2 µH | ±30% | 4.1 A | 5.6A | Shielded | 14mOhm | - | 30MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - |
|

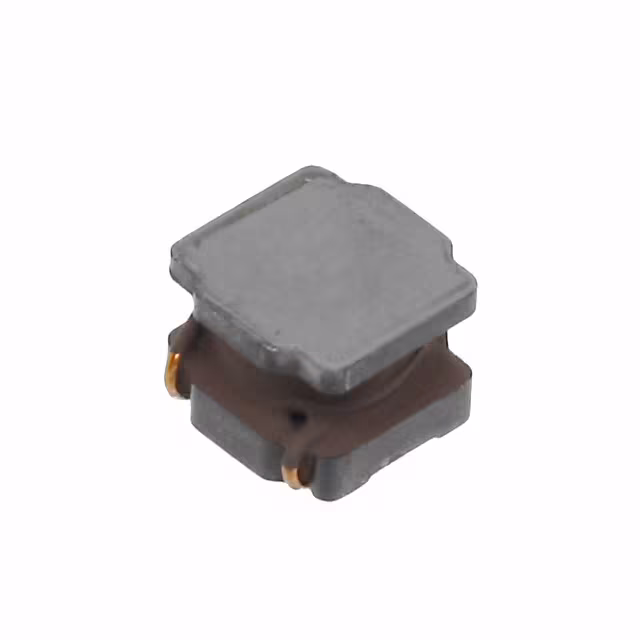

LQH6PPN3R3N43LFIXED IND 3.3UH 3.8A 16 MOHM SMD |
3,302 | 0.00 |
RFQ |
Datasheet |
2424 (6060 Metric) | Tape & Reel (TR),Cut Tape (CT) | LQH6 | Obsolete | Wirewound | - | 3.3 µH | ±30% | 3.8 A | 4.5A | Shielded | 16mOhm | - | 30MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - |
|
|
LQH6PPN4R7M43LFIXED IND 4.7UH 3.2A 20 MOHM SMD |
3,840 | 0.00 |
RFQ |
Datasheet |
2424 (6060 Metric) | Tape & Reel (TR),Cut Tape (CT) | LQH6 | Obsolete | Wirewound | - | 4.7 µH | ±20% | 3.2 A | 4A | Shielded | 20mOhm | - | 25MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - |
|

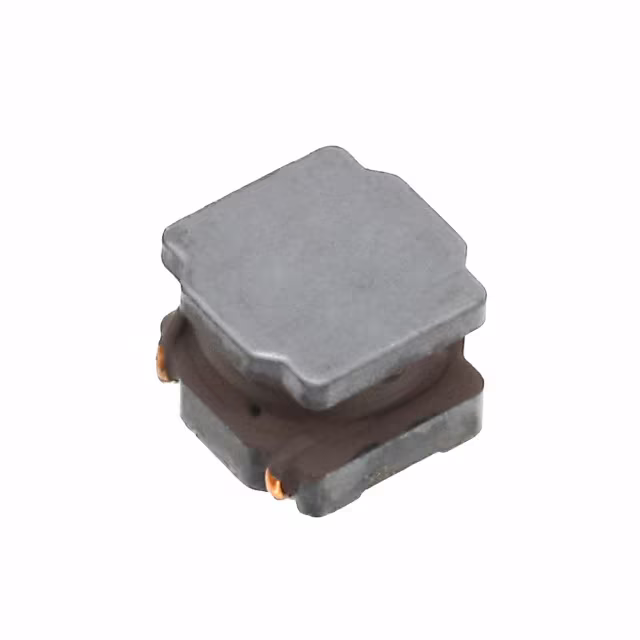

LQH6PPN6R8M43LFIXED IND 6.8UH 2.85A 28MOHM SMD |
3,293 | 0.00 |
RFQ |
Datasheet |
2424 (6060 Metric) | Tape & Reel (TR),Cut Tape (CT) | LQH6 | Obsolete | Wirewound | - | 6.8 µH | ±20% | 2.85 A | 3.2A | Shielded | 28mOhm | - | 20MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - |
|

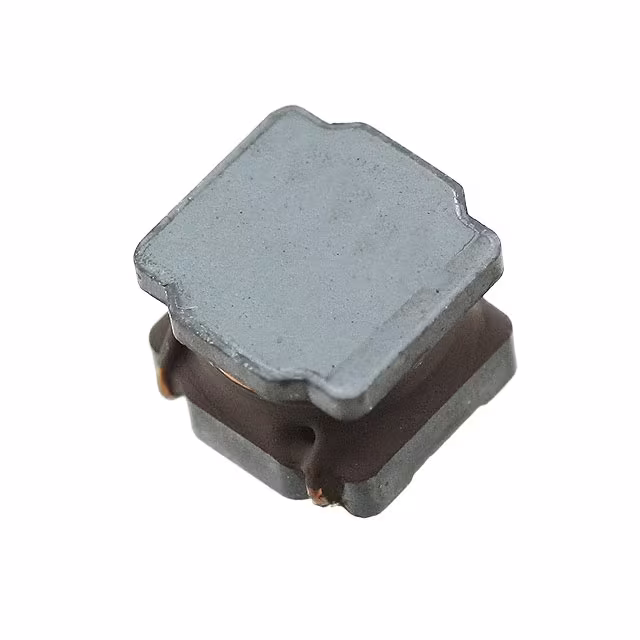

LQH6PPN100M43LFIXED IND 10UH 2.6A 44 MOHM SMD |
2,946 | 0.00 |
RFQ |
Datasheet |
2424 (6060 Metric) | Tape & Reel (TR),Cut Tape (CT) | LQH6 | Obsolete | Wirewound | - | 10 µH | ±20% | 2.6 A | 2.6A | Shielded | 44mOhm | - | 15MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - |
