| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Material-Core | Inductance | Tolerance | CurrentRating(Amps) | Current-Saturation(Isat) | Shielding | DCResistance(DCR) | Q@Freq | Frequency-SelfResonant | Ratings | OperatingTemperature | InductanceFrequency-Test | Features | MountingType | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LQP03TQ11NH02DFIXED IND 11NH 250MA 690MOHM SMD |
15,000 | 0.10 |
RFQ |
Datasheet |
0201 (0603 Metric) | Tape & Reel (TR),Cut Tape (CT) | LQP03 | Not For New Designs | Thick Film | Non-Magnetic | 11 nH | ±3% | 250 mA | - | Unshielded | 690mOhm Max | 17 @ 500MHz | 3.7GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) |
|
|
LQP03TQ0N8W02DFIXED IND 0.8NH 1A 50 MOHM SMD |
15,063 | 0.10 |
RFQ |
Datasheet |
0201 (0603 Metric) | Tape & Reel (TR),Cut Tape (CT) | LQP03 | Not For New Designs | Thick Film | Non-Magnetic | 0.8 nH | ±0.05nH | 1 A | - | Unshielded | 50mOhm Max | 17 @ 500MHz | 18GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) |
.jpg)
|

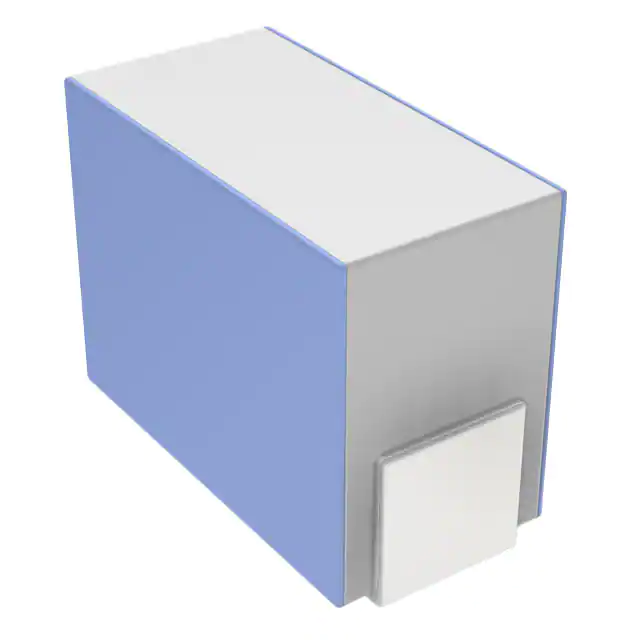

LQP02TN10NH02DFIXED IND 10NH 140MA 2.5 OHM SMD |
53,942 | 0.10 |
RFQ |
Datasheet |
01005 (0402 Metric) | Tape & Reel (TR),Cut Tape (CT) | LQP02 | Active | Thick Film | Non-Magnetic | 10 nH | ±3% | 140 mA | - | Unshielded | 2.5Ohm Max | 8 @ 500MHz | 4GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 01005 (0402 Metric) |
|
|
LQP02TN0N9B02DFIXED IND 0.9NH 320MA 500MOHM SM |
39,825 | 0.10 |
RFQ |
Datasheet |
01005 (0402 Metric) | Tape & Reel (TR),Cut Tape (CT) | LQP02 | Active | Thick Film | Non-Magnetic | 0.9 nH | ±0.1nH | 320 mA | - | Unshielded | 500mOhm Max | 8 @ 500MHz | 6GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 01005 (0402 Metric) |
.jpg)
|
LQG15HZ12NH02DFIXED IND 12NH 500MA 280MOHM SMD |
10,099 | 0.10 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR),Cut Tape (CT) | LQG15 | Active | Multilayer | Air | 12 nH | ±3% | 500 mA | - | Unshielded | 280mOhm Max | - | 3GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) |
|
|
LQG15WZ5N8S02DFIXED IND 5.8NH 700MA 130MOHM SM |
29,420 | 0.14 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR),Cut Tape (CT) | LQG15 | Active | Multilayer | - | 5.8 nH | ±0.3nH | 700 mA | - | Unshielded | 130mOhm Max | 23 @ 250MHz | 4GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 |
|
|
LQP03HQ16NJ02DFIXED IND 16NH 250MA 800MOHM SMD |
15,233 | 0.15 |
RFQ |
Datasheet |
0201 (0603 Metric) | Tape & Reel (TR),Cut Tape (CT) | LQP03 | Active | Thick Film | Non-Magnetic | 16 nH | ±5% | 250 mA | - | Unshielded | 800mOhm Max | 20 @ 500MHz | 3.5GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) |
|
|
LQP03HQ1N0C02DFIXED IND 1NH 1.1A 40 MOHM SMD |
15,351 | 0.15 |
RFQ |
Datasheet |
0201 (0603 Metric) | Tape & Reel (TR),Cut Tape (CT) | LQP03 | Active | Thick Film | Non-Magnetic | 1 nH | ±0.2nH | 1.1 A | - | Unshielded | 40mOhm Max | 20 @ 500MHz | 16GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) |
|
|
LQP03HQ4N0C02DFIXED IND 4NH 500MA 170MOHM SMD |
15,100 | 0.15 |
RFQ |
Datasheet |
0201 (0603 Metric) | Tape & Reel (TR),Cut Tape (CT) | LQP03 | Active | Thick Film | Non-Magnetic | 4 nH | ±0.2nH | 500 mA | - | Unshielded | 170mOhm Max | 20 @ 500MHz | 7GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) |
|
|
LQP03HQ4N6H02DFIXED IND 4.6NH 400MA 250MOHM SM |
20,669 | 0.18 |
RFQ |
Datasheet |
0201 (0603 Metric) | Tape & Reel (TR),Cut Tape (CT) | LQP03 | Active | Thick Film | Non-Magnetic | 4.6 nH | ±3% | 400 mA | - | Unshielded | 250mOhm Max | 20 @ 500MHz | 7GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 |
.jpg)
|
LQP02HQ30NH02EFIXED IND 30NH 120MA SMD |
29,092 | 0.19 |
RFQ |
Datasheet |
01005 (0402 Metric) | Tape & Reel (TR),Cut Tape (CT) | LQP03 | Active | Thin Film | - | 30 nH | ±3% | 120 mA | - | Unshielded | - | - | - | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 01005 |
|
LQW15AN2N2D80DFIXED IND 2.2NH 2.53A 22MOHM SMD |
10,000 | 0.22 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR),Cut Tape (CT) | LQW15 | Active | Wirewound | Non-Magnetic | 2.2 nH | ±0.5nH | 2.53 A | - | Unshielded | 22mOhm Max | 30 @ 250MHz | 15.5GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - |
|
|
LQW15AN8N3J80DFIXED IND 8.3NH 1.5A 69 MOHM SMD |
10,651 | 0.22 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR),Cut Tape (CT) | LQW15 | Active | Wirewound | Non-Magnetic | 8.3 nH | ±5% | 1.5 A | - | Unshielded | 69mOhm Max | 32 @ 250MHz | 6.5GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - |
|
|
LQW15AN10NJ80DFIXED IND 10NH 1.4A 81 MOHM SMD |
9,968 | 0.22 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR),Cut Tape (CT) | LQW15 | Active | Wirewound | - | 10 nH | ±5% | 1.4 A | - | Unshielded | 81mOhm Max | 31 @ 250MHz | 6GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - |
|
LQM18NN82NM00DFIXED IND 82NH 50MA 300 MOHM SMD |
4,000 | 0.19 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | LQM18 | Active | Multilayer | Ferrite | 82 nH | ±20% | 50 mA | - | Shielded | 300mOhm Max | 10 @ 50MHz | 245MHz | - | -40°C ~ 85°C | 50 MHz | - | Surface Mount | 0603 (1608 Metric) |
|
LQM18JNR12J00DFIXED IND 120NH 610MA 587.5 MOHM |
4,001 | 0.19 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | LQM18 | Active | Multilayer | Ferrite | 120 nH | ±5% | 610 mA | - | Shielded | 587.5mOhm Max | 8 @ 25MHz | 150MHz | AEC-Q200 | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 0603 (1608 Metric) |
|
|
LQW15AN7N6J8ZDFIXED IND 7.6NH 1.7A 50MOHM SMD |
10,000 | 0.23 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR),Cut Tape (CT) | LQW15 | Active | Wirewound | Non-Magnetic | 7.6 nH | ±5% | 1.7 A | - | Unshielded | 50mOhm Max | 30 @ 250MHz | 7GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - |
|
LQW18AS12NJ0ZDFIXED IND 12NH 700MA 130MOHM SMD |
6,388 | 0.23 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | LQW18 | Active | Wirewound | Non-Magnetic | 12 nH | ±5% | 700 mA | - | Unshielded | 130mOhm Max | 35 @ 250MHz | 4GHz | AEC-Q200 | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) |
|
|
LQW18AS4N3J0ZDFIXED IND 4.3NH 700MA 63MOHM SMD |
6,646 | 0.23 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | LQW18 | Active | Wirewound | Non-Magnetic | 4.3 nH | ±5% | 700 mA | - | Unshielded | 63mOhm Max | 22 @ 250MHz | 5.9GHz | AEC-Q200 | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) |
|
|
LQW15AN5N8B8ZDFIXED IND 5.8NH 1.77A 40MOHM SMD |
10,719 | 0.26 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR),Cut Tape (CT) | LQW15 | Active | Wirewound | Non-Magnetic | 5.8 nH | ±0.1nH | 1.77 A | - | Unshielded | 40mOhm Max | 30 @ 250MHz | 8GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - |
