| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Material-Core | Inductance | Tolerance | CurrentRating(Amps) | Current-Saturation(Isat) | Shielding | DCResistance(DCR) | Q@Freq | Frequency-SelfResonant | Ratings | OperatingTemperature | InductanceFrequency-Test | Features | MountingType | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-2,5x2,0x1,00mm.jpg)
|
CIG22E2R2MNEFIXED IND 2.2UH 1.3A 150MOHM SMD |
3,010 | 0.00 |
RFQ |
Datasheet |
1008 (2520 Metric) | Tape & Reel (TR) | CIG22E | Obsolete | Multilayer | - | 2.2 µH | ±20% | 1.3 A | - | Shielded | 150mOhm | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) |
|
|
CIG22E3R3MNEFIXED IND 3.3UH 1.1A 200MOHM SMD |
2,387 | 0.00 |
RFQ |
Datasheet |
1008 (2520 Metric) | Tape & Reel (TR) | CIG22E | Obsolete | Multilayer | - | 3.3 µH | ±20% | 1.1 A | - | Shielded | 200mOhm | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) |
|
|
CIG22E4R7MNEFIXED IND 4.7UH 1A 265 MOHM SMD |
2,905 | 0.00 |
RFQ |
Datasheet |
1008 (2520 Metric) | Tape & Reel (TR) | CIG22E | Obsolete | Multilayer | - | 4.7 µH | ±20% | 1 A | - | Shielded | 265mOhm | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) |
|
|
CIG22ER47MNEFIXED IND 470NH 3.2A 36 MOHM SMD |
3,362 | 0.00 |
RFQ |
Datasheet |
1008 (2520 Metric) | Tape & Reel (TR) | CIG22E | Obsolete | Multilayer | - | 470 nH | ±20% | 3.2 A | - | Shielded | 36mOhm | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) |
|
|
CIG22H1R2MAEFIXED IND 1.2UH 1.7A 65 MOHM SMD |
2,097 | 0.00 |
RFQ |
Datasheet |
1008 (2520 Metric) | Tape & Reel (TR) | CIG22H_MAE | Obsolete | Multilayer | - | 1.2 µH | ±20% | 1.7 A | - | Shielded | 65mOhm | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) |
|
|
CIG22H1R5MAEFIXED IND 1.5UH 1.5A 74 MOHM SMD |
2,400 | 0.00 |
RFQ |
Datasheet |
1008 (2520 Metric) | Tape & Reel (TR) | CIG22H_MAE | Obsolete | Multilayer | - | 1.5 µH | ±20% | 1.5 A | - | Shielded | 74mOhm | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) |
|
|
CIG22H3R3MAEFIXED IND 3.3UH 1.1A 138MOHM SMD |
3,707 | 0.00 |
RFQ |
Datasheet |
1008 (2520 Metric) | Tape & Reel (TR) | CIG22H_MAE | Obsolete | Multilayer | - | 3.3 µH | ±20% | 1.1 A | - | Shielded | 138mOhm | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) |
-2,00x1,60x,80mm.jpg)
|
CIGT201608LMR68MNEFIXED IND 680NH 2.9A 53 MOHM SMD |
3,336 | 0.00 |
RFQ |
Datasheet |
0806 (2016 Metric) | Tape & Reel (TR),Cut Tape (CT) | CIGT | Active | Thin Film | Metal Composite | 680 nH | ±20% | 2.9 A | 3.3A | Unshielded | 53mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) |
|
|
CIGW201610GH1R0MLEFIXED IND 1UH 2.7A 54 MOHM SMD |
3,560 | 0.00 |
RFQ |
0806 (2016 Metric) | Tape & Reel (TR),Cut Tape (CT) | CIGW | Active | Drum Core, Wirewound | Metal Composite | 1 µH | ±20% | 2.7 A | 3.8A | Unshielded | 54mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | |
|
|
CIGW201610GH1R5MLEFIXED IND 1.5UH 2.1A 85MOHM SMD |
3,790 | 0.00 |
RFQ |
Datasheet |
0806 (2016 Metric) | Tape & Reel (TR),Cut Tape (CT) | CIGW | Active | Drum Core, Wirewound | Metal Composite | 1.5 µH | ±20% | 2.1 A | 3.5A | Unshielded | 85mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) |
|
|
CIGW201610GH2R2MLEFIXED IND 2.2UH 1.8A 117MOHM SMD |
2,272 | 0.00 |
RFQ |
Datasheet |
0806 (2016 Metric) | Tape & Reel (TR),Cut Tape (CT) | CIGW | Active | Drum Core, Wirewound | Metal Composite | 2.2 µH | ±20% | 1.8 A | 2.8A | Unshielded | 117mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) |
|
|
CIG22H1R2MNEFIXED IND 1.2UH 1.5A 94 MOHM SMD |
3,988 | 0.00 |
RFQ |
Datasheet |
1008 (2520 Metric) | Tape & Reel (TR),Cut Tape (CT) | CIG22H | Obsolete | Multilayer | - | 1.2 µH | ±20% | 1.5 A | 2.8A | Shielded | 94mOhm | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) |

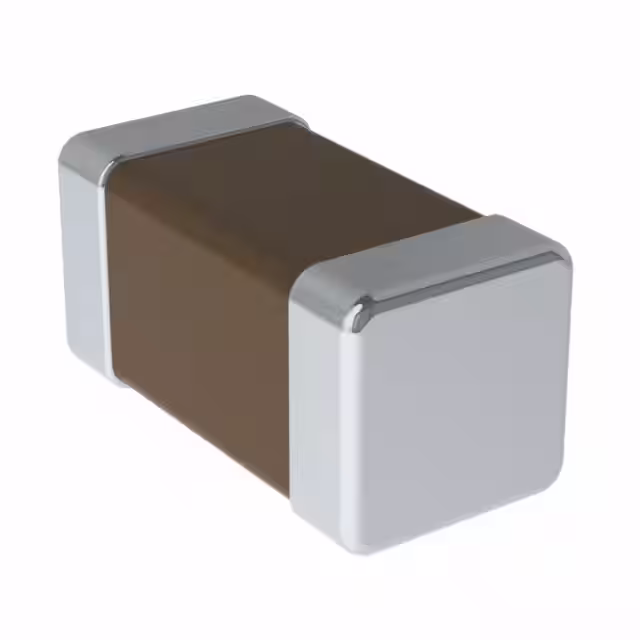

-1,60x,80x,80mm.jpg)
|
CIGT1608R6EH1R0MNCFIXED IND 1UH 1.7A 160 MOHM SMD |
3,123 | 0.00 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | CIGT | Active | Thin Film | Metal Composite | 1 µH | ±20% | 1.7 A | 1.7A | Unshielded | 160mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0603 (1608 Metric) |
-,80mm.jpg)
|
CIGT160808XMR24MNCFIXED IND 240NH 4.9A 24 MOHM SMD |
3,651 | 0.00 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | CIGT | Active | Thin Film | Metal Composite | 240 nH | ±20% | 4.9 A | 4.1A | Shielded | 24mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0603 (1608 Metric) |
|
|
CIGW160808XMR47MLCFIXED IND 470NH 3A 43 MOHM SMD |
2,888 | 0.00 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | CIGW | Active | Drum Core, Wirewound | Metal Composite | 470 nH | ±20% | 3 A | - | Unshielded | 43mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0603 (1608 Metric) |
-2,00x1.25x,80mm.jpg)
|
CIGT201210UH1R0MNEFIXED IND 1UH 2.8A 71 MOHM SMD |
3,487 | 0.00 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | CIGT | Active | Thin Film | Metal Composite | 1 µH | ±20% | 2.8 A | 3.3A | Unshielded | 71mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) |
|
|
CIGT201210UH1R5MNEFIXED IND 1.5UH 2.1A 97MOHM SMD |
2,771 | 0.00 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | CIGT | Active | Thin Film | Metal Composite | 1.5 µH | ±20% | 2.1 A | 2.6A | Unshielded | 97mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) |
|
|
CIGT201210UHR33MNEFIXED IND 330NH 4A 26 MOHM SMD |
3,393 | 0.00 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | CIGT | Active | Thin Film | Metal Composite | 330 nH | ±20% | 4 A | 5.4A | Unshielded | 26mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) |
|
|
CIGT201210UHR68MNEFIXED IND 680NH 3A 47 MOHM SMD |
2,652 | 0.00 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | CIGT | Active | Thin Film | Metal Composite | 680 nH | ±20% | 3 A | 4.4A | Unshielded | 47mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) |
|
|
CIGT2016R6MH100MNEFIXED IND 10UH 450MA 1.4 OHM SMD |
3,081 | 0.00 |
RFQ |
0806 (2016 Metric) | Tape & Reel (TR),Cut Tape (CT) | CIGT | Active | Thin Film | Metal Composite | 10 µH | ±20% | 450 mA | 600mA | Shielded | 1.4Ohm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) |
