| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Material-Core | Inductance | Tolerance | CurrentRating(Amps) | Current-Saturation(Isat) | Shielding | DCResistance(DCR) | Q@Freq | Frequency-SelfResonant | Ratings | OperatingTemperature | InductanceFrequency-Test | Features | MountingType | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PL10106NLTFIXED IND 450NH 52A 0.98MOHM SMD |
2,676 | 9.22 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | - | Active | Planar | - | 450 nH | ±15% | 52 A | 80A | Unshielded | 0.98mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - |
|
|
PL10106TFIXED IND 450NH 52A 0.98MOHM SMD |
2,622 | 9.22 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | - | Active | Planar | - | 450 nH | ±15% | 52 A | 80A | Unshielded | 0.98mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - |
|

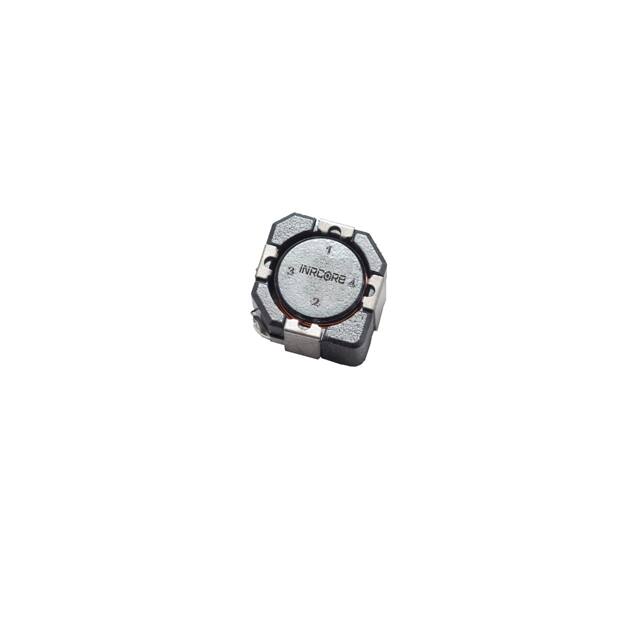

PL8912TFIXED IND 22UH 3.8A 42 MOHM SMD |
3,079 | 9.26 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | PL89XX | Active | - | - | 22 µH | ±20% | 3.8 A | 3.8A | Shielded | 42mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - |
|
|
PL8502NLFIXED IND 25UH 2.4A 74 MOHM SMD |
3,530 | 9.30 |
RFQ |
Datasheet |
Nonstandard | Tube | SLED | Active | Toroidal | - | 25 µH | ±10% | 2.4 A | - | Unshielded | 74mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - |
|
PL8300FIXED IND 38UH 9.5A 19.3MOHM SMD |
3,132 | 9.36 |
RFQ |
Datasheet |
Nonstandard | Tube | HCCI-80 | Active | Toroidal | - | 38 µH | - | 9.5 A | - | Unshielded | 19.3mOhm Max | - | - | - | -55°C ~ 130°C | 300 kHz | - | Surface Mount | - |
|
|
PL8300NLFIXED IND 38UH 9.5A 19.3MOHM SMD |
2,711 | 9.36 |
RFQ |
Datasheet |
Nonstandard | Tube | HCCI-80 | Active | Toroidal | - | 38 µH | - | 9.5 A | - | Unshielded | 19.3mOhm Max | - | - | - | -55°C ~ 130°C | 300 kHz | - | Surface Mount | - |
|
PL8304FIXED IND 8.4UH 19A 5.1 MOHM SMD |
2,157 | 9.36 |
RFQ |
Datasheet |
Nonstandard | Tube | HCCI-80 | Active | Toroidal | - | 8.4 µH | - | 19 A | - | Unshielded | 5.1mOhm Max | - | - | - | -55°C ~ 130°C | 300 kHz | - | Surface Mount | - |
|
|
PL8304NLFIXED IND 8.4UH 19A 5.1 MOHM SMD |
2,654 | 9.36 |
RFQ |
Datasheet |
Nonstandard | Tube | HCCI-80 | Active | Toroidal | - | 8.4 µH | - | 19 A | - | Unshielded | 5.1mOhm Max | - | - | - | -55°C ~ 130°C | 300 kHz | - | Surface Mount | - |
|

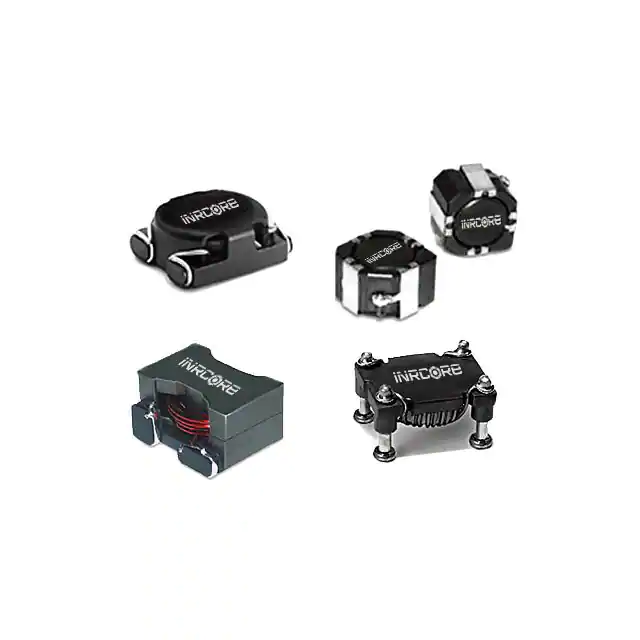

PL8301FIXED IND 28.7UH 12A 13.8 MOHM |
2,799 | 9.38 |
RFQ |
Datasheet |
Nonstandard | Tube | HCCI-80 | Active | Toroidal | - | 28.7 µH | - | 12 A | - | Unshielded | 13.8mOhm Max | - | - | - | -55°C ~ 130°C | 300 kHz | - | Surface Mount | - |
|
|
PL8301NLFIXED IND 28.7UH 12A 13.8 MOHM |
2,034 | 9.38 |
RFQ |
Datasheet |
Nonstandard | Tube | HCCI-80 | Active | Toroidal | - | 28.7 µH | - | 12 A | - | Unshielded | 13.8mOhm Max | - | - | - | -55°C ~ 130°C | 300 kHz | - | Surface Mount | - |
|
PL8505FIXED IND 100UH 1.2A 285MOHM SMD |
3,773 | 9.39 |
RFQ |
Datasheet |
Nonstandard | Tube | SLED | Active | Toroidal | - | 100 µH | ±10% | 1.2 A | - | Unshielded | 285mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - |
|
|
PL8505NLFIXED IND 100UH 1.2A 285MOHM SMD |
2,764 | 9.39 |
RFQ |
Datasheet |
Nonstandard | Tube | SLED | Active | Toroidal | - | 100 µH | ±10% | 1.2 A | - | Unshielded | 285mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - |
|
PL8507FIXED IND 220UH 820MA 673MOHM SM |
3,920 | 9.43 |
RFQ |
Datasheet |
Nonstandard | Tube | SLED | Active | Toroidal | - | 220 µH | ±10% | 820 mA | - | Unshielded | 673mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - |
|
|
PL8507NLFIXED IND 220UH 820MA 673MOHM SM |
3,243 | 9.43 |
RFQ |
Datasheet |
Nonstandard | Tube | SLED | Active | Toroidal | - | 220 µH | ±10% | 820 mA | - | Unshielded | 673mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - |
|
PL8508FIXED IND 331UH 660MA 972MOHM SM |
2,454 | 9.43 |
RFQ |
Datasheet |
Nonstandard | Tube | SLED | Active | Toroidal | - | 331 µH | ±10% | 660 mA | - | Unshielded | 972mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - |
|
|
PL8508NLFIXED IND 331UH 660MA 972MOHM SM |
2,542 | 9.43 |
RFQ |
Datasheet |
Nonstandard | Tube | SLED | Active | Toroidal | - | 331 µH | ±10% | 660 mA | - | Unshielded | 972mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - |
|
PL8502FIXED IND 25UH 2.4A 74 MOHM SMD |
2,701 | 9.61 |
RFQ |
Datasheet |
Nonstandard | Tube | SLED | Active | Toroidal | - | 25 µH | ±10% | 2.4 A | - | Unshielded | 74mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - |
|

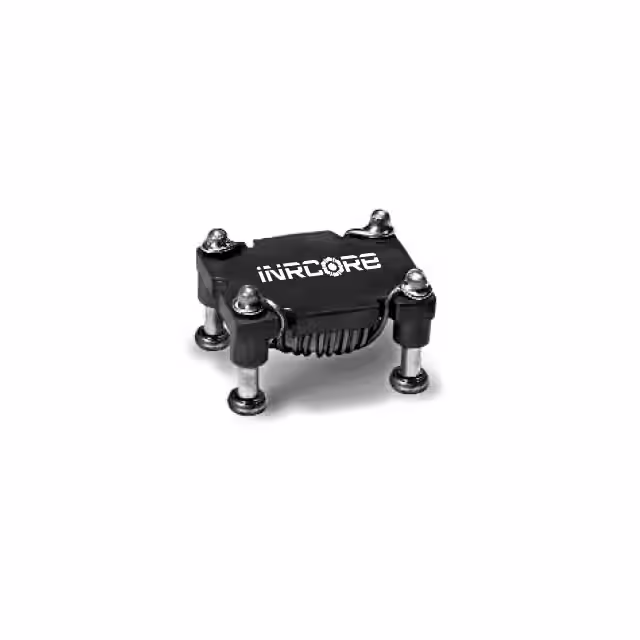

PL8702FIXED IND 5.9UH 8.1A 10.47 MOHM |
2,012 | 9.64 |
RFQ |
Datasheet |
Nonstandard | Tube | - | Active | Toroidal | - | 5.9 µH | ±20% | 8.1 A | - | Unshielded | 10.47mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - |
|
|
PL8702NLFIXED IND 5.9UH 8.1A 10.47 MOHM |
3,955 | 9.64 |
RFQ |
Datasheet |
Nonstandard | Tube | - | Active | Toroidal | - | 5.9 µH | ±20% | 8.1 A | - | Unshielded | 10.47mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - |
|
PL8701FIXED IND 3.5UH 9.4A 6.54MOHM SM |
3,740 | 9.74 |
RFQ |
Datasheet |
Nonstandard | Tube | - | Active | Toroidal | - | 3.5 µH | ±20% | 9.4 A | - | Unshielded | 6.54mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - |
