| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Material-Core | Inductance | Tolerance | CurrentRating(Amps) | Current-Saturation(Isat) | Shielding | DCResistance(DCR) | Q@Freq | Frequency-SelfResonant | Ratings | OperatingTemperature | InductanceFrequency-Test | Features | MountingType | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PL8505NLTFIXED IND 100UH 1.2A 285MOHM SMD |
3,418 | 4.73 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | SLED | Active | Toroidal | - | 100 µH | ±10% | 1.2 A | - | Unshielded | 285mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - |
|
PL8505TFIXED IND 100UH 1.2A 285MOHM SMD |
3,387 | 4.73 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | SLED | Active | Toroidal | - | 100 µH | ±10% | 1.2 A | - | Unshielded | 285mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - |
|
|
PL8509NLTFIXED IND 472UH 560MA 1.52OHM SM |
2,681 | 4.73 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | SLED | Active | Toroidal | - | 472 µH | ±10% | 560 mA | - | Unshielded | 1.52Ohm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - |
|
PL8509TFIXED IND 472UH 560MA 1.52OHM SM |
3,245 | 4.73 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | SLED | Active | Toroidal | - | 472 µH | ±10% | 560 mA | - | Unshielded | 1.52Ohm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - |
|
|
PL8500NLTFIXED IND 10.4UH 3.8A 32MOHM SMD |
2,181 | 4.74 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | SLED | Active | Toroidal | - | 10.4 µH | ±10% | 3.8 A | - | Unshielded | 32mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - |
|
PL8500TFIXED IND 10.4UH 3.8A 32MOHM SMD |
3,172 | 4.74 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | SLED | Active | Toroidal | - | 10.4 µH | ±10% | 3.8 A | - | Unshielded | 32mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - |
|
|
PL8503NLTFIXED IND 56UH 1.6A 135 MOHM SMD |
3,316 | 4.74 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | SLED | Active | Toroidal | - | 56 µH | ±10% | 1.6 A | - | Unshielded | 135mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - |
|

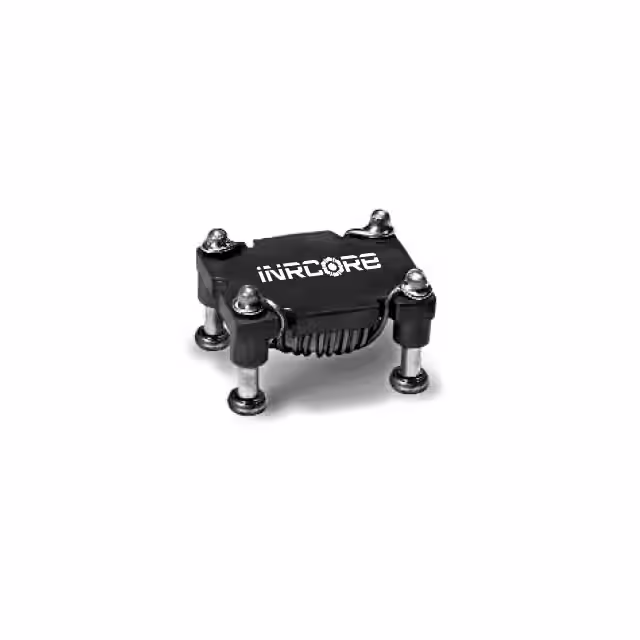

PL8503TFIXED IND 56UH 1.6A 135 MOHM SMD |
3,063 | 4.74 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | SLED | Active | Toroidal | - | 56 µH | ±10% | 1.6 A | - | Unshielded | 135mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - |
|
|
PL8506NLTFIXED IND 152UH 1A 425 MOHM SMD |
3,367 | 4.74 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | SLED | Active | Toroidal | - | 152 µH | ±10% | 1 A | - | Unshielded | 425mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - |
|
PL8506TFIXED IND 152UH 1A 425 MOHM SMD |
3,645 | 4.74 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | SLED | Active | Toroidal | - | 152 µH | ±10% | 1 A | - | Unshielded | 425mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - |
|
|
PL8507NLTFIXED IND 220UH 820MA 673MOHM SM |
2,123 | 4.74 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | SLED | Active | Toroidal | - | 220 µH | ±10% | 820 mA | - | Unshielded | 673mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - |
|
PL8507TFIXED IND 220UH 820MA 673MOHM SM |
3,682 | 4.74 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | SLED | Active | Toroidal | - | 220 µH | ±10% | 820 mA | - | Unshielded | 673mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - |
|
|
PL8508NLTFIXED IND 331UH 660MA 972MOHM SM |
2,039 | 4.74 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | SLED | Active | Toroidal | - | 331 µH | ±10% | 660 mA | - | Unshielded | 972mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - |
|
PL8508TFIXED IND 331UH 660MA 972MOHM SM |
3,149 | 4.74 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | SLED | Active | Toroidal | - | 331 µH | ±10% | 660 mA | - | Unshielded | 972mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - |
|
|
PL8501NLTFIXED IND 14.6UH 3.2A 46MOHM SMD |
3,627 | 4.76 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | SLED | Active | Toroidal | - | 14.6 µH | ±10% | 3.2 A | - | Unshielded | 46mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - |
|

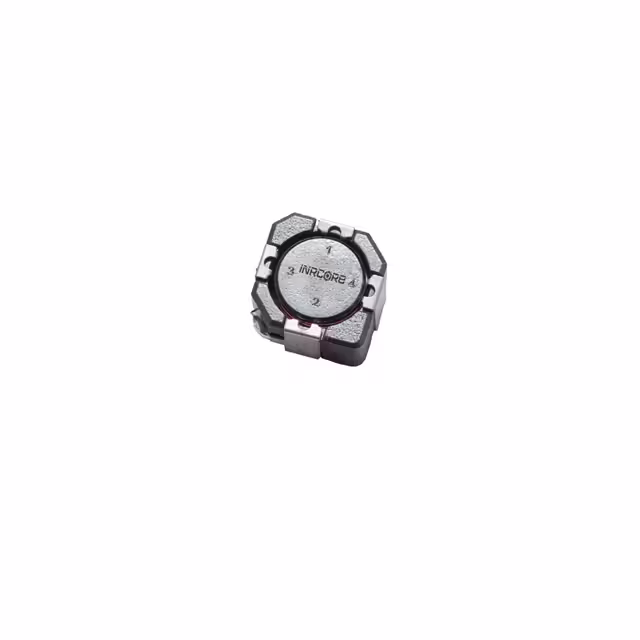

PL9405TFIXED IND 4.7UH 4.1A 21.2MOHM SM |
2,877 | 4.95 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | PL94XX | Active | - | - | 4.7 µH | ±30% | 4.1 A | 4.1A | Shielded | 21.2mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - |
|
|
PL8140NLTFIXED IND 16UH 7.2A 18.7MOHM SMD |
2,416 | 4.97 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | SLED | Active | Toroidal | - | 16 µH | - | 7.2 A | - | Unshielded | 18.7mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - |
|
|
PL8160NLTFIXED IND 2.8UH 13.9A 3.6MOHM SM |
3,449 | 4.97 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | SLED | Active | Toroidal | - | 2.8 µH | - | 13.9 A | - | Unshielded | 3.6mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - |
|
PL8160TFIXED IND 2.8UH 13.9A 3.6MOHM SM |
3,997 | 4.97 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | SLED | Active | Toroidal | - | 2.8 µH | - | 13.9 A | - | Unshielded | 3.6mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - |
|
|
PL8161NLTFIXED IND 4.2UH 11.4A 5.4MOHM SM |
3,639 | 4.97 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | SLED | Active | Toroidal | - | 4.2 µH | - | 11.4 A | - | Unshielded | 5.4mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - |
