| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Material-Core | Inductance | Tolerance | CurrentRating(Amps) | Current-Saturation(Isat) | Shielding | DCResistance(DCR) | Q@Freq | Frequency-SelfResonant | Ratings | OperatingTemperature | InductanceFrequency-Test | Features | MountingType | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2300LL-2R7-H-RCFIXED IND 2.7UH 29.4A 2 MOHM TH |
3,986 | 3.07 |
RFQ |
Datasheet |
Radial, Horizontal (Open) | Bulk | 2300LL | Active | Toroidal | Sendust | 2.7 µH | ±20% | 29.4 A | - | Shielded | 2mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - |
|
|
2300LL-3R9-H-RCFIXED IND 3.9UH 26.3A 2 MOHM TH |
2,677 | 3.07 |
RFQ |
Datasheet |
Radial, Horizontal (Open) | Bulk | 2300LL | Active | Toroidal | Sendust | 3.9 µH | ±20% | 26.3 A | - | Shielded | 2mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - |
|
|
2300LL-5R6-H-RCFIXED IND 5.6UH 24A 3 MOHM TH |
3,424 | 3.07 |
RFQ |
Datasheet |
Radial, Horizontal (Open) | Bulk | 2300LL | Active | Toroidal | Sendust | 5.6 µH | ±20% | 24 A | - | Shielded | 3mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - |
|
|
2300LL-8R2-H-RCFIXED IND 8.2UH 22.3A 3 MOHM TH |
3,088 | 3.07 |
RFQ |
Datasheet |
Radial, Horizontal (Open) | Bulk | 2300LL | Active | Toroidal | Sendust | 8.2 µH | ±20% | 22.3 A | - | Shielded | 3mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - |
|
|
2300LL-100-H-RCFIXED IND 10UH 20.8A 4 MOHM TH |
3,170 | 3.07 |
RFQ |
Datasheet |
Radial, Horizontal (Open) | Bulk | 2300LL | Active | Toroidal | Sendust | 10 µH | ±15% | 20.8 A | - | Shielded | 4mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - |
|

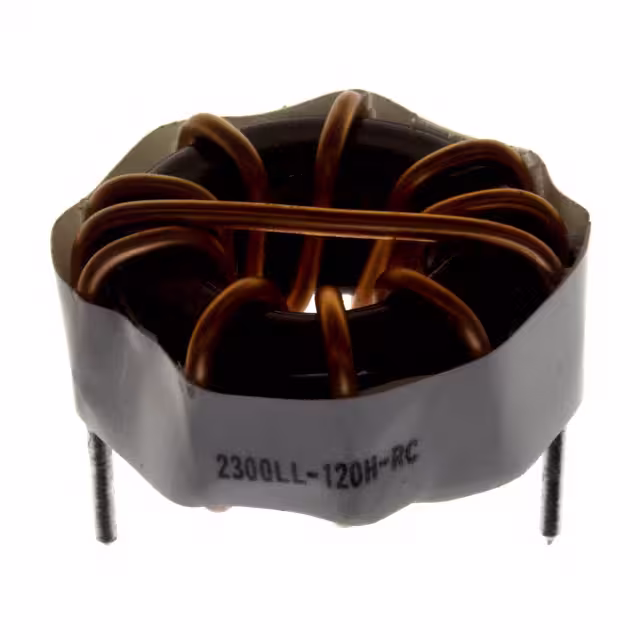

2300LL-120-H-RCFIXED IND 12UH 19.6A 4 MOHM TH |
2,586 | 3.07 |
RFQ |
Datasheet |
Radial, Horizontal (Open) | Bulk | 2300LL | Active | Toroidal | Sendust | 12 µH | ±15% | 19.6 A | - | Shielded | 4mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - |
|
|
2300LL-150-H-RCFIXED IND 15UH 18.6A 5 MOHM TH |
3,420 | 3.07 |
RFQ |
Datasheet |
Radial, Horizontal (Open) | Bulk | 2300LL | Active | Toroidal | Sendust | 15 µH | ±15% | 18.6 A | - | Shielded | 5mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - |
|
|
2300LL-270-H-RCFIXED IND 27UH 17A 6 MOHM TH |
3,341 | 3.07 |
RFQ |
Datasheet |
Radial, Horizontal (Open) | Bulk | 2300LL | Active | Toroidal | Sendust | 27 µH | ±15% | 17 A | - | Shielded | 6mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - |
|
|
2300LL-330-H-RCFIXED IND 33UH 13A 10 MOHM TH |
2,447 | 3.07 |
RFQ |
Datasheet |
Radial, Horizontal (Open) | Bulk | 2300LL | Active | Toroidal | Sendust | 33 µH | ±15% | 13 A | - | Shielded | 10mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - |
|
|
2300LL-470-H-RCFIXED IND 47UH 11.8A 12 MOHM TH |
2,209 | 3.07 |
RFQ |
Datasheet |
Radial, Horizontal (Open) | Bulk | 2300LL | Active | Toroidal | Sendust | 47 µH | ±15% | 11.8 A | - | Shielded | 12mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - |
|
|
2300LL-560-H-RCFIXED IND 56UH 8.9A 20 MOHM TH |
3,706 | 3.07 |
RFQ |
Datasheet |
Radial, Horizontal (Open) | Bulk | 2300LL | Active | Toroidal | Sendust | 56 µH | ±15% | 8.9 A | - | Shielded | 20mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - |
|
|
2300LL-680-H-RCFIXED IND 68UH 8.5A 23 MOHM TH |
3,902 | 3.07 |
RFQ |
Datasheet |
Radial, Horizontal (Open) | Bulk | 2300LL | Active | Toroidal | Sendust | 68 µH | ±15% | 8.5 A | - | Shielded | 23mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - |
|
|
2300LL-820-H-RCFIXED IND 82UH 8.1A 25 MOHM TH |
2,390 | 3.07 |
RFQ |
Datasheet |
Radial, Horizontal (Open) | Bulk | 2300LL | Active | Toroidal | Sendust | 82 µH | ±15% | 8.1 A | - | Shielded | 25mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - |
|
|
2300LL-121-H-RCFIXED IND 120UH 7.4A 30 MOHM TH |
2,247 | 3.07 |
RFQ |
Datasheet |
Radial, Horizontal (Open) | Bulk | 2300LL | Active | Toroidal | Sendust | 120 µH | ±15% | 7.4 A | - | Shielded | 30mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - |
|
|
2300LL-151-H-RCFIXED IND 150UH 7A 33 MOHM TH |
2,064 | 3.07 |
RFQ |
Datasheet |
Radial, Horizontal (Open) | Bulk | 2300LL | Active | Toroidal | Sendust | 150 µH | ±15% | 7 A | - | Shielded | 33mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - |
|
|
2300LL-181-H-RCFIXED IND 180UH 6.7A 37 MOHM TH |
3,580 | 3.07 |
RFQ |
Datasheet |
Radial, Horizontal (Open) | Bulk | 2300LL | Active | Toroidal | Sendust | 180 µH | ±15% | 6.7 A | - | Shielded | 37mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - |
|
|
2300LL-221-H-RCFIXED IND 220UH 5.1A 63 MOHM TH |
3,706 | 3.07 |
RFQ |
Datasheet |
Radial, Horizontal (Open) | Bulk | 2300LL | Active | Toroidal | Sendust | 220 µH | ±15% | 5.1 A | - | Shielded | 63mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - |
|
|
2300LL-471-H-RCFIXED IND 470UH 4.2A 94 MOHM TH |
3,790 | 3.07 |
RFQ |
Datasheet |
Radial, Horizontal (Open) | Bulk | 2300LL | Active | Toroidal | Sendust | 470 µH | ±15% | 4.2 A | - | Shielded | 94mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - |
|
|
2300LL-821-H-RCFIXED IND 820UH 3.6A 123 MOHM TH |
3,832 | 3.07 |
RFQ |
Datasheet |
Radial, Horizontal (Open) | Bulk | 2300LL | Active | Toroidal | Sendust | 820 µH | ±15% | 3.6 A | - | Shielded | 123mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - |
|
2300LL-1R5-V-RCFIXED IND 1.5UH 34A 1 MOHM TH |
3,790 | 3.27 |
RFQ |
Datasheet |
Radial, Vertical (Open) | Bulk | 2300LL | Active | Toroidal | Sendust | 1.5 µH | ±20% | 34 A | - | Shielded | 1mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - |
