| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Material-Core | Inductance | Tolerance | CurrentRating(Amps) | Current-Saturation(Isat) | Shielding | DCResistance(DCR) | Q@Freq | Frequency-SelfResonant | Ratings | OperatingTemperature | InductanceFrequency-Test | Features | MountingType | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

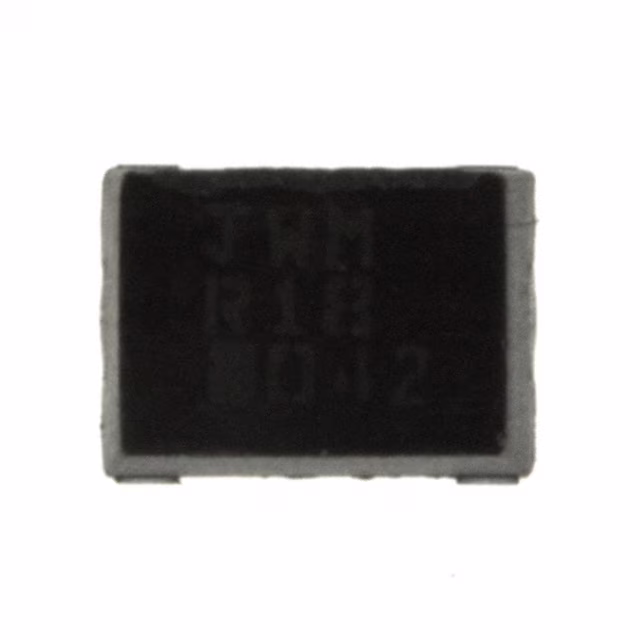

PM40-R18MFIXED IND 180NH 450MA 280MOHM SM |
2,749 | 0.00 |
RFQ |
Datasheet |
1812 (4532 Metric) | Tape & Reel (TR) | PM40 | Obsolete | Molded | Non-Magnetic | 180 nH | ±20% | 450 mA | - | Unshielded | 280mOhm Max | 30 @ 25.2MHz | 400MHz | - | -55°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1812 |
|
PM40-R22MFIXED IND 220NH 450MA 320MOHM SM |
2,484 | 0.00 |
RFQ |
Datasheet |
1812 (4532 Metric) | Tape & Reel (TR) | PM40 | Obsolete | Molded | Non-Magnetic | 220 nH | ±20% | 450 mA | - | Unshielded | 320mOhm Max | 30 @ 25.2MHz | 350MHz | - | -55°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1812 |
|

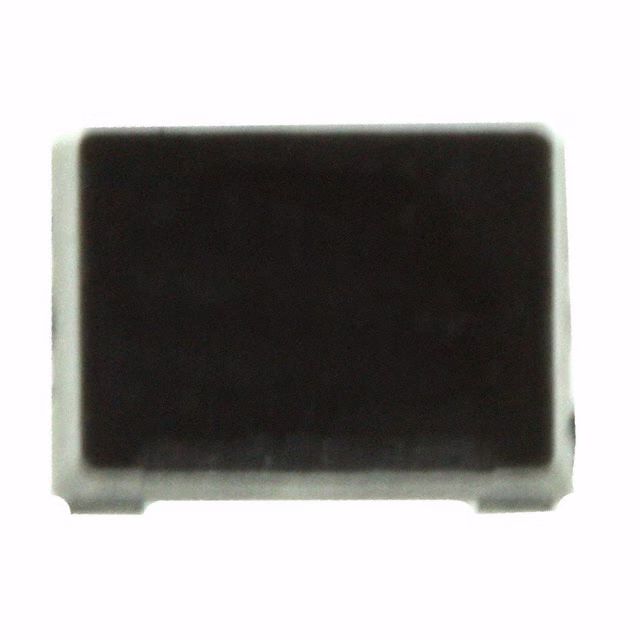

PM40-R27MFIXED IND 270NH 450MA 360MOHM SM |
2,176 | 0.00 |
RFQ |
Datasheet |
1812 (4532 Metric) | Tape & Reel (TR) | PM40 | Obsolete | Molded | Non-Magnetic | 270 nH | ±20% | 450 mA | - | Unshielded | 360mOhm Max | 30 @ 25.2MHz | 320MHz | - | -55°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1812 |
|
|
PM40-R33MFIXED IND 330NH 450MA 400MOHM SM |
3,426 | 0.00 |
RFQ |
Datasheet |
1812 (4532 Metric) | Tape & Reel (TR) | PM40 | Obsolete | Molded | Non-Magnetic | 330 nH | ±20% | 450 mA | - | Unshielded | 400mOhm Max | 30 @ 25.2MHz | 300MHz | - | -55°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1812 |
|

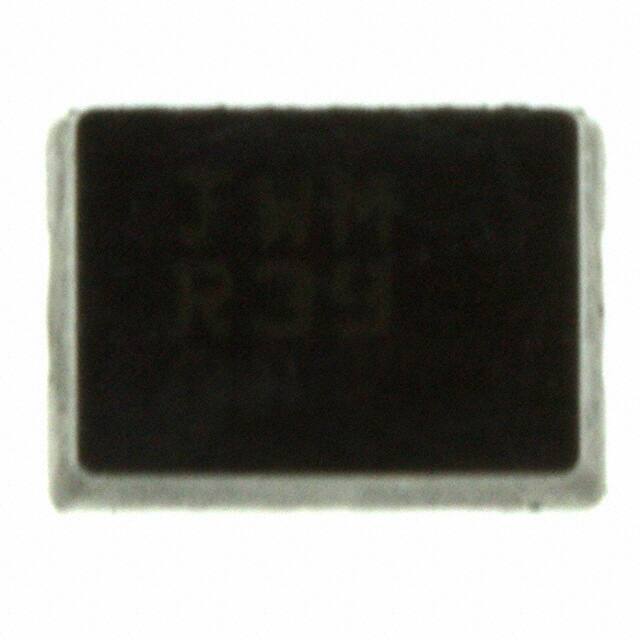

PM40-R39MFIXED IND 390NH 450MA 450MOHM SM |
2,603 | 0.00 |
RFQ |
Datasheet |
1812 (4532 Metric) | Tape & Reel (TR) | PM40 | Obsolete | Molded | Non-Magnetic | 390 nH | ±20% | 450 mA | - | Unshielded | 450mOhm Max | 30 @ 25.2MHz | 350MHz | - | -55°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1812 |
|
|
PM40-R47MFIXED IND 470NH 450MA 500MOHM SM |
2,737 | 0.00 |
RFQ |
Datasheet |
1812 (4532 Metric) | Tape & Reel (TR) | PM40 | Obsolete | Molded | Non-Magnetic | 470 nH | ±20% | 450 mA | - | Unshielded | 500mOhm Max | 30 @ 25.2MHz | 320MHz | - | -55°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1812 |
|

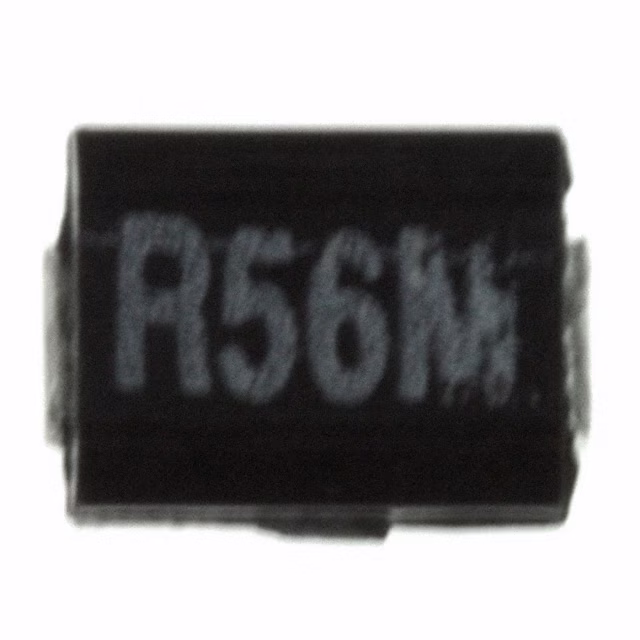

PM40-R56MFIXED IND 560NH 450MA 550MOHM SM |
3,877 | 0.00 |
RFQ |
Datasheet |
1812 (4532 Metric) | Tape & Reel (TR) | PM40 | Obsolete | Molded | Non-Magnetic | 560 nH | ±20% | 450 mA | - | Unshielded | 550mOhm Max | 30 @ 25.2MHz | 180MHz | - | -55°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1812 |
|

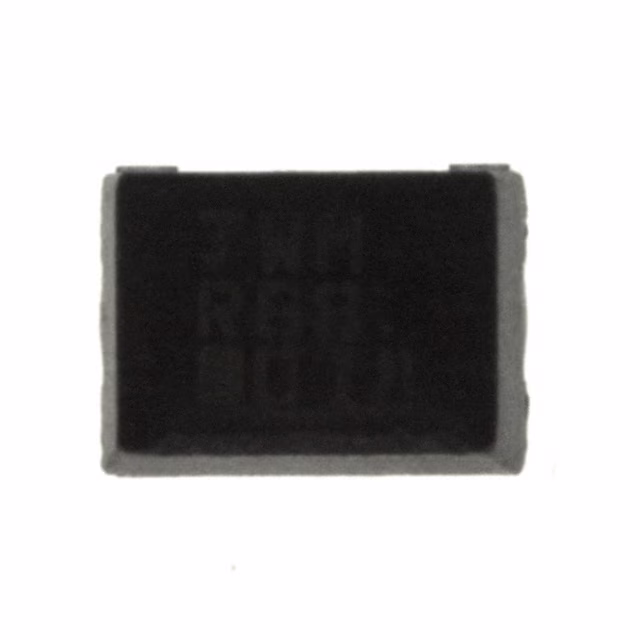

PM40-R68MFIXED IND 680NH 450MA 600MOHM SM |
3,173 | 0.00 |
RFQ |
Datasheet |
1812 (4532 Metric) | Tape & Reel (TR) | PM40 | Obsolete | Molded | Non-Magnetic | 680 nH | ±20% | 450 mA | - | Unshielded | 600mOhm Max | 30 @ 25.2MHz | 160MHz | - | -55°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1812 |
|
|
PM40-R82MFIXED IND 820NH 450MA 670MOHM SM |
2,232 | 0.00 |
RFQ |
Datasheet |
1812 (4532 Metric) | Tape & Reel (TR) | PM40 | Obsolete | Molded | Non-Magnetic | 820 nH | ±20% | 450 mA | - | Unshielded | 670mOhm Max | 30 @ 25.2MHz | 140MHz | - | -55°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1812 |
|
|
PM40-1R0KFIXED IND 1UH 450MA 500 MOHM SMD |
3,644 | 0.00 |
RFQ |
Datasheet |
1812 (4532 Metric) | Tape & Reel (TR) | PM40 | Obsolete | Molded | Iron Powder | 1 µH | ±10% | 450 mA | - | Unshielded | 500mOhm Max | 50 @ 7.96MHz | 100MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1812 |
|
|
PM40-1R2KFIXED IND 1.2UH 430MA 550MOHM SM |
3,523 | 0.00 |
RFQ |
Datasheet |
1812 (4532 Metric) | Tape & Reel (TR) | PM40 | Obsolete | Molded | Iron Powder | 1.2 µH | ±10% | 430 mA | - | Unshielded | 550mOhm Max | 50 @ 7.96MHz | 80MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1812 |
|
|
PM40-1R5KFIXED IND 1.5UH 410MA 600MOHM SM |
2,681 | 0.00 |
RFQ |
Datasheet |
1812 (4532 Metric) | Tape & Reel (TR) | PM40 | Obsolete | Molded | Iron Powder | 1.5 µH | ±10% | 410 mA | - | Unshielded | 600mOhm Max | 50 @ 7.96MHz | 70MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1812 |
|

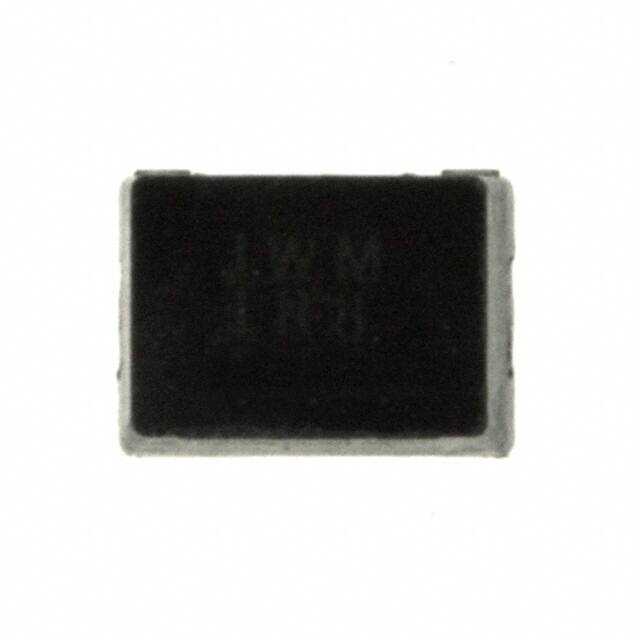

PM40-1R8KFIXED IND 1.8UH 390MA 650MOHM SM |
2,839 | 0.00 |
RFQ |
Datasheet |
1812 (4532 Metric) | Tape & Reel (TR) | PM40 | Obsolete | Molded | Iron Powder | 1.8 µH | ±10% | 390 mA | - | Unshielded | 650mOhm Max | 50 @ 7.96MHz | 60MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1812 |
|
|
PM40-2R2KFIXED IND 2.2UH 380MA 700MOHM SM |
2,152 | 0.00 |
RFQ |
Datasheet |
1812 (4532 Metric) | Tape & Reel (TR) | PM40 | Obsolete | Molded | Iron Powder | 2.2 µH | ±10% | 380 mA | - | Unshielded | 700mOhm Max | 50 @ 7.96MHz | 55MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1812 |
|
|
PM40-2R7KFIXED IND 2.7UH 370MA 750MOHM SM |
2,242 | 0.00 |
RFQ |
Datasheet |
1812 (4532 Metric) | Tape & Reel (TR) | PM40 | Obsolete | Molded | Iron Powder | 2.7 µH | ±10% | 370 mA | - | Unshielded | 750mOhm Max | 50 @ 7.96MHz | 50MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1812 |
|
|
PM40-3R3KFIXED IND 3.3UH 355MA 800MOHM SM |
2,753 | 0.00 |
RFQ |
Datasheet |
1812 (4532 Metric) | Tape & Reel (TR) | PM40 | Obsolete | Molded | Iron Powder | 3.3 µH | ±10% | 355 mA | - | Unshielded | 800mOhm Max | 50 @ 7.96MHz | 45MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1812 |
|
|
PM40-3R9KFIXED IND 3.9UH 330MA 900MOHM SM |
3,038 | 0.00 |
RFQ |
Datasheet |
1812 (4532 Metric) | Tape & Reel (TR) | PM40 | Obsolete | Molded | Iron Powder | 3.9 µH | ±10% | 330 mA | - | Unshielded | 900mOhm Max | 50 @ 7.96MHz | 40MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1812 |
|
|
PM40-4R7KFIXED IND 4.7UH 315MA 1 OHM SMD |
2,931 | 0.00 |
RFQ |
Datasheet |
1812 (4532 Metric) | Tape & Reel (TR) | PM40 | Obsolete | Molded | Iron Powder | 4.7 µH | ±10% | 315 mA | - | Unshielded | 1Ohm Max | 50 @ 7.96MHz | 35MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1812 |
|
|
PM40-5R6KFIXED IND 5.6UH 300MA 1.1OHM SMD |
3,542 | 0.00 |
RFQ |
Datasheet |
1812 (4532 Metric) | Tape & Reel (TR) | PM40 | Obsolete | Molded | Iron Powder | 5.6 µH | ±10% | 300 mA | - | Unshielded | 1.1Ohm Max | 50 @ 7.96MHz | 33MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1812 |
|
|
PM40-6R8KFIXED IND 6.8UH 285MA 1.2OHM SMD |
2,915 | 0.00 |
RFQ |
Datasheet |
1812 (4532 Metric) | Tape & Reel (TR),Cut Tape (CT) | PM40 | Obsolete | Molded | Iron Powder | 6.8 µH | ±10% | 285 mA | - | Unshielded | 1.2Ohm Max | 50 @ 7.96MHz | 27MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1812 |
