| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Material-Core | Inductance | Tolerance | CurrentRating(Amps) | Current-Saturation(Isat) | Shielding | DCResistance(DCR) | Q@Freq | Frequency-SelfResonant | Ratings | OperatingTemperature | InductanceFrequency-Test | Features | MountingType | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UP0.4C-680FIXED IND 68UH 450MA 1.1 OHM SMD |
3,722 | 0.00 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | UNI-PAC™ 0.4C | Obsolete | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 450 mA | 430mA | Unshielded | 1.1Ohm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - |
|
UP1B-150FIXED IND 15UH 1.2A 174.7MOHM SM |
2,908 | 0.00 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | UNI-PAC™ | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 1.2 A | 1.5A | Unshielded | 174.7mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - |
|
|
UP1B-151FIXED IND 150UH 400MA 1.61OHM SM |
3,374 | 0.00 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | UNI-PAC™ | Obsolete | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 400 mA | 460mA | Unshielded | 1.61Ohm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - |
|
UP2B-220FIXED IND 22UH 2.8A 61.7MOHM SMD |
2,145 | 0.00 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | UNI-PAC™ | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 2.8 A | 2A | Unshielded | 61.7mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - |
|

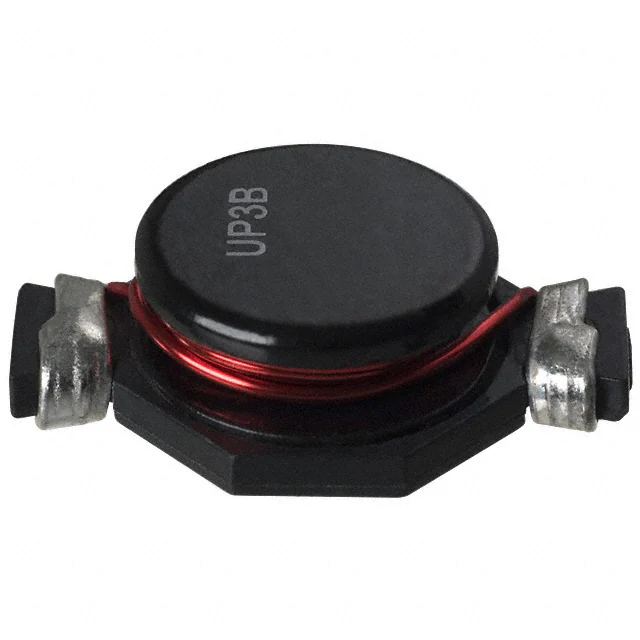

UP3B-150FIXED IND 15UH 3.9A 31.7MOHM SMD |
2,603 | 0.00 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | UNI-PAC™ | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 3.9 A | 4.3A | Unshielded | 31.7mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - |
|
|
UP3B-470FIXED IND 47UH 1.9A 108.2MOHM SM |
2,582 | 0.00 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | UNI-PAC™ | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.9 A | 2.4A | Unshielded | 108.2mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - |
|
UP4B-151FIXED IND 150UH 1.7A 239.2 MOHM |
3,098 | 0.00 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | UNI-PAC™ | Obsolete | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 1.7 A | 3A | Unshielded | 239.2mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - |
|
|
UP4B-221FIXED IND 220UH 1.4A 357.1 MOHM |
3,747 | 0.00 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | UNI-PAC™ | Obsolete | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 1.4 A | 2.4A | Unshielded | 357.1mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - |
|

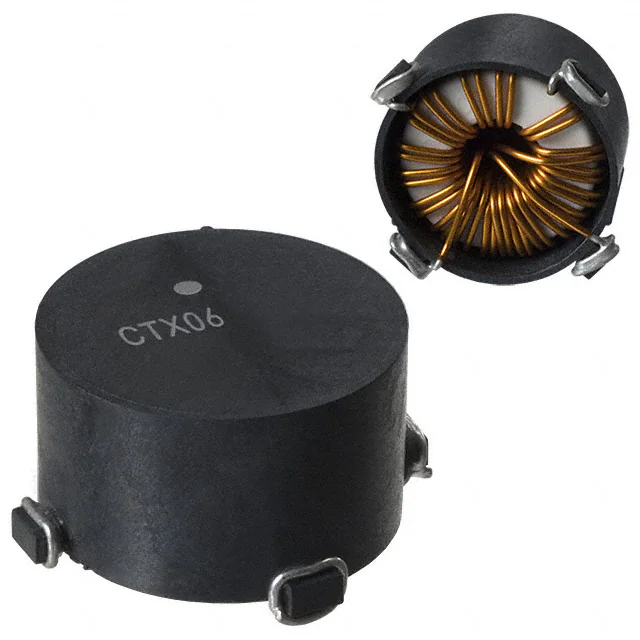

CTX06-14620FIXED IND 47UH 7.1A 16.6MOHM SMD |
3,439 | 0.00 |
RFQ |
Datasheet |
Nonstandard | Bulk | CTX | Last Time Buy | Toroidal | Iron Powder | 47 µH | - | 7.1 A | - | Unshielded | 16.6mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Surface Mount | - |
|
|
CTX06-14621FIXED IND 33UH 7.7A 14.1MOHM SMD |
3,955 | 0.00 |
RFQ |
Datasheet |
Nonstandard | Bulk | CTX | Active | Toroidal | Iron Powder | 33 µH | ±0.25% | 7.7 A | - | Unshielded | 14.1mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Surface Mount | - |
|
|
CTX06-14622FIXED IND 22UH 8.5A 11.7MOHM SMD |
3,457 | 0.00 |
RFQ |
Datasheet |
Nonstandard | Bulk | CTX | Active | Toroidal | Iron Powder | 22 µH | ±0.25% | 8.5 A | - | Unshielded | 11.7mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Surface Mount | - |
|
DR74-101FIXED IND 100UH 860MA 383MOHM SM |
3,642 | 0.00 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | DR | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 860 mA | 990mA | Shielded | 383mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
SD10-4R7FIXED IND 4.7UH 1.04A 153.5 MOHM |
2,774 | 0.00 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SD | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.04 A | 1.08A | Shielded | 153.5mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - |
|
UP2C-330-RFIXED IND 33UH 2.16A 79.7MOHM SM |
2,945 | 0.00 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | UNI-PAC™ 2C | Obsolete | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 2.16 A | 2.2A | Unshielded | 79.7mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - |
|

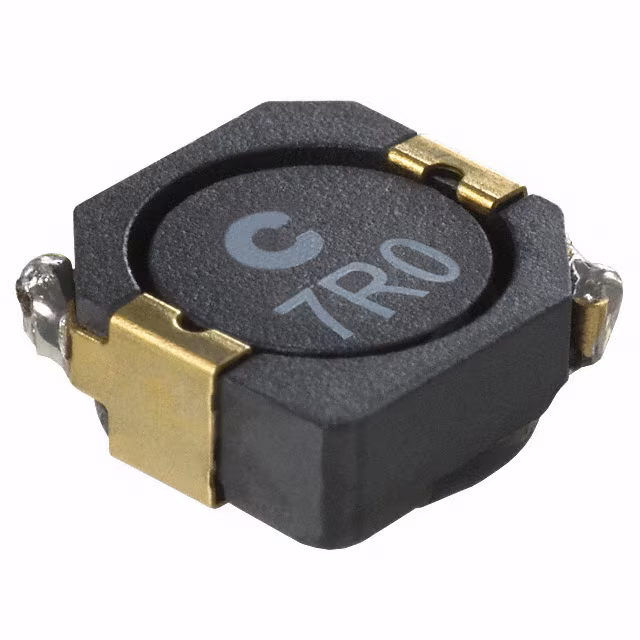

CD1-7R0-RFIXED IND 7UH 4.55A 27 MOHM SMD |
3,561 | 0.00 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | CD | Obsolete | Drum Core, Wirewound | Ferrite | 7 µH | ±30% | 4.55 A | 4.8A | Shielded | 27mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - |
|

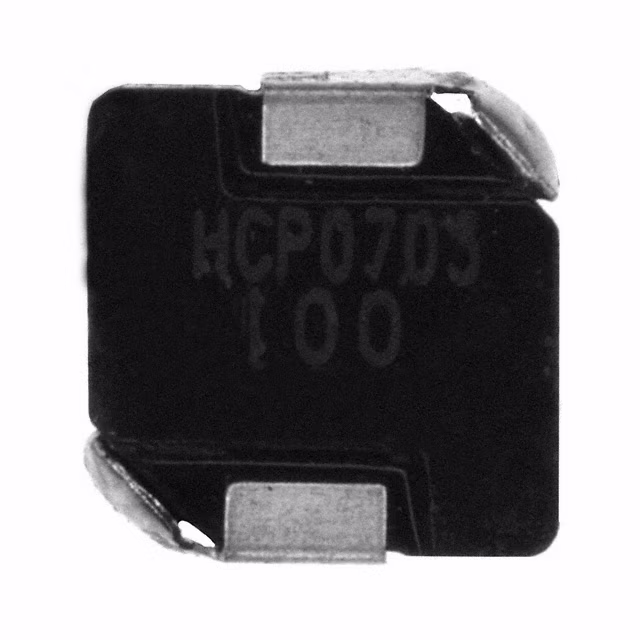

HCP0703-100-RFIXED IND 10UH 3A 105 MOHM SMD |
2,735 | 0.00 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | HCP0703 | Obsolete | Drum Core, Wirewound | Iron Powder | 10 µH | ±20% | 3 A | 7A | Shielded | 105mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|

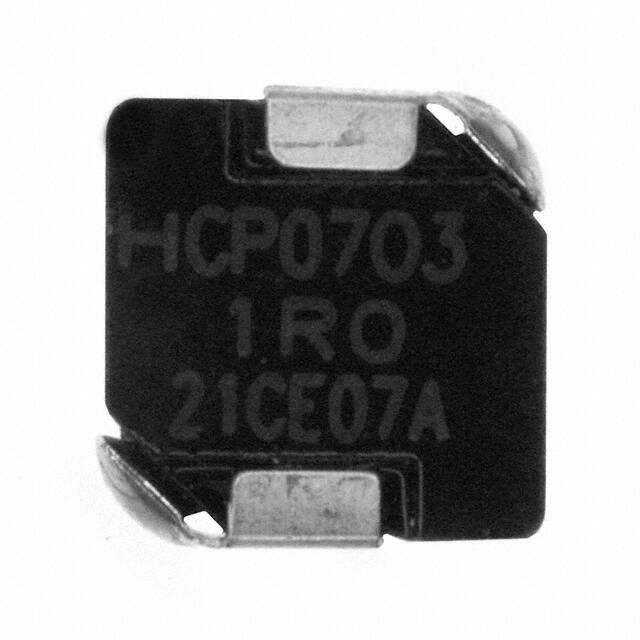

HCP0703-1R0-RFIXED IND 1UH 11A 10 MOHM SMD |
3,830 | 0.00 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | HCP0703 | Obsolete | Drum Core, Wirewound | Iron Powder | 1 µH | ±20% | 11 A | 22A | Shielded | 10mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|

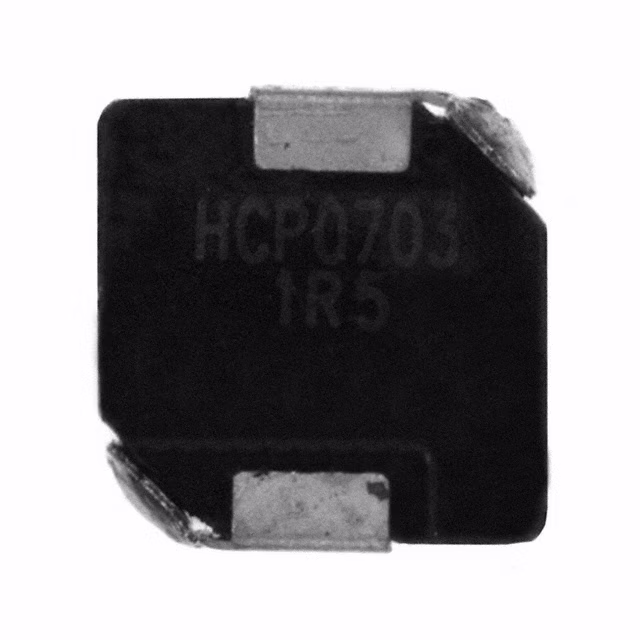

HCP0703-1R5-RFIXED IND 1.5UH 9A 15 MOHM SMD |
2,945 | 0.00 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | HCP0703 | Obsolete | Drum Core, Wirewound | Iron Powder | 1.5 µH | ±20% | 9 A | 18A | Shielded | 15mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|

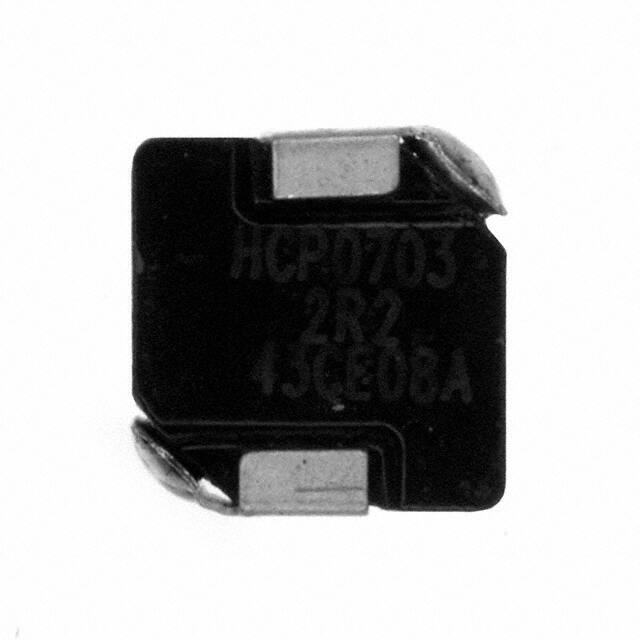

HCP0703-2R2-RFIXED IND 2.2UH 8A 20 MOHM SMD |
3,233 | 0.00 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | HCP0703 | Obsolete | Drum Core, Wirewound | Iron Powder | 2.2 µH | ±20% | 8 A | 14A | Shielded | 20mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
HCP0703-3R3-RFIXED IND 3.3UH 6A 30 MOHM SMD |
3,332 | 0.00 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | HCP0703 | Obsolete | Drum Core, Wirewound | Iron Powder | 3.3 µH | ±20% | 6 A | 13.5A | Shielded | 30mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - |
