| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Material-Core | Inductance | Tolerance | CurrentRating(Amps) | Current-Saturation(Isat) | Shielding | DCResistance(DCR) | Q@Freq | Frequency-SelfResonant | Ratings | OperatingTemperature | InductanceFrequency-Test | Features | MountingType | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

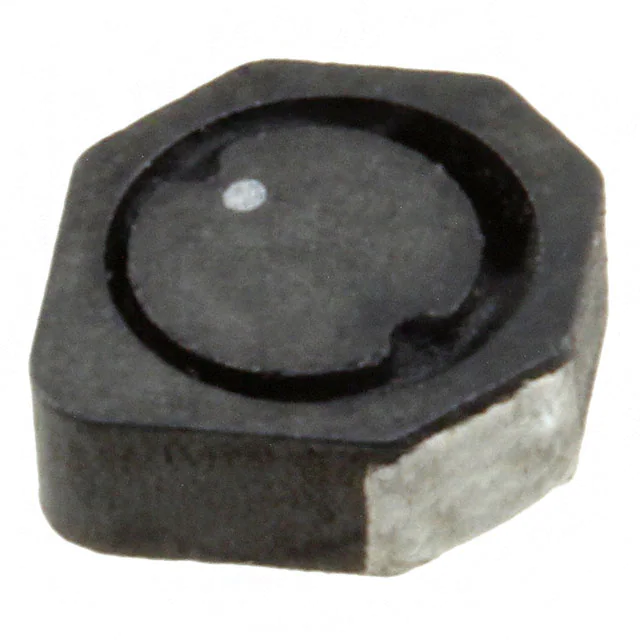

SD3112-1R5-RFIXED IND 1.5UH 1.16A 99MOHM SMD |
2,964 | 0.00 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | SD3112 | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 1.16 A | 1.33A | Shielded | 99mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|

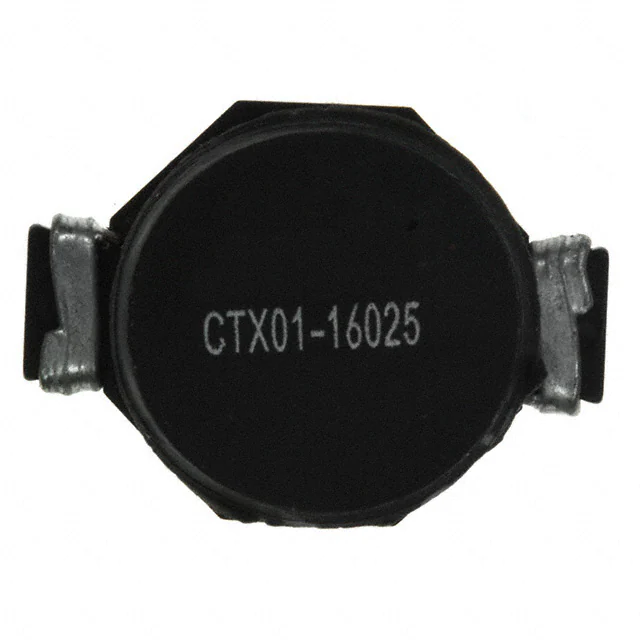

CTX01-16025FIXED IND 120UH 2A 62 MOHM SMD |
2,023 | 0.00 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | CTX | Obsolete | Toroidal | Iron Powder | 120 µH | ±25% | 2 A | 1.7A | Unshielded | 62mOhm Max | - | - | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - |
|

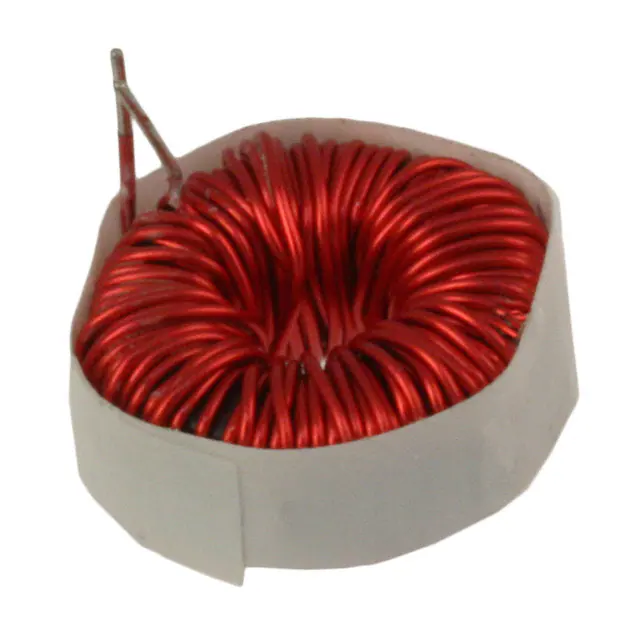

CTX16-18405-RFIXED IND 140UH 3.2A 190 MOHM TH |
3,911 | 0.00 |
RFQ |
Datasheet |
Radial, Horizontal, 4 Leads (Open) | Bulk | PFC | Obsolete | Toroidal | - | 140 µH | - | 3.2 A | - | Unshielded | 190mOhm Max | - | - | - | -20°C ~ 105°C | - | - | Through Hole | - |
|
SD3814-4R7-RFIXED IND 4.7UH 1.06A 141MOHM SM |
3,401 | 0.00 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SD38 | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±15% | 1.06 A | 1.29A | Shielded | 141mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - |
|

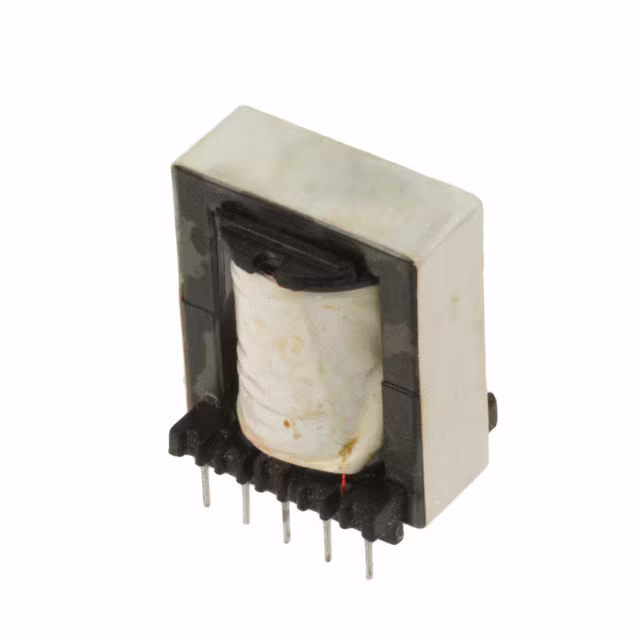

CTX01-15789FIXED IND 1MH 3.4A 162 MOHM TH |
3,482 | 0.00 |
RFQ |
Datasheet |
Radial, Vertical, 10 Leads | Bulk | PFC | Active | Toroidal | Ferrite | 1 mH | ±5% | 3.4 A | - | Unshielded | 162mOhm Max | - | - | - | -20°C ~ 105°C | 300 kHz | - | Through Hole | - |
|

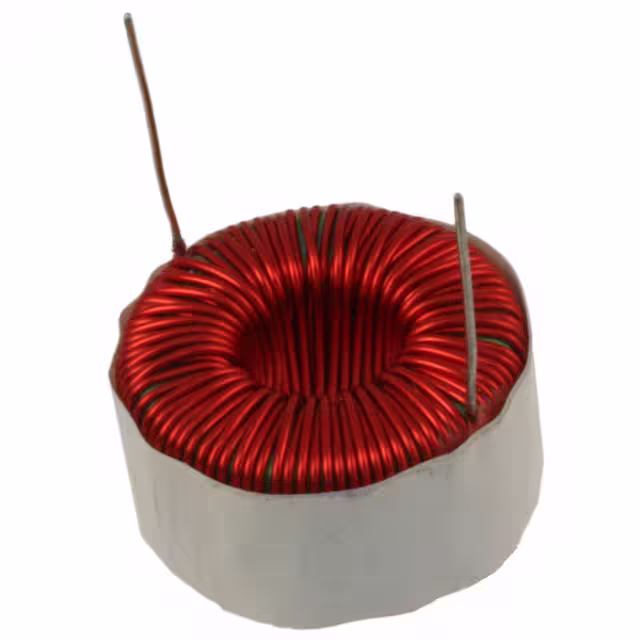

CTX02-12236FIXED IND 500UH 2.6A 200 MOHM TH |
2,261 | 0.00 |
RFQ |
Datasheet |
Radial, Horizontal (Open) | Bulk | PFC | Obsolete | Toroidal | Iron Powder | 500 µH | - | 2.6 A | - | Unshielded | 200mOhm Max | - | - | - | -20°C ~ 105°C | 100 kHz | - | Through Hole | - |
|

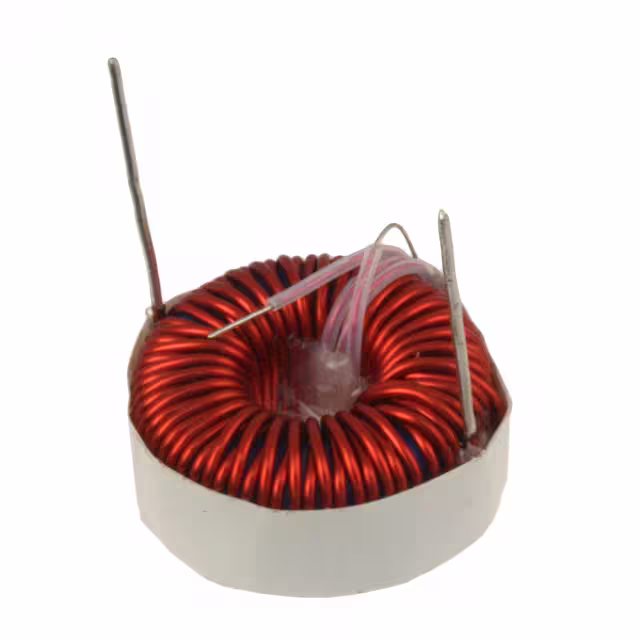

CTX02-12378FIXED IND 769UH 2.6A 31 MOHM TH |
2,862 | 0.00 |
RFQ |
Datasheet |
Radial, Horizontal (Open) | Bulk | PFC | Active | Toroidal | - | 769 µH | - | 2.6 A | - | Unshielded | 31mOhm Max | - | - | - | -20°C ~ 105°C | 100 kHz | - | Through Hole | - |
|

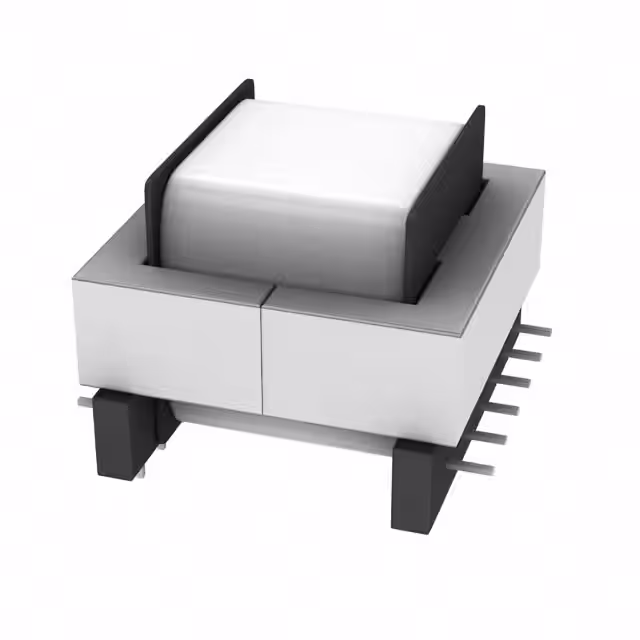

CTX08-13679FIXED IND 1.2MH 4.7A 67 MOHM TH |
3,526 | 0.00 |
RFQ |
Datasheet |
Radial, 10 Leads | Bulk | PFC | Obsolete | Toroidal | Ferrite | 1.2 mH | ±3% | 4.7 A | - | Unshielded | 67mOhm Max | - | - | - | -20°C ~ 105°C | 100 kHz | - | Through Hole | - |
|

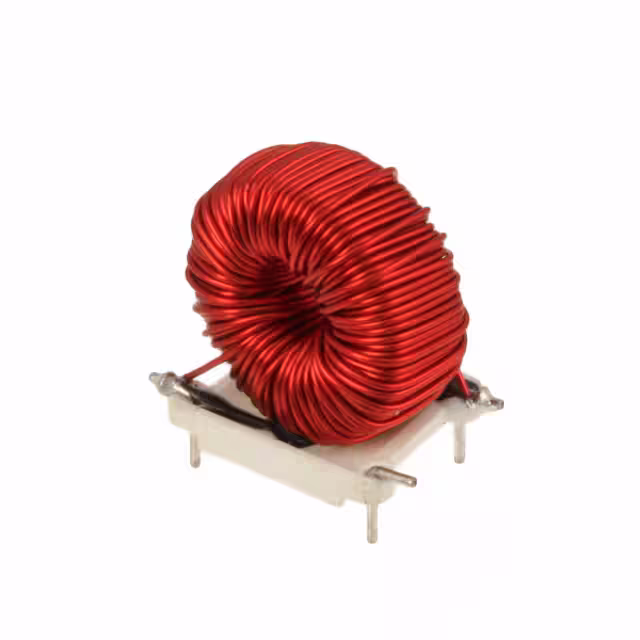

CTX16-17309-RFIXED IND 200UH 2A 225 MOHM TH |
3,042 | 0.00 |
RFQ |
Datasheet |
Radial, Vertical, 4 Leads (Open) | Bulk | PFC | Obsolete | Toroidal | Iron Powder | 200 µH | - | 2 A | - | Unshielded | 225mOhm Max | - | - | - | -20°C ~ 105°C | 100 kHz | - | Through Hole | - |
|

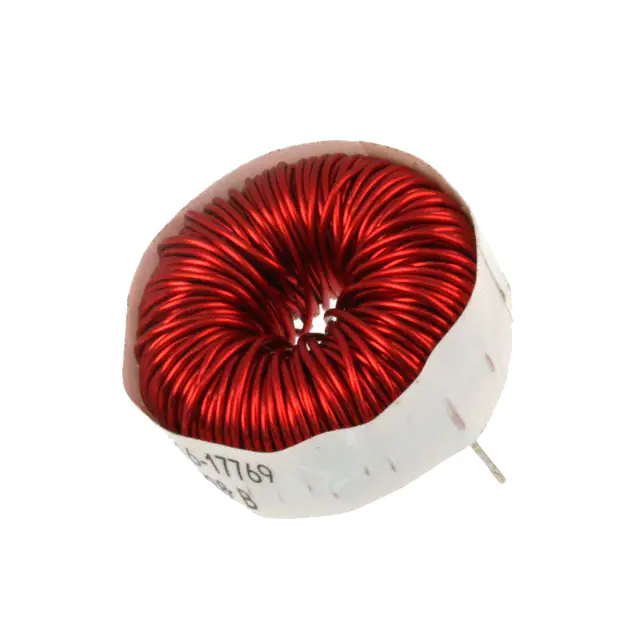

CTX16-17769-RFIXED IND 340UH 5.3A 35 MOHM TH |
2,633 | 0.00 |
RFQ |
Datasheet |
Radial, Horizontal, 4 Leads (Open) | Bulk | PFC | Active | Toroidal | Iron Powder | 340 µH | - | 5.3 A | - | Unshielded | 35mOhm Max | - | - | - | -20°C ~ 105°C | 20 kHz | - | Through Hole | - |
|

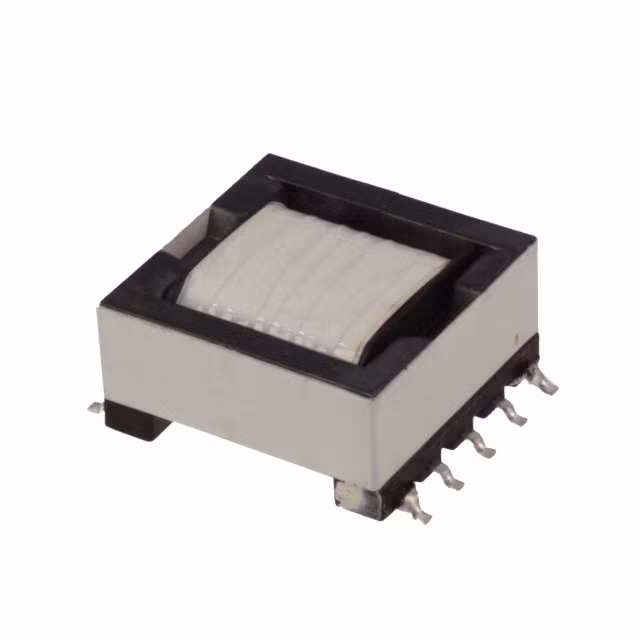

CTX22-15557FIXED IND 1MH 1.3A 470 MOHM SMD |
2,041 | 0.00 |
RFQ |
Datasheet |
10-SMD, Gull Wing | Bulk | PFC | Obsolete | Toroidal | Ferrite | 1 mH | - | 1.3 A | - | Unshielded | 470mOhm Max | - | - | - | -20°C ~ 105°C | 100 kHz | - | Surface Mount | 10-SMT |
|

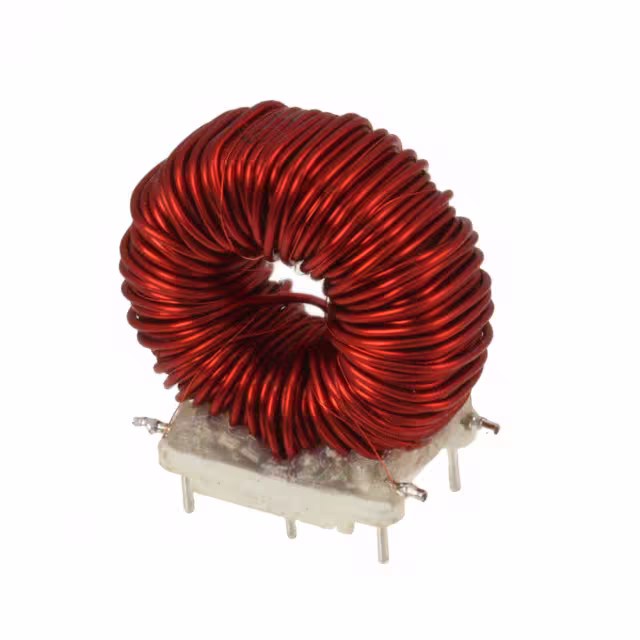

CTX22-16885FIXED IND 200UH 7A 164 MOHM TH |
2,306 | 0.00 |
RFQ |
Datasheet |
Radial, Vertical, 6 Leads (Open) | Bulk | PFC | Active | Toroidal | Iron Powder | 200 µH | - | 7 A | - | Unshielded | 164mOhm Max | - | - | - | -20°C ~ 105°C | 100 kHz | - | Through Hole | - |
|
SDT30-127-RFIXED IND 2.9UH 600MA 0.47 MOHM |
3,417 | 0.00 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | SDT30 | Obsolete | Drum Core, Wirewound | Ferrite | 2.9 µH | ±30% | 600 mA | 850mA | Shielded | 0.47mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|

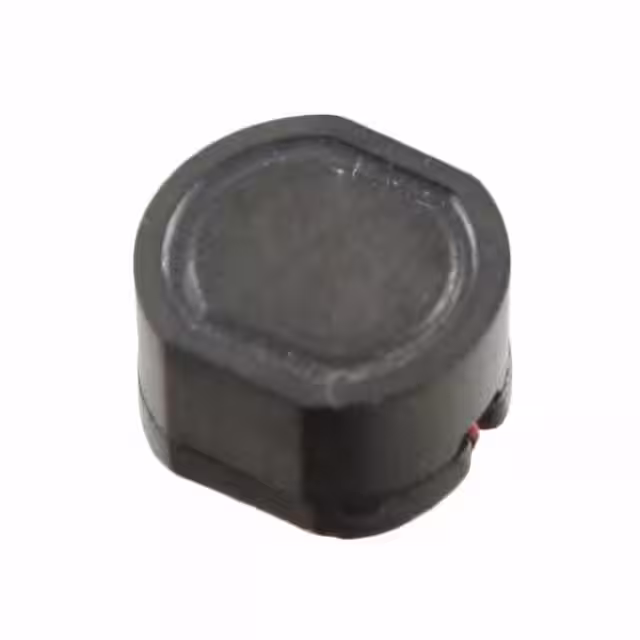

LDS0705-6R8M-RFIXED IND 6.8UH 3.11A 24MOHM SMD |
3,772 | 0.00 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | LDS0705 | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 3.11 A | 3.16A | Shielded | 24mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
SDH2812-100-RFIXED IND 9.67UH 620MA 467 MOHM |
3,240 | 0.00 |
RFQ |
Nonstandard | Tape & Reel (TR) | SDH2812 | Obsolete | Drum Core, Wirewound | Ferrite | 9.67 µH | ±20% | 620 mA | 710mA | Shielded | 467mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | |
|
|
SDH2812-101-RFIXED IND 97.7UH 217MA 3.97 OHM |
3,993 | 0.00 |
RFQ |
Nonstandard | Tape & Reel (TR) | SDH2812 | Obsolete | Drum Core, Wirewound | Ferrite | 97.7 µH | ±20% | 217 mA | 218mA | Shielded | 3.97Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | |
|
|
SDH2812-150-RFIXED IND 14.7UH 500MA 721 MOHM |
2,245 | 0.00 |
RFQ |
Nonstandard | Tape & Reel (TR) | SDH2812 | Obsolete | Drum Core, Wirewound | Ferrite | 14.7 µH | ±20% | 500 mA | 570mA | Shielded | 721mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | |
|
|
SDH2812-1R0-RFIXED IND 1.02UH 1.45A 83MOHM SM |
3,245 | 0.00 |
RFQ |
Nonstandard | Tape & Reel (TR) | SDH2812 | Obsolete | Drum Core, Wirewound | Ferrite | 1.02 µH | ±30% | 1.45 A | 1.95A | Shielded | 83mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | |
|
|
SDH2812-1R5-RFIXED IND 1.5UH 1.33A 102MOHM SM |
3,489 | 0.00 |
RFQ |
Nonstandard | Tape & Reel (TR) | SDH2812 | Obsolete | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 1.33 A | 1.71A | Shielded | 102mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | |
|
|
SDH2812-220-RFIXED IND 21.6UH 440MA 922 MOHM |
3,712 | 0.00 |
RFQ |
Nonstandard | Tape & Reel (TR) | SDH2812 | Obsolete | Drum Core, Wirewound | Ferrite | 21.6 µH | ±20% | 440 mA | 460mA | Shielded | 922mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
