| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Material-Core | Inductance | Tolerance | CurrentRating(Amps) | Current-Saturation(Isat) | Shielding | DCResistance(DCR) | Q@Freq | Frequency-SelfResonant | Ratings | OperatingTemperature | InductanceFrequency-Test | Features | MountingType | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

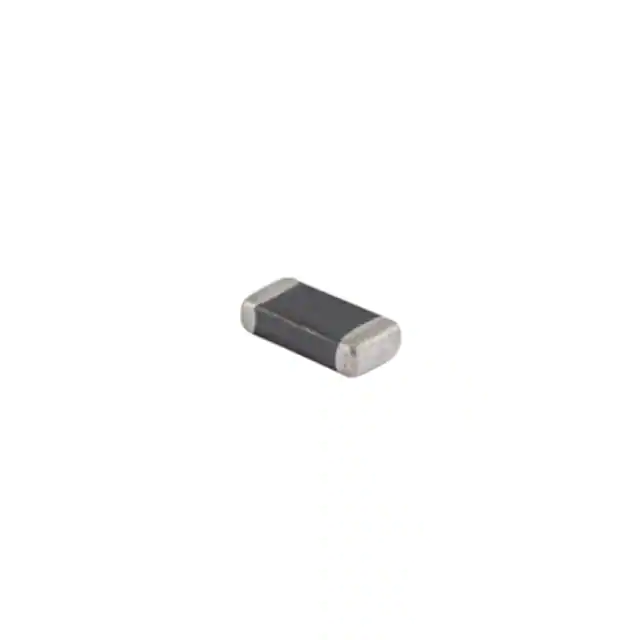

MCLA3216V1-6R8-RFIXED IND 6.8UH 25MA 800MOHM SMD |
850 | 0.15 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | MCLA3216V1 | Active | Multilayer | - | 6.8 µH | ±10% | 25 mA | - | Unshielded | 800mOhm Max | 35 @ 4MHz | 29MHz | AEC-Q200 | -40°C ~ 125°C | 4 MHz | - | Surface Mount | 1206 |
|
|
MCLA3216V1-1R2-RFIXED IND 1.2UH 100MA 400MOHM SM |
836 | 0.15 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | MCLA3216V1 | Active | Multilayer | - | 1.2 µH | ±10% | 100 mA | - | Unshielded | 400mOhm Max | 35 @ 10MHz | 65MHz | AEC-Q200 | -40°C ~ 125°C | 10 MHz | - | Surface Mount | 1206 |
|
|
MCLA3216V1-2R2-RFIXED IND 2.2UH 50MA 500MOHM SMD |
388 | 0.15 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | MCLA3216V1 | Active | Multilayer | - | 2.2 µH | ±10% | 50 mA | - | Unshielded | 500mOhm Max | 35 @ 10MHz | 50MHz | AEC-Q200 | -40°C ~ 125°C | 10 MHz | - | Surface Mount | 1206 |
|
|
MCLA3216V1-120-RFIXED IND 12UH 15MA 900 MOHM SMD |
690 | 0.17 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | MCLA3216V1 | Active | Multilayer | - | 12 µH | ±10% | 15 mA | - | Unshielded | 900mOhm Max | 35 @ 2MHz | 22MHz | AEC-Q200 | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 1206 |
|
WCLA1608V1-330-RFIXED IND 33NH 600MA 220MOHM SMD |
1,000 | 0.32 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | WCLA1608V1 | Active | Wirewound | - | 33 nH | ±5% | 600 mA | - | Unshielded | 220mOhm Max | 36 @ 250MHz | 2.3GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 |
|
|
WCLA1608V1-151-RFIXED IND 150NH 280MA 800MOHM SM |
995 | 0.32 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | WCLA1608V1 | Active | Wirewound | - | 150 nH | ±5% | 280 mA | - | Unshielded | 800mOhm Max | 28 @ 150MHz | 990MHz | AEC-Q200 | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0603 |
|
|
WCLA1608V1-3R3-RFIXED IND 3.3NH 700MA 75MOHM SMD |
970 | 0.32 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | WCLA1608V1 | Active | Wirewound | - | 3.3 nH | ±10% | 700 mA | - | Unshielded | 75mOhm Max | 20 @ 250MHz | 5.9GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 |
|
|
WCLA1608V1-271-RFIXED IND 270NH 170MA 2.3OHM SMD |
1,000 | 0.32 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | WCLA1608V1 | Active | Wirewound | - | 270 nH | ±5% | 170 mA | - | Unshielded | 2.3Ohm Max | 24 @ 100MHz | 900MHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 |
|
|
WCLA1608V1-8R2-RFIXED IND 8.2NH 700MA 120MOHM SM |
1,000 | 0.32 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | WCLA1608V1 | Active | Wirewound | - | 8.2 nH | ±5% | 700 mA | - | Unshielded | 120mOhm Max | 28 @ 250MHz | 4.7GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 |
|
|
WCLA1608V1-1R6-RFIXED IND 1.6NH 700MA 40MOHM SMD |
969 | 0.32 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | WCLA1608V1 | Active | Wirewound | - | 1.6 nH | ±10% | 700 mA | - | Unshielded | 40mOhm Max | 18 @ 250MHz | 12.5GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 |
|
|
WCLA1608V1-5R6-RFIXED IND 5.6NH 700MA 200MOHM SM |
968 | 0.32 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | WCLA1608V1 | Active | Wirewound | - | 5.6 nH | ±10% | 700 mA | - | Unshielded | 200mOhm Max | 18 @ 250MHz | 5.7GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 |
|
|
WCLA1608V1-150-RFIXED IND 15NH 700MA 150MOHM SMD |
945 | 0.32 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | WCLA1608V1 | Active | Wirewound | - | 15 nH | ±5% | 700 mA | - | Unshielded | 150mOhm Max | 30 @ 250MHz | 4GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 |
|
|
WCLA1608V1-471-RFIXED IND 470NH 75MA 7 OHM SMD |
875 | 0.32 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | WCLA1608V1 | Active | Wirewound | - | 470 nH | ±5% | 75 mA | - | Unshielded | 7Ohm Max | 25 @ 100MHz | 700MHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 |
|

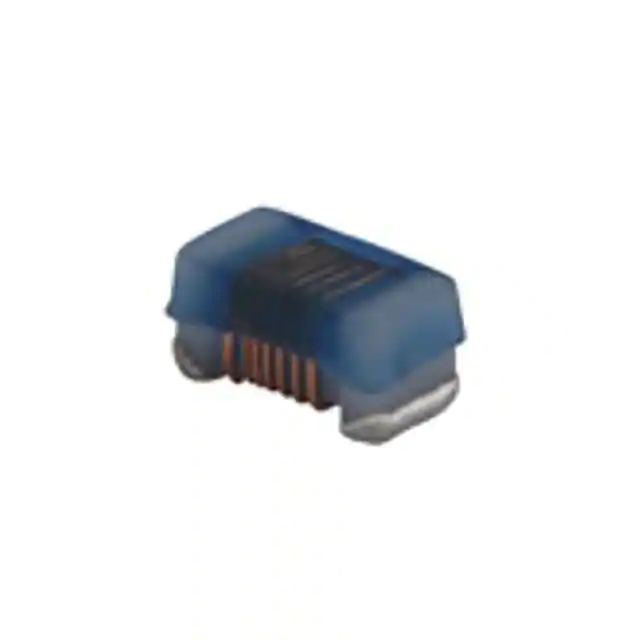

WCLA1005V1-3R6-RFIXED IND 3.6NH 840MA 66MOHM SMD |
1,000 | 0.35 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR),Cut Tape (CT) | WCLA1005V1 | Active | Wirewound | - | 3.6 nH | ±5% | 840 mA | - | Unshielded | 66mOhm Max | 20 @ 250MHz | 6GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 |
|

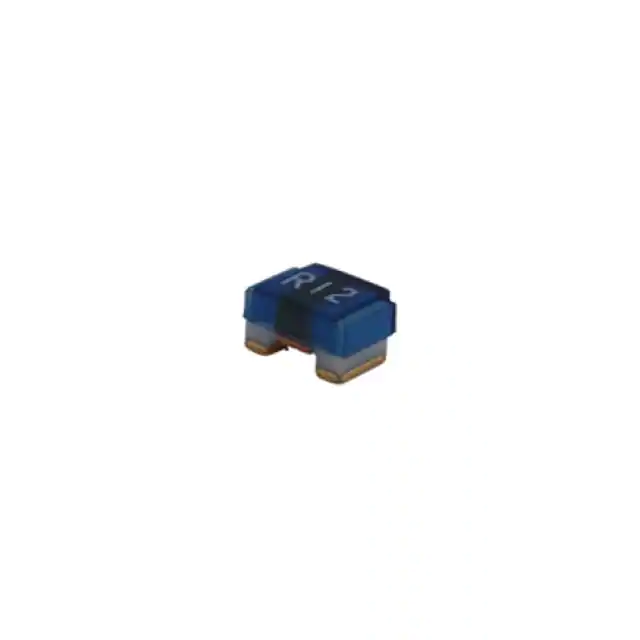

WCLA2012V1-560-RFIXED IND 56NH 500MA 340MOHM SMD |
1,000 | 0.35 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | WCLA2012V1 | Active | Wirewound | - | 56 nH | ±5% | 500 mA | - | Unshielded | 340mOhm Max | 55 @ 500MHz | 1.55GHz | AEC-Q200 | -40°C ~ 125°C | 200 MHz | - | Surface Mount | 0805 |
|
|
WCLA2012V1-121-RFIXED IND 120NH 400MA 510MOHM SM |
1,000 | 0.35 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | WCLA2012V1 | Active | Wirewound | - | 120 nH | ±5% | 400 mA | - | Unshielded | 510mOhm Max | 45 @ 250MHz | 1.1GHz | AEC-Q200 | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0805 |
|
|
WCLA1005V1-400-RFIXED IND 40NH 220MA 600MOHM SMD |
1,000 | 0.35 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR),Cut Tape (CT) | WCLA1005V1 | Active | Wirewound | - | 40 nH | ±5% | 220 mA | - | Unshielded | 600mOhm Max | 25 @ 250MHz | 2.24GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 |
|
|
WCLA1005V1-100-RFIXED IND 10NH 480MA 200MOHM SMD |
1,000 | 0.35 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR),Cut Tape (CT) | WCLA1005V1 | Active | Wirewound | - | 10 nH | ±5% | 480 mA | - | Unshielded | 200mOhm Max | 25 @ 250MHz | 3.9GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 |
|
|
WCLA2012V1-122-RFIXED IND 1.2UH 170MA 2.55OHM SM |
998 | 0.35 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | WCLA2012V1 | Active | Wirewound | - | 1.2 µH | ±5% | 170 mA | - | Unshielded | 2.55Ohm Max | 18 @ 50MHz | 180MHz | AEC-Q200 | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0805 |
|
|
WCLA1005V1-2R2-RFIXED IND 2.2NH 960MA 70MOHM SMD |
998 | 0.35 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR),Cut Tape (CT) | WCLA1005V1 | Active | Wirewound | - | 2.2 nH | ±10% | 960 mA | - | Unshielded | 70mOhm Max | 18 @ 250MHz | 6GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 |
