| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | SwitchCircuit | Multiplexer/DemultiplexerCircuit | NumberofCircuits | On-StateResistance(Max) | Channel-to-ChannelMatching(ΔRon) | Voltage-SupplySingle(V+) | Voltage-SupplyDual(V±) | SwitchTime(TonToff)(Max) | -3dbBandwidth | ChargeInjection | ChannelCapacitance(CS(off)CD(off)) | Current-Leakage(IS(off))(Max) | Crosstalk | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DG412LDY-E3IC SWITCH QUAD SPST LV 16-SOIC |
3,603 | 0.00 |
RFQ |
Datasheet |
16-SOIC (0.154, 3.90mm Width) | Tube | - | Obsolete | SPST - NO | 1:1 | 4 | 17Ohm | - | 2.7V ~ 12V | ±3V ~ 6V | 19ns, 12ns | 280MHz | 5pC | 5pF, 6pF | 250pA | -95dB @ 1MHz | -40°C ~ 85°C (TA) | Surface Mount |
|
DG413HSDJ-E3IC SWITCH QUAD SPST 16-DIP |
2,724 | 0.00 |
RFQ |
Datasheet |
16-DIP (0.300, 7.62mm) | Tube | - | Active | SPST - NO/NC | 1:1 | 4 | 35Ohm | - | 12V | ±5V ~ 20V | 105ns, 80ns | - | 22pC | 12pF, 12pF | 250pA | -88dB @ 1MHz | -40°C ~ 85°C (TA) | Through Hole |
|
|
DG413LDJ-E3IC SWITCH QUAD SPST LV 16-DIP |
2,808 | 0.00 |
RFQ |
Datasheet |
16-DIP (0.300, 7.62mm) | Tube | - | Obsolete | SPST - NO/NC | 1:1 | 4 | 17Ohm | - | 2.7V ~ 12V | ±3V ~ 6V | 19ns, 12ns | 280MHz | 5pC | 5pF, 6pF | 250pA | -95dB @ 1MHz | -40°C ~ 85°C (TA) | Through Hole |
|
|
DG413LDY-E3IC SWITCH QUAD SPST LV 16-SOIC |
3,872 | 0.00 |
RFQ |
Datasheet |
16-SOIC (0.154, 3.90mm Width) | Tube | - | Obsolete | SPST - NO/NC | 1:1 | 4 | 17Ohm | - | 2.7V ~ 12V | ±3V ~ 6V | 19ns, 12ns | 280MHz | 5pC | 5pF, 6pF | 250pA | -95dB @ 1MHz | -40°C ~ 85°C (TA) | Surface Mount |
|
|
DG611DJ-E3IC SWITCH QUAD SPST 16-DIP |
2,932 | 0.00 |
RFQ |
Datasheet |
16-DIP (0.300, 7.62mm) | Tube | - | Obsolete | SPST - NC | 1:1 | 4 | 45Ohm | 2Ohm | 10V ~ 18V | ±10V ~ 15V | 35ns, 25ns | 500MHz | 4pC | 3pF, 2pF | 250pA | -87dB @ 5MHz | -40°C ~ 85°C (TA) | Through Hole |
|
|
DG611DY-E3IC SWITCH QUAD SPST 16-SOIC |
3,047 | 0.00 |
RFQ |
Datasheet |
16-SOIC (0.154, 3.90mm Width) | Tube | - | Obsolete | SPST - NC | 1:1 | 4 | 45Ohm | 2Ohm | 10V ~ 18V | ±10V ~ 15V | 35ns, 25ns | 500MHz | 4pC | 3pF, 2pF | 250pA | -87dB @ 5MHz | -40°C ~ 85°C (TA) | Surface Mount |
|
|
DG612DJ-E3IC SWITCH QUAD SPST 16-DIP |
2,437 | 0.00 |
RFQ |
Datasheet |
16-DIP (0.300, 7.62mm) | Tube | - | Obsolete | SPST - NO | 1:1 | 4 | 45Ohm | 2Ohm | 10V ~ 18V | ±10V ~ 15V | 35ns, 25ns | 500MHz | 4pC | 3pF, 2pF | 250pA | -87dB @ 5MHz | -40°C ~ 85°C (TA) | Through Hole |
|
|
DG612DY-E3IC SWITCH QUAD SPST 16-SOIC |
3,045 | 0.00 |
RFQ |
Datasheet |
16-SOIC (0.154, 3.90mm Width) | Tube | - | Obsolete | SPST - NO | 1:1 | 4 | 45Ohm | 2Ohm | 10V ~ 18V | ±10V ~ 15V | 35ns, 25ns | 500MHz | 4pC | 3pF, 2pF | 250pA | -87dB @ 5MHz | -40°C ~ 85°C (TA) | Surface Mount |
|
|
DG613DJ-E3IC SWITCH QUAD NO/NC 16-DIP |
3,913 | 0.00 |
RFQ |
Datasheet |
16-DIP (0.300, 7.62mm) | Tube | - | Obsolete | DPDT | 2:2 | 1 | 45Ohm | 2Ohm | 10V ~ 18V | ±10V ~ 15V | 35ns, 25ns | 500MHz | 4pC | 3pF, 2pF | 250pA | -87dB @ 10MHz | -40°C ~ 85°C (TA) | Through Hole |
|
|
DG613DY-E3IC SWITCH QUAD NO/NC 16-SOIC |
2,430 | 0.00 |
RFQ |
Datasheet |
16-SOIC (0.154, 3.90mm Width) | Tube | - | Obsolete | DPDT | 2:2 | 1 | 45Ohm | 2Ohm | 10V ~ 18V | ±10V ~ 15V | 35ns, 25ns | 500MHz | 4pC | 3pF, 2pF | 250pA | -87dB @ 10MHz | -40°C ~ 85°C (TA) | Surface Mount |
|
DG2522DN-T1-E4IC SWITCH SP3T FAULT 8-MINIQFN |
2,413 | 0.00 |
RFQ |
Datasheet |
8-UFQFN | Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | SP3T | 3:1 | 1 | 1.1Ohm | 100mOhm (Max) | 1.6V ~ 5.5V | - | 75ns, 60ns | 105MHz | 27pC | 51pF | 20nA | -64dB @ 1MHz | -40°C ~ 85°C (TA) | Surface Mount |
|
DG2706DN-T1-E4IC SWITCH QUAD SPDT 16-MINIQFN |
2,773 | 0.00 |
RFQ |
Datasheet |
16-WFQFN | Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | SPDT | 2:1 | 4 | 5.5Ohm | 300mOhm | 1.65V ~ 4.3V | - | 45ns, 35ns | - | 3pC | 16pF | 5nA | -90dB @ 1MHz | -40°C ~ 85°C (TA) | Surface Mount |
|
DG2714DL-T1-E3IC SWITCH SGL SPDT LV SC70-6 |
2,628 | 0.00 |
RFQ |
Datasheet |
6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | SPDT | 2:1 | 1 | 1.2Ohm | 60mOhm (Max) | 1.5V ~ 3.6V | - | 51ns, 33ns | - | 9pC | 30pF | 1nA | -64dB @ 1MHz | -40°C ~ 85°C (TA) | Surface Mount |
|
DG2720DN-T1-E4IC SWITCH DPDT USB2.0 10-MINIQFN |
2,821 | 0.00 |
RFQ |
Datasheet |
10-UFQFN | Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | DPDT | 2:2 | 2 | 7Ohm | 350mOhm | 2.6V ~ 4.3V | - | 30ns, 25ns | 620MHz | 0.5pC | 4pF | 100nA | -49dB @ 240MHz | -40°C ~ 85°C (TA) | Surface Mount |
|
|
DG2722DN-T1-E4IC SWITCH DPDT USB2.0 10-MINIQFN |
2,221 | 0.00 |
RFQ |
Datasheet |
10-UFQFN | Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | DPDT | 2:2 | 2 | 8Ohm | 800mOhm | 2.6V ~ 4.3V | - | 30ns, 25ns | 900MHz | 0.5pC | 2.2pF | 100nA | -45dB @ 240MHz | -40°C ~ 85°C (TA) | Surface Mount |
|
|
DG2727DN-T1-E4IC SWTICH DUAL SPST 8-MINIQFN |
2,640 | 0.00 |
RFQ |
Datasheet |
8-UFQFN | Cut Tape (CT) | - | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount |
|
|
DG2735DN-T1-E4IC SWITCH 2XSPDT 500MOHM MINIQFN |
2,537 | 0.00 |
RFQ |
Datasheet |
8-UFQFN | Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | SPDT | 2:1 | 2 | 500mOhm | 60mOhm | 1.65V ~ 4.3V | - | 78ns, 58ns | 50MHz | - | 55pF | 2nA | -70dB @ 100kHz | -40°C ~ 85°C (TA) | Surface Mount |
|
|
DG2788DN-T1-E4IC SWITCH DUAL DPDT 16-MINIQFN |
2,766 | 0.00 |
RFQ |
Datasheet |
16-WFQFN | Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | DPDT | 2:2 | 2 | 500mOhm | 50mOhm | 1.65V ~ 4.3V | - | 72ns, 43ns | - | 87pC | 81pF | 1nA | -96dB @ 1MHz | -40°C ~ 85°C (TA) | Surface Mount |
|

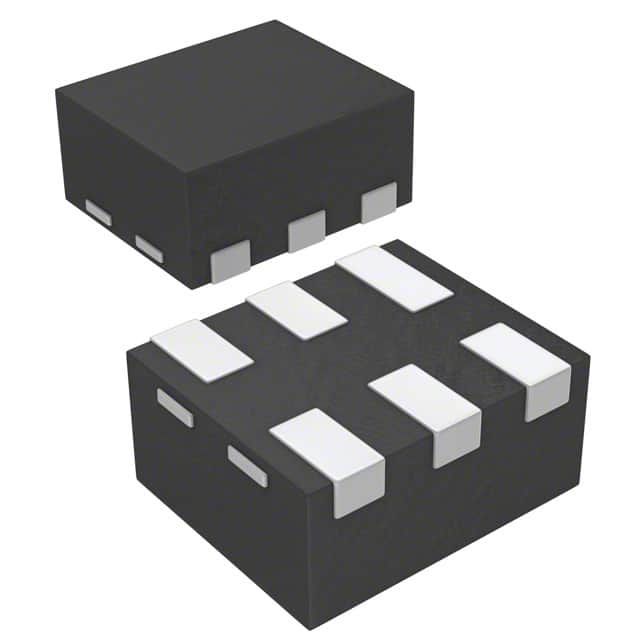

DG3157ADN-T1-E4IC SWITCH SPDT 300MHZ 6-MINIQFN |
2,218 | 0.00 |
RFQ |
Datasheet |
6-UFDFN | Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | SPDT | 2:1 | 1 | 15Ohm | 800mOhm | 1.65V ~ 5.5V | - | 25ns, 21ns | 300MHz | 7pC | 7pF | 1µA | -64dB @ 10MHz | -40°C ~ 85°C (TA) | Surface Mount |
|
|
DG3157BDN-T1-E4IC SWITCH SPDT 300MHZ 6-MINIQFN |
2,791 | 0.00 |
RFQ |
Datasheet |
6-UFDFN | Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | SPDT | 2:1 | 1 | 15Ohm | 800mOhm | 1.65V ~ 5.5V | - | 25ns, 21ns | 300MHz | 7pC | 7pF | 1µA | -64dB @ 10MHz | -40°C ~ 85°C (TA) | Surface Mount |
