Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	SwitchCircuit	Multiplexer/DemultiplexerCircuit	NumberofCircuits	On-StateResistance(Max)	Channel-to-ChannelMatching(ΔRon)	Voltage-SupplySingle(V+)	Voltage-SupplyDual(V±)	SwitchTime(TonToff)(Max)	-3dbBandwidth	ChargeInjection	ChannelCapacitance(CS(off)CD(off))	Current-Leakage(IS(off))(Max)	Crosstalk	OperatingTemperature	MountingType
ADG417BRZ IC SWITCH SPST 8SOIC Analog Devices Inc.	2,269	4.69	RFQ	Datasheet	8-SOIC (0.154, 3.90mm Width)	Tube	-	Active	SPST - NC	1:1	1	35Ohm	-	12V	±15V	160ns, 100ns	-	7pC	6pF, 6pF	250pA	-	-40°C ~ 85°C (TA)	Surface Mount
ADG5209BRUZ-RL7 IC MULTIPLEXER 1X4:1 16TSSOP Analog Devices Inc.	1,816	8.02	RFQ	Datasheet	16-TSSOP (0.173, 4.40mm Width)	Tape & Reel (TR),Cut Tape (CT)	-	Active	SP4T	4:1	2	160Ohm	3.5Ohm	9V ~ 40V	±9V ~ 22V	140ns, 185ns	130MHz	0.4pC	2.8pF, 17pF	100pA	-90dB @ 1MHz	-40°C ~ 125°C (TA)	Surface Mount
ADG713BRZ IC SWITCH QUAD SPST 16SOIC Analog Devices Inc.	1,141	4.83	RFQ	Datasheet	16-SOIC (0.154, 3.90mm Width)	Tube	-	Active	SPST - NO/NC	1:1	4	4Ohm	-	1.8V ~ 5.5V	-	11ns, 6ns (Typ)	200MHz	3pC	10pF, 10pF	100pA	-90dB @ 10MHz	-40°C ~ 85°C (TA)	Surface Mount
ADG713BRUZ IC SWITCH QUAD SPST 16TSSOP Analog Devices Inc.	316	4.83	RFQ	Datasheet	16-TSSOP (0.173, 4.40mm Width)	Tube	-	Active	SPST - NO/NC	1:1	4	4Ohm	-	1.8V ~ 5.5V	-	11ns, 6ns (Typ)	200MHz	3pC	10pF, 10pF	100pA	-90dB @ 10MHz	-40°C ~ 85°C (TA)	Surface Mount
ADG419BNZ IC SWITCH SPDT 8DIP Analog Devices Inc.	444	5.08	RFQ	Datasheet	8-DIP (0.300, 7.62mm)	Tube	-	Active	SPDT	2:1	1	35Ohm	-	12V	±15V	-	-	-	6pF	250pA	-90dB @ 1MHz	-40°C ~ 125°C (TA)	Through Hole
ADV3219ACPZ IC MULTIPLEXER 2:1 8LFCSP Analog Devices Inc.	3,104	5.56	RFQ	Datasheet	8-WFDFN Exposed Pad, CSP	Tray	-	Active	SPDT	2:1	1	-	-	-	±4.5V ~ 5.5V	-	840MHz	-	0.6pF	2µA (Typ)	-70dB @ 100MHz	-40°C ~ 85°C (TA)	Surface Mount
ADG659YCPZ IC MULTIPLEXER 4:1 16LFCSP Analog Devices Inc.	494	6.26	RFQ		16-VQFN Exposed Pad, CSP	Tray	-	Active	SP4T	4:1	2	75Ohm	1.3Ohm	2V ~ 12V	±2V ~ 6V	115ns, 45ns	400MHz	2pC	4pF, 12pF	200pA	-90dB @ 1MHz	-40°C ~ 85°C (TA)	Surface Mount
ADG658YCPZ IC MULTIPLEXER 8X1 16LFCSP Analog Devices Inc.	2,042	6.26	RFQ		16-VQFN Exposed Pad, CSP	Tray	-	Active	-	8:1	1	75Ohm	1.3Ohm	2V ~ 12V	±2V ~ 6V	115ns, 45ns	210MHz	2pC	4pF, 23pF	200pA	-	-40°C ~ 85°C (TA)	Surface Mount
ADG904BRUZ-R IC MULTIPLEXER 4X1 20TSSOP Analog Devices Inc.	196	6.26	RFQ	Datasheet	20-TSSOP (0.173, 4.40mm Width)	Tube	-	Active	SP4T	4:1	1	-	-	1.65V ~ 2.75V	-	10ns, 16ns	2.5GHz	-	2pF	1µA	-58dB @ 100MHz	-40°C ~ 85°C (TA)	Surface Mount
ADG211AKNZ IC SWITCH QUAD SPST 16DIP Analog Devices Inc.	668	7.27	RFQ	Datasheet	16-DIP (0.300, 7.62mm)	Tube	-	Active	SPST - NC	1:1	4	115Ohm	5.75Ohm	15V	±15V	600ns, 450ns	-	20pC	5pF, 5pF	5nA	-80dB @ 100kHz	-40°C ~ 85°C (TA)	Through Hole
ADG433BRZ IC SWITCH QUAD SPST 16SOIC Analog Devices Inc.	1,994	8.00	RFQ		16-SOIC (0.154, 3.90mm Width)	Tube	-	Active	SPST - NO/NC	1:1	4	24Ohm	1.2Ohm	12V	±15V	90ns, 60ns	-	5pC	9pF, 9pF	250pA	-85dB @ 1MHz	-40°C ~ 85°C (TA)	Surface Mount
ADG409BNZ IC MULTIPLEXER DUAL 4X1 16DIP Analog Devices Inc.	185	8.83	RFQ	Datasheet	16-DIP (0.300, 7.62mm)	Tube	-	Active	SP4T	4:1	2	100Ohm	15Ohm (Max)	12V	±15V	-	-	20pC	11pF, 20pF	500pA	-85dB @ 100kHz	-40°C ~ 85°C (TA)	Through Hole
LTC201ACS#PBF IC SWITCH QUAD SPST 16SOIC Analog Devices Inc.	479	9.16	RFQ	Datasheet	16-SOIC (0.154, 3.90mm Width)	Tube	-	Active	SPST - NC	1:1	4	125Ohm	6.25Ohm	5V	±15V	400ns, 300ns	-	8pC	5pF, 12pF	5nA	-90dB @ 100kHz	0°C ~ 70°C (TA)	Surface Mount
ADG201HSJNZ IC SWITCH QUAD SPST 16DIP Analog Devices Inc.	2,459	12.87	RFQ	Datasheet	16-DIP (0.300, 7.62mm)	Bulk,Tube	-	Active	SPST - NC	1:1	4	50Ohm	1.5Ohm	10.8V ~ 16.5V	±13.5V ~ 16.5V	75ns, 75ns	-	10pC	10pF, 10pF	1nA	-86dB @ 100kHz	-40°C ~ 85°C (TA)	Through Hole
ADG201ASRZ-EP-RL7 IC SWITCH QUAD SPST 16PLCC Analog Devices Inc.	1,848	19.74	RFQ	Datasheet	16-SOIC (0.154, 3.90mm Width)	Tape & Reel (TR),Cut Tape (CT)	-	Active	SPST - NC	1:1	4	90Ohm	4.5Ohm	10V ~ 15V	±10V ~ 15V	300ns, 250ns	-	20pC	5pF	2nA	-80dB @ 100kHz	-55°C ~ 125°C (TA)	Surface Mount
ADG507AKRUZ IC MULTIPLEXER DUAL 8X1 28TSSOP Analog Devices Inc.	197	28.35	RFQ	Datasheet	28-TSSOP (0.173, 4.40mm Width)	Tube	-	Active	-	8:1	2	300Ohm	15Ohm	10.8V ~ 16.5V	±10.8V ~ 16.5V	300ns, 300ns	-	4pC	5pF, 22pF	1nA	-	-40°C ~ 85°C (TA)	Surface Mount

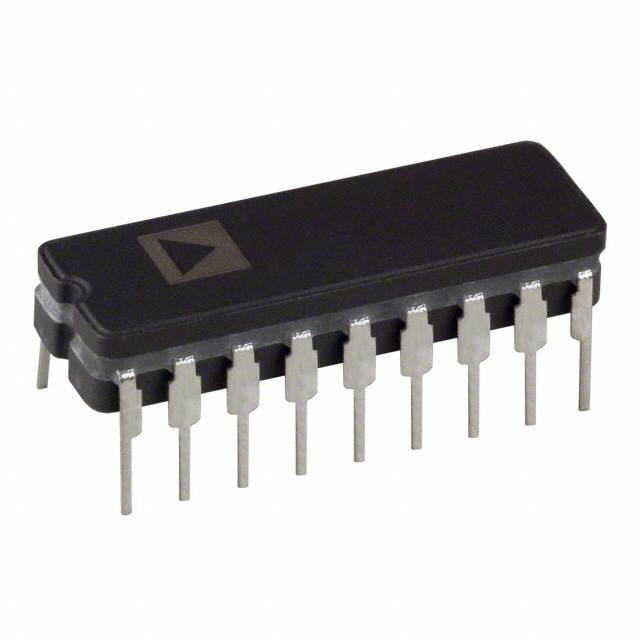

ADG528ATQ IC MULTIPLEXER 8X1 18CDIP Analog Devices Inc.	166	39.50	RFQ	Datasheet	18-CDIP (0.300, 7.62mm)	Tube	-	Active	-	8:1	1	450Ohm	22.5Ohm	10.8V ~ 16.5V	±10.8V ~ 16.5V	300ns, 300ns	-	4pC	5pF, 22pF	1nA	-	-55°C ~ 125°C (TA)	Through Hole

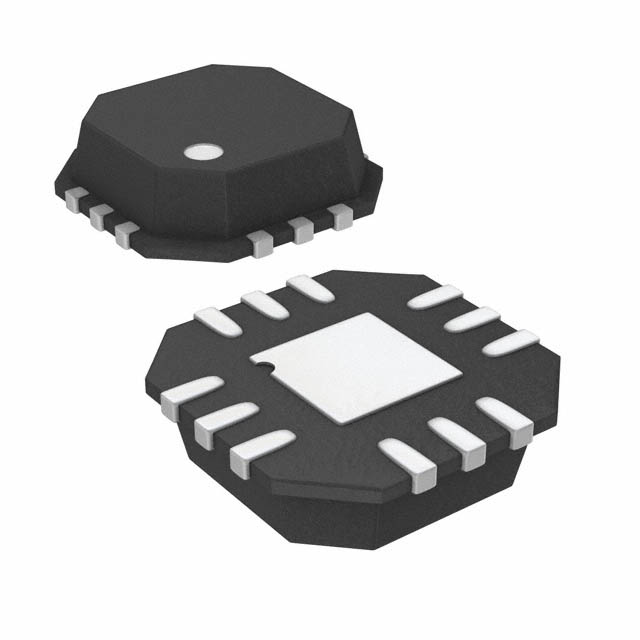

ADG836YCPZ-REEL7 IC SWITCH DUAL SPDT 12LFCSP Analog Devices Inc.	4,307	4.21	RFQ	Datasheet	12-VFQFN Exposed Pad, CSP	Tape & Reel (TR),Cut Tape (CT)	-	Active	SPDT	2:1	2	650mOhm	40mOhm	1.65V ~ 3.6V	-	26ns, 7ns	57MHz	40pC	25pF	200pA (Typ)	-90dB @ 100kHz	-40°C ~ 125°C (TA)	Surface Mount
ADG713BRUZ-REEL7 IC SWITCH QUAD SPST 16TSSOP Analog Devices Inc.	1,004	4.83	RFQ	Datasheet	16-TSSOP (0.173, 4.40mm Width)	Tape & Reel (TR),Cut Tape (CT)	-	Active	SPST - NO/NC	1:1	4	4Ohm	-	1.8V ~ 5.5V	-	11ns, 6ns (Typ)	200MHz	3pC	10pF, 10pF	100pA	-90dB @ 10MHz	-40°C ~ 85°C (TA)	Surface Mount
ADG774ABRQZ-REEL7 IC MUX/DEMUX QUAD 2X1 16QSOP Analog Devices Inc.	5,730	6.80	RFQ	Datasheet	16-SSOP (0.154, 3.90mm Width)	Tape & Reel (TR),Cut Tape (CT)	-	Active	SPDT	2:1	4	3.5Ohm	150mOhm	3V ~ 5V	-	12ns, 6ns	400MHz	6pC	5pF, 7.5pF	100pA	-70dB @ 10MHz	-40°C ~ 85°C (TA)	Surface Mount
