Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	SwitchCircuit	Multiplexer/DemultiplexerCircuit	NumberofCircuits	On-StateResistance(Max)	Channel-to-ChannelMatching(ΔRon)	Voltage-SupplySingle(V+)	Voltage-SupplyDual(V±)	SwitchTime(TonToff)(Max)	-3dbBandwidth	ChargeInjection	ChannelCapacitance(CS(off)CD(off))	Current-Leakage(IS(off))(Max)	Crosstalk	OperatingTemperature	MountingType

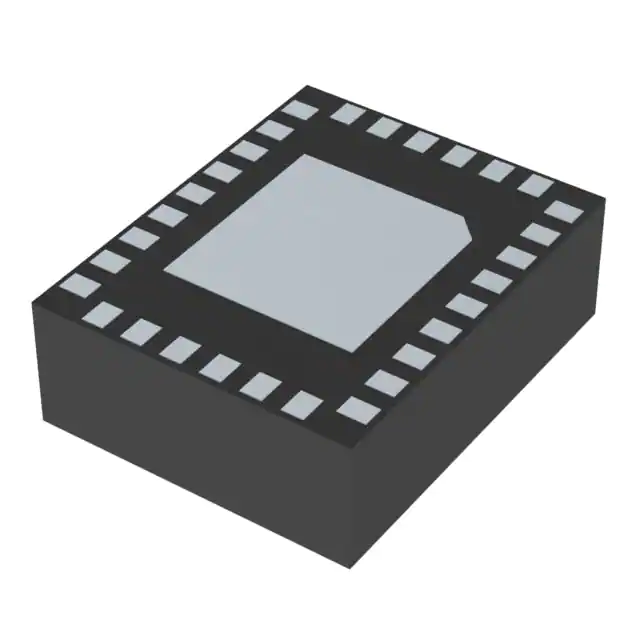

ADGS1414DBCCZ-RL7 FULLY INTEGRATED, 1.5 ? RON, 15 Analog Devices Inc.	3,273	29.30	RFQ	Datasheet	30-FLGA Exposed Pad	Tape & Reel (TR),Cut Tape (CT)	-	Active	SPST	1:1	8	1.8Ohm	300mOhm	5V ~ 20V, ±4.5V ~ 16.5V	5V ~ 20V, ±4.5V ~ 16.5V	475ns, 190ns	170MHz	-20pC	20pF, 21pF	30pA	-75dB @ 1MHz	-40°C ~ 125°C	Surface Mount
MUX08FPZ IC MULTIPLEXER 8X1 16DIP Analog Devices Inc.	3,943	21.64	RFQ	Datasheet	16-DIP (0.300, 7.62mm)	Bulk,Tube	-	Active	-	8:1	1	300Ohm	21Ohm	-	-	2µs, 400ns	-	-	2.5pF, 7pF	1nA	-70dB @ 500kHz	-40°C ~ 85°C (TA)	Through Hole
ADG1409SRUZ-EP IC MULTIPLEXER 4X1 16TSSOP Analog Devices Inc.	3,897	21.86	RFQ	Datasheet	16-TSSOP (0.173, 4.40mm Width)	Tube	-	Active	SP4T	4:1	2	4.7Ohm	200mOhm (Typ)	5V ~ 16.5V	±4.5V ~ 16.5V	120ns, 120ns	115MHz	-50pC	14pF, 40pF	200pA	-70dB @ 1MHz	-55°C ~ 125°C	Surface Mount
ADG201HSKNZ IC SWITCH QUAD SPST 16DIP Analog Devices Inc.	2,571	22.04	RFQ	Datasheet	16-DIP (0.300, 7.62mm)	Bulk,Tube	-	Active	SPST - NC	1:1	4	50Ohm	1.5Ohm	10.8V ~ 16.5V	±13.5V ~ 16.5V	50ns, 50ns	-	10pC	10pF, 10pF	1nA	-86dB @ 100kHz	-40°C ~ 85°C (TA)	Through Hole
MUX24AQ DUAL 4-CH ANALOG MULTIPLEXER Analog Devices Inc.	2,714	19.68	RFQ	Datasheet	16-CDIP (0.300, 7.62mm)	Bulk	-	Active	SP4T	4:1	2	300Ohm	45Ohm	±15V	±15V	2µs, 500ns	-	-	2.5pF, 7pF	1nA	-70dB @ 500kHz	-55°C ~ 125°C	Through Hole
ADG5412FTRUZ-EP IC SWITCH SPST 11 OHM 16TSSOP Analog Devices Inc.	3,657	1.00	RFQ	Datasheet	16-TSSOP (0.173, 4.40mm Width)	Bulk,Tube	-	Active	SPST - NO	1:1	4	11.5Ohm	50mOhm	8V ~ 44V	±5V ~ 22V	500ns, 515ns	270MHz	-640pC	12pF, 11pF	500pA	-90dB @ 1MHz	-40°C ~ 125°C (TA)	Surface Mount
ADGS1414DBCCZ FULLY INTEGRATED, 1.5 ? RON, 15 Analog Devices Inc.	2,595	29.30	RFQ	Datasheet	30-FLGA Exposed Pad	Tray	-	Active	SPST	1:1	8	1.8Ohm	300mOhm	5V ~ 20V, ±4.5V ~ 16.5V	5V ~ 20V, ±4.5V ~ 16.5V	475ns, 190ns	170MHz	-20pC	20pF, 21pF	30pA	-75dB @ 1MHz	-40°C ~ 125°C	Surface Mount
AD7511DIKNZ IC SWITCH QUAD SPST 16DIP Analog Devices Inc.	3,318	37.29	RFQ	Datasheet	16-DIP (0.300, 7.62mm)	Bulk,Tube	-	Active	SPST - NC	1:1	4	100Ohm	1Ohm	-	±15V	180ns, 350ns (Typ)	-	-	8pF, 1pF	5nA	-	0°C ~ 70°C (TA)	Through Hole
5962-8771701XA 16-CHANNEL ANALOG MULTIPLEXER Analog Devices Inc.	3,184	56.37	RFQ	Datasheet	28-CDIP (0.600, 15.24mm)	Bulk	-	Active	-	16:1	1	380Ohm	19Ohm	±15V	±15V	2µs, 500ns	-	-	2.5pF, 13pF	1nA	-75dB @ 500kHz	-55°C ~ 125°C	Through Hole
ADG798HFZ IC MUX/DEMUX 8:1 16FLATPACK Analog Devices Inc.	2,232	177.16	RFQ	Datasheet	16-CFlatPack	Bulk,Tube	-	Active	-	8:1	1	10Ohm	1.25Ohm	3V ~ 5.5V	±2.5V	30ns, 20ns	55MHz	3pC	13pF, 85pF	180nA	-60dB @ 10MHz	-55°C ~ 210°C (TA)	Surface Mount
ADG5298HFRZ IC MUX/DEMUX 8:1 16FLATPACK Analog Devices Inc.	2,924	230.31	RFQ	Datasheet	16-CFlatPack	Bulk	-	Active	-	8:1	1	350Ohm	1.5Ohm	9V ~ 40V	±9V ~ 22V	245ns, 260ns	121MHz	0.4pC	2.8pF, 33pF	8nA	-80dB @ 1MHz	-55°C ~ 210°C (TA)	Surface Mount
ADG5298HFZ IC MUX/DEMUX 8:1 16FLATPACK Analog Devices Inc.	3,262	230.31	RFQ	Datasheet	16-CFlatPack	Bulk,Bulk	-	Active	-	8:1	1	350Ohm	1.5Ohm	9V ~ 40V	±9V ~ 22V	245ns, 260ns	121MHz	0.4pC	2.8pF, 33pF	8nA	-80dB @ 1MHz	-55°C ~ 210°C (TA)	Surface Mount
ADG794BRQZ-REEL IC MUX/DEMUX QUAD 2X1 16QSOP Analog Devices Inc.	90,068	1.35	RFQ	Datasheet	16-SSOP (0.154, 3.90mm Width)	Tape & Reel (TR),Cut Tape (CT),Bulk	-	Active	SPDT	2:1	4	7Ohm	400mOhm	3.3V, 5V	-	7ns, 5ns (Typ)	300MHz	7.5pC	8pF, 14pF	1pA (Typ)	-70dB @ 10MHz	-40°C ~ 85°C (TA)	Surface Mount
ADG741BKSZ-REEL IC SWITCH SPST SC70-6 Analog Devices Inc.	2,621	1.55	RFQ	Datasheet	6-TSSOP, SC-88, SOT-363	Tape & Reel (TR)	-	Active	SPST - NO	1:1	1	3Ohm	-	1.8V ~ 5.5V	-	12ns, 8ns (Typ)	200MHz	5pC	17pF, 17pF	250pA	-	-40°C ~ 85°C (TA)	Surface Mount
ADG787BCPZ-REEL IC MUX/DEMUX DUAL 2X1 10LFCSP Analog Devices Inc.	2,093	1.72	RFQ	Datasheet	10-VFDFN Exposed Pad, CSP	Tape & Reel (TR),Bulk	-	Active	SPDT	2:1	2	3Ohm	20mOhm	1.8V ~ 5.5V	-	19ns, 5ns	145MHz	14pC	16pF	50pA (Typ)	-110dB @ 1MHz	-40°C ~ 85°C (TA)	Surface Mount
ADG787BCBZ-REEL7 IC MUX/DEMUX DUAL 2X1 10WLCSP Analog Devices Inc.	109,840	1.72	RFQ	Datasheet	10-UFBGA, WLCSP	Tape & Reel (TR),Cut Tape (CT),Bulk	-	Active	SPDT	2:1	2	3Ohm	20mOhm	1.8V ~ 5.5V	-	19ns, 5ns	145MHz	14pC	16pF	50pA (Typ)	-110dB @ 1MHz	-20°C ~ 85°C (TA)	Surface Mount
ADG787BCBZ-REEL IC MUX/DEMUX DUAL 2X1 10WLCSP Analog Devices Inc.	14,024	1.72	RFQ	Datasheet	10-UFBGA, WLCSP	Tape & Reel (TR),Bulk	-	Active	SPDT	2:1	2	3Ohm	20mOhm	1.8V ~ 5.5V	-	19ns, 5ns	145MHz	14pC	16pF	50pA (Typ)	-110dB @ 1MHz	-25°C ~ 85°C (TA)	Surface Mount
ADG722BRMZ-REEL IC SWITCH DUAL SPST 8MSOP Analog Devices Inc.	3,289	1.00	RFQ	Datasheet	8-TSSOP, 8-MSOP (0.118, 3.00mm Width)	Tape & Reel (TR),Bulk	-	Active	SPST - NC	1:1	2	4Ohm	300mOhm	1.8V ~ 5.5V	-	14ns, 6ns (Typ)	200MHz	2pC	7pF, 7pF	250pA	-97dB @ 1MHz	-40°C ~ 85°C (TA)	Surface Mount
ADG602BRMZ-REEL7 IC SWITCH SPST 8MSOP Analog Devices Inc.	5,868	2.01	RFQ		8-TSSOP, 8-MSOP (0.118, 3.00mm Width)	Tape & Reel (TR),Bulk	-	Active	SPST - NC	1:1	1	2.5Ohm	-	2.7V ~ 5.5V	±2.7V ~ 5.5V	120ns, 75ns	180MHz	250pC	50pF, 50pF	250pA	-	-40°C ~ 85°C (TA)	Surface Mount
ADG1313YRZ-REEL7 IC SWITCH QUAD SPST 16SOIC Analog Devices Inc.	17,321	2.07	RFQ	Datasheet	16-SOIC (0.154, 3.90mm Width)	Tape & Reel (TR),Bulk	-	Active	SPST - NO/NC	1:1	4	200Ohm	5Ohm	12V	±15V	125ns, 50ns	600MHz	2pC	5pF, 5pF	10nA	-90dB @ 1MHz	-40°C ~ 105°C (TA)	Surface Mount
