| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | SwitchCircuit | Multiplexer/DemultiplexerCircuit | NumberofCircuits | On-StateResistance(Max) | Channel-to-ChannelMatching(ΔRon) | Voltage-SupplySingle(V+) | Voltage-SupplyDual(V±) | SwitchTime(TonToff)(Max) | -3dbBandwidth | ChargeInjection | ChannelCapacitance(CS(off)CD(off)) | Current-Leakage(IS(off))(Max) | Crosstalk | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADG620BRTZ-REEL7IC SWITCH SPDT SOT23-8 |
3,971 | 1.00 |
RFQ |
SOT-23-8 | Tape & Reel (TR),Cut Tape (CT),Bulk | - | Obsolete | SPDT | 2:1 | 1 | 6.5Ohm | 700mOhm | 2.7V ~ 5.5V | ±2.7V ~ 5.5V | 65ns, 330ns | 190MHz | 110pC | 25pF | 250pA | -67dB @ 1MHz | -40°C ~ 85°C (TA) | Surface Mount | |
|
AD7512DIJPZIC SWITCH DUAL SPDT 20PLCC |
892 | 12.78 |
RFQ |
Datasheet |
20-LCC (J-Lead) | Tube | - | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount |
|
ADG783BCPZ-REELIC SWITCH QUAD SPST 20LFCSP |
2,036 | 0.00 |
RFQ |
Datasheet |
20-WFQFN Exposed Pad, CSP | Tape & Reel (TR) | - | Obsolete | SPST - NO/NC | 1:1 | 4 | 4Ohm | - | 1.8V ~ 5.5V | - | 11ns, 6ns (Typ) | 200MHz | 3pC | 10pF, 10pF | 100pA | -90dB @ 10MHz | -40°C ~ 85°C (TA) | Surface Mount |
|
ADG742BKSZ5-REELIC SWITCH SPST SC70-5 |
3,354 | 0.00 |
RFQ |
Datasheet |
5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | - | Obsolete | SPST - NC | 1:1 | 1 | 3Ohm | - | 1.8V ~ 5.5V | - | 12ns, 8ns (Typ) | 200MHz | 5pC | 17pF, 17pF | 250pA | - | -40°C ~ 85°C (TA) | Surface Mount |
|
ADG1209YCPZ-REELIC MULTIPLEXER DUAL 4X1 16LFCSP |
3,203 | 0.00 |
RFQ |
16-VQFN Exposed Pad, CSP | Tape & Reel (TR) | - | Obsolete | SP4T | 4:1 | 2 | 200Ohm | 3.5Ohm | 5V ~ 16.5V | ±5V ~ 16.5V | 95ns, 100ns | 550MHz | 0.4pC | 1.5pF, 4.5pF | 100pA | -85dB @ 1MHz | -40°C ~ 125°C (TA) | Surface Mount | |
|
ADV3000ASTZIC HDMI/DVI SWITCH 3.1 80LQFP |
7,341 | 7.59 |
RFQ |
Datasheet |
80-LQFP | Tray | - | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount |
|
|
ADV3000ASTZ-RLIC HDMI/DVI SWITCH 3.1 80LQFP |
1,000 | 7.59 |
RFQ |
Datasheet |
80-LQFP | Bulk | - | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount |
|
ADG620BRMZ-REEL7IC SWITCH SPDT 8MSOP |
3,369 | 1.00 |
RFQ |
8-TSSOP, 8-MSOP (0.118, 3.00mm Width) | Tape & Reel (TR),Bulk | - | Obsolete | SPDT | 2:1 | 1 | 6.5Ohm | 700mOhm | 2.7V ~ 5.5V | ±2.7V ~ 5.5V | 65ns, 330ns | 190MHz | 110pC | 25pF | 250pA | -67dB @ 1MHz | -40°C ~ 85°C (TA) | Surface Mount | |
|
ADG723ACPZ-REEL7IC SWITCH SPST 8LFCSP |
111,317 | 0.84 |
RFQ |
Datasheet |
8-WFDFN Exposed Pad, CSP | Tape & Reel (TR),Cut Tape (CT),Bulk | - | Obsolete | SPST - NO/NC | 1:1 | 2 | 4Ohm | 300mOhm | 1.8V ~ 5.5V | - | 14ns, 6ns (Typ) | 200MHz | 2pC | 7pF, 7pF | 10pA (Typ) | -97dB @ 1MHz | -40°C ~ 85°C (TA) | Surface Mount |
|

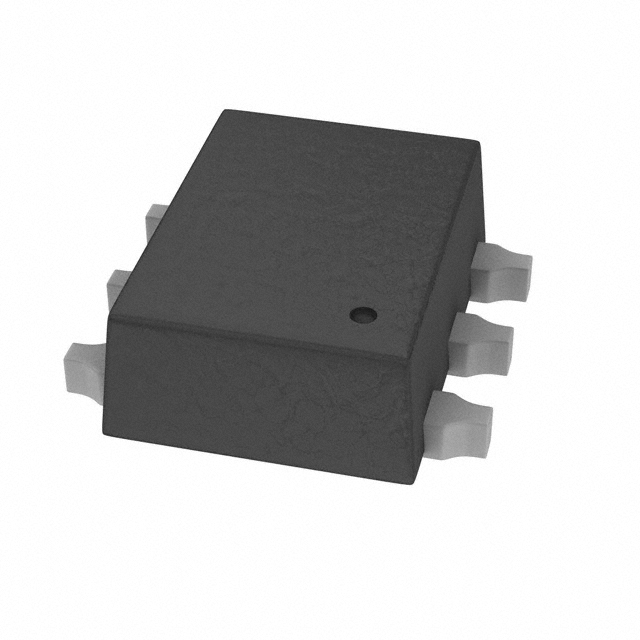

ADG859YRYZ-REEL7IC SWITCH SPDT SOT66 |
2,080 | 0.00 |
RFQ |
Datasheet |
SOT-66 | Cut Tape (CT) | - | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount |
|
|
ADG859BRYZ-REEL7IC SWITCH SPDT SOT66 |
2,064 | 0.00 |
RFQ |
Datasheet |
SOT-66 | Cut Tape (CT) | - | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount |
|
|
ADG723ACPZ-REELIC SWITCH SPST 8LFCSP |
2,080 | 0.00 |
RFQ |
Datasheet |
8-WFDFN Exposed Pad, CSP | Tape & Reel (TR) | - | Obsolete | SPST - NO/NC | 1:1 | 2 | 4Ohm | 300mOhm | 1.8V ~ 5.5V | - | 14ns, 6ns (Typ) | 200MHz | 2pC | 7pF, 7pF | 10pA (Typ) | -97dB @ 1MHz | -40°C ~ 85°C (TA) | Surface Mount |
|
ADG772BCPZ-REELIC MUX/DEMUX 2X1 10LFCSP |
2,433 | 0.00 |
RFQ |
Datasheet |
10-UFQFN, CSP | Tape & Reel (TR) | - | Obsolete | SPDT | 2:1 | 2 | 6.7Ohm (Typ) | 40mOhm | 2.7V ~ 3.6V | - | 12.5ns, 9.5ns | 630MHz | 0.5pC | 2.4pF, 6.9pF | 200pA | -90dB @ 1MHz | -40°C ~ 85°C (TA) | Surface Mount |
|
|
ADG854BCPZ-REELIC SWITCH DUAL SPDT 10LFCSP |
3,430 | 0.00 |
RFQ |
Datasheet |
10-UFQFN, CSP | Tape & Reel (TR) | - | Obsolete | SPDT | 2:1 | 2 | 850mOhm | 20mOhm | 1.8V ~ 5.5V | - | 23ns, 8.5ns | 100MHz | 30pC | 19.5pF | 10pA (Typ) | -85dB @ 100kHz | -40°C ~ 85°C (TA) | Surface Mount |
|
|
ADG904BCP-500RL7IC MULTIPLEXER QUAD 1X1 20LFCSP |
2,530 | 2.41 |
RFQ |
Datasheet |
20-WFQFN Exposed Pad, CSP | Bulk | - | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount |
|

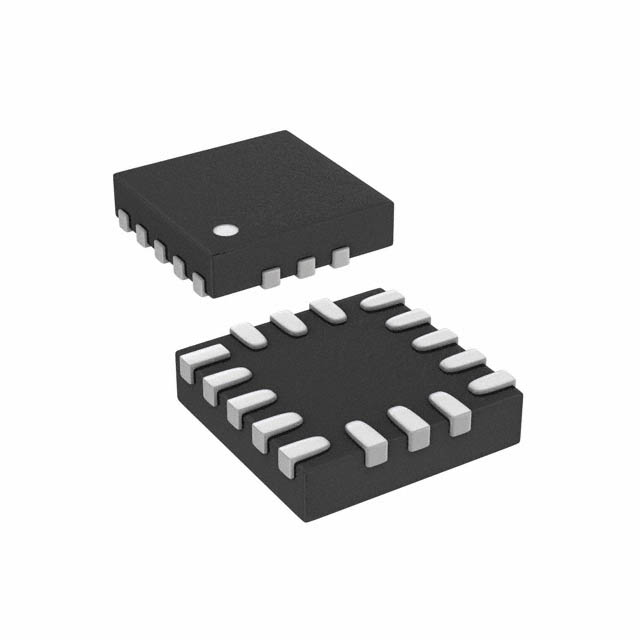

ADG858BCPZ-REELIC SWITCH QUAD SPDT 16LFCSP |
3,784 | 0.00 |
RFQ |
Datasheet |
16-UFQFN, CSP | Tape & Reel (TR) | - | Obsolete | SPDT | 2:2 | 2 | 720mOhm | 40mOhm | 1.8V ~ 5.5V | - | 27ns, 12ns | 70MHz | 45pC | 25pF | 10pA (Typ) | -85dB @ 100kHz | -40°C ~ 85°C (TA) | Surface Mount |
|
ADG811YCPZ-REELIC SWITCH QUAD SPST 16LFCSP |
2,557 | 0.00 |
RFQ |
Datasheet |
16-VFQFN Exposed Pad, CSP | Tape & Reel (TR) | - | Obsolete | SPST - NC | 1:1 | 4 | 650mOhm | 40mOhm | 1.65V ~ 3.6V | - | 25ns, 5ns | 90MHz | 30pC | 30pF, 35pF | 1nA | -90dB @ 100kHz | -40°C ~ 125°C (TA) | Surface Mount |
|
ADG412BRUZ-REELIC SWITCH QUAD SPST 16TSSOP |
2,732 | 0.00 |
RFQ |
Datasheet |
16-TSSOP (0.173, 4.40mm Width) | Tape & Reel (TR) | - | Obsolete | SPST - NO | 1:1 | 4 | 35Ohm | - | 12V | ±15V | 175ns, 145ns | - | 5pC | 9pF, 9pF | 250pA | -85dB @ 1MHz | -40°C ~ 85°C (TA) | Surface Mount |
|
ADG444ABRZIC SWITCH QUAD SPST 16SOIC |
3,788 | 1.00 |
RFQ |
Datasheet |
16-SOIC (0.154, 3.90mm Width) | Tube,Tube | - | Obsolete | SPST - NC | 1:1 | 4 | 70Ohm | - | 12V | ±15V | 110ns, 60ns | - | 1pC | 4pF, 4pF | 500pA | -100dB @ 1MHz | -40°C ~ 85°C (TA) | Surface Mount |
|
|
ADG802BRMZ-REELIC SWITCH SPST 8MSOP |
2,744 | 0.00 |
RFQ |
Datasheet |
8-TSSOP, 8-MSOP (0.118, 3.00mm Width) | Tape & Reel (TR) | - | Obsolete | SPST - NC | 1:1 | 1 | 300mOhm | - | 1.8V ~ 5.5V | - | 45ns, 15ns | 12MHz | 50pC | 180pF, 180pF | 250pA | - | -40°C ~ 125°C (TA) | Surface Mount |
