| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | SwitchCircuit | Multiplexer/DemultiplexerCircuit | NumberofCircuits | On-StateResistance(Max) | Channel-to-ChannelMatching(ΔRon) | Voltage-SupplySingle(V+) | Voltage-SupplyDual(V±) | SwitchTime(TonToff)(Max) | -3dbBandwidth | ChargeInjection | ChannelCapacitance(CS(off)CD(off)) | Current-Leakage(IS(off))(Max) | Crosstalk | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

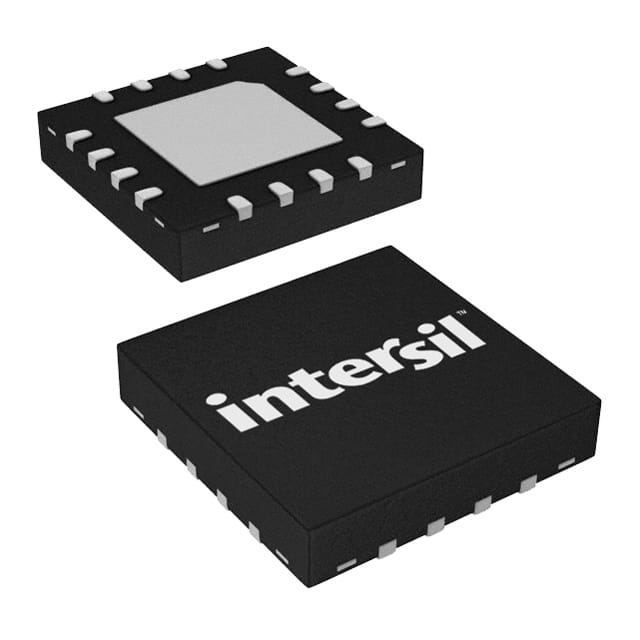

ISL83699IRSPDT ANALOG SWITCH, 4 FUNC, 1 CH |
3,434 | 0.00 |
RFQ |
Datasheet |
16-VFQFN Exposed Pad | Tube | - | Obsolete | SPDT | 2:1 | 4 | 450mOhm | 40mOhm | 1.65V ~ 3.6V | - | 17ns, 14ns | - | -82pC | 106pF | 3nA | -98dB @ 100kHz | -40°C ~ 85°C (TA) | Surface Mount |
|
HI9P0508-9SINGLE 8-CHANNEL CMOS ANALOG MUX |
3,164 | 1.00 |
RFQ |
Datasheet |
16-SOIC (0.154, 3.90mm Width) | Bag | - | Obsolete | - | 8:1 | 1 | 400Ohm | 20Ohm | - | ±15V | 250ns, 250ns (Typ) | - | - | 10pF, 17pF | 30pA (Typ) | - | -40°C ~ 85°C (TA) | Surface Mount |
|
HI9P0548-9ANALOG MUX WITH PROTECTION |
3,520 | 1.00 |
RFQ |
Datasheet |
16-SOIC (0.154, 3.90mm Width) | Bag | - | Obsolete | - | 8:1 | 1 | 1.8kOhm | 126Ohm | - | ±15V | 300ns, 300ns (Typ) | - | - | 10pF, 25pF | 30pA (Typ) | - | -40°C ~ 85°C (TA) | Surface Mount |
|
HI3-0506-5SINGLE-ENDED MUX, 16 CHNL |
2,106 | 1.00 |
RFQ |
28-DIP (0.600, 15.24mm) | Tube | - | Obsolete | - | 16:1 | 1 | 400Ohm | 20Ohm | - | ±15V | 250ns, 250ns (Typ) | - | - | 10pF, 52pF | 30pA (Typ) | - | 0°C ~ 75°C (TA) | Through Hole | |
|
ISL43640IRZSINGLE-ENDED MUX, 4 CHANNEL |
3,971 | 1.00 |
RFQ |
16-VFQFN Exposed Pad | Tube | - | Obsolete | SP4T | 4:1 | 1 | 50Ohm | 500mOhm | 2.7V ~ 12V | - | 30ns, 28ns | - | 1.2pC | 4pF, 11pF | 1nA | - | -40°C ~ 85°C (TA) | Surface Mount | |
|
HI9P0547-9ANALOG DIFFERENTIAL MUX |
3,536 | 1.00 |
RFQ |
Datasheet |
28-SOIC (0.295, 7.50mm Width) | Bag | - | Obsolete | - | 8:1 | 2 | 1.8kOhm | 126Ohm | - | ±15V | 300ns, 300ns (Typ) | - | - | 10pF, 30pF | 30pA (Typ) | - | -40°C ~ 85°C (TA) | Surface Mount |
|
5962-9073103MEADUAL 4-BIT DRIVER |
2,486 | 1.00 |
RFQ |
Datasheet |
16-CDIP (0.300, 7.62mm) | Bulk | - | Active | SPST - NO/NC | 1:1 | 4 | 30Ohm | 3Ohm (Max) | 10V ~ 30V | ±4.5V ~ 20V | 175ns, 145ns | - | 5pC | 9pF, 9pF | 250pA | -85dB @ 1MHz | -55°C ~ 125°C (TA) | Through Hole |
|
|
DG202AKQUAD SPST ANALOG SWITCH |
2,596 | 1.00 |
RFQ |
Datasheet |
16-CDIP (0.300, 7.62mm) | Bulk | - | Active | SPST - NO | 1:1 | 4 | 175Ohm | - | ±4.5V ~ 18V | ±4.5V ~ 18V | 600ns, 450ns | - | 20pC | 5pF, 5pF | 1nA | -90dB @ 100kHz | -55°C ~ 125°C (TA) | Through Hole |
|
CD22M3494MQXPOINT SWITCH, 16 CHANNEL, BIMOS |
3,722 | 1.00 |
RFQ |
Datasheet |
- | Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CD22M3494MQAXPOINT SWITCH, 16 CHANNEL, BIMOS |
3,379 | 1.00 |
RFQ |
Datasheet |
- | Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

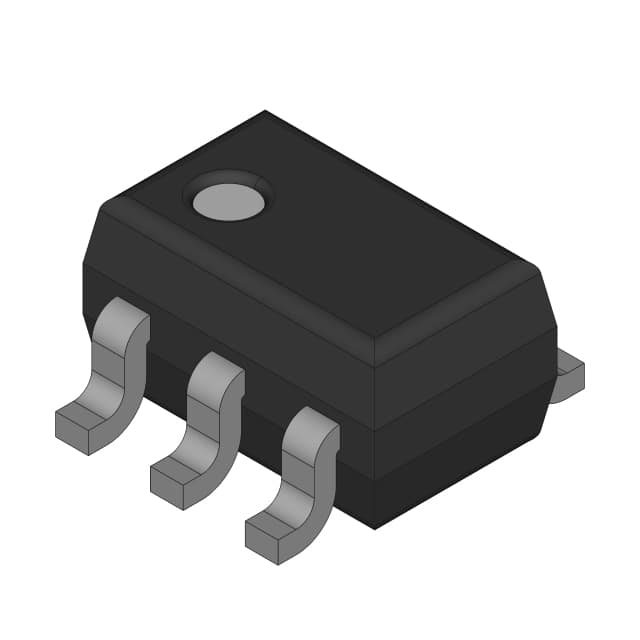

ISL43L110IHZ-TTRIC SWITCH SPST SC70-5 |
3,089 | 1.00 |
RFQ |
- | Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
HI9P0303-5SPDT, 2 FUNC PDSO14 |
3,559 | 1.00 |
RFQ |
Datasheet |
- | Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
ISL84521IBZSPST ANALOG SWITCH, 4 FUNC, 1 CH |
3,127 | 1.00 |
RFQ |
Datasheet |
16-SOIC (0.154, 3.90mm Width) | Bulk | - | Active | SPST - NC | 1:1 | 4 | 100Ohm | 1Ohm | 2V ~ 12V | ±2V ~ 6V | 80ns, 30ns | - | 1pC | 2pF, 2pF | 1nA | -90dB @ 100kHz | -40°C ~ 85°C (TA) | Surface Mount |
|
ISL8499IRZULTRA LOW ON-RESISTANCE, SINGLE |
3,732 | 0.00 |
RFQ |
Datasheet |
16-VFQFN Exposed Pad | Tube | - | Active | SPDT | 2:1 | 4 | 250mOhm | 40mOhm | 1.65V ~ 4.5V | - | 25ns, 23ns | - | -120pC | 106pF | 50nA | -98dB @ 100kHz | -40°C ~ 85°C (TA) | Surface Mount |
|
ISL43145IVZLOW-VOLTAGE, SINGLE AND DUAL SUP |
3,080 | 0.00 |
RFQ |
Datasheet |
16-TSSOP (0.173, 4.40mm Width) | Tube | - | Active | SPST - NO/NC | 1:1 | 4 | 25Ohm | 500mOhm | 2.7V ~ 12V | ±2.6V ~ 6V | 65ns, 50ns | - | 5pC (Max) | 10pF, 26pF | 100pA | -89dB @ 1MHz | -40°C ~ 85°C (TA) | Surface Mount |
|
HI3-5043-5ZSPDT ANALOG SWITCH, 2 CHANNEL, 5 |
2,003 | 1.00 |
RFQ |
Datasheet |
16-DIP (0.300, 7.62mm) | Bulk | - | Active | SPDT | 2:1 | 2 | 75Ohm | 2Ohm | - | ±15V | 500ns, 500ns | - | - | 11pF, 11pF | 2nA | -88dB @ 100kHz | 0°C ~ 75°C (TA) | Through Hole |
|
ISL43143IVZLOW-VOLTAGE, SINGLE AND DUAL SUP |
3,085 | 1.00 |
RFQ |
Datasheet |
16-TSSOP (0.173, 4.40mm Width) | Tube | - | Active | SPST - NC | 1:1 | 4 | 25Ohm | 500mOhm | 2.7V ~ 12V | ±2.6V ~ 6V | 65ns, 50ns | - | 5pC (Max) | 10pF, 26pF | 100pA | -89dB @ 1MHz | -40°C ~ 85°C (TA) | Surface Mount |
|
8100610EA/MLB-INTSPST ANALOG SWITCH, 2 FUNC, 1 CH |
2,062 | 1.00 |
RFQ |
- | Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
HI1-0201-4SPST, 4 FUNC, 1 CHANNEL |
3,218 | 9.17 |
RFQ |
Datasheet |
16-CDIP (0.300, 7.62mm) | Tube | - | Obsolete | SPST - NC | 1:1 | 4 | 80Ohm | - | - | ±15V | 180ns, 220ns | - | - | 5.5pF, 5.5pF | 50nA | - | -25°C ~ 85°C (TA) | Through Hole |
|
HI4P0509-5ZDIFFERENTIAL 4-CHANNEL CMOS ANAL |
3,132 | 12.86 |
RFQ |
Datasheet |
20-LCC (J-Lead) | Tube | - | Active | SP4T | 4:1 | 2 | 400Ohm | 20Ohm | - | ±15V | 250ns, 250ns (Typ) | - | - | 10pF, 12pF | 30pA (Typ) | - | 0°C ~ 75°C (TA) | Surface Mount |
