Mfr. Part #	Availability	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Color	Configuration	LensColor	LensTransparency	MillicandelaRating	LensStyle	LensSize	Voltage-Forward(Vf)(Typ)	Current-Test	ViewingAngle	MountingType	Wavelength-Dominant	Wavelength-Peak	Features	Size/Dimension
HLMP-Q106-TU011 LED RED CLEAR GULL WING SMD Broadcom Limited	3,324	RFQ	Datasheet	2-SMD, Gull Wing	Tape & Reel (TR)	HLMP-Qxxx	Obsolete	Red	Standard	Colorless	Clear	525mcd	Round with Domed Top	1.78mm Dia	1.9V	20mA	15°	Surface Mount	644nm	654nm	-	2.09mm L x 2.21mm W
HSMG-L640 LED GREEN CLEAR CHIP SMD Broadcom Limited	2,019	RFQ	Datasheet	1206 (3216 Metric)	Tape & Reel (TR)	-	Obsolete	Green	Standard	Colorless	Clear	18mcd	Round with Flat Top	-	2.2V	20mA	70°	Surface Mount	572nm	570nm	-	3.00mm L x 1.50mm W
HLMA-PL00-QRX11 LED AMBER CLEAR SMD Broadcom Limited	2,122	RFQ	Datasheet	2-SMD, Gull Wing	Tape & Reel (TR)	-	Obsolete	Amber	Standard	Colorless	Clear	131.5mcd	Round with Flat Top	1.78mm Dia	1.9V	20mA	125°	Surface Mount	590nm	592nm	-	1.99mm L x 2.21mm W
HSMB-C112 LED BLUE CLEAR CHIP SMD R/A Broadcom Limited	2,552	RFQ	Datasheet	2-SMD, No Lead	Tape & Reel (TR)	-	Obsolete	Blue	Standard	Colorless	Clear	3.1mcd	Rectangle with Domed Top	2.00mm x 1.00mm	4V	10mA	130°	Surface Mount, Right Angle	462nm	428nm	-	3.20mm L x 1.00mm W
HSMC-L640 LED RED CLEAR CHIP SMD Broadcom Limited	2,395	RFQ	Datasheet	1206 (3216 Metric)	Tape & Reel (TR)	-	Obsolete	Red	Standard	Colorless	Clear	100mcd	Round with Flat Top	-	1.9V	20mA	70°	Surface Mount	626nm	635nm	-	3.00mm L x 1.50mm W
HSMA-L640 LED AMBER CLEAR CHIP SMD Broadcom Limited	2,318	RFQ	Datasheet	1206 (3216 Metric)	Tape & Reel (TR)	-	Obsolete	Amber	Standard	Colorless	Clear	130mcd	Round with Flat Top	-	2.02V	20mA	70°	Surface Mount	590nm	592nm	-	3.00mm L x 1.50mm W
HSMA-S690 LED AMBER DIFFUSED CHIP SMD Broadcom Limited	2,406	RFQ	Datasheet	0603 (1608 Metric)	Tape & Reel (TR)	SunPower	Obsolete	Amber	Standard	-	Diffused	65mcd	Rectangle with Flat Top	1.20mm x 0.80mm	1.9V	20mA	165°	Surface Mount	590nm	592nm	-	1.60mm L x 0.80mm W
HSMA-S660 LED AMBER DIFFUSED CHIP SMD R/A Broadcom Limited	3,077	RFQ	Datasheet	2-SMD, No Lead	Tape & Reel (TR)	SunPower	Obsolete	Amber	Standard	-	Diffused	65mcd	Rectangle with Domed Top	2.00mm x 1.00mm	1.9V	20mA	155°	Surface Mount, Right Angle	590nm	592nm	-	3.20mm L x 2.00mm W
HSMD-S660 LED ORANGE DIFFUSED CHIP SMD R/A Broadcom Limited	2,166	RFQ	Datasheet	2-SMD, No Lead	Tape & Reel (TR)	SunPower	Obsolete	Orange	Standard	-	Diffused	65mcd	Rectangle with Domed Top	2.00mm x 1.00mm	1.9V	20mA	155°	Surface Mount, Right Angle	605nm	609nm	-	3.20mm L x 1.00mm W
HSMD-C177 LED ORANGE DIFFUSED CHIP SMD Broadcom Limited	3,601	RFQ	Datasheet	0805 (2012 Metric)	Tape & Reel (TR)	-	Obsolete	Orange	Standard	White	Diffused	8mcd	Rectangle with Flat Top	2.00mm x 1.25mm	2.2V	20mA	130°	Surface Mount	604nm	605nm	-	2.00mm L x 1.25mm W
HSMB-C172 LED BLUE DIFFUSED CHIP SMD Broadcom Limited	3,504	RFQ	Datasheet	0805 (2012 Metric)	Tape & Reel (TR)	-	Obsolete	Blue	Standard	White	Diffused	3mcd	Rectangle with Flat Top	1.40mm x 1.25mm	4V	10mA	170°	Surface Mount	462nm	428nm	-	2.00mm L x 1.25mm W
HSMC-S660 LED RED DIFFUSED CHIP SMD R/A Broadcom Limited	2,719	RFQ	Datasheet	2-SMD, No Lead	Tape & Reel (TR)	SunPower	Obsolete	Red	Standard	-	Diffused	50mcd	Rectangle with Domed Top	2.00mm x 1.00mm	1.9V	20mA	155°	Surface Mount, Right Angle	626nm	630nm	-	3.20mm L x 1.00mm W
HSMD-S690 LED ORANGE DIFFUSED CHIP SMD Broadcom Limited	3,084	RFQ	Datasheet	0603 (1608 Metric)	Tape & Reel (TR)	SunPower	Obsolete	Orange	Standard	-	Diffused	65mcd	Rectangle with Flat Top	1.20mm x 0.80mm	1.9V	20mA	165°	Surface Mount	605nm	609nm	-	1.60mm L x 0.80mm W
HSMB-C192 LED BLUE DIFFUSED CHIP SMD Broadcom Limited	3,261	RFQ	Datasheet	0603 (1608 Metric)	Tape & Reel (TR)	-	Obsolete	Blue	Standard	White	Diffused	3mcd	Rectangle with Flat Top	1.00mm x 0.80mm	4V	10mA	170°	Surface Mount	462nm	428nm	-	1.60mm L x 0.80mm W
HSMD-S670 LED ORANGE DIFFUSED CHIP SMD Broadcom Limited	3,055	RFQ	Datasheet	0805 (2012 Metric)	Tape & Reel (TR)	SunPower	Obsolete	Orange	Standard	-	Diffused	65mcd	Rectangle with Flat Top	1.30mm x 1.25mm	1.9V	20mA	165°	Surface Mount	605nm	609nm	-	2.00mm L x 1.25mm W
HSMC-S690 LED RED DIFFUSED CHIP SMD Broadcom Limited	3,491	RFQ	Datasheet	0603 (1608 Metric)	Tape & Reel (TR)	SunPower	Obsolete	Red	Standard	-	Diffused	50mcd	Rectangle with Flat Top	1.20mm x 0.80mm	1.9V	20mA	165°	Surface Mount	626nm	630nm	-	1.60mm L x 0.80mm W
HLMP-P605-F0031 LED GREEN CLEAR Z-BEND SMD Broadcom Limited	2,289	RFQ	Datasheet	2-SMD, Z-Bend	Tape & Reel (TR)	HLMP-Pxxx	Obsolete	Green	Standard	Colorless	Clear	1.5mcd	Round with Flat Top	1.78mm Dia	2.2V	10mA	125°	Surface Mount	560nm	558nm	-	2.09mm L x 2.21mm W
HLMP-P502-F0021 LED GREEN DIFFUSED YOKE LEAD SMD Broadcom Limited	2,972	RFQ	Datasheet	2-SMD, Yoke Bend	Tape & Reel (TR)	HLMP-Pxxx	Obsolete	Green	Standard	White	Diffused	3mcd	Round with Flat Top	1.78mm Dia	2.1V	10mA	125°	Surface Mount	569nm	565nm	-	2.09mm L x 2.21mm W
HSMB-C110 LED BLUE DIFFUSED CHIP SMD R/A Broadcom Limited	3,995	RFQ	Datasheet	2-SMD, No Lead	Tape & Reel (TR)	-	Obsolete	Blue	Standard	-	Diffused	6.5mcd	Rectangle with Domed Top	2.00mm x 1.00mm	3.8V	20mA	130°	Surface Mount, Right Angle	466nm	428nm	-	3.20mm L x 1.50mm W

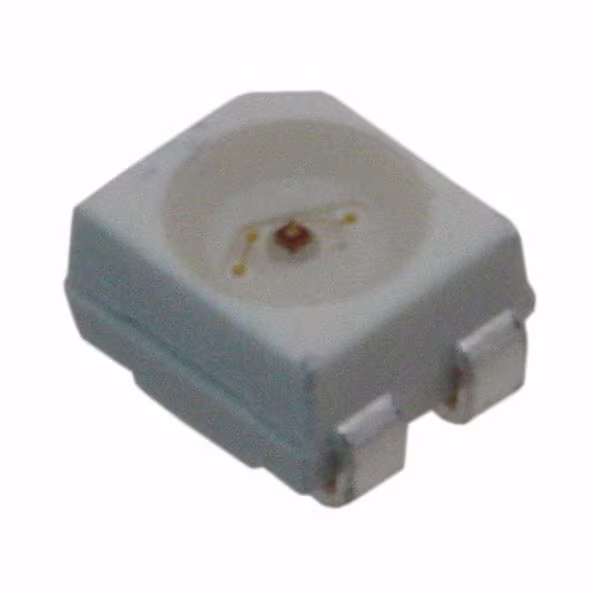

ASMC-PAB9-TV005 LED AMBER CLEAR 4PLCC SMD Broadcom Limited	2,076	RFQ	Datasheet	4-PLCC	Tape & Reel (TR),Cut Tape (CT)	Envisium™	Obsolete	Amber	Standard	Colorless	Clear	920mcd	Round with Flat Top	2.20mm Dia	2.8V	50mA	120°	Surface Mount	592nm	594nm	-	3.20mm L x 2.80mm W
