Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Color	Configuration	LensColor	LensTransparency	MillicandelaRating	LensStyle	LensSize	Voltage-Forward(Vf)(Typ)	Current-Test	ViewingAngle	MountingType	Wavelength-Dominant	Wavelength-Peak	Features	Size/Dimension
ASCB-RTC2-0A207 1716 TRICOLOR PLCC-4 LED Broadcom Limited	20,475	0.65	RFQ	Datasheet	4-SMD, J-Lead	Tape & Reel (TR),Cut Tape (CT)	ASCB-RTC2	Active	Red, Green, Blue (RGB)	Common Anode	-	-	220mcd Red, 440mcd Green, 55mcd Blue	Irregular	1.29mm	2V Red, 2.9V Green, 2.7V Blue	10mA Red, 10mA Green, 5mA Blue	105°	Surface Mount	621nm Red, 524nm Green, 471nm Blue	629nm Red, 519nm Green, 468nm Blue	-	1.60mm L x 1.70mm W
ASMB-LTD2-0A333 2121 PLCC4 TRICOLOR Broadcom Limited	65,774	0.59	RFQ	Datasheet	4-SMD, J-Lead	Tape & Reel (TR),Cut Tape (CT)	-	Active	Red, Green, Blue (RGB)	Common Anode	White	Diffused	390mcd Red, 870mcd Green, 190mcd Blue	Round with Flat Top	1.60mm Dia	2.1V Red, 2.9V Green, 2.9V Blue	15mA Red, 10mA Green, 10mA Blue	110°	Surface Mount	621nm Red, 522nm Green, 468nm Blue	630nm Red, 516nm Green, 464nm Blue	-	2.10mm L x 2.10mm W
HSME-C150 LED GREEN DIFFUSED CHIP SMD Broadcom Limited	10,018	0.59	RFQ	Datasheet	1206 (3216 Metric)	Tape & Reel (TR),Cut Tape (CT)	-	Active	Green	Standard	White	Diffused	50mcd	Rectangle with Flat Top	2.00mm x 1.60mm	2.1V	20mA	170°	Surface Mount	572nm	570nm	-	3.20mm L x 1.60mm W

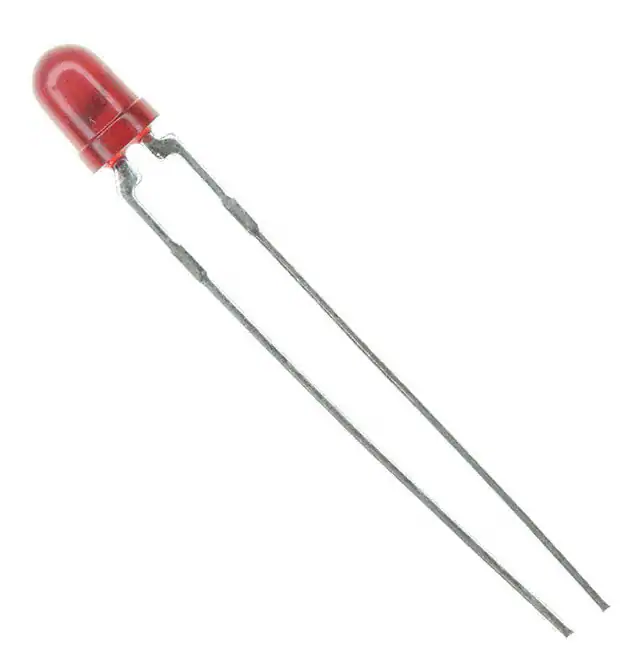

HLMP-1301-E0002 LED RED DIFFUSED T-1 T/H Broadcom Limited	24,295	0.53	RFQ	Datasheet	Radial	Tape & Reel (TR),Cut Tape (CT)	-	Active	Red	Standard	Red	Diffused	3.4mcd	Round with Domed Top	3mm, T-1	1.9V	10mA	60°	Through Hole	626nm	635nm	-	-

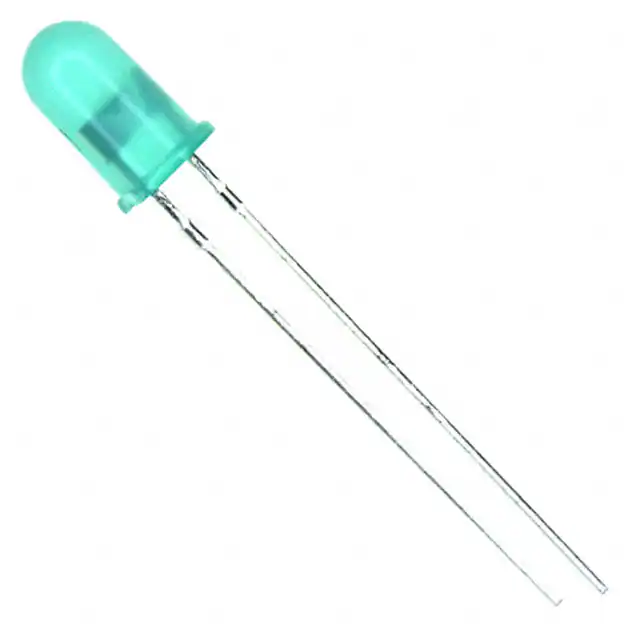

HLMP-4740-A0002 LED GREEN DIFFUSED T-1 3/4 T/H Broadcom Limited	5,385	0.53	RFQ	Datasheet	Radial	Tape & Reel (TR),Cut Tape (CT)	-	Active	Green	Standard	Green	Diffused	2.3mcd	Round with Domed Top	5mm, T-1 3/4	1.9V	2mA	50°	Through Hole	569nm	565nm	-	-

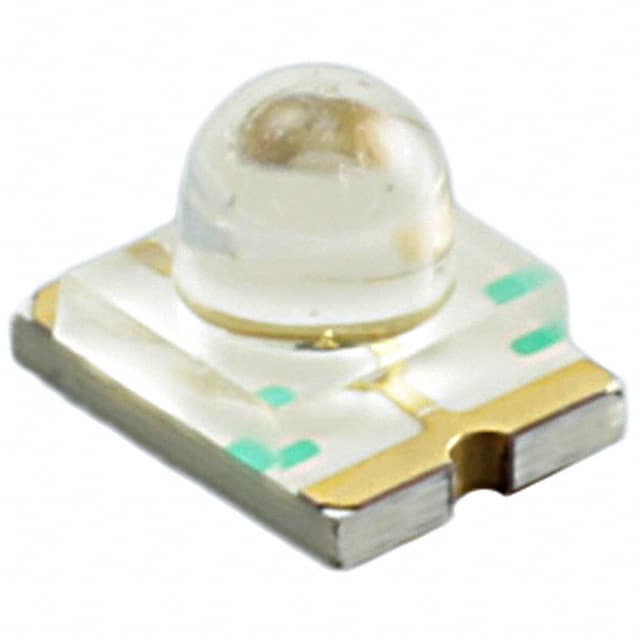

ASMT-BG20-AS000 LED GREEN CLEAR SMD Broadcom Limited	31,075	0.54	RFQ	Datasheet	1209 (3224 Metric)	Tape & Reel (TR),Cut Tape (CT)	-	Active	Green	Standard	Colorless	Clear	650mcd	Round with Domed Top	1.80mm Dia	2V	20mA	15°	Surface Mount	569nm	565nm	-	3.20mm L x 2.40mm W

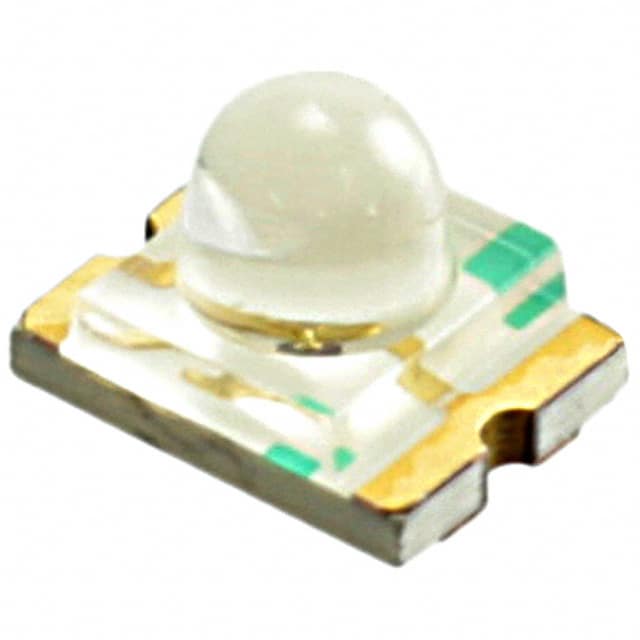

ASMT-BR20-AS000 LED RED CLEAR SMD Broadcom Limited	14,061	0.54	RFQ	Datasheet	1209 (3224 Metric)	Tape & Reel (TR),Cut Tape (CT)	-	Active	Red	Standard	Colorless	Clear	650mcd	Round with Domed Top	1.80mm Dia	2V	20mA	15°	Surface Mount	626nm	635nm	-	3.20mm L x 2.40mm W

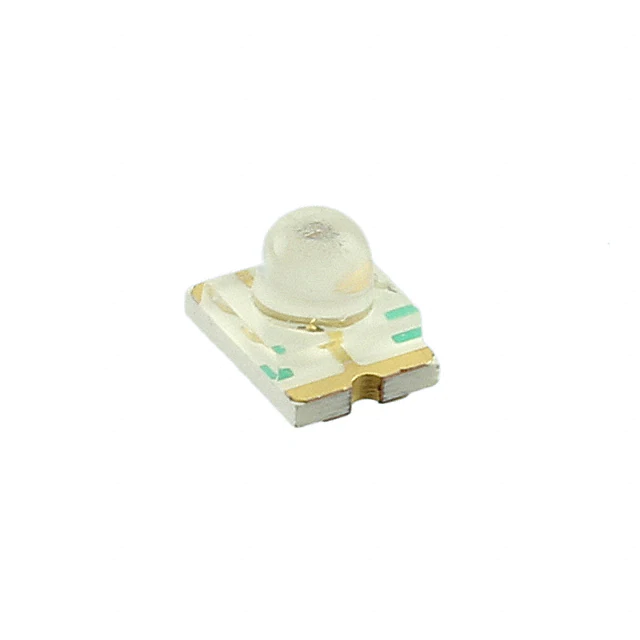

ASMT-BA20-AS000 LED AMBER CLEAR 2SMD Broadcom Limited	4,606	0.54	RFQ	Datasheet	1209 (3224 Metric)	Tape & Reel (TR),Cut Tape (CT)	-	Active	Amber	Standard	-	Clear	750mcd	Round with Domed Top	1.80mm Dia	2V	20mA	15°	Surface Mount	590nm	592nm	-	3.20mm L x 2.40mm W
ASMB-UTF2-0E20B 2828 TRICOLOR PLCC6 LEDS Broadcom Limited	27,059	0.63	RFQ	Datasheet	6-SMD, J-Lead	Tape & Reel (TR),Cut Tape (CT)	ASMB-UTF2	Active	Red, Green, Blue (RGB)	Independent	-	Diffused	690mcd Red, 1850mcd Green, 400mcd Blue	Oval with Flat Top	-	2V Red, 3.1V Green, 3.1V Blue	20mA Red, 20mA Green, 20mA Blue	110°	Surface Mount	620nm Red, 524nm Green, 471nm Blue	628nm Red, 518nm Green, 467nm Blue	-	2.80mm L x 2.70mm W
HSMA-A401-U80M1 LED AMBER CLEAR 4PLCC SMD Broadcom Limited	5,711	0.67	RFQ	Datasheet	4-PLCC	Tape & Reel (TR),Cut Tape (CT)	-	Active	Amber	Standard	Colorless	Clear	787.5mcd	Round with Flat Top	2.20mm Dia	2.2V	50mA	120°	Surface Mount	590nm	592nm	-	3.20mm L x 2.80mm W
HSMZ-C190 LED RED DIFFUSED CHIP SMD Broadcom Limited	116,037	0.70	RFQ	Datasheet	0603 (1608 Metric)	Tape & Reel (TR),Cut Tape (CT)	-	Active	Red	Standard	White	Diffused	165mcd	Rectangle with Flat Top	1.00mm x 0.80mm	2.2V	20mA	170°	Surface Mount	631nm	643nm	-	1.60mm L x 0.80mm W
HSMU-A100-R00J1 LED AMBER CLEAR 2PLCC SMD Broadcom Limited	82,873	0.70	RFQ	Datasheet	2-PLCC	Tape & Reel (TR),Cut Tape (CT)	-	Active	Amber	Standard	Colorless	Clear	320mcd	Round with Flat Top	2.20mm Dia	2.2V	20mA	120°	Surface Mount	592nm	594nm	-	3.20mm L x 2.80mm W
HSMF-C153 LED RED/YELLOW DIFF CHIP SMD Broadcom Limited	23,319	0.70	RFQ	Datasheet	1210 (3225 Metric)	Tape & Reel (TR),Cut Tape (CT)	-	Active	Red, Yellow	Independent	White	Diffused	10mcd Red, 8mcd Yellow	Rectangle with Flat Top	2.06mm x 2.70mm	2.1V Red, 2.1V Yellow	20mA Red, 20mA Yellow	170°	Surface Mount	626nm Red, 586nm Yellow	630nm Red, 589nm Yellow	-	3.20mm L x 2.70mm W
HSMU-A100-S00J1 LED AMBER CLEAR 2PLCC SMD Broadcom Limited	16,962	0.70	RFQ	Datasheet	2-PLCC	Tape & Reel (TR),Cut Tape (CT)	-	Active	Amber	Standard	Colorless	Clear	320mcd	Round with Flat Top	2.20mm Dia	2.2V	20mA	120°	Surface Mount	592nm	594nm	-	3.20mm L x 2.80mm W
HSME-A401-P4PM1 LED GREEN CLEAR 4PLCC SMD Broadcom Limited	12,947	0.70	RFQ	Datasheet	4-PLCC	Tape & Reel (TR),Cut Tape (CT)	-	Active	Green	Standard	Colorless	Clear	78.75mcd	Round with Flat Top	2.20mm Dia	2.2V	50mA	120°	Surface Mount	567nm	568nm	-	3.20mm L x 2.80mm W

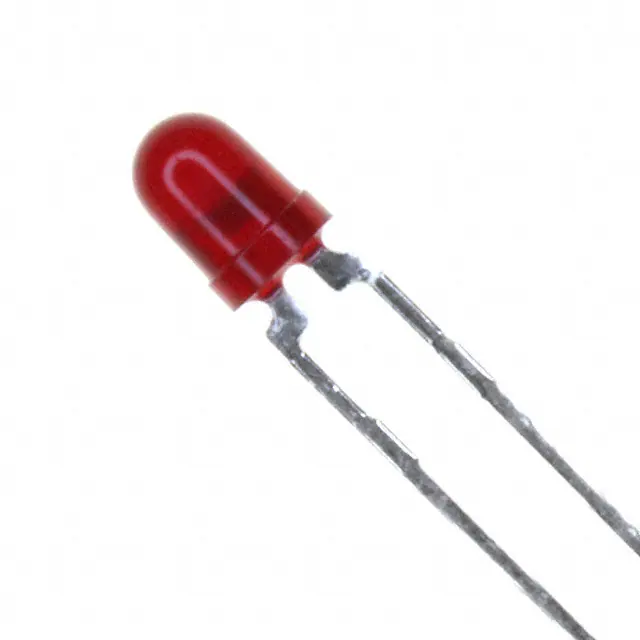

HLMP-1700-B0002 LED RED DIFFUSED T-1 T/H Broadcom Limited	22,304	0.65	RFQ	Datasheet	Radial	Tape & Reel (TR),Cut Tape (CT)	-	Active	Red	Standard	Red	Diffused	2.1mcd	Round with Domed Top	3mm, T-1	1.7V	2mA	50°	Through Hole	626nm	635nm	-	-

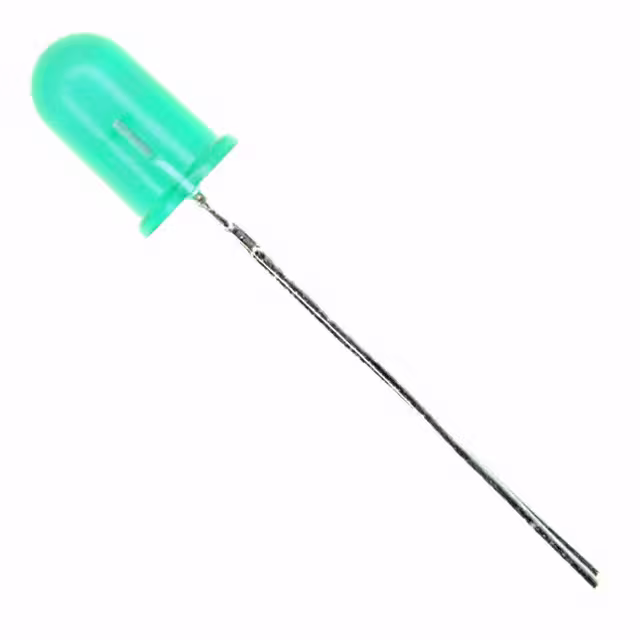

HLMP-3507-D0002 LED GREEN DIFFUSED T-1 3/4 T/H Broadcom Limited	18,757	0.65	RFQ	Datasheet	Radial	Tape & Reel (TR),Cut Tape (CT)	-	Active	Green	Standard	Green	Diffused	4.2mcd	Round with Domed Top	5mm, T-1 3/4	2.1V	10mA	60°	Through Hole	569nm	565nm	-	-

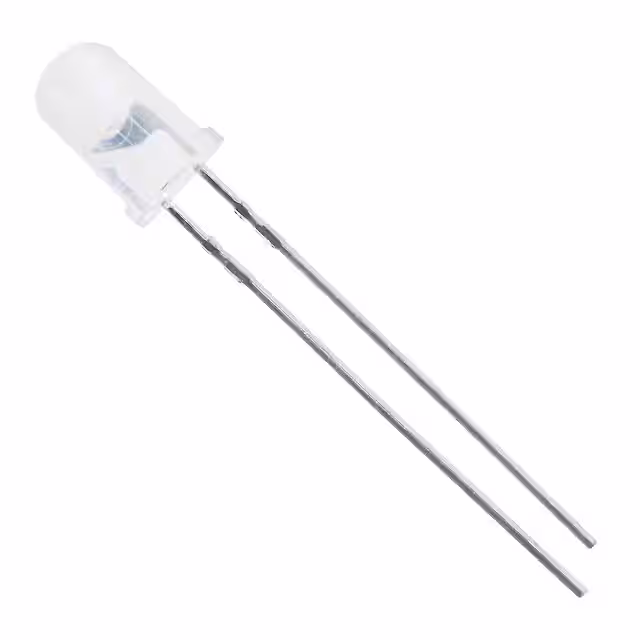

HLMP-EJ30-NR0DD LED ORANGE CLEAR T-1 3/4 T/H Broadcom Limited	31,743	0.74	RFQ	Datasheet	Radial	Cut Tape (CT),Tape & Box (TB)	-	Active	Orange	Standard	Colorless	Clear	1290mcd	Round with Domed Top	5mm, T-1 3/4	1.98V	20mA	30°	Through Hole	605nm	609nm	-	-

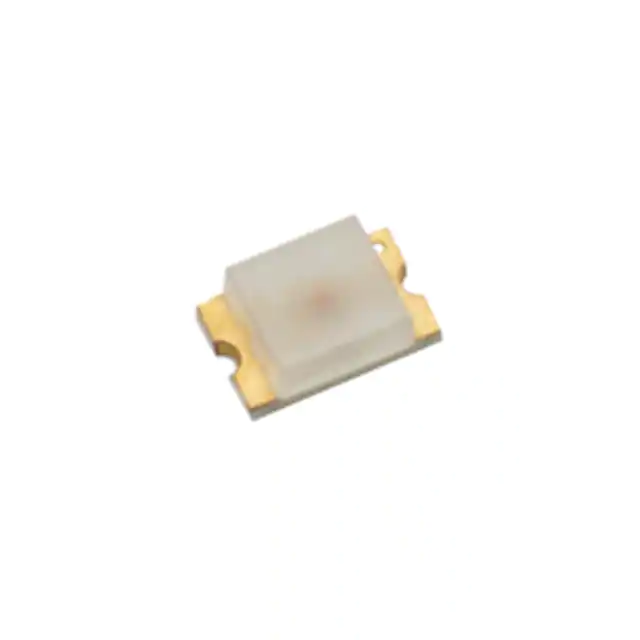

HSMC-C191-T0000 CHIP LED RED TOP MT ALINGAP Broadcom Limited	52,746	0.75	RFQ	Datasheet	0603 (1608 Metric)	Tape & Reel (TR),Cut Tape (CT)	-	Active	Red	Standard	-	-	450mcd	Rectangle with Flat Top	1.00mm x 0.80mm	2V	20mA	125°	Surface Mount	626nm	637nm	-	1.60mm L x 0.80mm W
HSMA-C170-T0000 CHIP LED AMBER TOP MT ALINGAP Broadcom Limited	14,366	0.77	RFQ	Datasheet	0805 (2012 Metric)	Tape & Reel (TR),Cut Tape (CT)	-	Active	Amber	Standard	-	-	426mcd	Rectangle with Flat Top	1.40mm x 1.25mm	2V	20mA	155°	Surface Mount	592nm	595nm	-	2.00mm L x 1.25mm W
