Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Color	CCT(K)	Wavelength	Configuration	LuminousFlux@Current/Temperature	Current-Test	Temperature-Test	Voltage-Forward(Vf)(Typ)	Lumens/Watt@Current-Test	Current-Max	CRI(ColorRenderingIndex)	ViewingAngle	Features	Size/Dimension	Height	LightEmittingSurface(LES)
BXRC-27G10K0-C-72 LED COB VERO 29 2700K ROUND Bridgelux	3,105	31.03	RFQ	Datasheet	Tray	Gen 7 Vero® 29 Array	Active	Chip On Board (COB)	White, Warm	2700K 2-Step MacAdam Ellipse	-	Round	13641lm (Typ)	1.71A	25°C	69.4V	128 lm/W	3.42A	90	120°	-	49.20mm Dia	1.90mm	29.20mm Dia
BXRC-30A10K1-C-73 LED COB VERO 29 3000K ROUND Bridgelux	2,418	31.03	RFQ	Datasheet	Tray	Décor Series™ Class A Vero® 29	Active	Chip On Board (COB)	White, Warm	3000K 3-Step MacAdam Ellipse	-	Round	12810lm (Typ)	1.71A	85°C	68.4V	110 lm/W	3.42A	93	120°	With Connector	49.20mm Dia	1.90mm	29.20mm Dia
BXRC-30E10K0-C-72 LED COB VERO 29 3000K ROUND Bridgelux	2,773	31.03	RFQ	Datasheet	Tray	Gen 7 Vero® 29 Array	Active	Chip On Board (COB)	White, Warm	3000K 2-Step MacAdam Ellipse	-	Round	18946lm (Typ)	1.71A	25°C	69.4V	160 lm/W	3.42A	80	120°	-	49.20mm Dia	1.90mm	29.20mm Dia
BXRC-30G10K0-C-72 LED COB VERO 29 3000K ROUND Bridgelux	2,612	31.03	RFQ	Datasheet	Tray	Gen 7 Vero® 29 Array	Active	Chip On Board (COB)	White, Warm	3000K 2-Step MacAdam Ellipse	-	Round	15768lm (Typ)	1.71A	25°C	69.4V	133 lm/W	3.42A	90	120°	-	49.20mm Dia	1.90mm	29.20mm Dia
BXRC-35A10K1-C-73 LED COB VERO 29 3500K ROUND Bridgelux	2,742	31.03	RFQ	Datasheet	Tray	Décor Series™ Class A Vero® 29	Active	Chip On Board (COB)	White, Warm	3500K 3-Step MacAdam Ellipse	-	Round	13771lm (Typ)	1.71A	85°C	68.4V	118 lm/W	3.42A	93	120°	With Connector	49.20mm Dia	1.90mm	29.20mm Dia
BXRC-35E10K0-C-72 LED COB VERO 29 3500K ROUND Bridgelux	3,873	31.03	RFQ	Datasheet	Tray	Gen 7 Vero® 29 Array	Active	Chip On Board (COB)	White, Warm	3500K 2-Step MacAdam Ellipse	-	Round	19557lm (Typ)	1.71A	25°C	69.4V	165 lm/W	3.42A	80	120°	-	49.20mm Dia	1.90mm	29.20mm Dia
BXRC-35G10K0-C-72 LED COB VERO 29 3500K ROUND Bridgelux	3,140	31.03	RFQ	Datasheet	Tray	Gen 7 Vero® 29 Array	Active	Chip On Board (COB)	White, Warm	3500K 2-Step MacAdam Ellipse	-	Round	16257lm (Typ)	1.71A	25°C	69.4V	137 lm/W	3.42A	90	120°	-	49.20mm Dia	1.90mm	29.20mm Dia
BXRC-40A10K1-C-73 LED COB VERO 29 4000K ROUND Bridgelux	2,080	31.03	RFQ	Datasheet	Tray	Décor Series™ Class A Vero® 29	Active	Chip On Board (COB)	White, Neutral	4000K 3-Step MacAdam Ellipse	-	Round	14731lm (Typ)	1.71A	85°C	68.4V	126 lm/W	3.42A	93	120°	With Connector	49.20mm Dia	1.90mm	29.20mm Dia
BXRC-40E10K0-C-72 LED COB VERO 29 4000K ROUND Bridgelux	2,981	31.03	RFQ	Datasheet	Tray	Gen 7 Vero® 29 Array	Active	Chip On Board (COB)	White, Neutral	4000K 2-Step MacAdam Ellipse	-	Round	19680lm (Typ)	1.71A	25°C	69.4V	166 lm/W	3.42A	80	120°	-	49.20mm Dia	1.90mm	29.20mm Dia
BXRC-40G10K0-C-72 LED COB VERO 29 4000K ROUND Bridgelux	2,665	31.03	RFQ	Datasheet	Tray	Gen 7 Vero® 29 Array	Active	Chip On Board (COB)	White, Neutral	4000K 2-Step MacAdam Ellipse	-	Round	16868lm (Typ)	1.71A	25°C	69.4V	142 lm/W	3.42A	90	120°	-	49.20mm Dia	1.90mm	29.20mm Dia
BXRC-56G10K1-C-74 LED COB VERO 29 5600K ROUND Bridgelux	2,383	31.03	RFQ	Datasheet	Tray	Gen 7 Décor Series™	Active	Chip On Board (COB)	White, Cool	5600K 4-Step MacAdam Ellipse	-	Round	17554lm (Typ)	1.71A	25°C	69.4V	148 lm/W	3.42A	90	120°	With Connector	49.20mm Dia	1.90mm	29.20mm Dia

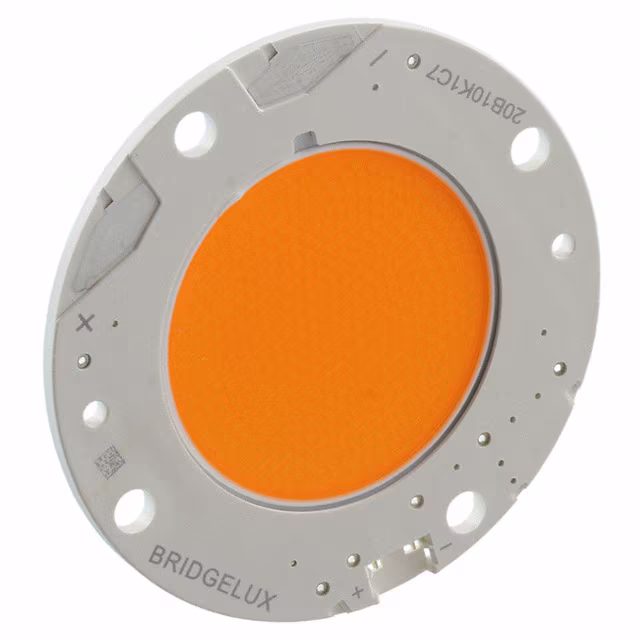

BXRC-20B10K1-C-73 LED COB VERO 29 2000K ROUND Bridgelux	3,918	31.03	RFQ		Tray	Gen 7 Vero® 29 Array	Active	Chip On Board (COB)	White, Warm	2000K 3-Step MacAdam Ellipse	-	Round	17724lm (Typ)	1.71A	25°C	69.4V	149 lm/W	3.42A	65	120°	-	49.20mm Dia	1.90mm	29.20mm Dia
BXRC-50C10K1-C-73 VERO 29C COOL WHITE LED ARRAY Bridgelux	2,443	31.03	RFQ	Datasheet	Tube	Gen 7 Vero® 29 Array	Active	Chip On Board (COB)	White, Cool	5000K 3-Step MacAdam Ellipse	-	Round	21635lm (Typ)	1.71A	25°C	69.4V	182 lm/W	3.42A	70	120°	-	49.20mm Dia	1.90mm	29.20mm Dia
BXRC-50E10K1-C-73 VERO 29C COOL WHITE LED ARRAY Bridgelux	2,459	31.03	RFQ	Datasheet	Tube	Gen 7 Vero® 29 Array	Active	Chip On Board (COB)	White, Cool	5000K 3-Step MacAdam Ellipse	-	Round	20291lm (Typ)	1.71A	25°C	69.4V	171 lm/W	3.42A	80	120°	-	49.20mm Dia	1.90mm	29.20mm Dia
BXRC-50G10K1-C-73 VERO 29C COOL WHITE LED ARRAY Bridgelux	2,969	31.03	RFQ	Datasheet	Tube	Gen 7 Vero® 29 Array	Active	Chip On Board (COB)	White, Cool	5000K 3-Step MacAdam Ellipse	-	Round	17235lm (Typ)	1.71A	25°C	69.4V	145 lm/W	3.42A	90	120°	-	49.20mm Dia	1.90mm	29.20mm Dia
BXRC-57C10K1-C-73 VERO 29C COOL WHITE LED ARRAY Bridgelux	3,465	31.03	RFQ	Datasheet	Tube	Gen 7 Vero® 29 Array	Active	Chip On Board (COB)	White, Cool	5700K 3-Step MacAdam Ellipse	-	Round	20902lm (Typ)	1.71A	25°C	69.4V	176 lm/W	3.42A	70	120°	-	49.20mm Dia	1.90mm	29.20mm Dia
BXRC-57E10K1-C-73 VERO 29C COOL WHITE LED ARRAY Bridgelux	2,420	31.03	RFQ	Datasheet	Tube	Gen 7 Vero® 29 Array	Active	Chip On Board (COB)	White, Cool	5700K 3-Step MacAdam Ellipse	-	Round	20056lm (Typ)	1.71A	25°C	69.4V	169 lm/W	3.42A	80	120°	-	49.20mm Dia	1.90mm	29.20mm Dia
BXRC-65C10K1-C-73 VERO 29C COOL WHITE LED ARRAY Bridgelux	3,706	31.03	RFQ	Datasheet	Tube	Gen 7 Vero® 29 Array	Active	Chip On Board (COB)	White, Cool	6500K 3-Step MacAdam Ellipse	-	Round	21269lm (Typ)	1.71A	25°C	69.4V	179 lm/W	3.42A	70	120°	-	49.20mm Dia	1.90mm	29.20mm Dia
BXRC-65E10K1-C-73 VERO 29C COOL WHITE LED ARRAY Bridgelux	3,268	31.03	RFQ	Datasheet	Tube	Gen 7 Vero® 29 Array	Active	Chip On Board (COB)	White, Cool	6500K 3-Step MacAdam Ellipse	-	Round	20412lm (Typ)	1.71A	25°C	69.4V	172 lm/W	3.42A	80	120°	-	49.20mm Dia	1.90mm	29.20mm Dia
BXRC-35E4000-F-23 LED ARRAY 4000LM WARM WHITE COB Bridgelux	3,103	0.00	RFQ	Datasheet	Tray	Vero® 18 Array	Obsolete	Chip On Board (COB)	White, Warm	3500K 3-Step MacAdam Ellipse	-	Round	4289lm (Typ)	1.05A	25°C	29.5V	138 lm/W	2.1A	80	120°	With Connector	36.20mm Dia	1.90mm	18.40mm Dia
