| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XHP70A-0S-04-0D0BN450ELED MODULE 5000K SQUARE |
3,263 | 0.00 |
RFQ |
Datasheet |
Tray | XHP70A | Obsolete | LED Module | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Square | 6840lm (Typ) | 1.05A | 85°C | 46.4V | 140 lm/W | 2.4A | 70 | - | - | 73.15mm L x 73.15mm W | - | - |
|
XHP35A-00-0000-0D0BD430E-SB01LED XLAMP XHP35 3000K STARBOARD |
2,545 | 0.00 |
RFQ |
Datasheet |
Tray | Xlamp® XHP35 | Obsolete | LED Module | White, Warm | 3000K 5-Step MacAdam Ellipse | - | Starboard | 570lm (550lm ~ 590lm) | 350mA | 85°C | 11.3V | 144 lm/W | 1.05A | 70 | 125° | - | 19.89mm Dia | - | - |
|
XHP35A-H0-0000-0D0BC440E-SB01LED XLAMP XHP35 4000K STARBOARD |
2,937 | 0.00 |
RFQ |
Datasheet |
Tray | Xlamp® XHP35 | Obsolete | LED Module | White, Neutral | 4000K 5-Step MacAdam Ellipse | - | Starboard | 493lm (475lm ~ 510lm) | 350mA | 85°C | 11.3V | 125 lm/W | 1.05A | 70 | 115° | - | 19.89mm Dia | - | - |
|
|
XHP35A-H0-0000-0D0BC450E-SB01LED XLAMP XHP35 5000K STARBOARD |
3,049 | 0.00 |
RFQ |
Datasheet |
Tray | Xlamp® XHP35 | Obsolete | LED Module | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Starboard | 493lm (475lm ~ 510lm) | 350mA | 85°C | 11.3V | 125 lm/W | 1.05A | 70 | 115° | - | 19.89mm Dia | - | - |
|
XHP50A-00-0000-0D0BH430E-SB01LED XLAMP XHP50 3000K STARBOARD |
2,433 | 0.00 |
RFQ |
Datasheet |
Tray | Xlamp® XHP50 | Obsolete | LED Module | White, Warm | 3000K 5-Step MacAdam Ellipse | - | Starboard | 1005lm (970lm ~ 1040lm) | 1.4A, 700mA | 85°C | 6V, 12V | 62 lm/W | 3A, 1.5A | 70 | 120° | - | 19.89mm Dia | - | - |
|
XHP70A-00-0000-0D0BN450E-SB01LED XLAMP XHP70 5000K STARBOARD |
3,019 | 0.00 |
RFQ |
Datasheet |
Tray | Xlamp® XHP70 | Obsolete | LED Module | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Starboard | 1770lm (1710lm ~ 1830lm) | 2.1A, 1.05A | 85°C | 6V, 12V | 145 lm/W | 4.8A, 2.4A | 70 | 120° | - | 19.89mm Dia | - | - |
|

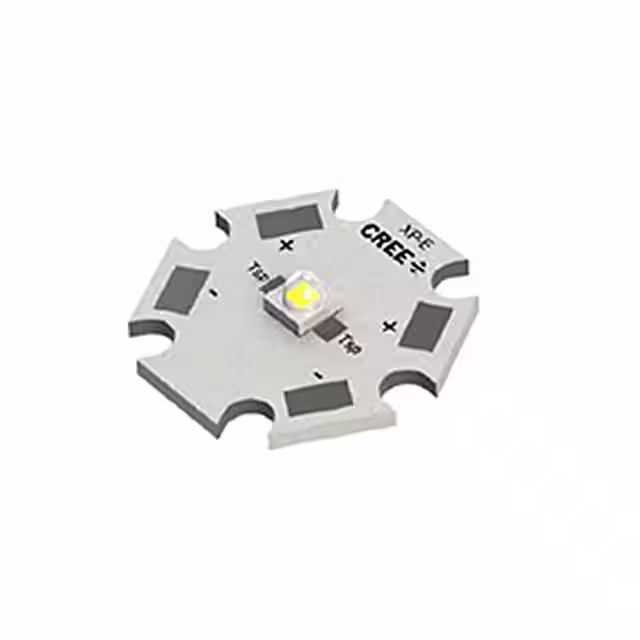

XPEBGR-L1-0000-00G01-SB01LED XLAMP XPE2 GREEN STARBOARD |
3,795 | 0.00 |
RFQ |
Datasheet |
Tray | XLamp® XP-E2 | Obsolete | LED Module | Green | - | 528nm (520nm ~ 535nm) | Starboard | 135lm (130lm ~ 139lm) | 350mA | 25°C | 3.2V | 121 lm/W | 1A | - | 135° | - | 19.89mm Dia | - | - |
|

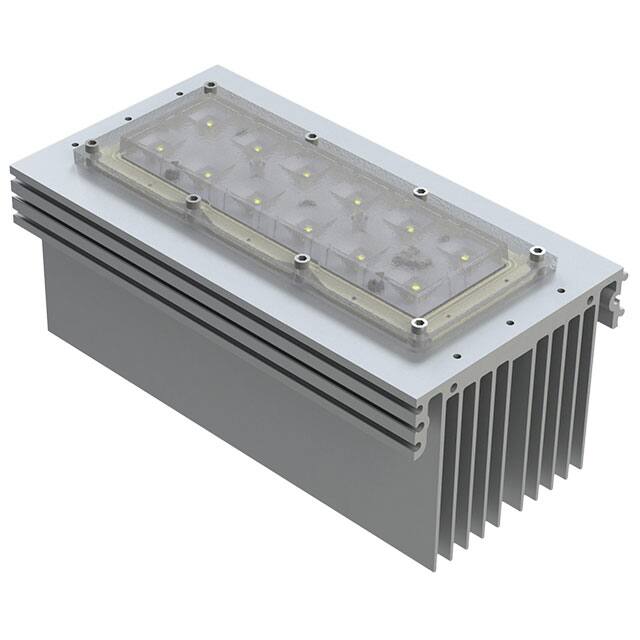

MP26T1-C19-4070-W-1-00MOD BLOCK XHP35 4000K RECTANGLE |
3,693 | 0.00 |
RFQ |
Datasheet |
Bulk | XHP35 | Discontinued at Mosen | LED Module | White, Neutral | 4000K 5-Step MacAdam Ellipse | - | Rectangle | 7080lm (Typ) | 1.05A | 85°C | 45.2V | 149 lm/W | 3.15A | 70 | - | IP67 | 203.20mm L x 111.00mm W | 93.50mm | - |
|
|
MP26T1-C19-5070-W-1-00MOD BLOCK XHP35 5000K RECTANGLE |
2,781 | 0.00 |
RFQ |
Datasheet |
Bulk | XHP35 | Discontinued at Mosen | LED Module | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Rectangle | 7620lm (Typ) | 1.05A | 85°C | 45.2V | 161 lm/W | 3.15A | 70 | - | IP67 | 203.20mm L x 111.00mm W | 93.50mm | - |
|
|
MP26T1-C19-4070-T3-1-00MOD BLOCK XHP35 4000K RECTANGLE |
2,827 | 0.00 |
RFQ |
Datasheet |
Bulk | XHP35 | Discontinued at Mosen | LED Module | White, Neutral | 4000K 5-Step MacAdam Ellipse | - | Rectangle | 7080lm (Typ) | 1.05A | 85°C | 45.2V | 149 lm/W | 3.15A | 70 | - | IP67 | 203.20mm L x 111.00mm W | 93.50mm | - |
|
|
MP26T1-C19-5070-T3-1-00MOD BLOCK XHP35 5000K RECTANGLE |
3,791 | 0.00 |
RFQ |
Datasheet |
Bulk | XHP35 | Discontinued at Mosen | LED Module | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Rectangle | 7620lm (Typ) | 1.05A | 85°C | 45.2V | 161 lm/W | 3.15A | 70 | - | IP67 | 203.20mm L x 111.00mm W | 93.50mm | - |
|
MS22T1-C22-4070-W-1-00MOD BLOCK XHP50 4000K RECTANGLE |
2,476 | 0.00 |
RFQ |
Datasheet |
Bulk | XHP50 | Active | LED Module | White, Neutral | 4000K 5-Step MacAdam Ellipse | - | Rectangle | 4480lm (Typ) | 700mA | 85°C | 46V | 139 lm/W | 1.5A | 70 | - | IP67 | 127.00mm H x 111.00mm W | 99.31mm | - |
|
|
MS22T1-C22-5070-W-1-00MOD BLOCK XHP50 5000K RECTANGLE |
3,008 | 0.00 |
RFQ |
Datasheet |
Bulk | XHP50 | Active | LED Module | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Rectangle | 4480lm (Typ) | 700mA | 85°C | 46V | 139 lm/W | 1.5A | 70 | - | IP67 | 127.00mm H x 111.00mm W | 99.31mm | - |
|
|
MS22T1-C22-4070-T2-1-00MOD BLOCK XHP50 4000K RECTANGLE |
3,611 | 0.00 |
RFQ |
Datasheet |
Bulk | XHP50 | Active | LED Module | White, Neutral | 4000K 5-Step MacAdam Ellipse | - | Rectangle | 4480lm (Typ) | 700mA | 85°C | 46V | 139 lm/W | 1.5A | 70 | - | IP67 | 127.00mm H x 111.00mm W | 99.31mm | - |
|
|
MS22T1-C22-5070-T2-1-00MOD BLOCK XHP50 5000K RECTANGLE |
3,029 | 0.00 |
RFQ |
Datasheet |
Bulk | XHP50 | Active | LED Module | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Rectangle | 4480lm (Typ) | 700mA | 85°C | 46V | 139 lm/W | 1.5A | 70 | - | IP67 | 127.00mm H x 111.00mm W | 99.31mm | - |
|

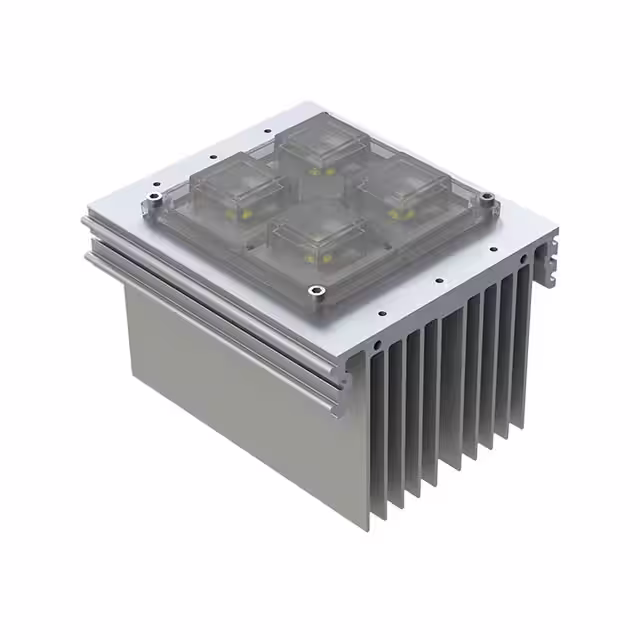

MP22T1-C24-4070-W-1-00MOD BLOCK XHP70 4000K RECTANGLE |
2,313 | 0.00 |
RFQ |
Datasheet |
Bulk | XHP70 | Active | LED Module | White, Neutral | 4000K 5-Step MacAdam Ellipse | - | Rectangle | 6360lm (Typ) | 1.05A | 85°C | 46.4V | 131 lm/W | 2.4A | 70 | - | IP67 | 127.00mm H x 111.00mm W | 99.31mm | - |
|
|
MP22T1-C24-5070-W-1-00MOD BLOCK XHP70 5000K RECTANGLE |
2,476 | 0.00 |
RFQ |
Datasheet |
Bulk | XHP70 | Active | LED Module | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Rectangle | 6840lm (Typ) | 1.05A | 85°C | 46.4V | 140 lm/W | 2.4A | 70 | - | IP67 | 127.00mm H x 111.00mm W | 99.31mm | - |
|
MP22T1-C24-4070-T2-1-00MOD BLOCK XHP70 4000K RECTANGLE |
3,444 | 0.00 |
RFQ |
Datasheet |
Bulk | XHP70 | Active | LED Module | White, Neutral | 4000K 5-Step MacAdam Ellipse | - | Rectangle | 6360lm (Typ) | 1.05A | 85°C | 46.4V | 131 lm/W | 2.4A | 70 | - | IP67 | 127.00mm H x 111.00mm W | 99.31mm | - |
|
|
MP22T1-C24-5070-T2-1-00MOD BLOCK XHP70 5000K RECTANGLE |
3,790 | 0.00 |
RFQ |
Datasheet |
Bulk | XHP70 | Active | LED Module | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Rectangle | 6840lm (Typ) | 1.05A | 85°C | 46.4V | 140 lm/W | 2.4A | 70 | - | IP67 | 127.00mm H x 111.00mm W | 99.31mm | - |
|
MP22T1-C24-2780-DWC-1-00MOD BLOCK XHP70 2700K |
2,437 | 0.00 |
RFQ |
Datasheet |
Tray | XHP70.2 | Active | LED Module | White, Warm | 2700K | - | Square | - | - | 25°C | - | - | - | 80 | - | IP67 | 127.00mm L x 127.00mm W | 96.52mm | - |
