| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CXA1304-0000-000F0Y9230FLED COB CXA1304 WARM WHT SQUARE |
2,291 | 2.18 |
RFQ |
Datasheet |
Tray | XLamp® CXA1304 | Active | Chip On Board (COB) | White, Warm | 3000K 4-Step MacAdam Ellipse | - | Square | 297lm (286lm ~ 308lm) | 200mA | 85°C | 18V | 83 lm/W | 500mA | 93 | 115° | - | 13.35mm L x 13.35mm W | 1.70mm | 6.00mm Dia |
|
|
CXA1304-0000-000F0Y9435FLED COB CXA1304 WARM WHT SQUARE |
2,164 | 2.18 |
RFQ |
Datasheet |
Tray | XLamp® CXA1304 | Active | Chip On Board (COB) | White, Warm | 3500K 4-Step MacAdam Ellipse | - | Square | 319lm (308lm ~ 330lm) | 200mA | 85°C | 18V | 89 lm/W | 500mA | 93 | 115° | - | 13.35mm L x 13.35mm W | 1.70mm | 6.00mm Dia |
|

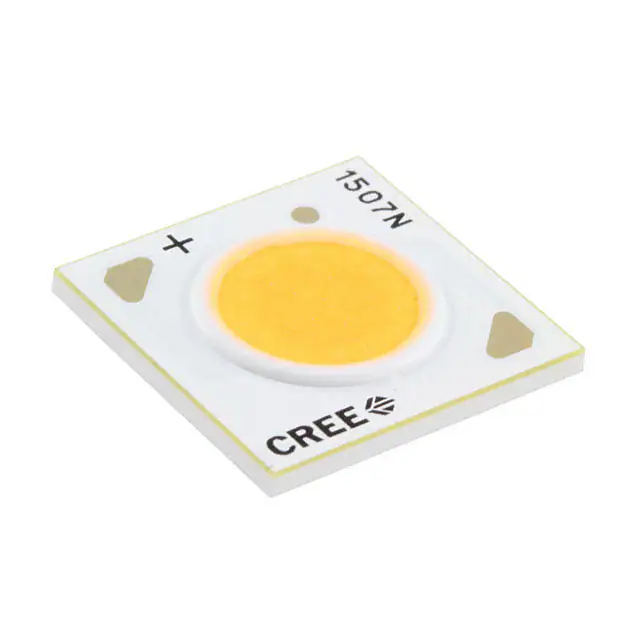

CXB1507-0000-000N0HG427GLED ARRAY 9MM 2700K 80CRI 840LM |
3,944 | 2.18 |
RFQ |
Datasheet |
Tray | Xlamp® CXB1507 | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 870lm (840lm ~ 900lm) | 200mA | 85°C | 36V | 121 lm/W | 375mA | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
|
CXB1507-0000-000N0HG430GLED ARRAY 9MM 3000K 80CRI 840LM |
3,229 | 2.18 |
RFQ |
Datasheet |
Tray | Xlamp® CXB1507 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 870lm (840lm ~ 900lm) | 200mA | 85°C | 36V | 121 lm/W | 375mA | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
CXB1507-0000-000F0BH440ELED COB CXB1507 4000K WHT SMD |
2,312 | 2.18 |
RFQ |
Datasheet |
Tray | Xlamp® CXB1507 | Active | Chip On Board (COB) | White, Neutral | 4000K 5-Step MacAdam Ellipse | - | Square | 1005lm (970lm ~ 1040lm) | 400mA | 85°C | 18V | 140 lm/W | 750mA | 70 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
|
CXB1507-0000-000F0BH450ELED COB CXB1507 5000K WHT SMD |
3,872 | 2.18 |
RFQ |
Datasheet |
Tray | Xlamp® CXB1507 | Active | Chip On Board (COB) | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Square | 1005lm (970lm ~ 1040lm) | 400mA | 85°C | 18V | 140 lm/W | 750mA | 70 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
|
CXB1507-0000-000F0BH457ELED COB CXB1507 5700K WHT SMD |
2,427 | 2.18 |
RFQ |
Datasheet |
Tray | Xlamp® CXB1507 | Active | Chip On Board (COB) | White, Cool | 5700K 5-Step MacAdam Ellipse | - | Square | 1005lm (970lm ~ 1040lm) | 400mA | 85°C | 18V | 140 lm/W | 750mA | 70 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
|
CXB1507-0000-000F0BH465ELED COB CXB1507 6500K WHT SMD |
2,516 | 2.18 |
RFQ |
Datasheet |
Tray | Xlamp® CXB1507 | Active | Chip On Board (COB) | White, Cool | 6500K 5-Step MacAdam Ellipse | - | Square | 1005lm (970lm ~ 1040lm) | 400mA | 85°C | 18V | 140 lm/W | 750mA | 70 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
|
CXB1507-0000-000F0HG427GLED COB CXB1507 2700K WHT SMD |
3,299 | 2.18 |
RFQ |
Datasheet |
Tray | Xlamp® CXB1507 | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 870lm (840lm ~ 900lm) | 400mA | 85°C | 18V | 121 lm/W | 750mA | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
|
CXB1507-0000-000F0HG430GLED COB CXB1507 3000K WHT SMD |
2,949 | 2.18 |
RFQ |
Datasheet |
Tray | Xlamp® CXB1507 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 870lm (840lm ~ 900lm) | 400mA | 85°C | 18V | 121 lm/W | 750mA | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
|
CXB1507-0000-000F0HH235GLED COB CXB1507 3500K WHT SMD |
2,845 | 2.18 |
RFQ |
Datasheet |
Tray | Xlamp® CXB1507 | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 935lm (900lm ~ 970lm) | 400mA | 85°C | 18V | 130 lm/W | 750mA | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
|
CXB1507-0000-000F0HH240GLED COB CXB1507 4000K WHT SMD |
3,381 | 2.18 |
RFQ |
Datasheet |
Tray | Xlamp® CXB1507 | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 935lm (900lm ~ 970lm) | 400mA | 85°C | 18V | 130 lm/W | 750mA | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
|
CXB1507-0000-000F0HH450GLED COB CXB1507 5000K WHT SMD |
2,369 | 2.18 |
RFQ |
Datasheet |
Tray | Xlamp® CXB1507 | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 1005lm (970lm ~ 1040lm) | 400mA | 85°C | 18V | 140 lm/W | 750mA | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
|
CXB1507-0000-000F0HH457ELED COB CXB1507 5700K WHT SMD |
3,703 | 2.18 |
RFQ |
Datasheet |
Tray | Xlamp® CXB1507 | Active | Chip On Board (COB) | White, Cool | 5700K 5-Step MacAdam Ellipse | - | Square | 1005lm (970lm ~ 1040lm) | 400mA | 85°C | 18V | 140 lm/W | 750mA | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
|
CXB1507-0000-000F0HH465ELED COB CXB1507 6500K WHT SMD |
3,406 | 2.18 |
RFQ |
Datasheet |
Tray | Xlamp® CXB1507 | Active | Chip On Board (COB) | White, Cool | 6500K 5-Step MacAdam Ellipse | - | Square | 1005lm (970lm ~ 1040lm) | 400mA | 85°C | 18V | 140 lm/W | 750mA | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
|
CXB1507-0000-000F0UF227GLED COB CXB1507 2700K WHT SMD |
3,923 | 2.18 |
RFQ |
Datasheet |
Tray | Xlamp® CXB1507 | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 705lm (680lm ~ 730lm) | 400mA | 85°C | 18V | 98 lm/W | 750mA | 90 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
|
CXB1507-0000-000F0UG235GLED COB CXB1507 3500K WHT SMD |
3,398 | 2.18 |
RFQ |
Datasheet |
Tray | Xlamp® CXB1507 | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 810lm (780lm ~ 840lm) | 400mA | 85°C | 18V | 113 lm/W | 750mA | 90 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
|
CXB1507-0000-000F0UG240GLED COB CXB1507 4000K WHT SMD |
3,219 | 2.18 |
RFQ |
Datasheet |
Tray | Xlamp® CXB1507 | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 810lm (780lm ~ 840lm) | 400mA | 85°C | 18V | 113 lm/W | 750mA | 90 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
|
CXB1507-0000-000F0UG450GLED COB CXB1507 5000K WHT SMD |
3,904 | 2.18 |
RFQ |
Datasheet |
Tray | Xlamp® CXB1507 | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 870lm (840lm ~ 900lm) | 400mA | 85°C | 18V | 121 lm/W | 750mA | 90 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
CXB1507-0000-000N0BH440ELED COB CXB1507 4000K WHT SMD |
3,860 | 2.18 |
RFQ |
Datasheet |
Tray | Xlamp® CXB1507 | Active | Chip On Board (COB) | White, Neutral | 4000K 5-Step MacAdam Ellipse | - | Square | 1005lm (970lm ~ 1040lm) | 200mA | 85°C | 36V | 140 lm/W | 375mA | 70 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
