| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | LogicType | NumberofCircuits | NumberofInputs | Features | Voltage-Supply | Current-Quiescent(Max) | Current-OutputHighLow | LogicLevel-Low | LogicLevel-High | MaxPropagationDelay@VMaxCL | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SN74ALS133NIC GATE NAND 1CH 13-INP 16DIP |
363 | 4.78 |
RFQ |
Datasheet |
Tube | 74ALS | Active | NAND Gate | 1 | 13 | - | 4.5V ~ 5.5V | - | 400µA, 8mA | 0.8V | 2V | 25ns @ 5V, 50pF | 0°C ~ 70°C | Through Hole |
|
SN74AS808BDWIC GATE AND 6CH 2-INP 20SOIC |
332 | 6.48 |
RFQ |
Datasheet |
Tube | 74AS | Active | AND Gate | 6 | 2 | - | 4.5V ~ 5.5V | 13 mA | 48mA, 48mA | 0.8V | 2V | 6ns @ 5V, 50pF | 0°C ~ 70°C | Surface Mount |
|
SN74AHC2G02HDCU3NOR GATE, AHC/VHC/H/U/V SERIES |
99,000 | 0.17 |
RFQ |
Datasheet |
Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - |
|
SN72275NTRIPLE 3-INPUT AND GATE |
15,275 | 0.20 |
RFQ |
Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | |
|
SN74LVC1G00DRY2IC GATE NAND 1CH 2-INP 6SON |
10,000 | 0.45 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | 74LVC | Active | NAND Gate | 1 | 2 | - | 1.65V ~ 5.5V | 10 µA | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 4.3ns @ 5V, 50pF | -40°C ~ 125°C | Surface Mount |
|
SN74HCS27DRIC GATE NOR 3CH 3IN 14SOIC |
7,283 | 0.37 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q100, 74HCS | Active | NOR Gate | 3 | 3 | Schmitt Trigger Input | 2V ~ 6V | 2 µA | 7.8mA, 7.8mA | 1V ~ 3V | 1.5V ~ 4.2V | 12ns @ 6V, 50pF | -40°C ~ 125°C | Surface Mount | |
|
SN74HCS10PWRIC GATE NAND 3CH 3-INP 14TSSOP |
5,900 | 0.37 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | 74HCS | Active | NAND Gate | 3 | 3 | Schmitt Trigger Input | 2V ~ 6V | 2 µA | 7.8mA, 7.8mA | 1V ~ 3V | 1.5V ~ 4.2V | 16ns @ 6V, 50pF | -40°C ~ 125°C (TA) | Surface Mount |
|
|
SN74HCS11DRIC GATE AND 3CH 3IN 14SOIC |
4,762 | 0.37 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q100, 74HCS | Active | AND Gate | 3 | 3 | Schmitt Trigger Input | 2V ~ 6V | 2 µA | 7.8mA, 7.8mA | 1V ~ 3V | 1.5V ~ 4.2V | 16ns @ 6V, 50pF | -40°C ~ 125°C | Surface Mount | |
|
|
SN74AHC08DRIC GATE AND 4CH 2-INP 14SOIC |
14,760 | 0.40 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | 74AHC | Active | AND Gate | 4 | 2 | - | 2V ~ 5.5V | 2 µA | 8mA, 8mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V | 7.9ns @ 5V, 50pF | -40°C ~ 125°C | Surface Mount |
|
|
SN74AHCT32PWRIC GATE OR 4CH 2-INP 14TSSOP |
4,000 | 0.40 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | 74AHCT | Active | OR Gate | 4 | 2 | - | 4.5V ~ 5.5V | 2 µA | 8mA, 8mA | 0.8V | 2V | 7.9ns @ 5V, 50pF | -40°C ~ 85°C | Surface Mount |
|
SN74AHCT1G00DCK3IC GATE NAND 1CH 2-INP SC70-5 |
4,829 | 0.41 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | 74AHC | Active | NAND Gate | 1 | 2 | - | 4.5V ~ 5.5V | 1 µA | 8mA, 8mA | 0.8V | 2V | 7.9ns @ 5V, 15pF | -40°C ~ 125°C | Surface Mount |
|
|
SN74LVU04APWRIC INVERTER 6CH 1-INP 14TSSOP |
7,549 | 0.45 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | 74LVU | Active | Inverter | 6 | 1 | - | 2V ~ 5.5V | 20 µA | 12mA, 12mA | 0.3V | 1.7V | 7ns @ 5V, 50pF | -40°C ~ 85°C | Surface Mount |
|
SN74LVC1GU04DPWRIC INVERTER 1CH 1-INP 5X2SON |
11,900 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | 74LVC | Active | Inverter | 1 | 1 | - | 1.65V ~ 5.5V | 10 µA | 32mA, 32mA | 0.1V ~ 0.55V | 0.1V ~ 3.8V | 3.5ns @ 5V, 50pF | -40°C ~ 125°C (TA) | Surface Mount |
|

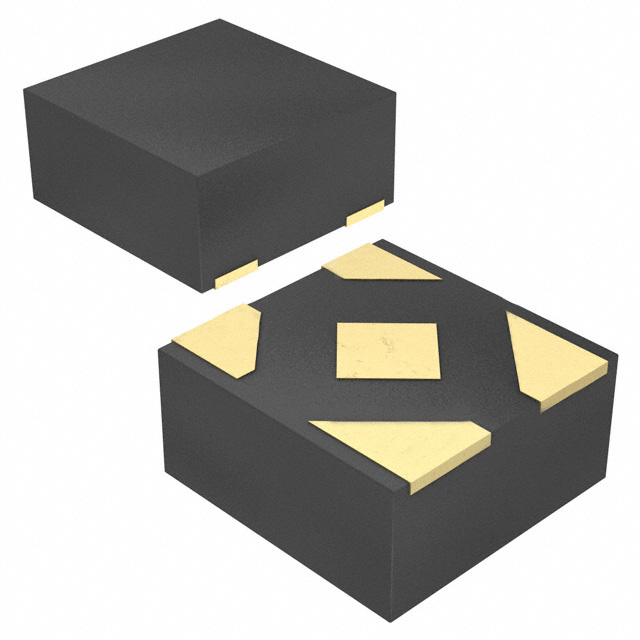

SN74LVC1G04DPWRIC INVERTER 1CH 1-INP 4XDFN |
11,842 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | 74LVC | Active | Inverter | 1 | 1 | - | 1.65V ~ 5.5V | 10 µA | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 3.7ns @ 5V, 50pF | -40°C ~ 125°C | Surface Mount |
|
SN74LV06ADGVRIC INVERTER OD 6CH 1-INP 14TVSOP |
2,445 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | 74LV | Active | Inverter | 6 | 1 | Open Drain | 2V ~ 5.5V | 20 µA | -, 16mA | 0.5V | 1.5V | 7.5ns @ 5V, 50pF | -40°C ~ 85°C | Surface Mount |
|
|
CD74HCT03M96IC GATE NAND OD 4CH 2-INP 14SOIC |
3,605 | 0.49 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | 74HCT | Active | NAND Gate | 4 | 2 | Open Drain | 4.5V ~ 5.5V | 2 µA | -, 4mA | 0.8V | 2V | 24ns @ 4.5V, 50pF | -55°C ~ 125°C | Surface Mount |
|
|
SN74HC10PWRIC GATE NAND 3CH 3-INP 14TSSOP |
2,766 | 0.53 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | 74HC | Active | NAND Gate | 3 | 3 | - | 2V ~ 6V | 2 µA | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 16ns @ 6V, 50pF | -40°C ~ 85°C | Surface Mount | |
|
|
SN74AHC132DRIC GATE NAND 4CH 2-INP 14SOIC |
4,263 | 0.43 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | 74AHC | Active | NAND Gate | 4 | 2 | Schmitt Trigger | 2V ~ 5.5V | 2 µA | 8mA, 8mA | 0.9V ~ 1.65V | 2.2V ~ 3.85V | 9.7ns @ 5V, 50pF | -40°C ~ 85°C | Surface Mount |
|
|
SN74AHC05PWRIC INVERTER OD 6CH 1-INP 14TSSOP |
2,179 | 0.43 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | 74AHC | Active | Inverter | 6 | 1 | Open Drain | 2V ~ 5.5V | 2 µA | -, 8mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V | 7.5ns @ 5V, 50pF | -40°C ~ 85°C | Surface Mount |
|
SN74LVC1G38DSFRIC GATE NAND OD 1CH 2-INP 6SON |
5,156 | 0.46 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | 74LVC | Active | NAND Gate | 1 | 2 | Open Drain | 1.65V ~ 5.5V | 10 µA | -, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 3.9ns @ 5V, 50pF | -40°C ~ 125°C | Surface Mount |
