| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | LogicType | NumberofCircuits | NumberofInputs | Features | Voltage-Supply | Current-Quiescent(Max) | Current-OutputHighLow | LogicLevel-Low | LogicLevel-High | MaxPropagationDelay@VMaxCL | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SN74S10NSRG4IC GATE NAND 3CH 3-INP 14SOP |
2,523 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | 74S | Obsolete | NAND Gate | 3 | 3 | - | 4.75V ~ 5.25V | - | 1mA, 20mA | 0.8V | 2V | 5ns @ 5V, 50pF | 0°C ~ 70°C | Surface Mount |
|
SN74S132DG4IC GATE NAND 4CH 2-INP 14SOIC |
2,863 | 0.00 |
RFQ |
Datasheet |
Tube | 74S | Obsolete | NAND Gate | 4 | 2 | Schmitt Trigger | 4.75V ~ 5.25V | - | 1mA, 20mA | 1.1V | 1.9V | 13ns @ 5V, 15pF | 0°C ~ 70°C | Surface Mount |
|
|
SN74S132DRG4IC GATE NAND 4CH 2-INP 14SOIC |
2,748 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | 74S | Obsolete | NAND Gate | 4 | 2 | Schmitt Trigger | 4.75V ~ 5.25V | - | 1mA, 20mA | 1.1V | 1.9V | 13ns @ 5V, 15pF | 0°C ~ 70°C | Surface Mount |
|
|
SN74S32NSRG4IC GATE OR 4CH 2-INP 14SOP |
3,152 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | 74S | Obsolete | OR Gate | 4 | 2 | - | 4.75V ~ 5.25V | - | 1mA, 20mA | 0.8V | 2V | 5ns @ 5V, 50pF | 0°C ~ 70°C | Surface Mount |
|
|
SN74S37DRG4IC GATE NAND 4CH 2-INP 14SOIC |
3,515 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | 74S | Obsolete | NAND Gate | 4 | 2 | - | 4.75V ~ 5.25V | - | 3mA, 60mA | 0.8V | 2V | 6ns @ 5V, 150pF | 0°C ~ 70°C | Surface Mount |
|
|
SN74S37NSRG4IC GATE NAND 4CH 2-INP 14SOP |
2,117 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | 74S | Obsolete | NAND Gate | 4 | 2 | - | 4.75V ~ 5.25V | - | 3mA, 60mA | 0.8V | 2V | 6ns @ 5V, 150pF | 0°C ~ 70°C | Surface Mount |
|
|
SN74S86DRG4IC GATE XOR 4CH 2-INP 14SOIC |
2,042 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | 74S | Obsolete | XOR (Exclusive OR) | 4 | 2 | - | 4.75V ~ 5.25V | - | 1mA, 20mA | 0.8V | 2V | 10.5ns @ 5V, 15pF | 0°C ~ 70°C | Surface Mount |
|
|
SN74S86NSRG4IC GATE XOR 4CH 2-INP 14SOP |
3,858 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | 74S | Obsolete | XOR (Exclusive OR) | 4 | 2 | - | 4.75V ~ 5.25V | - | 1mA, 20mA | 0.8V | 2V | 10.5ns @ 5V, 15pF | 0°C ~ 70°C | Surface Mount |
|
SN74LVC3G14DCU6IC INVERT SCHMITT 3CH 3IN 8VSSOP |
3,165 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | 74LVC | Obsolete | Inverter | 3 | 3 | Schmitt Trigger | 1.65V ~ 5.5V | 10 µA | 32mA, 32mA | 0.3V ~ 1.4V | 1.4V ~ 3.7V | 4.3ns @ 5V, 50pF | -40°C ~ 125°C | Surface Mount |
|
1P1G08MDBVREPG4IC GATE AND 1CH 2-INP SOT23-5 |
2,387 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Discontinued at Mosen | AND Gate | 1 | 2 | - | 1.65V ~ 5.5V | 10 µA | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 5ns @ 5V, 50pF | -55°C ~ 125°C | Surface Mount |
|

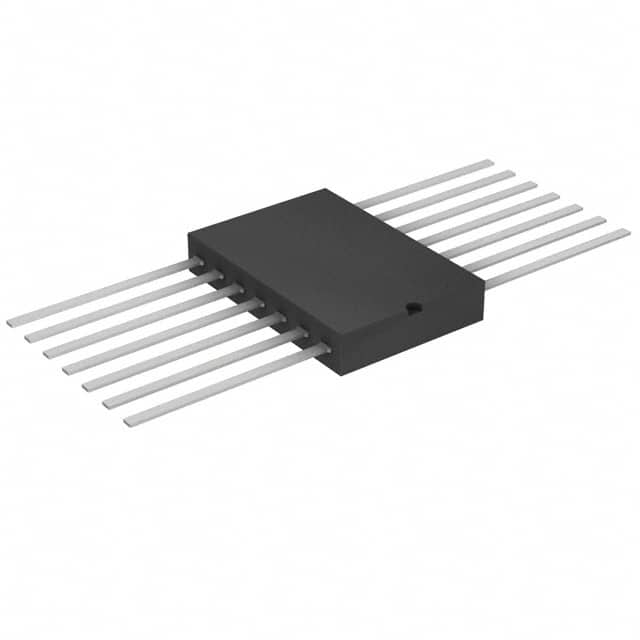

5962-8754903VDAIC GATE NAND 4CH 2-INP 14CFP |
3,483 | 433.65 |
RFQ |
Datasheet |
Bulk | - | Active | NAND Gate | 4 | 2 | - | 2V ~ 6V | 4 µA | 24mA, 24mA | 0.1V ~ 0.36V | 2.56V ~ 4.86V | 8ns @ 5V, 50pF | -55°C ~ 125°C | Surface Mount |
|
|
5962-8761203VDAIC GATE NOR 4CH 2-INP 14CFP |
2,190 | 362.69 |
RFQ |
Datasheet |
Bulk | - | Active | NOR Gate | 4 | 2 | - | 1.5V ~ 5.5V | 4 µA | 24mA, 24mA | 0.3V ~ 1.65V | 1.2V ~ 3.85V | 11.5ns @ 5V, 50pF | -55°C ~ 125°C | Surface Mount |
|
74LVC2G132DCTRG4IC GATE NAND SCHMITT 2CH 2IN SM8 |
2,385 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | 74LVC | Discontinued at Mosen | NAND Gate | 2 | 2 | Schmitt Trigger | 1.65V ~ 5.5V | 10 µA | 32mA, 32mA | 0.39V ~ 1.87V | 1.16V ~ 3.33V | 6ns @ 5V, 50pF | -40°C ~ 125°C | Surface Mount |
|
SN74LV14AMPWREPG4IC INVERTER 6CH 1-INP 14TSSOP |
2,765 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | 74LV | Discontinued at Mosen | Inverter | 6 | 1 | Schmitt Trigger | 2V ~ 5.5V | 20 µA | 12mA, 12mA | 0.75V ~ 1.5V | 1.75V ~ 3.5V | 10.6ns @ 5V, 50pF | -55°C ~ 125°C | Surface Mount |
|
|
SN74LVC08AMPWREPG4IC GATE AND 4CH 2-INP 14TSSOP |
2,670 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | 74LVC | Discontinued at Mosen | AND Gate | 4 | 2 | - | 2V ~ 3.6V | 10 µA | 24mA, 24mA | 0.8V | 2V | 4.1ns @ 3.3V, 50pF | -55°C ~ 125°C | Surface Mount |
|
|
SN74LVC2G32DCTRG4IC GATE OR 2CH 2-INP SM8 |
3,056 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | 74LVC | Discontinued at Mosen | OR Gate | 2 | 2 | - | 1.65V ~ 5.5V | 10 µA | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 3.2ns @ 5V, 50pF | -40°C ~ 125°C | Surface Mount |
|
|
SN74LVC32AMPWREPG4IC GATE OR 4CH 2-INP 14TSSOP |
3,271 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | 74LVC | Discontinued at Mosen | OR Gate | 4 | 2 | - | 2V ~ 3.6V | 10 µA | 24mA, 24mA | 0.8V | 2V | 3.8ns @ 3.3V, 50pF | -55°C ~ 125°C | Surface Mount |
|
|
1P1G14MDBVREPG4IC INVERTER 1CH 1-INP SOT23-5 |
3,224 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | 74LVC | Discontinued at Mosen | Inverter | 1 | 1 | Schmitt Trigger | 1.65V ~ 5.5V | 19 µA | 32mA, 32mA | 0.39V ~ 1.87V | 1.16V ~ 3.33V | 5ns @ 5V, 50pF | -55°C ~ 125°C | Surface Mount |
|
CLVC1G32MDCKREPG4IC GATE OR 1CH 2-INP SC70-5 |
3,471 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | 74LVC | Obsolete | OR Gate | 1 | 2 | - | 1.65V ~ 5.5V | 10 µA | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 4.5ns @ 5V, 50pF | -55°C ~ 125°C | Surface Mount |
|
|
SN74HC04ANSRE4IC INVERTER 6CH 1-INP 14SOP |
2,995 | 0.00 |
RFQ |
Tape & Reel (TR) | 74HC | Obsolete | Inverter | 6 | 1 | - | 2V ~ 6V | 2 µA | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 13ns @ 6V, 50pF | -40°C ~ 85°C | Surface Mount |
