| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | LogicType | NumberofCircuits | NumberofInputs | Features | Voltage-Supply | Current-Quiescent(Max) | Current-OutputHighLow | LogicLevel-Low | LogicLevel-High | MaxPropagationDelay@VMaxCL | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74HCT03D,652IC GATE NAND OD 4CH 2-INP 14SO |
3,855 | 0.00 |
RFQ |
Datasheet |
Bulk,Tube | 74HCT | Obsolete | NAND Gate | 4 | 2 | Open Drain | 4.5V ~ 5.5V | 2 µA | -, 4mA | 0.8V | 2V | 24ns @ 4.5V, 50pF | -40°C ~ 125°C | Surface Mount |
|
74AUP1G08GM,115IC GATE AND 1CH 2-INP 6XSON |
15,000 | 0.45 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | 74AUP | Active | AND Gate | 1 | 2 | - | 0.8V ~ 3.6V | 500 nA | 4mA, 4mA | 0.7V ~ 0.9V | 1.6V ~ 2V | 6.2ns @ 3.3V, 30pF | -40°C ~ 125°C | Surface Mount |
|
74LVC2G32GT,115IC GATE OR 2CH 2-INP 8XSON |
427 | 0.45 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | 74LVC | Active | OR Gate | 2 | 2 | - | 1.65V ~ 5.5V | 4 µA | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 3.2ns @ 5V, 50pF | -40°C ~ 125°C | Surface Mount |
|

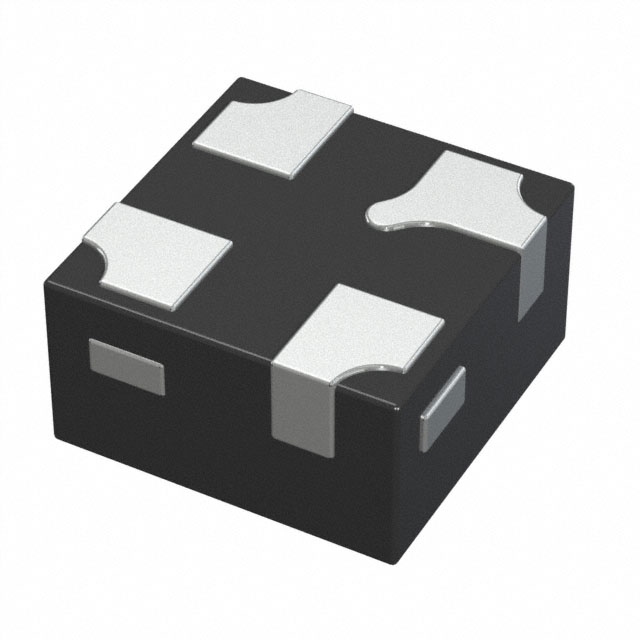

74AUP1G14GX4-Q100Z74AUP1G14-Q100 - LOW-POWER SCHMI |
421 | 0.45 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q100, 74AUP | Active | Inverter | 1 | 1 | Schmitt Trigger | 0.8V ~ 3.6V | 500 nA | 4mA, 4mA | 0.6V ~ 1.24V | 0.6V ~ 2.29V | 6.1ns @ 3.6V, 30pF | -40°C ~ 125°C | Surface Mount |
|
|
74VHC08D,118IC GATE AND 4CH 2-INP 14SO |
344 | 0.45 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | 74VHC | Active | AND Gate | 4 | 2 | - | 2V ~ 5.5V | 2 µA | 8mA, 8mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V | 7.9ns @ 5V, 50pF | -40°C ~ 125°C | Surface Mount |
|
74AHC1GU04GV,125IC INVERTER 1CH 1-INP SC74A |
850 | 0.46 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | 74AHC | Active | Inverter | 1 | 1 | - | 2V ~ 5.5V | 1 µA | 8mA, 8mA | 0.3V ~ 1.1V | 1.7V ~ 4.4V | 7ns @ 5V, 50pF | -40°C ~ 125°C | Surface Mount |
|
74LVC1G04GS,132IC INVERTER 1CH 1-INP 6XSON |
786 | 0.46 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | 74LVC | Active | Inverter | 1 | 1 | - | 1.65V ~ 5.5V | 4 µA | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 3.7ns @ 5V, 50pF | -40°C ~ 125°C | Surface Mount |
|
74HC3G14DC,125IC INVERT SCHMITT 3CH 3IN 8VSSOP |
256 | 0.67 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | 74HC | Active | Inverter | 3 | 3 | Schmitt Trigger | 2V ~ 6V | 1 µA | 5.2mA, 5.2mA | 0.3V ~ 1.2V | 1.5V ~ 4.2V | 21ns @ 6V, 50pF | -40°C ~ 125°C | Surface Mount |
|
74AUP1G06GF,132IC INVERTER OD 1CH 1-INP 6XSON |
195 | 0.46 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | 74AUP | Obsolete | Inverter | 1 | 1 | Open Drain | 0.8V ~ 3.6V | 500 nA | -, 4mA | 0.7V ~ 0.9V | 1.6V ~ 2V | 10.5ns @ 3.3V, 30pF | -40°C ~ 125°C | Surface Mount |
|
74LVC1G332GW-Q100HIC GATE OR 1CH 3-INP 6TSSOP |
865 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q100, 74LVC | Active | OR Gate | 1 | 3 | - | 1.65V ~ 5.5V | 4 µA | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 3.5ns @ 5V, 50pF | -40°C ~ 125°C | Surface Mount |
.jpg)
|
74AUP1G06GW,125IC INVERTER OD 1CH 1-INP 5TSSOP |
550 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | 74AUP | Active | Inverter | 1 | 1 | Open Drain | 0.8V ~ 3.6V | 500 nA | -, 4mA | 0.7V ~ 0.9V | 1.6V ~ 2V | 10.5ns @ 3.3V, 30pF | -40°C ~ 125°C | Surface Mount |
|
|
74AHC14D,118IC INVERT SCHMITT 6CH 1-INP 14SO |
2,777 | 0.48 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | 74AHC | Active | Inverter | 6 | 1 | Schmitt Trigger | 2V ~ 5.5V | 2 µA | 8mA, 8mA | 0.9V ~ 1.65V | 2.2V ~ 3.85V | 10.6ns @ 5V, 50pF | -40°C ~ 125°C | Surface Mount |
|
|
74AHC14D,112IC INVERT SCHMITT 6CH 1-INP 14SO |
979 | 0.48 |
RFQ |
Datasheet |
Tube | 74AHC | Obsolete | Inverter | 6 | 1 | Schmitt Trigger | 2V ~ 5.5V | 2 µA | 8mA, 8mA | 0.9V ~ 1.65V | 2.2V ~ 3.85V | 10.6ns @ 5V, 50pF | -40°C ~ 125°C | Surface Mount |
|
74AHCT86BQ,115IC GATE XOR 4CH 2-INP 14DHVQFN |
737 | 0.48 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | 74AHCT | Active | XOR (Exclusive OR) | 4 | 2 | - | 4.5V ~ 5.5V | 2 µA | 8mA, 8mA | 0.8V | 2V | 8.8ns @ 5V, 50pF | -40°C ~ 125°C | Surface Mount |
|
74HC30PW,118IC GATE NAND 1CH 8-INP 14TSSOP |
2,849 | 0.48 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | 74HC | Active | NAND Gate | 1 | 8 | - | 2V ~ 6V | 2 µA | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 22ns @ 6V, 50pF | -40°C ~ 125°C | Surface Mount |
|
|
74HC30PW,112IC GATE NAND 1CH 8-INP 14TSSOP |
2,317 | 0.00 |
RFQ |
Datasheet |
Tube | 74HC | Obsolete | NAND Gate | 1 | 8 | - | 2V ~ 6V | 2 µA | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 22ns @ 6V, 50pF | -40°C ~ 125°C | Surface Mount |
|
|
74LVC86APW,118IC GATE XOR 4CH 2-INP 14TSSOP |
230 | 0.48 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | 74LVC | Active | XOR (Exclusive OR) | 4 | 2 | - | 1.2V ~ 3.6V | 40 µA | 24mA, 24mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 5ns @ 3.3V, 50pF | -40°C ~ 125°C | Surface Mount |
|
|
74LVC86APW,112IC GATE XOR 4CH 2-INP 14TSSOP |
3,257 | 0.00 |
RFQ |
Datasheet |
Tube | 74LVC | Obsolete | XOR (Exclusive OR) | 4 | 2 | - | 1.2V ~ 3.6V | 40 µA | 24mA, 24mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 5ns @ 3.3V, 50pF | -40°C ~ 125°C | Surface Mount |
|
|
74HCT1G32GV,125IC GATE OR 1CH 2-INP SC74A |
180 | 0.48 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | 74HCT | Active | OR Gate | 1 | 2 | - | 4.5V ~ 5.5V | 20 µA | 2mA, 2mA | 0.8V | 2V | 10ns @ 4.5V, 50pF | -40°C ~ 125°C | Surface Mount |
|
74LV1T32GXHIC GATE OR 1CH 2-INP 5X2SON |
128 | 0.48 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | 74LV | Active | OR Gate | 1 | 2 | - | 1.6V ~ 5.5V | 1 µA | 8mA, 8mA | 0.1V ~ 0.3V | 1.28V ~ 4.6V | 4.5ns @ 5V, 30pF | -40°C ~ 125°C | Surface Mount |
