| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | NumberofChannels | Inputs-Side1/Side2 | Voltage-Isolation | CommonModeTransientImmunity(Min) | InputType | OutputType | Current-Output/Channel | DataRate | PropagationDelaytpLH/tpHL(Max) | Rise/FallTime(Typ) | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | Voltage-Supply | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
6N137TSVMOPTOISO 5KV 1CH OPEN COLL 8SMD |
3,232 | 1.75 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 5000Vrms | 10kV/µs (Typ) | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 30ns, 10ns | 1.45V | 50mA | 4.5V ~ 5.5V | -40°C ~ 100°C | Surface Mount |
|
HCPL2631VOPTOISO 2.5KV 2CH OPEN COLL 8DIP |
2,518 | 2.90 |
RFQ |
Datasheet |
Tube | - | Last Time Buy | 2 | 2/0 | 2500Vrms | 5kV/µs | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 50ns, 12ns | 1.4V | 30mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Through Hole |
|
H11L3SR2MOPTOISO 4.17KV OPN COLL 6SMD |
3,061 | 1.40 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 1/0 | 4170Vrms | - | DC | Open Collector | 50 mA | 1MHz | 4µs, 4µs | 100ns, 100ns | 1.2V | 30mA | 3V ~ 15V | -40°C ~ 85°C | Surface Mount |
|
HCPL2601WVOPTOISO 2.5KV OPN COLLECTOR 8DIP |
3,707 | 2.74 |
RFQ |
Datasheet |
Tube | - | Last Time Buy | 1 | 1/0 | 2500Vrms | 5kV/µs | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 50ns, 12ns | 1.4V | 50mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Through Hole |
|
FOD260LSDVOPTOISO 5KV OPEN COLLECTOR 8SMT |
3,584 | 2.91 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 1/0 | 5000Vrms | 25kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10Mbps | 90ns, 75ns | 22ns, 3ns | 1.4V | 50mA | 3V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
H11L3MLOGIC IC OUTPUT OPTOCOUPLER, 750 |
2,265 | 0.35 |
RFQ |
Datasheet |
Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
H11L1MOPTOISO 4.17KV OPN COLL 6DIP |
2,284 | 1.08 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 4170Vrms | - | DC | Open Collector | 50 mA | 1MHz | 4µs, 4µs | 100ns, 100ns | 1.2V | 30mA | 3V ~ 15V | -40°C ~ 85°C | Through Hole |
|

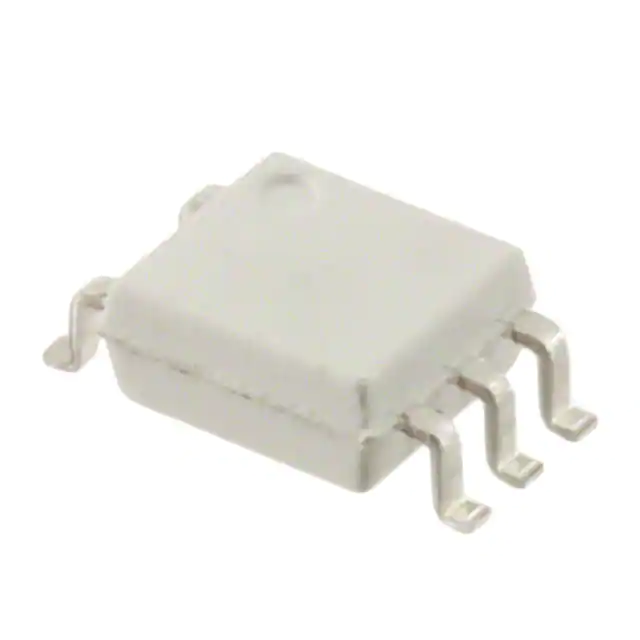

FODM8061R2OPTOISO 3.75KV OPEN COLL 5MFP |
3,014 | 3.05 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 1/0 | 3750Vrms | 20kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10Mbps | 80ns, 80ns | 20ns, 10ns | 1.45V | 50mA | 3V ~ 5.5V | -40°C ~ 110°C | Surface Mount |
|
HCPL0638R2OPTOISO 3.75KV 2CH OPEN COLL 8SO |
2,613 | 3.75 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 | 2/0 | 3750Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 15 mA | 10Mbps | 75ns, 75ns | 17ns, 5ns | 1.75V (Max) | - | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
|
HCPL0637R2OPTOISO 3.75KV 2CH OPEN COLL 8SO |
2,013 | 3.91 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 | 2/0 | 3750Vrms | 5kV/µs | DC | Open Collector, Schottky Clamped | 15 mA | 10Mbps | 75ns, 75ns | 17ns, 5ns | 1.75V (Max) | - | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
|
HCPL2630SOPTOISO 2.5KV 2CH OPEN COLL 8SMD |
3,219 | 3.47 |
RFQ |
Datasheet |
Tube | - | Last Time Buy | 2 | 2/0 | 2500Vrms | 10kV/µs (Typ) | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 50ns, 12ns | 1.4V | 30mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
|
H11L2MOPTOISO 4.17KV OPN COLL 6DIP |
586 | 1.35 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 4170Vrms | - | DC | Open Collector | 50 mA | 1MHz | 4µs, 4µs | 100ns, 100ns | 1.2V | 30mA | 3V ~ 15V | -40°C ~ 85°C | Through Hole |
|
|
HCPL2601OPTOISO 2.5KV OPN COLLECTOR 8DIP |
541 | 2.25 |
RFQ |
Datasheet |
Tube | - | Last Time Buy | 1 | 1/0 | 2500Vrms | 5kV/µs | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 50ns, 12ns | 1.4V | 50mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Through Hole |
|
|
HCPL2611MOPTOISO 5KV OPEN COLLECTOR 8DIP |
766 | 2.34 |
RFQ |
Datasheet |
Tube,Tube | - | Active | 1 | 1/0 | 5000Vrms | 10kV/µs | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 50ns, 12ns | 1.45V | 50mA | 4.5V ~ 5.5V | -40°C ~ 100°C | Through Hole |
|
|
HCPL2631OPTOISO 2.5KV 2CH OPEN COLL 8DIP |
276 | 2.98 |
RFQ |
Datasheet |
Tube | - | Last Time Buy | 2 | 2/0 | 2500Vrms | 5kV/µs | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 50ns, 12ns | 1.4V | 30mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Through Hole |
|
|
HCPL0601OPTOISO 3.75KV OPN COLLECTOR 8SO |
2,001 | 3.23 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 3750Vrms | 10kV/µs | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 50ns, 12ns | 1.75V (Max) | 50mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
|
HCPL2631SOPTOISO 2.5KV 2CH OPEN COLL 8DIP |
672 | 3.38 |
RFQ |
Datasheet |
Tube | - | Last Time Buy | 2 | 2/0 | 2500Vrms | 5kV/µs | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 50ns, 12ns | 1.4V | 30mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
H11L2TVMOPTOISO 4.17KV OPN COLL 6DIP |
750 | 1.49 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 4170Vrms | - | DC | Open Collector | 50 mA | 1MHz | 4µs, 4µs | 100ns, 100ns | 1.2V | 30mA | 3V ~ 15V | -40°C ~ 85°C | Through Hole |
|
|
6N137SMOPTOISO 5KV 1CH OPEN COLL 8SMD |
381 | 1.62 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 5000Vrms | 10kV/µs (Typ) | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 30ns, 10ns | 1.45V | 50mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
|
H11L3VMOPTOISO 4.17KV OPN COLL 6DIP |
359 | 1.71 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 4170Vrms | - | DC | Open Collector | 50 mA | 1MHz | 4µs, 4µs | 100ns, 100ns | 1.2V | 30mA | 3V ~ 15V | -40°C ~ 85°C | Through Hole |
