Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	NumberofChannels	Inputs-Side1/Side2	Voltage-Isolation	CommonModeTransientImmunity(Min)	InputType	OutputType	Current-Output/Channel	DataRate	PropagationDelaytpLH/tpHL(Max)	Rise/FallTime(Typ)	Voltage-Forward(Vf)(Typ)	Current-DCForward(If)(Max)	Voltage-Supply	OperatingTemperature	MountingType
ACPL-K64L-560E OPTOISO 5KV 2CH PUSH PULL 8SO Broadcom Limited	2,362	6.47	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	2	2/0	5000Vrms	20kV/µs	DC	Push-Pull, Totem Pole	10 mA	10MBd	80ns, 80ns	12ns, 12ns	1.3V	8mA	2.7V ~ 5.5V	-40°C ~ 105°C	Surface Mount
ACSL-7210-50RE OPTOISO 3.75KV 2CH PUSH PULL 8SO Broadcom Limited	3,242	6.58	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	2	1/1	3750Vrms	25kV/µs	Logic	Push-Pull, Totem Pole	10 mA	25MBd	40ns, 40ns	5.1ns, 3.8ns	-	-	3V ~ 3.6V, 4.5V ~ 5.5V	-40°C ~ 105°C	Surface Mount

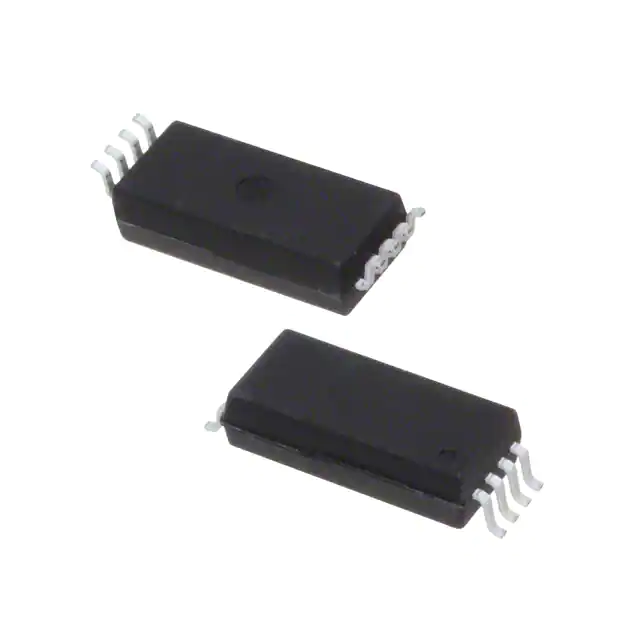

ACNT-H61L-500E OPTOISO 7.5KV PUSH PULL 8SO Broadcom Limited	3,124	6.75	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	1	1/0	7500Vrms	20kV/µs	DC	Push-Pull, Totem Pole	-	10MBd	-	-	-	-	2.7V ~ 5.5V	-40°C ~ 105°C	Surface Mount
ACPL-M21L-000E OPTOISO 3.75KV PUSH PULL 5SO Broadcom Limited	2,097	3.06	RFQ	Datasheet	Tube	-	Active	1	1/0	3750Vrms	25kV/µs	DC	Push-Pull, Totem Pole	10 mA	5MBd	250ns, 250ns	11ns, 11ns	1.5V	8mA	2.7V ~ 5.5V	-40°C ~ 105°C	Surface Mount
HCPL-0611-000E OPTOISO 3.75KV OPN COLLECTOR 8SO Broadcom Limited	2,805	3.07	RFQ	Datasheet	Tube	-	Active	1	1/0	3750Vrms	15kV/µs	DC	Open Collector, Schottky Clamped	50 mA	10MBd	100ns, 100ns	24ns, 10ns	1.5V	20mA	4.5V ~ 5.5V	-40°C ~ 85°C	Surface Mount
ACPL-M60L-000E OPTOISO 3.75KV OPN COLLECTOR 5SO Broadcom Limited	3,735	3.29	RFQ	Datasheet	Tube	-	Active	1	1/0	3750Vrms	10kV/µs	DC	Open Collector, Schottky Clamped	50 mA	15MBd	75ns, 75ns	24ns, 10ns	1.5V	20mA	2.7V ~ 3.6V, 4.5V ~ 5.5V	-40°C ~ 85°C	Surface Mount
ACPL-M61L-000E OPTOISO 3.75KV PUSH PULL 5SO Broadcom Limited	2,258	3.29	RFQ	Datasheet	Tube	-	Active	1	1/0	3750Vrms	20kV/µs	DC	Push-Pull, Totem Pole	10 mA	10MBd	80ns, 80ns	12ns, 12ns	1.3V	8mA	2.7V ~ 5.5V	-40°C ~ 105°C	Surface Mount
ACPL-K73L-500E OPTOISO 5KV 2CH PUSH PULL 8SSO Broadcom Limited	2,087	7.46	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	2	2/0	5000Vrms	10kV/µs	DC	Push-Pull, Totem Pole	10 mA	15MBd	55ns, 55ns	3.5ns, 3.5ns	1.5V	10mA	3V ~ 3.6V, 4.5V ~ 5.5V	-40°C ~ 105°C	Surface Mount
HCPL-0201-000E OPTOISO 3.75KV PUSH PULL 8SO Broadcom Limited	3,659	3.34	RFQ	Datasheet	Tube	-	Active	1	1/0	3750Vrms	5kV/µs, 10kV/µs	DC	Push-Pull, Totem Pole	25 mA	5MBd	300ns, 300ns	30ns, 7ns	1.5V	10mA	4.5V ~ 20V	-40°C ~ 85°C	Surface Mount
HCPL-7710-500E OPTOISO 3.75KV PUSH PULL 8DIP GW Broadcom Limited	2,036	6.78	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	1	1/0	3750Vrms	10kV/µs	Logic	Push-Pull, Totem Pole	10 mA	12.5MBd	40ns, 40ns	13ns, 5ns	-	-	4.5V ~ 5.5V	-40°C ~ 100°C	Surface Mount
HCPL-2231-500E OPTOISO 3.75KV PUSH PULL 8DIP GW Broadcom Limited	3,201	6.89	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	2	2/0	3750Vrms	1kV/µs	DC	Push-Pull, Totem Pole	25 mA	5MBd	300ns, 300ns	30ns, 7ns	1.5V	10mA	4.5V ~ 20V	-40°C ~ 85°C	Surface Mount
ACPL-074L-500E OPTOISO 3.75KV 2CH PUSH PULL 8SO Broadcom Limited	3,898	6.89	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	2	2/0	3750Vrms	10kV/µs	DC	Push-Pull, Totem Pole	10 mA	15MBd	50ns, 50ns	20ns, 25ns	1.5V	20mA	3V ~ 3.6V, 4.5V ~ 5.5V	-40°C ~ 105°C	Surface Mount
ACPL-077L-000E OPTOISO 3.75KV PUSH PULL 8SO Broadcom Limited	3,888	3.52	RFQ	Datasheet	Tube	-	Active	1	1/0	3750Vrms	35kV/µs	Logic	Push-Pull, Totem Pole	10 mA	25MBd	40ns, 40ns	4ns, 3ns	-	-	3V ~ 3.6V, 4.5V ~ 5.5V	-40°C ~ 105°C	Surface Mount

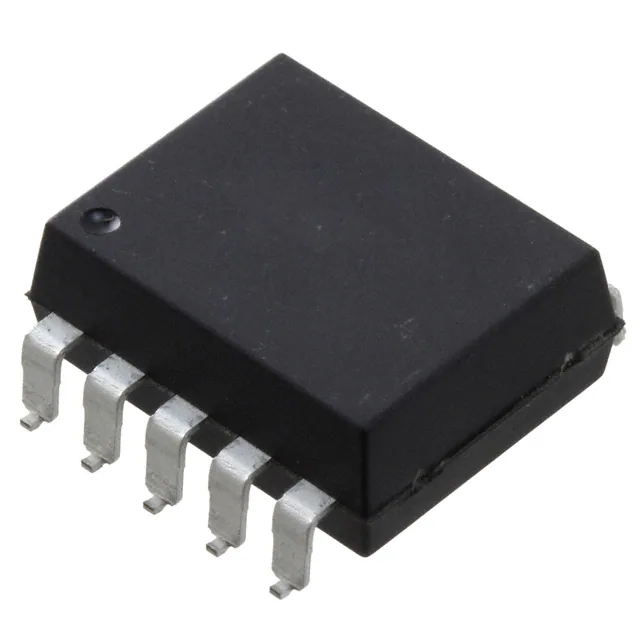

ACNV2601-500E OPTOISO 7.5KV OPEN COLL 10DIP GW Broadcom Limited	3,745	7.43	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	1	1/0	7500Vrms	20kV/µs	DC	Open Collector, Schottky Clamped	50 mA	10MBd	80ns, 80ns	25ns, 10ns	1.64V	20mA	4.5V ~ 5.5V	-40°C ~ 105°C	Surface Mount
HCPL-0211-000E OPTOISO 3.75KV PUSH PULL 8SO Broadcom Limited	2,066	3.70	RFQ	Datasheet	Tube	-	Active	1	1/0	3750Vrms	5kV/µs, 10kV/µs	DC	Push-Pull, Totem Pole	25 mA	5MBd	300ns, 300ns	30ns, 7ns	1.5V	10mA	4.5V ~ 20V	-40°C ~ 85°C	Surface Mount
HCNW2601-000E OPTOISO 5KV OPEN COLLECTOR 8DIP Broadcom Limited	3,150	3.91	RFQ	Datasheet	Tube	-	Active	1	1/0	5000Vrms	10kV/µs	DC	Open Collector, Schottky Clamped	50 mA	10MBd	100ns, 100ns	24ns, 10ns	1.64V	20mA	4.5V ~ 5.5V	-40°C ~ 85°C	Through Hole
HCNW4506-300E OPTOISO 5KV OPEN COLL 8DIP GW Broadcom Limited	2,184	3.94	RFQ	Datasheet	Tube	-	Active	1	1/0	5000Vrms	15kV/µs	DC	Open Collector, Schottky Clamped	15 mA	-	550ns, 400ns	-	1.6V	25mA	4.5V ~ 30V	-40°C ~ 100°C	Surface Mount
HCPL-2211-000E OPTOISO 3.75KV PUSH PULL 8DIP Broadcom Limited	2,672	4.29	RFQ	Datasheet	Tube	-	Active	1	1/0	3750Vrms	5kV/µs, 10kV/µs	DC	Push-Pull, Totem Pole	25 mA	5MBd	300ns, 300ns	30ns, 7ns	1.5V	10mA	4.5V ~ 20V	-40°C ~ 85°C	Through Hole
HCNW2611-300E OPTOISO 5KV OPEN COLL 8DIP GW Broadcom Limited	3,552	4.29	RFQ	Datasheet	Tube	-	Active	1	1/0	5000Vrms	15kV/µs	DC	Open Collector, Schottky Clamped	50 mA	10MBd	100ns, 100ns	24ns, 10ns	1.64V	20mA	4.5V ~ 5.5V	-40°C ~ 85°C	Surface Mount
HCPL-2630-000E OPTOISO 3.75KV 2CH OPEN COL 8DIP Broadcom Limited	2,312	4.40	RFQ	Datasheet	Tube	-	Active	2	2/0	3750Vrms	5kV/µs	DC	Open Collector, Schottky Clamped	50 mA	10MBd	100ns, 100ns	24ns, 10ns	1.5V	15mA	4.5V ~ 5.5V	-40°C ~ 85°C	Through Hole
