| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | NumberofChannels | Voltage-Isolation | CurrentTransferRatio(Min) | CurrentTransferRatio(Max) | TurnOn/TurnOffTime(Typ) | Rise/FallTime(Typ) | InputType | OutputType | Voltage-Output(Max) | Current-Output/Channel | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | VceSaturation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PC3Q64Q5J00FOPTOISO 2.5KV 4CH TRANS 16SOIC |
2,521 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | 4 | 2500Vrms | 20% @ 1mA | 400% @ 1mA | - | 4µs, 3µs | AC, DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | -30°C ~ 100°C | Surface Mount |
|
PC364N1T000FOPTOISO 3.75KV TRANS 4-MINI-FLAT |
3,492 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | 1 | 3750Vrms | 100% @ 500µA | 300% @ 500µA | - | 4µs, 3µs | AC, DC | Transistor | 80V | 50mA | 1.2V | 10 mA | 200mV | -30°C ~ 100°C | Surface Mount |
|
PC3H7BDJ000FOPTOISO 2.5KV TRANS 4-MINI-FLAT |
3,898 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | 1 | 2500Vrms | 50% @ 1mA | 240% @ 1mA | - | 4µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | -30°C ~ 100°C | Surface Mount |
|
|
PC3H7ADJ000FOPTOISO 2.5KV TRANS 4-MINI-FLAT |
3,015 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | 1 | 2500Vrms | 35% @ 1mA | 240% @ 1mA | - | 4µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | -30°C ~ 100°C | Surface Mount |
|
|
PC3H7BCJ000FOPTOISO 2.5KV TRANS 4-MINI-FLAT |
3,382 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | 1 | 2500Vrms | 50% @ 1mA | 160% @ 1mA | - | 4µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | -30°C ~ 100°C | Surface Mount |
|
|
PC3Q711NIP0FOPTOISO 2.5KV 4CH TRANS 16SOIC |
3,865 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | 4 | 2500Vrms | 200% @ 500µA | 500% @ 500µA | - | 4µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 10 mA | 200mV | -30°C ~ 100°C | Surface Mount |
|
|
PC3H7CDJ000FOPTOISO 2.5KV TRANS 4-MINI-FLAT |
3,176 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | 1 | 2500Vrms | 80% @ 1mA | 240% @ 1mA | - | 4µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | -30°C ~ 100°C | Surface Mount |
|
|
PC3H7ACJ000FOPTOISO 2.5KV TRANS 4-MINI-FLAT |
2,287 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | 1 | 2500Vrms | 35% @ 1mA | 160% @ 1mA | - | 4µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | -30°C ~ 100°C | Surface Mount |
|
|
PC3Q64QKJ00FOPTOISO 2.5KV 4CH TRANS 16SOIC |
3,908 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | 4 | 2500Vrms | 20% @ 1mA | 400% @ 1mA | - | 4µs, 3µs | AC, DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | -30°C ~ 100°C | Surface Mount |
|
|
PC364NTJ000FOPTOISO 3.75KV TRANS 4-MINI-FLAT |
2,678 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | 1 | 3750Vrms | 50% @ 500µA | 400% @ 500µA | - | 4µs, 3µs | AC, DC | Transistor | 80V | 50mA | 1.2V | 10 mA | 200mV | -30°C ~ 100°C | Surface Mount |
|
|
PC815XPYJ00FOPTOISOLATOR 5KV DARL 4SMD |
3,664 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | 1 | 5000Vrms | 600% @ 1mA | 7500% @ 1mA | - | 60µs, 53µs | DC | Darlington | 35V | 80mA | 1.2V | 50 mA | 1V | -30°C ~ 100°C | Surface Mount |
|

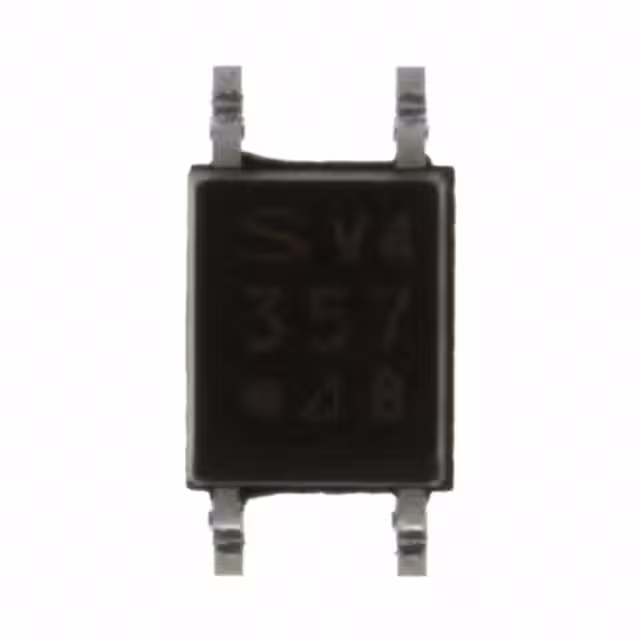

PC357N9TJ00FOPTOISO 3.75KV TRANSISTOR 4BESOP |
2,288 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | 1 | 3750Vrms | 130% @ 5mA | 600% @ 5mA | - | 4µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | -30°C ~ 100°C | Surface Mount |
|
PC452TJ0000FOPTOISOLATOR 3.75KV DARL 4SMD |
2,448 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | 1 | 3750Vrms | 1000% @ 1mA | - | - | 100µs, 20µs | DC | Darlington | 350V | 150mA | 1.2V | 50 mA | 1.2V | -30°C ~ 100°C | Surface Mount |
|
PC815XYJ000FOPTOISOLATOR 5KV DARL 4DIP |
3,376 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 | 5000Vrms | 600% @ 1mA | 7500% @ 1mA | - | 60µs, 53µs | DC | Darlington | 35V | 80mA | 1.2V | 50 mA | 1V | -30°C ~ 100°C | Through Hole |
|
PC457L0YIT0FOPTOISOLATOR 3.75KV TRANS 6SO |
3,537 | 0.00 |
RFQ |
Tape & Reel (TR) | OPIC™ | Obsolete | 1 | 3750Vrms | 19% @ 16mA | 50% @ 16mA | 200ns, 400ns | - | DC | Transistor | 20V | 8mA | 1.7V | 25 mA | - | -55°C ~ 85°C | Surface Mount | |
|
|
PC81716NSZ0FOPTOISOLATOR 5KV TRANS 4DIP |
3,555 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 | 5000Vrms | 160% @ 500µA | 500% @ 500µA | - | 4µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 10 mA | 200mV | -30°C ~ 100°C | Through Hole |
|
|
PC957L0NIP0FOPTOISOLTR 5KV TRANSISTOR 8-SMD |
3,164 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | OPIC™ | Obsolete | 1 | 5000Vrms | 19% @ 16mA | 50% @ 16mA | 200ns, 400ns | - | DC | Transistor | 20V | 8mA | 1.7V | 25 mA | - | -55°C ~ 85°C | Surface Mount |
|
PC123FY2J00FOPTOISOLATOR 5KV TRANSISTOR 4DIP |
3,154 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 | 5000Vrms | 100% @ 5mA | 250% @ 5mA | - | 4µs, 3µs | DC | Transistor | 70V | 50mA | 1.2V | 50 mA | 200mV | -30°C ~ 100°C | Through Hole |
|
|
PC81710NSZJFOPTOISOLATOR 5KV TRANS 4DIP |
2,278 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 | 5000Vrms | 100% @ 500µA | 600% @ 500µA | - | 4µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 10 mA | 200mV | -30°C ~ 100°C | Through Hole |
|
|
PC815XPJ000FOPTOISOLATOR 5KV DARL 4SMD |
3,930 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 | 5000Vrms | 600% @ 1mA | 7500% @ 1mA | - | 60µs, 53µs | DC | Darlington | 35V | 80mA | 1.2V | 50 mA | 1V | -30°C ~ 100°C | Surface Mount |
