Optoisolators - Transistor, Photovoltaic Output(11011)

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	NumberofChannels	Voltage-Isolation	CurrentTransferRatio(Min)	CurrentTransferRatio(Max)	TurnOn/TurnOffTime(Typ)	Rise/FallTime(Typ)	InputType	OutputType	Voltage-Output(Max)	Current-Output/Channel	Voltage-Forward(Vf)(Typ)	Current-DCForward(If)(Max)	VceSaturation(Max)	OperatingTemperature	MountingType
TPS5910DCS TRANSISTOR OUTPUT OPTOCOUPLER Texas Instruments	2,453	0.66	RFQ	Datasheet	Bulk	*	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
CNY174SM OPTOISO 4.17KV TRANS W/BASE 6SMD onsemi	866	0.69	RFQ	Datasheet	Tube	-	Active	1	4170Vrms	160% @ 10mA	320% @ 10mA	2µs, 3µs	4µs, 3.5µs (Max)	DC	Transistor with Base	70V	50mA	1.35V	60 mA	400mV	-40°C ~ 100°C	Surface Mount
TPS5910A TRANSISTOR OUTPUT OPTOCOUPLER Texas Instruments	2,719	0.70	RFQ	Datasheet	Bulk	*	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
HCPL4502V LOGIC IC OUTPUT OPTOCOUPLER Fairchild Semiconductor	773	0.70	RFQ	Datasheet	Bulk	-	Obsolete	1	2500Vrms	19% @ 16mA	50% @ 16mA	450ns, 300ns	-	DC	Transistor with Base	20V	8mA	1.45V	25 mA	-	-55°C ~ 100°C	Through Hole
H11D1 OPTOISO 5.3KV TRANS W/BASE 6DIP Vishay Semiconductor Opto Division	2,233	1.87	RFQ	Datasheet	Tube	-	Active	1	5300Vrms	20% @ 10mA	-	2.5µs, 5.5µs	5µs, 6µs	DC	Transistor with Base	300V	100mA	1.1V	60 mA	400mV	-55°C ~ 100°C	Through Hole

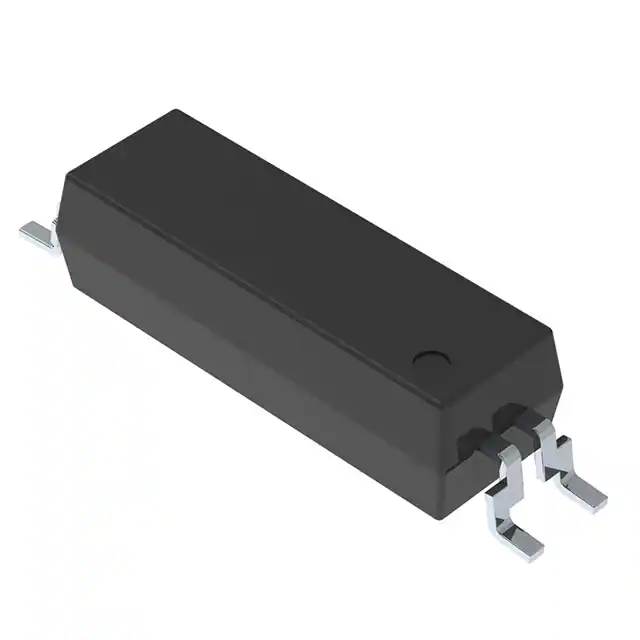

RV1S2281ACCSP-10YC#SC0 OPTO COUPLER IN 4PIN SSOP Renesas Electronics America Inc	3,010	1.88	RFQ	Datasheet	Strip	-	Active	1	5000Vrms	50% @ 5mA	400% @ 5mA	-	4µs, 5µs	DC	Transistor	80V	30mA	1.15V	30 mA	300mV	-40°C ~ 115°C	Surface Mount
MCT5210M OPTOISO 4.17KV TRANS W/BASE 6DIP onsemi	2,353	1.91	RFQ	Datasheet	Tube	-	Active	1	4170Vrms	70% @ 3mA	-	10µs, 400ns	-	DC	Transistor with Base	30V	150mA	1.25V	50 mA	400mV	-40°C ~ 100°C	Through Hole
6N139VM 8PW DIP H GAIN OPTOCOUPLER (VDE) onsemi	2,731	1.98	RFQ	Datasheet	Tube	-	Active	1	5000Vrms	500% @ 1.6mA	-	240ns, 1.3µs	-	DC	Darlington with Base	18V	60mA	1.3V	20 mA	-	-40°C ~ 100°C	Through Hole
6N138M OPTOISO 5KV DARL W/BASE 8DIP onsemi	2,599	2.02	RFQ	Datasheet	Tube	-	Active	1	5000Vrms	300% @ 1.6mA	-	1µs, 7.3µs	-	DC	Darlington with Base	7V	60mA	1.3V	20 mA	-	-40°C ~ 100°C	Through Hole
SFH6345-X001 OPTOISOLATOR 5.3KV TRANS 8DIP Vishay Semiconductor Opto Division	2,802	2.07	RFQ	Datasheet	Tube	-	Active	1	5300Vrms	19% @ 16mA	-	300ns, 300ns	-	DC	Transistor	25V	8mA	1.33V	25 mA	400mV	-55°C ~ 100°C	Through Hole
ILD5 OPTOISOLTR 5.3KV 2CH TRANS 8-DIP Vishay Semiconductor Opto Division	2,212	2.14	RFQ	Datasheet	Tube	-	Active	2	5300Vrms	50% @ 10mA	400% @ 10mA	1.1µs, 2.5µs	2.6µs, 2.2µs	DC	Transistor	70V	50mA	1.25V	60 mA	400mV	-40°C ~ 100°C	Through Hole
IL300-X009T OPTOISO 5.3KV PHVOLT 8SMD Vishay Semiconductor Opto Division	2,656	4.96	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	1	5300Vrms	-	-	-	1µs, 1µs	DC	Photovoltaic, Linearized	500mV	70µA (Typ)	1.25V	60 mA	-	-55°C ~ 100°C	Surface Mount

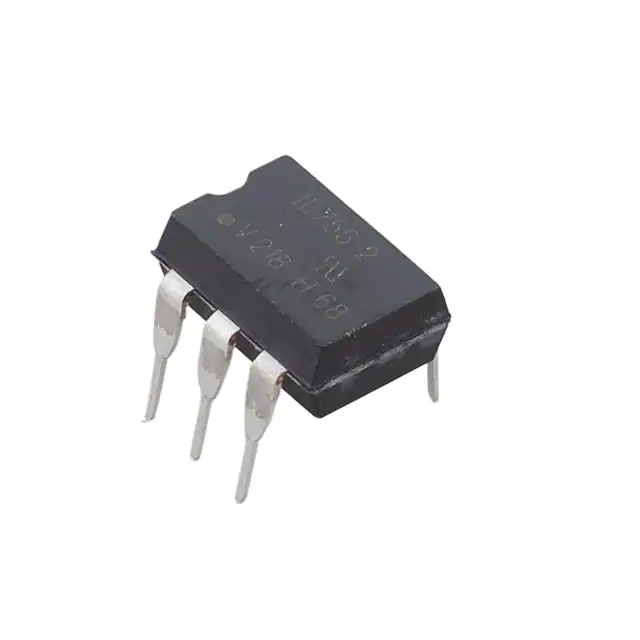

IL755-2 OPTOISO 5.3KV DARL W/BASE 6DIP Vishay Semiconductor Opto Division	2,641	2.25	RFQ	Datasheet	Tube	-	Active	1	5300Vrms	1000% @ 1mA	-	-	70µs, 70µs	AC, DC	Darlington with Base	60V	-	1.2V	60 mA	1V	-55°C ~ 100°C	Through Hole
K827PH OPTOISOLATOR 5KV 2CH TRANS 8-DIP Vishay Semiconductor Opto Division	3,237	2.25	RFQ	Datasheet	Tube	-	Active	2	5000Vrms	50% @ 5mA	600% @ 5mA	6µs, 5µs	3µs, 4.7µs	DC	Transistor	70V	50mA	1.25V	60 mA	300mV	-40°C ~ 100°C	Through Hole
ICPL2631 OPTOISO 5KV 2CH TRANSISTOR Isocom Components 2004 LTD	120	2.27	RFQ	Datasheet	Tube	-	Active	2	5000Vrms	-	-	40ns, 35ns	40ns, 10ns	DC	Transistor	7V	50mA	1.4V	20 mA	-	-40°C ~ 100°C	Through Hole
ILD610-3 OPTOISO 5.3KV 2CH TRANS 8DIP Vishay Semiconductor Opto Division	2,261	2.47	RFQ	Datasheet	Tube	-	Active	2	5300Vrms	100% @ 10mA	200% @ 10mA	3.6µs, 3.7µs	2.9µs, 3.1µs	DC	Transistor	70V	50mA	1.25V	60 mA	400mV	-55°C ~ 100°C	Through Hole
CNY64A OPTOISOLATOR 8.2KV TRANS 4-DIP Vishay Semiconductor Opto Division	3,594	2.54	RFQ	Datasheet	Tube	-	Active	1	8200Vrms	63% @ 10mA	125% @ 10mA	5µs, 3µs	2.4µs, 2.7µs	DC	Transistor	32V	50mA	1.32V	75 mA	300mV	-55°C ~ 85°C	Through Hole
PS2911-1-L-AX OPTOISOLATOR 2.5KV TRANS 4-SMD Renesas Electronics America Inc	3,189	2.60	RFQ	Datasheet	Bulk	-	Active	1	2500Vrms	150% @ 1mA	300% @ 1mA	40µs, 120µs	5µs, 10µs	DC	Transistor	40V	40mA	1.1V	50 mA	300mV	-55°C ~ 100°C	Surface Mount
ILD620GB OPTOISOLTR 5.3KV 2CH TRANS 8-DIP Vishay Semiconductor Opto Division	3,164	2.61	RFQ	Datasheet	Tube	-	Active	2	5300Vrms	100% @ 5mA	600% @ 5mA	3µs, 2.3µs	20µs, 2µs	AC, DC	Transistor	70V	50mA	1.15V	60 mA	400mV	-55°C ~ 100°C	Through Hole
ACPL-M51L-000E OPTOISO 3.75KV TRANS Broadcom Limited	2,252	2.69	RFQ	Datasheet	Bulk	-	Active	1	3750Vrms	80% @ 3mA	200% @ 3mA	300ns, 330ns	-	DC	Transistor	24V	8mA	1.5V	20 mA	-	-40°C ~ 105°C	Surface Mount
