| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | NumberofChannels | Voltage-Isolation | CurrentTransferRatio(Min) | CurrentTransferRatio(Max) | TurnOn/TurnOffTime(Typ) | Rise/FallTime(Typ) | InputType | OutputType | Voltage-Output(Max) | Current-Output/Channel | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | VceSaturation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VOM453TOPTOISOLATOR 3.75KV TRANS 5-SOP |
2,276 | 1.42 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 20% @ 16mA | 50% @ 16mA | 200ns, 500ns | - | DC | Transistor | 25V | 8mA | 1.4V | 25 mA | - | -55°C ~ 100°C | Surface Mount |
|
SFH619A-X009TOPTOISOLATOR 5.3KV DARL 4SMD |
2,653 | 1.41 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5300Vrms | 1000% @ 1mA | - | 4.5µs, 29µs | 3.5µs, 14.5µs | DC | Darlington | 300V | 125mA | 1.2V | 60 mA | 1.2V | -55°C ~ 100°C | Surface Mount |
|
4N35OPTOISO 5KV TRANS W/BASE 6DIP |
2,435 | 0.61 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 100% @ 10mA | - | 10µs, 10µs | - | DC | Transistor with Base | 70V | 50mA | 1.3V | 50 mA | - | -55°C ~ 100°C | Through Hole |
|
CNY17-2OPTOISO 5KV TRANS W/BASE 6DIP |
3,536 | 0.68 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 63% @ 10mA | 125% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor with Base | 70V | 50mA | 1.39V | 60 mA | 400mV | -55°C ~ 110°C | Through Hole |
|
|
CNY17F-3OPTOISOLTR 5KV TRANSISTOR 6-DIP |
2,471 | 0.68 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 100% @ 10mA | 200% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.39V | 60 mA | 400mV | -55°C ~ 110°C | Through Hole |
|
4N35-X009OPTOISO 5KV TRANS W/BASE 6SMD |
3,467 | 0.73 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 100% @ 10mA | - | 10µs, 10µs | - | DC | Transistor with Base | 30V | 50mA | 1.2V | 60 mA | - | -55°C ~ 100°C | Surface Mount |
|
|
SFH6156-3OPTOISOLATOR 5.3KV TRANS 4SMD |
2,716 | 0.80 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | 100% @ 10mA | 200% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 400mV | -55°C ~ 100°C | Surface Mount |
|
|
SFH6156-2OPTOISOLATOR 5.3KV TRANS 4SMD |
3,117 | 0.80 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | 63% @ 10mA | 125% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 400mV | -55°C ~ 100°C | Surface Mount |
|
|
H11A1OPTOISO 5.3KV TRANS W/BASE 6DIP |
3,843 | 0.84 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | 50% @ 10mA | - | 3µs, 3µs | - | DC | Transistor with Base | 70V | 50mA | 1.1V | 60 mA | 400mV | -55°C ~ 100°C | Through Hole |
|
VOM617A-4X001TOPTOISOLATOR 3.75KV TRANS 4-SOP |
2,081 | 0.51 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 160% @ 5mA | 320% @ 5mA | 6µs, 4µs | 3µs, 3µs | DC | Transistor | 80V | 50mA | 1.1V | 60 mA | 400mV | -55°C ~ 110°C | Surface Mount |
|
|
VOM618A-3X001TOPTOISOLATOR 3.75KV TRANS 4-SOP |
3,542 | 0.51 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 100% @ 1mA | 200% @ 1mA | 7µs, 6µs | 5µs, 4µs | DC | Transistor | 80V | 50mA | 1.1V | 60 mA | 400mV | -55°C ~ 110°C | Surface Mount |
|
|
VOM618A-4X001TOPTOISOLATOR 3.75KV TRANS 4-SOP |
3,468 | 0.51 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 160% @ 1mA | 320% @ 1mA | 7µs, 6µs | 5µs, 4µs | DC | Transistor | 80V | 50mA | 1.1V | 60 mA | 400mV | -55°C ~ 110°C | Surface Mount |
|
VOS615ATOPTOISOLATOR 3.75KV TRANS 4SSOP |
2,712 | 0.51 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 50% @ 10mA | 600% @ 10mA | 5µs, 5µs | 3µs, 4µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 400mV | -55°C ~ 110°C | Surface Mount |
|
|
VOM617A-9X001TOPTOISOLATOR 3.75KV TRANS 4-SOP |
3,159 | 0.51 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 200% @ 5mA | 400% @ 5mA | 6µs, 4µs | 3µs, 3µs | DC | Transistor | 80V | 50mA | 1.1V | 60 mA | 400mV | -55°C ~ 110°C | Surface Mount |
|
|
4N35-X009TOPTOISO 5KV TRANS W/BASE 6SMD |
3,063 | 0.75 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5000Vrms | 100% @ 10mA | - | 10µs, 10µs | - | DC | Transistor with Base | 30V | 50mA | 1.2V | 60 mA | - | -55°C ~ 100°C | Surface Mount |
|
|
SFH6106-3X001TOPTOISOLATOR 5.3KV TRANS 4SMD |
3,773 | 1.08 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5300Vrms | 100% @ 10mA | 200% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 400mV | -55°C ~ 100°C | Surface Mount |
|
IL223ATOPTOISO 4KV DARL W/BASE 8SOIC |
3,109 | 1.12 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 4000Vrms | 500% @ 1mA | - | - | - | DC | Darlington with Base | 30V | - | 1V | 60 mA | 1V | -55°C ~ 100°C | Surface Mount |
|
|
SFH617A-2X019TOPTOISOLATOR 5.3KV TRANS 4SMD |
2,773 | 1.08 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5300Vrms | 63% @ 10mA | 125% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.35V | 60 mA | 400mV | -55°C ~ 110°C | Surface Mount |
|
|
SFH620AGB-X019TOPTOISOLATOR 5.3KV TRANS 4SMD |
2,703 | 1.08 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5300Vrms | 100% @ 5mA | 600% @ 5mA | 2µs, 25µs | - | AC, DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 400mV | -55°C ~ 100°C | Surface Mount |
|

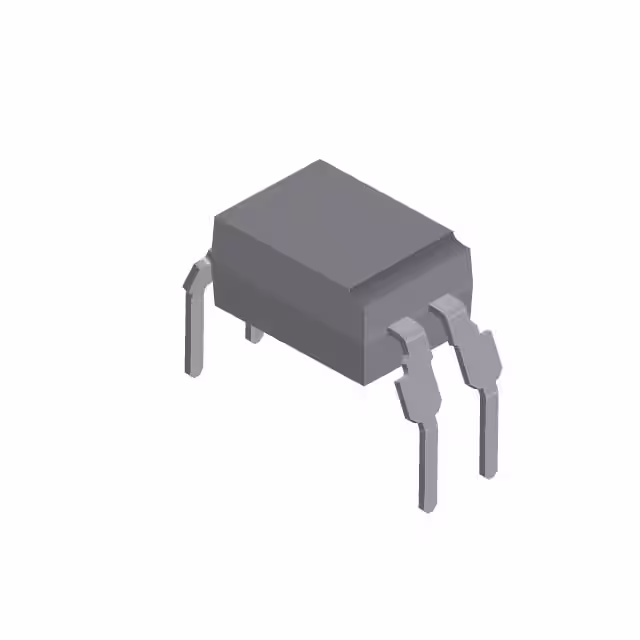

SFH620A-3X016OPTOISOLATOR 5.3KV TRANS 4DIP |
3,577 | 1.12 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | 100% @ 10mA | 320% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | AC, DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 400mV | -55°C ~ 100°C | Through Hole |
