Optoisolators - Transistor, Photovoltaic Output(11011)

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	NumberofChannels	Voltage-Isolation	CurrentTransferRatio(Min)	CurrentTransferRatio(Max)	TurnOn/TurnOffTime(Typ)	Rise/FallTime(Typ)	InputType	OutputType	Voltage-Output(Max)	Current-Output/Channel	Voltage-Forward(Vf)(Typ)	Current-DCForward(If)(Max)	VceSaturation(Max)	OperatingTemperature	MountingType
HCPL0531R2 OPTOCOUPLR TRANS 2CHAN HS 8SOIC onsemi	2,139	5.01	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT),Bulk	-	Active	2	2500Vrms	19% @ 16mA	50% @ 16mA	450ns, 300ns	-	DC	Transistor	20V	8mA	1.45V	25 mA	-	-40°C ~ 85°C	Surface Mount
HCPL-3700-500E OPTOISOLATOR 3.75KV DARL 8DIP GW Broadcom Limited	2,897	5.07	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	1	3750Vrms	-	-	4µs, 10µs	20µs, 0.3µs	AC, DC	Darlington	20V	30mA	-	-	-	-40°C ~ 85°C	Surface Mount
HCNW139-000E OPTOISO 5KV DARL W/BASE 8DIP Broadcom Limited	2,069	2.33	RFQ	Datasheet	Tube	-	Active	1	5000Vrms	200% @ 12mA	-	11µs, 11µs	-	DC	Darlington with Base	18V	60mA	1.45V	20 mA	-	-40°C ~ 85°C	Through Hole
HCPL-0501-000E OPTOISO 3.75KV TRANS W/BASE 8SO Broadcom Limited	3,652	2.37	RFQ	Datasheet	Tube	-	Active	1	3750Vrms	15% @ 16mA	-	200ns, 600ns	-	DC	Transistor with Base	20V	8mA	1.5V	25 mA	-	-55°C ~ 100°C	Surface Mount

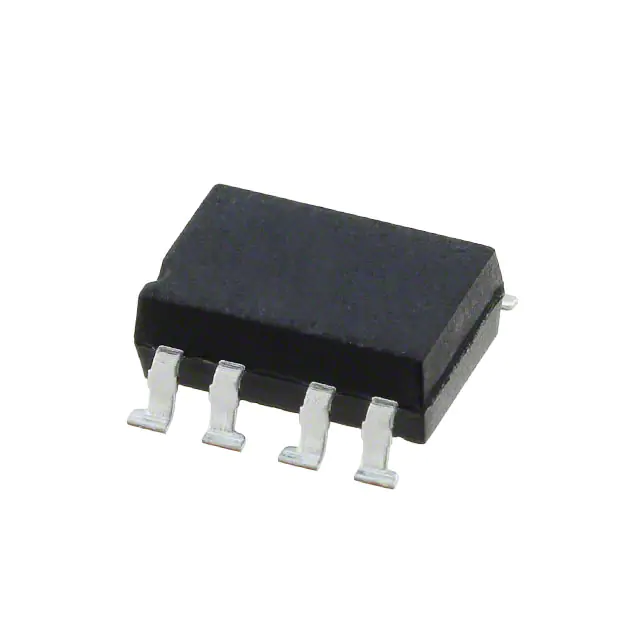

LH1262CACTR OPTOISO 5.3KV 2CH PHVOLT 8-SMD Vishay Semiconductor Opto Division	231	4.06	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	2	5300Vrms	-	-	35µs, 90µs	-	DC	Photovoltaic	15V	1µA	1.26V	50 mA	-	-40°C ~ 85°C	Surface Mount
ACPL-M50L-000E OPTOISOLATOR 3.75KV TRANS 5-SO Broadcom Limited	2,054	2.44	RFQ	Datasheet	Tube	-	Active	1	3750Vrms	100% @ 3mA	200% @ 3mA	200ns, 380ns	-	DC	Transistor	24V	8mA	1.5V	20 mA	-	-40°C ~ 105°C	Surface Mount
HCPL-4503-000E OPTOISOLATOR 3.75KV TRANS 8-DIP Broadcom Limited	3,312	2.62	RFQ	Datasheet	Tube	-	Active	1	3750Vrms	19% @ 16mA	50% @ 16mA	1µs, 1µs (Max)	-	DC	Transistor	20V	8mA	1.5V	25 mA	-	-55°C ~ 100°C	Through Hole
ASSR-V622-502E OPTOISO 3.75KV 2CH PHVOLT 8DIPGW Broadcom Limited	2,399	4.50	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	2	3750Vrms	-	-	280µs, 30µs	-	DC	Photovoltaic	7V	20µA	1.3V	30 mA	-	-40°C ~ 85°C	Surface Mount
HCPL-0731-500E OPTOISO 3.75KV 2CH DARLNG 8-SO Broadcom Limited	2,058	5.91	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	2	3750Vrms	500% @ 1.6mA	2600% @ 1.6mA	5µs, 10µs	-	DC	Darlington	18V	60mA	1.4V	12 mA	100mV	0°C ~ 70°C	Surface Mount
OPI110C OPTOISOLATOR 10KV TRANS AXIAL TT Electronics/Optek Technology	3,093	2.66	RFQ	Datasheet	Bulk	-	Active	1	10000VDC	100% @ 10mA	-	-	-	DC	Transistor	30V	-	1.6V (Max)	40 mA	400mV	-40°C ~ 85°C	Through Hole
HCPL2731 OPTOISO 2.5KV 2CH DARL 8DIP onsemi	3,293	2.71	RFQ	Datasheet	Tube	-	Last Time Buy	2	2500Vrms	500% @ 1.6mA	-	300ns, 5µs	-	DC	Darlington	18V	60mA	1.3V	20 mA	-	-40°C ~ 85°C	Through Hole
ACPL-K370-500E OPTOISO 5KV DARL 8-SO STRETCHED Broadcom Limited	3,187	6.21	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	1	5000Vrms	-	-	3.7µs, 8.5µs	25µs, 0.3µs	AC, DC	Darlington	20V	30mA	-	-	-	-40°C ~ 105°C	Surface Mount
HCNW136-300E OPTOISOLATOR 5KV TRANS 8SMD Broadcom Limited	2,053	2.78	RFQ	Datasheet	Tube	-	Active	1	5000Vrms	15% @ 16mA	-	1µs, 1µs (Max)	-	DC	Transistor with Base	20V	8mA	1.68V	25 mA	-	-55°C ~ 85°C	Surface Mount
ILQ2 OPTOISO 5.3KV 4CH TRANS 16-DIP Vishay Semiconductor Opto Division	626	2.83	RFQ	Datasheet	Tube	-	Active	4	5300Vrms	100% @ 10mA	500% @ 10mA	1.2µs, 2.3µs	2.6µs, 2.2µs	DC	Transistor	70V	50mA	1.25V	60 mA	400mV	-40°C ~ 100°C	Through Hole
PS2841-4A-F3-AX OPTOISO 1.5KV 4CH TRANS 12BSOP Renesas Electronics America Inc	2,703	5.35	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	NEPOC	Active	4	1500Vrms	100% @ 1mA	400% @ 1mA	-	20µs, 110µs	DC	Transistor	70V	20mA	1.1V	20 mA	300mV	-40°C ~ 100°C	Surface Mount
ACNT-H50L-500E OPTOISO 7.5KV TRANSISTOR 8SO Broadcom Limited	3,359	6.42	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	1	7500Vrms	31% @ 12mA	80% @ 12mA	800ns, 1µs	-	DC	Transistor	24V	8mA	1.45V	20 mA	-	-40°C ~ 105°C	Surface Mount
HCNR201-500E OPTOISO 5KV LINEAR PHVOLT 8DIPGW Broadcom Limited	2,685	6.30	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	1	5000Vrms	0.36% @ 10mA	0.72% @ 10mA	-	-	DC	Photovoltaic, Linearized	-	-	1.6V	25 mA	-	-55°C ~ 100°C	Surface Mount
HCNR201-550E OPTOISO 5KV LINEAR PHVOLT 8DIPGW Broadcom Limited	3,350	6.37	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	1	5000Vrms	0.36% @ 10mA	0.72% @ 10mA	-	-	DC	Photovoltaic, Linearized	-	-	1.6V	25 mA	-	-55°C ~ 100°C	Surface Mount
ACPL-W50L-000E OPTOISO 5KV TRANS 6-SO STRETCHED Broadcom Limited	2,692	3.06	RFQ	Datasheet	Tube	-	Active	1	5000Vrms	93% @ 3mA	200% @ 3mA	200ns, 380ns	-	DC	Transistor	24V	8mA	1.5V	20 mA	-	-40°C ~ 105°C	Surface Mount
APV1121S OPTOISO 2.5KV PHOTOVOLTAIC 4-SOP Panasonic Electric Works	2,908	3.11	RFQ	Datasheet	Tube	-	Active	1	2500Vrms	-	-	400µs, 100µs	-	DC	Photovoltaic	8.7V	14µA	1.15V	50 mA	-	-40°C ~ 85°C	Surface Mount
