Optoisolators - Transistor, Photovoltaic Output(11011)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | NumberofChannels | Voltage-Isolation | CurrentTransferRatio(Min) | CurrentTransferRatio(Max) | TurnOn/TurnOffTime(Typ) | Rise/FallTime(Typ) | InputType | OutputType | Voltage-Output(Max) | Current-Output/Channel | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | VceSaturation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
H11G1TVMOPTOISO 4.17KV DARL W/BASE 6DIP |
2,797 | 1.11 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 4170Vrms | 1000% @ 10mA | - | 5µs, 100µs | - | DC | Darlington with Base | 100V | - | 1.3V | 60 mA | 1V | -40°C ~ 100°C | Through Hole |
|
SFH620A-3X016OPTOISOLATOR 5.3KV TRANS 4DIP |
3,577 | 1.12 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | 100% @ 10mA | 320% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | AC, DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 400mV | -55°C ~ 100°C | Through Hole |
|
SFH618A-2OPTOISOLATOR 5.3KV TRANS 4-DIP |
3,420 | 1.12 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | 63% @ 1mA | 125% @ 1mA | 6µs, 5.5µs | 3.5µs, 5µs | DC | Transistor | 55V | 50mA | 1.1V | 60 mA | 400mV | -55°C ~ 100°C | Through Hole |
|
VOMA617A-3X001TSINGLE CHANNEL, 80V, SOP-4 PHOTO |
2,711 | 2.35 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | VOMA617A | Active | 1 | 3750Vrms | 100% @ 5mA | 200% @ 5mA | 4.9µs, 3.3µs | 2.3µs, 3.2µs | DC | Transistor | 80V | 50mA | 1.33V | 20 mA | 400mV | -40°C ~ 110°C | Surface Mount |
|
SFH6156-3X001OPTOISOLATOR 5.3KV TRANS 4SMD |
3,292 | 0.89 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | 100% @ 10mA | 200% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 400mV | -55°C ~ 100°C | Surface Mount |
|

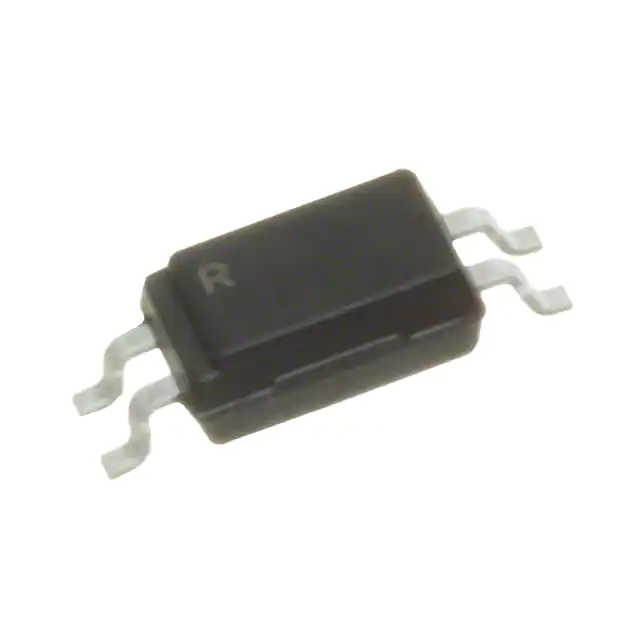

PS2801C-1-L-AOPTOISOLATOR 2.5KV TRANS 4SOIC |
3,418 | 0.90 |
RFQ |
Datasheet |
Strip | - | Active | 1 | 2500Vrms | 100% @ 5mA | 300% @ 5mA | 10µs, 7µs | 5µs, 7µs | DC | Transistor | 80V | 30mA | 1.2V | 30 mA | 300mV | -55°C ~ 100°C | Surface Mount |
|
|
SFH6106-3OPTOISOLATOR 5.3KV TRANS 4SMD |
2,329 | 0.90 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | 100% @ 10mA | 200% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 400mV | -55°C ~ 100°C | Surface Mount |
|
|
SFH6106-4OPTOISOLATOR 5.3KV TRANS 4SMD |
3,771 | 0.90 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | 160% @ 10mA | 320% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 400mV | -55°C ~ 100°C | Surface Mount |
|
|
SFH6186-2OPTOISOLATOR 5.3KV TRANS 4SMD |
3,864 | 0.92 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | 63% @ 1mA | 125% @ 1mA | 6µs, 5.5µs | 3.5µs, 5µs | DC | Transistor | 55V | 50mA | 1.1V | 60 mA | 400mV | -55°C ~ 100°C | Surface Mount |
|
|
SFH6186-3OPTOISOLATOR 5.3KV TRANS 4SMD |
2,010 | 0.92 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | 100% @ 1mA | 200% @ 1mA | 6µs, 5.5µs | 3.5µs, 5µs | DC | Transistor | 55V | 50mA | 1.1V | 60 mA | 400mV | -55°C ~ 100°C | Surface Mount |
|

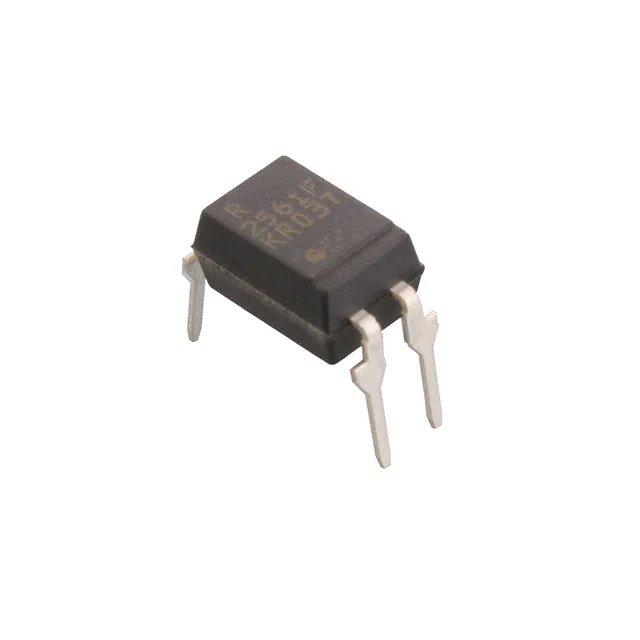

PS2561F-1Y-AOPTOCOUPLER 4-PIN DIP |
2,275 | 0.94 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 300% @ 5mA | 600% @ 5mA | - | 3µs, 7µs | DC | Transistor with Base | 80V | 50mA | 1.2V | 30 mA | 300mV | -55°C ~ 110°C | Through Hole |
|
|
SFH620AGBOPTOISOLATOR 5.3KV TRANS 4DIP |
3,194 | 0.94 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | 100% @ 5mA | 600% @ 5mA | 2µs, 25µs | - | AC, DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 400mV | -55°C ~ 100°C | Through Hole |
|
|
SFH6206-3OPTOISOLATOR 5.3KV TRANS 4SMD |
2,459 | 0.94 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | 100% @ 10mA | 320% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | AC, DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 400mV | -55°C ~ 100°C | Surface Mount |
|
MOC8021MOPTOISO 4.17KV DARLINGTON 6DIP |
2,262 | 0.95 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 4170Vrms | 1000% @ 10mA | - | 8.5µs, 95µs | - | DC | Darlington | 50V | 150mA | 1.18V | 60 mA | - | -40°C ~ 100°C | Through Hole |
|
H11AA4SMOPTOISO 4.17KV TRANS W/BASE 6SOP |
3,933 | 0.98 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 4170Vrms | 100% @ 10mA | - | - | - | AC, DC | Transistor with Base | 30V | 50mA | 1.17V | 60 mA | 400mV | -40°C ~ 100°C | Surface Mount |
|
|
SFH615A-3X017OPTOISOLATOR 5.3KV TRANS 4SMD |
2,881 | 0.99 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | 100% @ 10mA | 200% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.35V | 60 mA | 400mV | -55°C ~ 100°C | Surface Mount |
|
HCPL-0501-560EOPTOISO 3.75KV TRANS W/BASE 8SO |
2,605 | 2.53 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 19% @ 16mA | 50% @ 16mA | 200ns, 600ns | - | DC | Transistor with Base | 20V | 8mA | 1.5V | 25 mA | - | -55°C ~ 100°C | Surface Mount |
|
|
SFH610A-3OPTOISOLATOR 5.3KV TRANS 4-DIP |
2,383 | 1.04 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | 100% @ 10mA | 200% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 400mV | -55°C ~ 100°C | Through Hole |
|
MOC207MOPTOISO 2.5KV TRANS W/BASE 8SOIC |
2,099 | 1.04 |
RFQ |
Datasheet |
Box | - | Active | 1 | 2500Vrms | 100% @ 10mA | 200% @ 10mA | 7.5µs, 5.7µs | 3.2µs, 4.7µs | DC | Transistor with Base | 30V | 150mA | 1.15V | 60 mA | 400mV | -40°C ~ 100°C | Surface Mount |
|

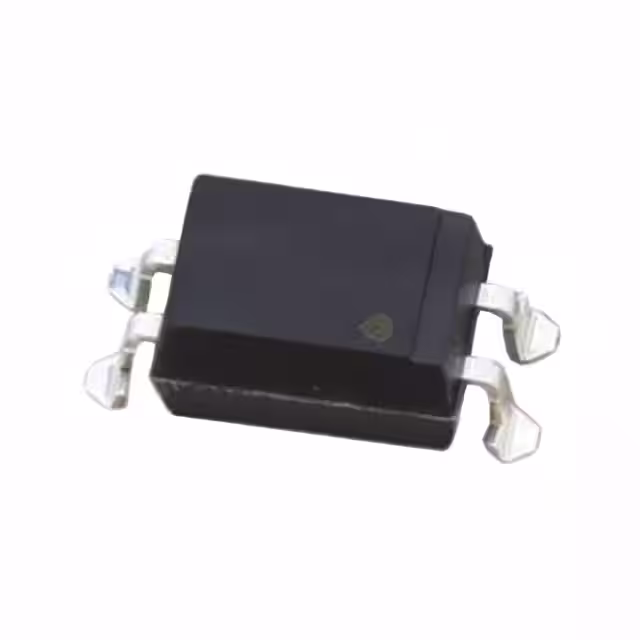

PS2561FL-1Y-AOPTOCOUPLER 4-PIN DIP |
3,348 | 1.04 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 300% @ 5mA | 600% @ 5mA | - | 5µs, 7µs | DC | Transistor with Base | 80V | 50mA | 1.2V | 30 mA | 300mV | -55°C ~ 110°C | Surface Mount |
