| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | LampColor | LensColor | LensTransparency | Ratings | Voltage | Current | PanelCutoutShape | PanelCutoutDimensions | LensSize | LensStyle | MillicandelaRating | Wavelength-Peak | ViewingAngle | TerminationStyle | IngressProtection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

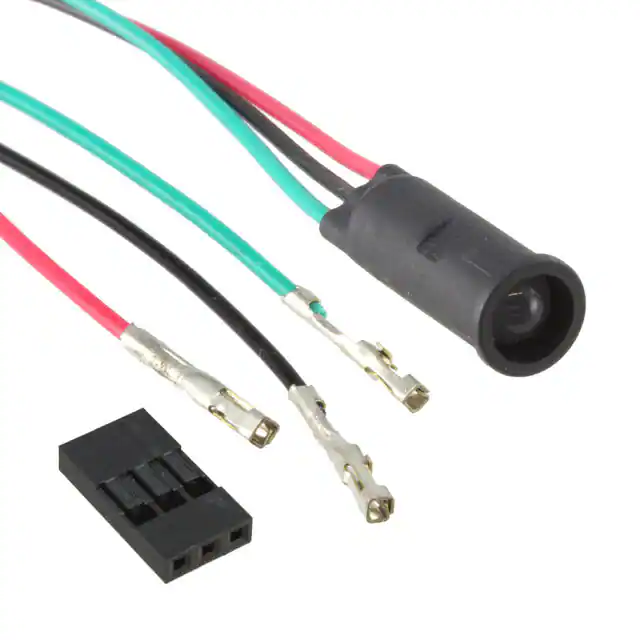

PM5R3-YGW12.0CCINDICATOR LED GREEN/YLW PNL MNT |
450 | 4.91 |
RFQ |
Datasheet |
Bag | PM5R3 | Active | LED | Green, Yellow | White | Diffused | Vf (Typ), If (Max) | 2.1V Green, 2V Yellow | 30mA Green, 30mA Yellow | Round | 0.25 (6.35mm) | 5mm, T-1 3/4 | Round with Domed Top | - | 568nm Green, 590nm Yellow | 40° | Wire Leads - 12 (304.80mm) | - |
|
PM5R3-BCW12.0CCINDICATOR LED GREEN/RED PNL MNT |
378 | 4.91 |
RFQ |
Datasheet |
Bag | PM5R3 | Active | LED | Green, Red | White | Diffused | Vf (Typ), If (Max) | 2.1V Green, 2V Red | 30mA Green, 30mA Red | Round | 0.25 (6.35mm) | 5mm, T-1 3/4 | Round with Domed Top | - | 568nm Green, 625nm Red | 40° | Wire Leads - 12 (304.80mm) | - |
|

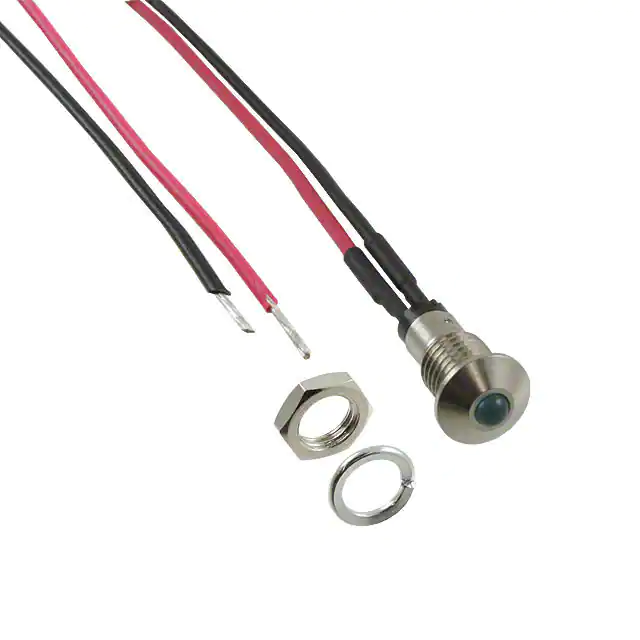

MPC5BWDW12.0PNL MNT BLUE W/WIRE 12 |
370 | 6.47 |
RFQ |
Datasheet |
Bag | MPC5 | Active | LED | Blue | Blue | Diffused | Vf (Typ), If (Max) | 4V | 25mA | Round | 0.32 (8.13mm) | 5mm, T-1 3/4 | Round with Domed Top | 15mcd | 430nm | 45° | Wire Leads - 12 (304.80mm) | - |
|

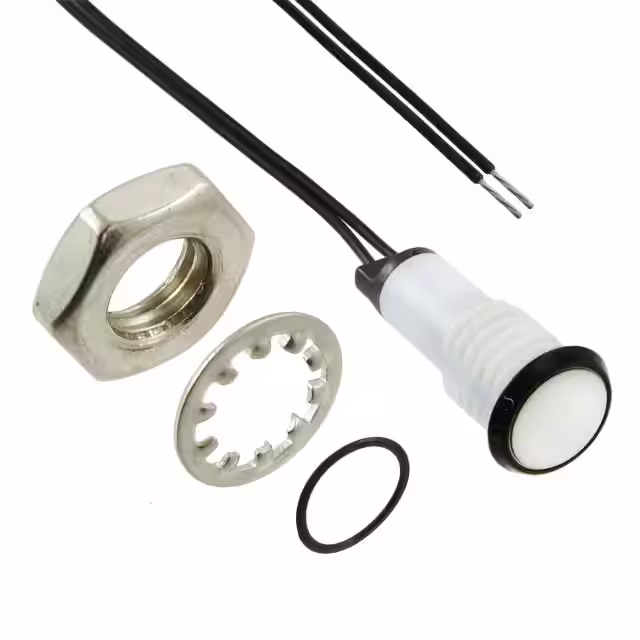

PM5-PRDW12.0PNL MNT W/ WIRE 645NM 40MCD RED |
268 | 18.74 |
RFQ |
Datasheet |
Bag | PM5 | Active | LED | Red | White | Diffused | AC/DC | 8V ~ 48V | 20mA | Round | 0.39 (9.91mm) | 9.70mm Dia | Round with Flat Top | 40mcd | 645nm | 120° | Wire Leads - 12 (304.80mm) | IP67 |
|

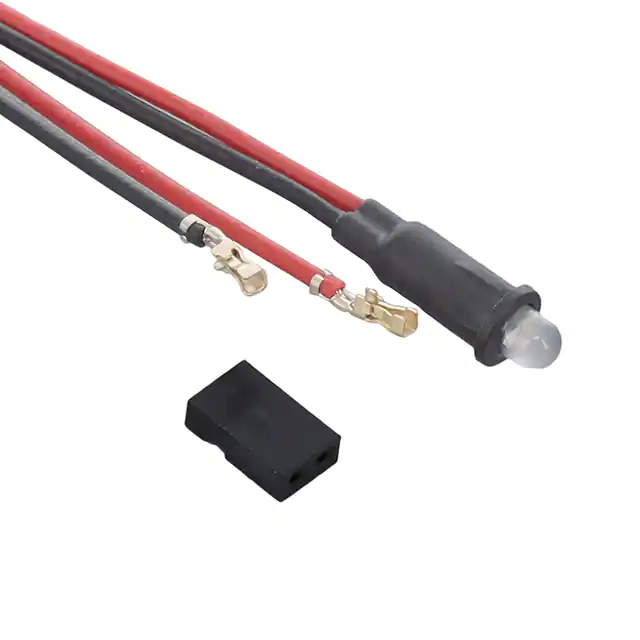

PM3BCW12.0-CC2LED ASSY PNL 3MM HER/GRN WH DIFF |
388 | 3.70 |
RFQ |
Datasheet |
Bag | - | Active | LED | Green, Red | White | Diffused | Vf (Typ), If (Max) | 2.1V Green, 2V Red | 20mA Green, 20mA Red | Round | 0.16 (4.06mm) | 3mm, T-1 | Round with Domed Top | 6mcd Green, 6mcd Red | 568nm Green, 625nm Red | 45° | Wire Leads - 12 (304.80mm) | - |
|

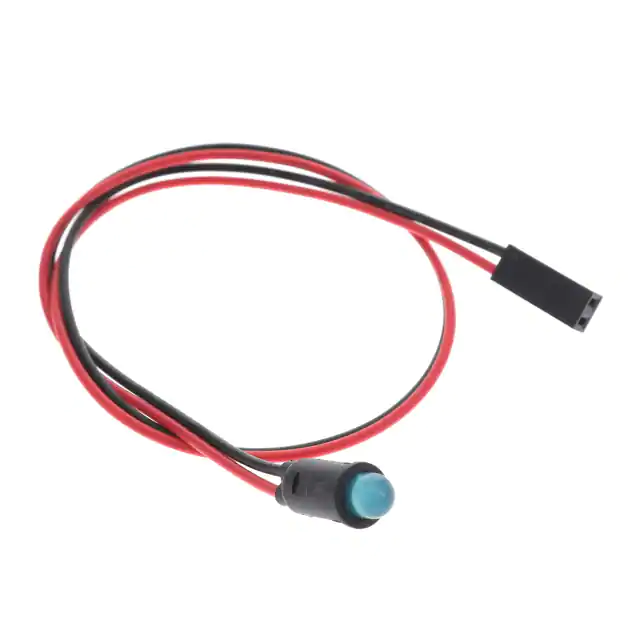

PM5BWDW12.0-CCIND PNL MT 5MM BLU DIFF |
475 | 5.10 |
RFQ |
Datasheet |
Bag | - | Active | LED | Blue | - | - | - | - | - | Round | 0.25 (6.35mm) | 5mm, T-1 3/4 | Round with Domed Top | - | - | - | Wire Leads - 12 (304.80mm) | - |
|

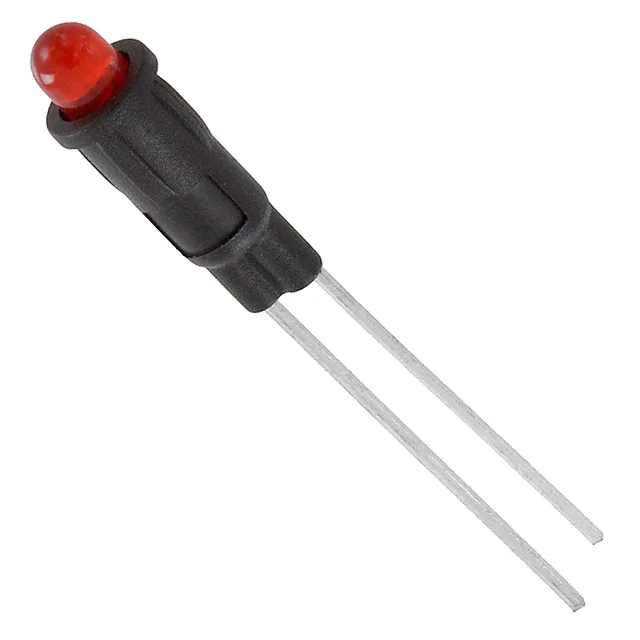

PM3SRDPMI IND 645NM RED DIFF LENS |
296 | 0.90 |
RFQ |
Datasheet |
Bag | PM3 | Active | LED | Red | Red | Diffused | Vf (Typ), If (Max) | 1.7V | 30mA | Round | 0.16 (4.06mm) | 3mm, T-1 | Round with Domed Top | 40mcd | 645nm | 40° | - | - |
|

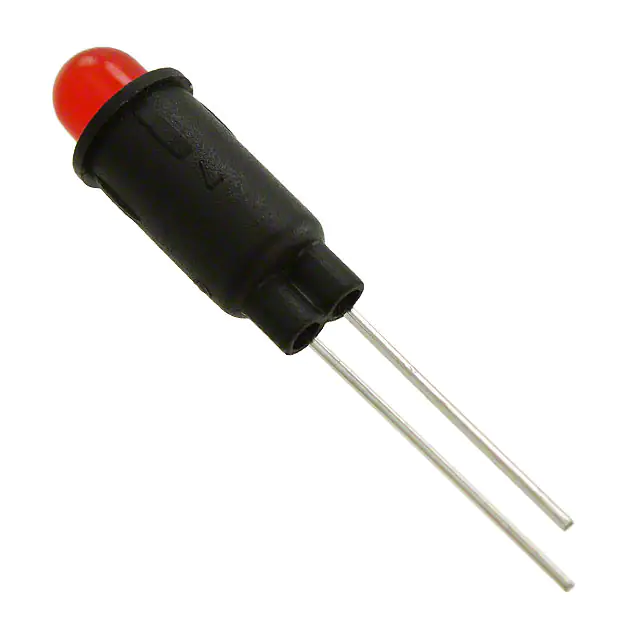

PM5RDPNL MNT W/ WIRE 700NM 2MCD RED |
329 | 0.77 |
RFQ |
Datasheet |
Tray | PM5 | Active | LED | Red | Red | Diffused | Vf (Typ), If (Max) | 2.1V | 20mA | Round | 0.25 (6.35mm) | 5mm, T-1 3/4 | Round with Domed Top | 2mcd | 700nm | 45° | - | - |
|

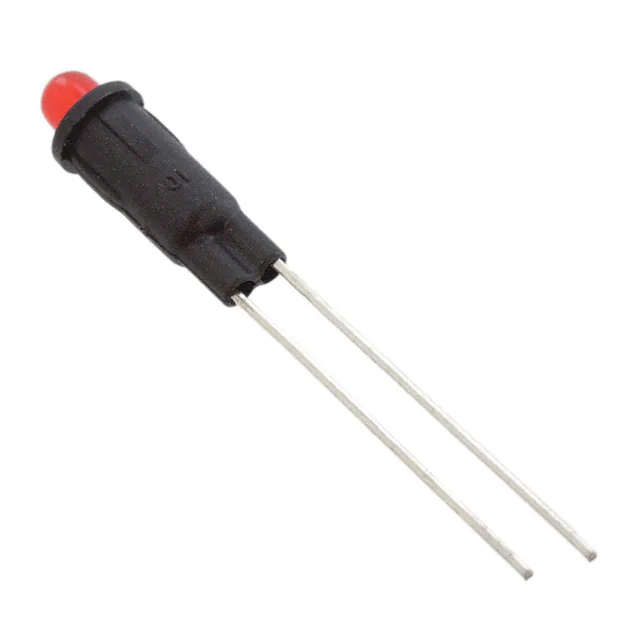

PM3RDPNL MNT W/ WIRE 700NM 2MCD RED |
714 | 0.77 |
RFQ |
Datasheet |
Tray | PM3 | Active | LED | Red | Red | Diffused | Vf (Typ), If (Max) | 2.1V | 20mA | Round | 0.16 (4.06mm) | 3mm, T-1 | Round with Domed Top | 2mcd | 700nm | 40° | - | - |
|

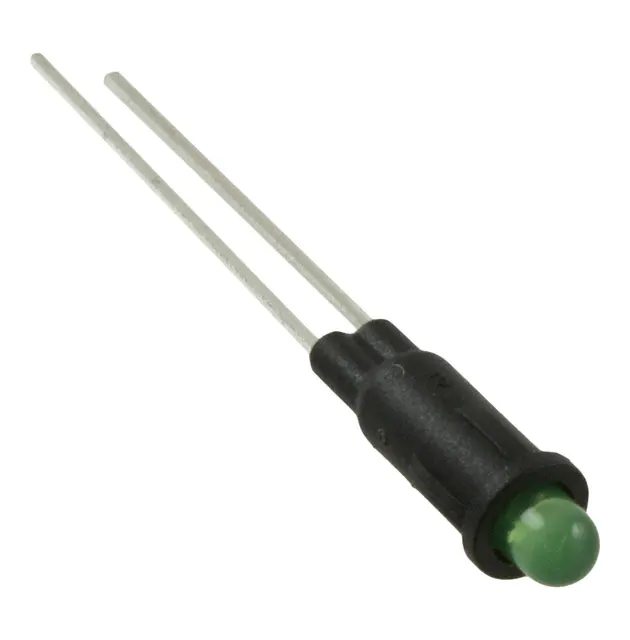

PM3GDLED ASSY PNL 3MM GRN DIFF 568NM |
448 | 0.80 |
RFQ |
Datasheet |
Tray | PM3 | Active | LED | Green | Green | Diffused | Vf (Typ), If (Max) | 2.1V | 30mA | Round | 0.16 (4.06mm) | 3mm, T-1 | Round with Domed Top | 25mcd | 568nm | 40° | PC Pin | - |
|

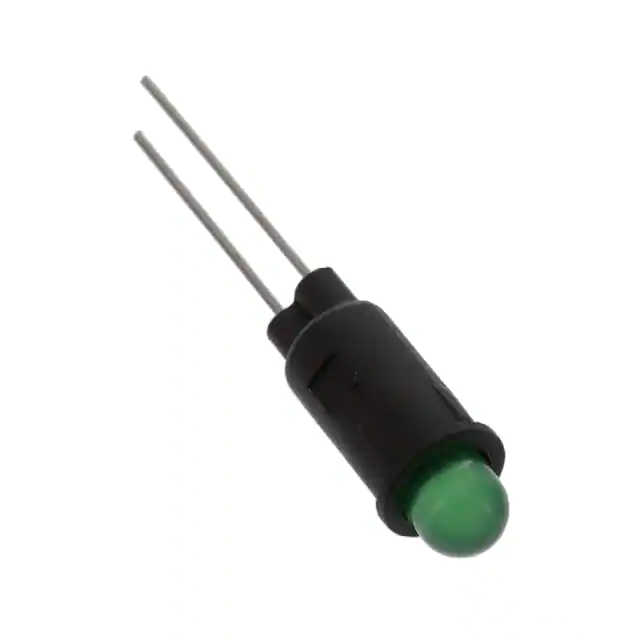

PM5GDPNL MNT W/ WIRE 568NM 25MCD GREE |
199 | 0.82 |
RFQ |
Datasheet |
Bag | PM5 | Active | LED | Green | Green | Diffused | Vf (Typ), If (Max) | 2.1V | 30mA | Round | 0.25 (6.35mm) | 5mm, T-1 3/4 | Round with Domed Top | 25mcd | 568nm | 45° | - | - |
|

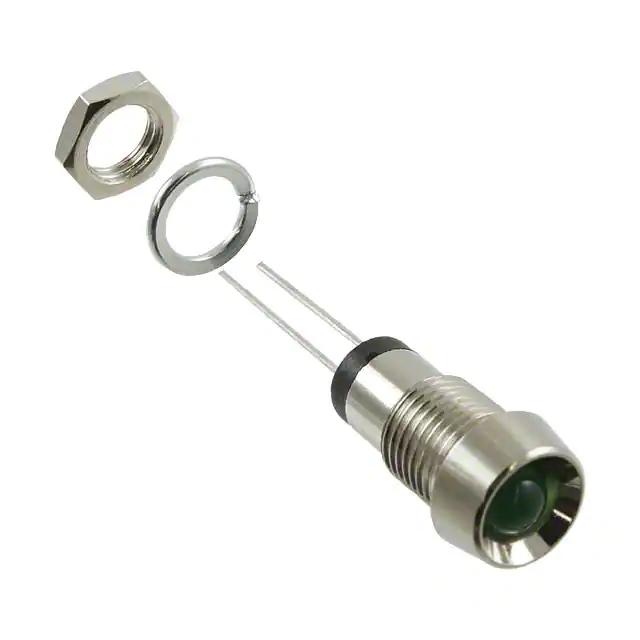

MPR5GDPNL MNT W/ WIRE 568NM 25MCD GRN |
648 | 3.03 |
RFQ |
Datasheet |
Tray | MPR5 | Active | LED | Green | Green | Diffused | Vf (Typ), If (Max) | 2.1V | 30mA | Round | 0.32 (8.13mm) | 5mm, T-1 3/4 | Round with Domed Top | 25mcd | 568nm | 40° | - | - |
|
PM53-BCW12.0INDICATOR LED GREEN/RED PNL MNT |
661 | 3.78 |
RFQ |
Datasheet |
Bag | PM53 | Active | LED | Green, Red | White | Diffused | Vf (Typ), If (Max) | 2.1V Green, 2V Red | 30mA Green, 30mA Red | Round | 0.25 (6.35mm) | 5mm, T-1 3/4 | Round with Domed Top | - | 568nm Green, 625nm Red | 40° | Wire Leads - 12 (304.80mm) | - |
|

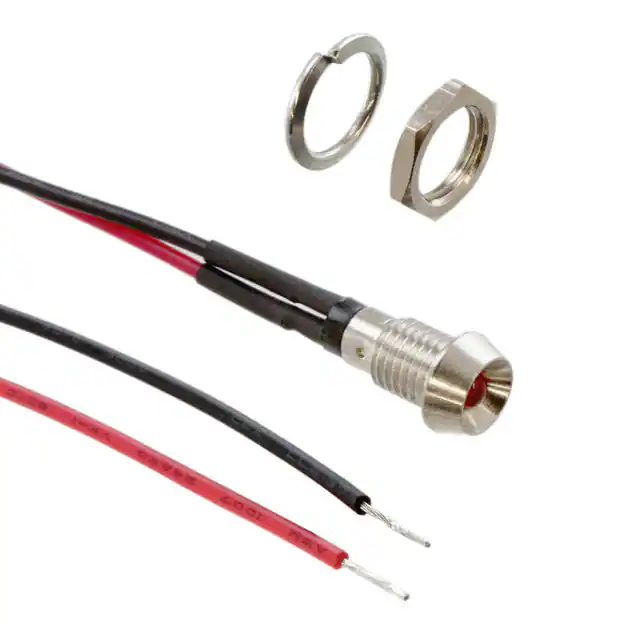

MPR3RDW12.0LED PANEL INDICATOR RED 2.1V |
304 | 4.36 |
RFQ |
Datasheet |
Bag | MPR3 | Active | LED | Red | Red | Diffused | Vf (Typ), If (Max) | 2.1V | 20mA | Round | 0.24 (6.10mm) | 3mm, T-1 | Round with Domed Top | 2mcd | 700nm | 20° | Wire Leads - 12 (304.80mm) | - |
|

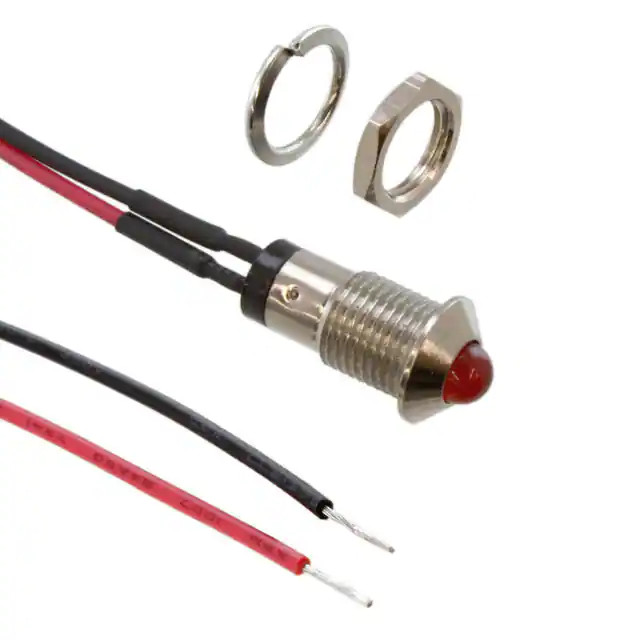

MPC5RDW12.0LED PANEL INDICATOR RED 2.1V |
135 | 4.45 |
RFQ |
Datasheet |
Bag | MPC5 | Active | LED | Red | Red | Diffused | Vf (Typ), If (Max) | 2.1V | 20mA | Round | 0.32 (8.13mm) | 5mm, T-1 3/4 | Round with Domed Top | 2mcd | 700nm | 45° | Wire Leads - 12 (304.80mm) | - |
|

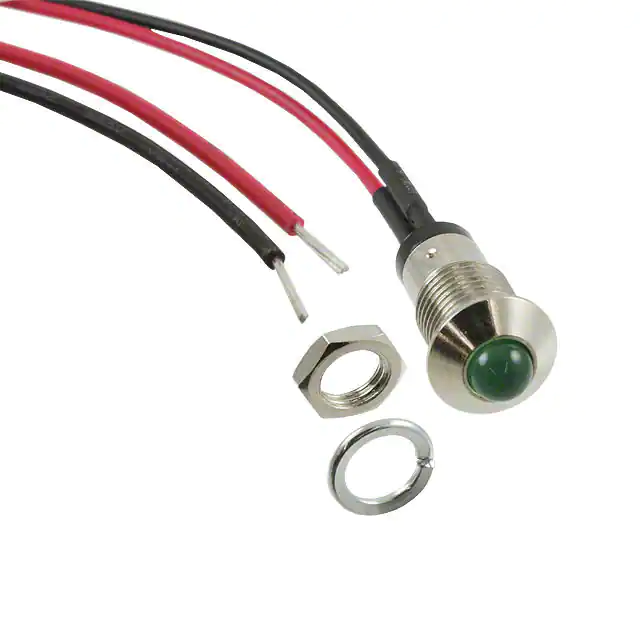

MPC5GDW12.0LED PANEL INDICATOR GREEN 2.1V |
356 | 4.49 |
RFQ |
Datasheet |
Bag | MPC5 | Active | LED | Green | Green | Diffused | Vf (Typ), If (Max) | 2.1V | 30mA | Round | 0.32 (8.13mm) | 5mm, T-1 3/4 | Round with Domed Top | 25mcd | 568nm | 45° | Wire Leads - 12 (304.80mm) | - |
|

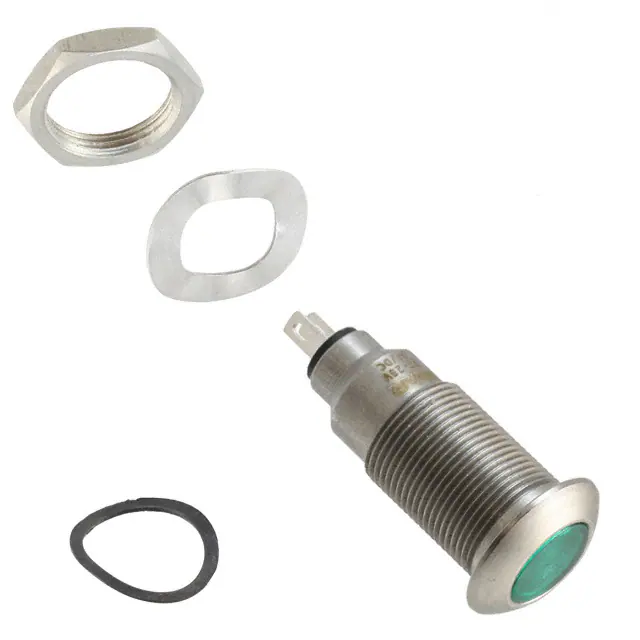

PM5-S17G28VPANEL MOUNT ASSEMBLY GREEN 12.MM |
2,970 | 53.14 |
RFQ |
Datasheet |
Bag | PM5 | Active | LED | Green | Green | Fresnel | AC/DC | 12V ~ 28V | 20mA | Round | 0.50 (12.70mm) | 10.20mm Dia | Round with Flat Top | 800mcd | 515nm | 120° | Quick Connect - 0.110 (2.8mm) | IP67 |
|

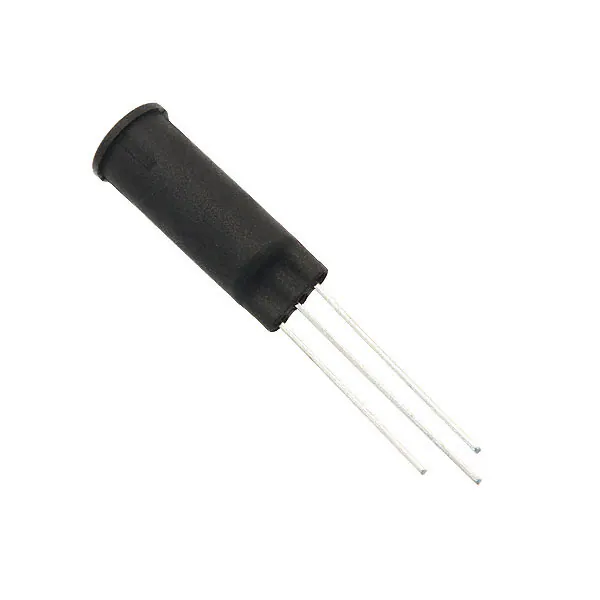

PM5R3-BCINDICATOR LED GREEN/RED PNL MNT |
866 | 1.11 |
RFQ |
Datasheet |
Bag | PM5R3 | Active | LED | Green, Red | White | Diffused | Vf (Typ), If (Max) | 2.1V Green, 2V Red | 30mA Green, 30mA Red | Round | 0.25 (6.35mm) | 5mm, T-1 3/4 | Round with Domed Top | - | 568nm Green, 625nm Red | 40° | - | - |
|

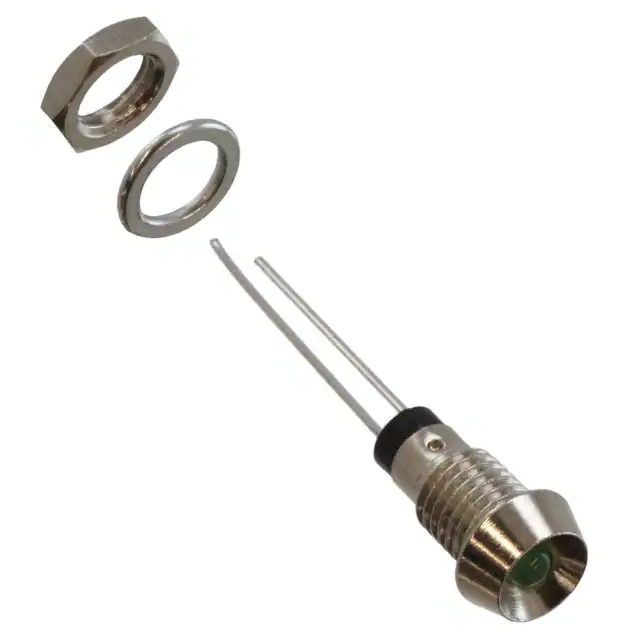

MPR3GDPNL MNT W/ WIRE 568NM 25MCD GRN |
854 | 2.91 |
RFQ |
Datasheet |
Tray | MPR3 | Active | LED | Green | Green | Diffused | Vf (Typ), If (Max) | 2.1V | 30mA | Round | 0.24 (6.10mm) | 3mm, T-1 | Round with Domed Top | 25mcd | 568nm | 35° | - | - |
|

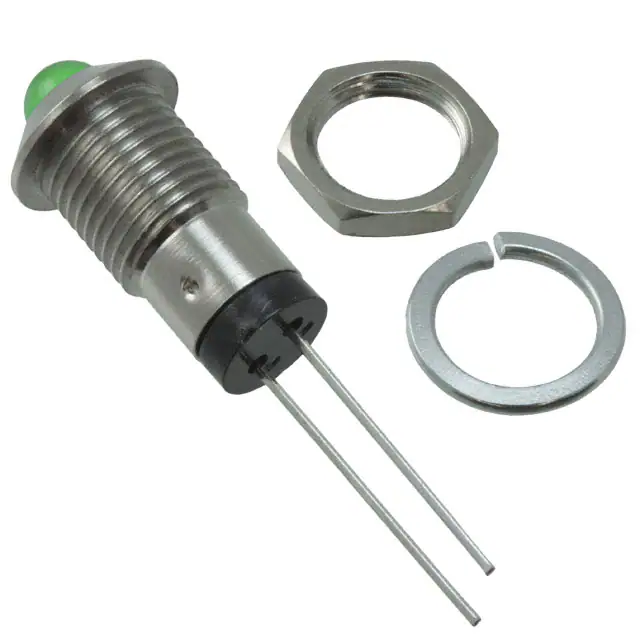

MPC5GDLED ASSY PNL 5MM GRN DIFF 565NM |
499 | 3.03 |
RFQ |
Datasheet |
Tray | MPC5 | Active | LED | Green | Green | Diffused | Vf (Typ), If (Max) | 2.1V | 30mA | Round | 0.32 (8.13mm) | 5mm, T-1 3/4 | Round with Domed Top | 25mcd | 568nm | 45° | PC Pin | - |
