| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | SwitchType | NumberofOutputs | Ratio-Input:Output | OutputConfiguration | OutputType | Interface | Voltage-Load | Voltage-Supply(Vcc/Vdd) | Current-Output(Max) | RdsOn(Typ) | InputType | Features | FaultProtection | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MP5017AGD-P3V TO 5.5V, 1A TO 5A CURRENT LIM |
3,836 | 1.81 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | USB Switch | 1 | 1:1 | High/Low Side | N-Channel | On/Off | 3V ~ 5.5V | Not Required | 5A | 45mOhm | Non-Inverting | Load Discharge, Status Flag | Current Limiting (Fixed), Over Temperature, Over Voltage, UVLO | -40°C ~ 125°C (TJ) | Surface Mount |
|
MP5075GTF-ZIC PWR SWITCH P-CHAN 1:1 SOT563 |
3,897 | 0.18 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 3V ~ 5.5V | 3V ~ 5.5V | 2.4A | 38mOhm | - | Load Discharge, Power Good, Slew Rate Controlled | Over Current, Over Temperature, Short Circuit, UVLO | -40°C ~ 125°C (TJ) | Surface Mount |
|
|
MP5075LGTF-ZIC PWR SWITCH P-CHAN 1:1 SOT563 |
2,341 | 0.18 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 3V ~ 5.5V | 3V ~ 5.5V | 1A | 80mOhm | - | Load Discharge, Power Good, Slew Rate Controlled | Over Current, Over Temperature, Short Circuit, UVLO | -40°C ~ 125°C (TJ) | Surface Mount |
|

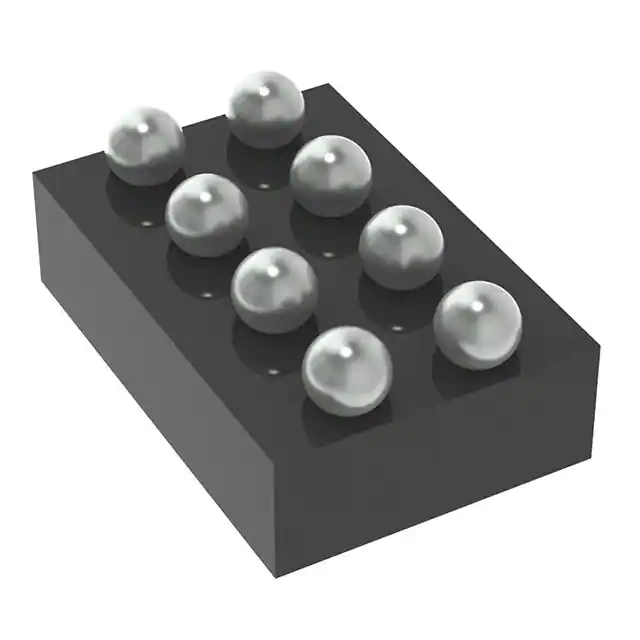

MP5090GC-ZIC PWR SWITCH P-CHAN 1:1 8CSP |
2,355 | 0.38 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | General Purpose | 2 | 1:1 | High Side | P-Channel | On/Off | 0.5V ~ 5.5V | 0.5V ~ 5.5V | 2A | 30mOhm | Non-Inverting | Load Discharge, Slew Rate Controlled | Current Limiting (Adjustable), Over Temperature | -40°C ~ 125°C (TJ) | Surface Mount |
|

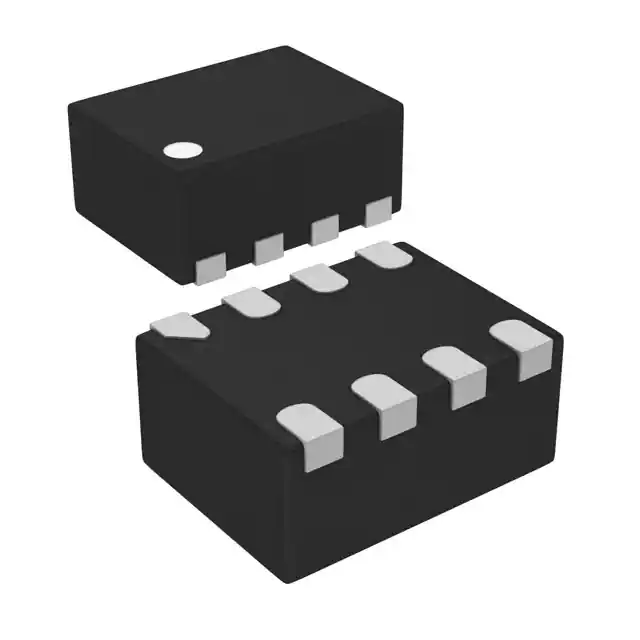

MP5090GQHT-ZIC PWR HI-EFF DL P-CH 1:1 8TQFN |
2,363 | 0.38 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | General Purpose | 2 | 1:1 | High Side | P-Channel | On/Off | 0.5V ~ 5.5V | 0.5V ~ 5.5V | 3A | 20mOhm | Non-Inverting | Load Discharge, Slew Rate Controlled | Current Limiting (Adjustable), Over Temperature | -40°C ~ 125°C (TJ) | Surface Mount |
|
MP6211DN-LF-ZIC PWR SWITCH 1:1 8SOIC |
2,979 | 0.43 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Not For New Designs | General Purpose | 1 | 1:1 | High Side | - | On/Off | 2.7V ~ 5.5V | Not Required | 1A | 90mOhm | - | Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | Surface Mount |
|
|
MP6212DN-LF-ZIC PWR SWITCH 1:1 8SOIC |
2,434 | 0.43 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Not For New Designs | General Purpose | 1 | 1:1 | High Side | - | On/Off | 2.7V ~ 5.5V | Not Required | 1A | 90mOhm | - | Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | Surface Mount |
|
MP5036AGJ-Z5V, 0.4A TO 5A CURRENT LIMIT SWI |
3,394 | 0.45 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | - | Active | General Purpose | 1 | 1:1 | Low Side | P-Channel | - | 2.9V ~ 5.5V | Not Required | 5A | 43mOhm | - | Load Discharge, Slew Rate Controlled | Current Limiting (Fixed), Over Temperature, Over Voltage, UVLO | -40°C ~ 125°C (TJ) | Surface Mount | |
|
MP5083GG-ZIC PWR SWITCH P-CHAN 1:1 12QFN |
3,491 | 0.45 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 0.5V ~ 5.5V | 3V ~ 5.5V | 2A | 50mOhm | - | Load Discharge, Power Good, Slew Rate Controlled | Over Temperature, UVLO | -40°C ~ 125°C (TJ) | Surface Mount |
|
|
MP6205DN-LF-ZIC PWR SWITCH 1:1 8SOIC |
3,237 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | General Purpose | 1 | 1:1 | High Side | - | On/Off | 2.7V ~ 5.5V | Not Required | 500mA | 90mOhm | - | Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | Surface Mount |
|
MP6205DD-LF-ZIC PWR SWITCH 1:1 8QFN |
2,931 | 0.49 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Not For New Designs | General Purpose | 1 | 1:1 | High Side | - | On/Off | 2.7V ~ 5.5V | Not Required | 500mA | 90mOhm | - | Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | Surface Mount |
|
MP62071DH-LF-ZIC PWR SWITCH 1:1 8MSOP |
3,475 | 0.52 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | General Purpose | 1 | 1:1 | High Side | - | On/Off | 2.7V ~ 5.5V | Not Required | 800mA | 90mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | Surface Mount |
|
|
MP6211DH-LF-ZIC PWR SWITCH 1:1 8MSOP |
2,064 | 0.52 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Not For New Designs | General Purpose | 1 | 1:1 | High Side | - | On/Off | 2.7V ~ 5.5V | Not Required | 1A | 90mOhm | - | Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | Surface Mount |
|
|
MP6212DH-LF-ZIC PWR SWITCH 1:1 8MSOP |
3,898 | 0.52 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Not For New Designs | General Purpose | 1 | 1:1 | High Side | - | On/Off | 2.7V ~ 5.5V | Not Required | 1A | 90mOhm | - | Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | Surface Mount |
|
|
MPQ5073GG-ZIC PWR SWITCH P-CHAN 1:1 12QFN |
3,935 | 0.53 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | General Purpose | 1 | 1:1 | High Side | P-Channel | - | 0.5V ~ 5.5V | 0.5V ~ 5.5V | 2A | 50mOhm | CMOS | Slew Rate Controlled | Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | Surface Mount |
|
MP5013AGJ-ZIC PWR SWTCH N-CHAN 1:1 TSOT23-8 |
3,353 | 0.54 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 3V ~ 5.5V | Not Required | 5A | 36mOhm | - | Slew Rate Controlled, Status Flag | Current Limiting (Adjustable), Over Temperature, Over Voltage, UVLO | -40°C ~ 125°C (TJ) | Surface Mount |
|
|
MP5014AGJ-ZIC PWR SWTCH N-CHAN 1:1 TSOT23-8 |
3,905 | 0.54 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 10V ~ 13.8V | Not Required | 5A | 36mOhm | - | Slew Rate Controlled | Current Limiting (Adjustable), Over Temperature, Over Voltage, UVLO | -40°C ~ 125°C (TJ) | Surface Mount |
|
|
MP5075LGTF-PIC PWR SWITCH P-CHAN 1:1 SOT563 |
3,659 | 0.54 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 3V ~ 5.5V | 3V ~ 5.5V | 1A | 80mOhm | - | Load Discharge, Power Good, Slew Rate Controlled | Over Current, Over Temperature, Short Circuit, UVLO | -40°C ~ 125°C (TJ) | Surface Mount |
|
MP5086GG-ZIC PWR SWITCH 1:1 12QFN |
3,461 | 0.55 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | General Purpose | 1 | 1:1 | - | - | On/Off | 2.3V ~ 5.5V | Not Required | 7A | 11mOhm | - | - | Over Temperature | - | Surface Mount |
|
MP62180DS-LF-ZIC PWR SWITCH 1:1 8SOIC |
3,298 | 0.56 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Not For New Designs | General Purpose | 1 | 1:1 | High Side | - | On/Off | 2.7V ~ 5.5V | Not Required | 2A | 75mOhm | - | Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | Surface Mount |
