| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | SwitchType | NumberofOutputs | Ratio-Input:Output | OutputConfiguration | OutputType | Interface | Voltage-Load | Voltage-Supply(Vcc/Vdd) | Current-Output(Max) | RdsOn(Typ) | InputType | Features | FaultProtection | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

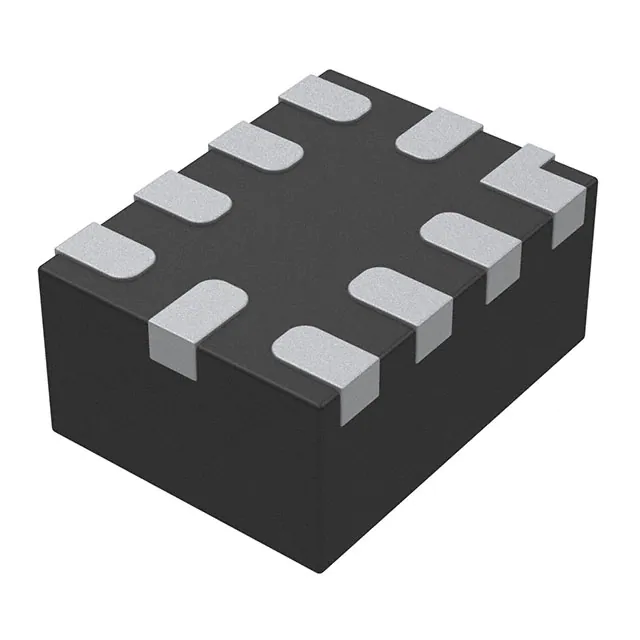

MP5000SDQ-LF-PIC PWR SWITCH N-CHAN 1:1 10QFN |
2,588 | 1.06 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Not For New Designs | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 10V ~ 18V | Not Required | 5A | 40mOhm | Non-Inverting | Slew Rate Controlled, Status Flag | Current Limiting (Adjustable), Over Temperature, Over Voltage, UVLO | -40°C ~ 125°C (TJ) | Surface Mount |
|
|
MP5010ADQ-LF-PIC PWR SWITCH N-CHAN 1:1 10QFN |
3,282 | 1.06 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 3V ~ 18V | Not Required | 5A | 40mOhm | - | Slew Rate Controlled, Status Flag | Current Limiting (Adjustable), Over Temperature, Over Voltage, UVLO | -40°C ~ 125°C (TJ) | Surface Mount |
|
MP62160DD-LF-PIC PWR SWITCH 1:1 8QFN |
2,647 | 1.06 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Not For New Designs | General Purpose | 1 | 1:1 | High Side | - | On/Off | 2.7V ~ 5.5V | Not Required | 2A | 85mOhm | - | Load Discharge, Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | Surface Mount |
|
|
MP5010BDQ-LF-PIC PWR SWITCH N-CHAN 1:1 10QFN |
3,387 | 1.06 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 3V ~ 18V | Not Required | 5A | 40mOhm | - | Slew Rate Controlled, Status Flag | Current Limiting (Adjustable), Over Temperature, Over Voltage, UVLO | -40°C ~ 125°C (TJ) | Surface Mount |
|
|
MP5010SDQ-LF-PIC PWR SWITCH N-CHAN 1:1 10QFN |
2,994 | 1.06 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Not For New Designs | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 4V ~ 18V | Not Required | 5A | 40mOhm | - | Slew Rate Controlled, Status Flag | Current Limiting (Adjustable), Over Temperature, Over Voltage, UVLO | -40°C ~ 125°C (TJ) | Surface Mount |
|
MP62170EK-1-LF-PIC PWR SWITCH 1:1 8MSOP |
3,482 | 1.08 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Not For New Designs | General Purpose | 1 | 1:1 | High Side | - | On/Off | 2.7V ~ 5.5V | Not Required | 1.5A | 75mOhm | Non-Inverting | Load Discharge, Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -20°C ~ 85°C (TA) | Surface Mount |
|
|
MP62171EK-1-LF-PIC PWR SWITCH 1:1 8MSOP |
3,733 | 1.08 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Not For New Designs | General Purpose | 1 | 1:1 | High Side | - | On/Off | 2.7V ~ 5.5V | Not Required | 1.5A | 75mOhm | Non-Inverting | Load Discharge, Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -20°C ~ 85°C (TA) | Surface Mount |
|
MP62180DH-LF-PIC PWR SWITCH 1:1 8MSOP |
3,823 | 1.09 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Not For New Designs | General Purpose | 1 | 1:1 | High Side | - | On/Off | 2.7V ~ 5.5V | Not Required | 2A | 75mOhm | - | Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | Surface Mount |
|
|
MP62181DH-LF-PIC PWR SWITCH 1:1 8MSOP |
2,185 | 1.09 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Not For New Designs | General Purpose | 1 | 1:1 | High Side | - | On/Off | 2.7V ~ 5.5V | Not Required | 2A | 75mOhm | - | Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | Surface Mount |
|
MP62550DJ-LF-PIC PWR SWTCH N-CHAN 1:1 TSOT23-6 |
3,454 | 1.09 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 2.5V ~ 5.5V | Not Required | 1.5A | 100mOhm | - | Slew Rate Controlled, Status Flag | Current Limiting (Adjustable), Over Temperature, UVLO | -40°C ~ 85°C (TA) | Surface Mount |
|
|
MP62551DJ-LF-PIC PWR SWTCH N-CHAN 1:1 TSOT23-6 |
2,713 | 1.09 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 2.5V ~ 5.5V | Not Required | 1.5A | 100mOhm | - | Slew Rate Controlled, Status Flag | Current Limiting (Adjustable), Over Temperature, UVLO | -40°C ~ 85°C (TA) | Surface Mount |
|
MP6205DN-LFIC PWR SWITCH 1:1 8SOIC |
3,568 | 1.12 |
RFQ |
Datasheet |
Tube | - | Active | General Purpose | 1 | 1:1 | High Side | - | On/Off | 2.7V ~ 5.5V | Not Required | 500mA | 90mOhm | - | Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | Surface Mount |
|
|
MP62160DH-LF-PIC PWR SWITCH 1:1 8MSOP |
3,278 | 1.13 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Not For New Designs | General Purpose | 1 | 1:1 | High Side | - | On/Off | 2.7V ~ 5.5V | Not Required | 2A | 85mOhm | - | Load Discharge, Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | Surface Mount |
|

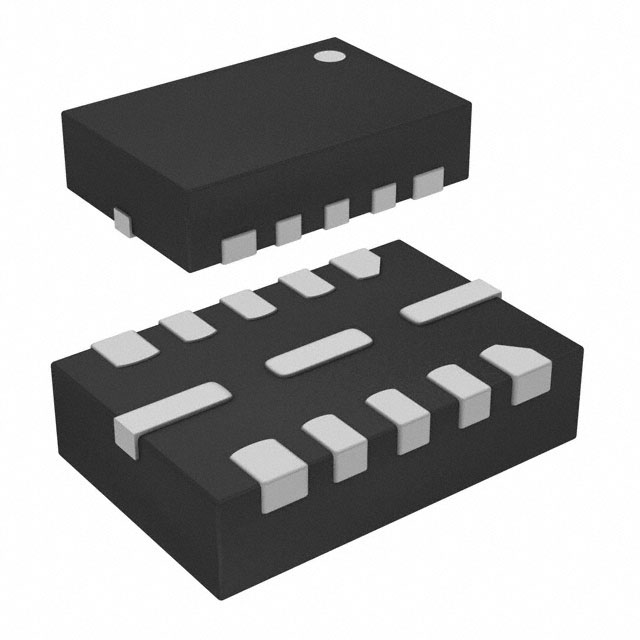

MP5018GD-PIC PWR SWITCH 1:1 12QFN |
2,545 | 1.13 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | General Purpose | 1 | 1:1 | - | - | On/Off | 4.5V ~ 5.5V | - | 5A | 45mOhm | - | Slew Rate Controlled, Status Flag | Current Limiting (Adjustable), Over Temperature, Over Voltage, Reverse Current, UVLO | - | Surface Mount |
|
|
MP5017GD-PIC PWR SWITCH N-CHAN 1:1 12QFN |
2,889 | 1.13 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Not For New Designs | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 3V ~ 5.5V | Not Required | 5A | 45mOhm | - | Slew Rate Controlled, Status Flag | Current Limiting (Adjustable), Over Temperature, Over Voltage, UVLO | -40°C ~ 125°C (TJ) | Surface Mount |
|
MP5016GQH-PIC PWR SWITCH N-CHAN 1:1 10QFN |
2,812 | 1.13 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 15V | 2.7V ~ 15V | 5A | 43mOhm | - | Slew Rate Controlled | Over Current, Over Voltage | -40°C ~ 125°C (TJ) | Surface Mount |
|
MP5030DGQH-PUSB CHARGING PORT CONTROLLER WIT |
3,394 | 1.13 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | USB Switch | 1 | 1:1 | - | P-Channel | - | 14V (Max) | 3V ~ 14V | 3A | 32mOhm | - | - | Current Limiting (Fixed), Over Temperature, Over Voltage, Short Circuit, UVLO | -40°C ~ 125°C (TJ) | Surface Mount |
|

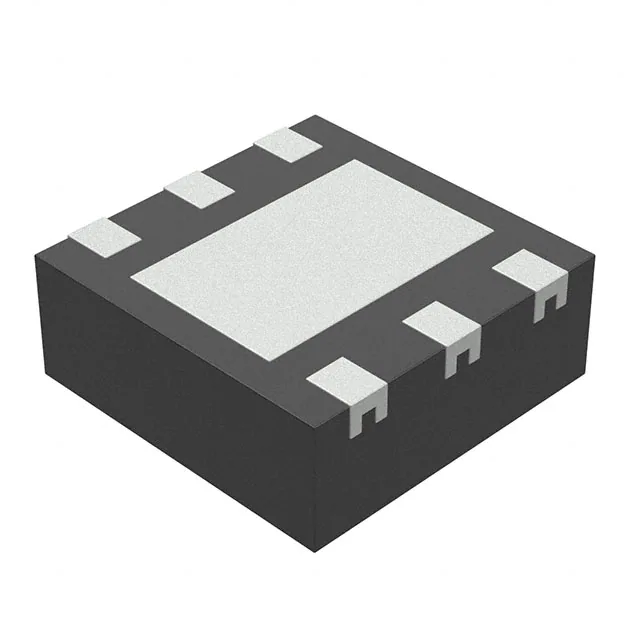

MP62550DGT-LF-PIC PWR SWITCH N-CHAN 1:1 6TQFN |
2,806 | 1.17 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 2.5V ~ 5.5V | Not Required | 1.5A | 100mOhm | - | Slew Rate Controlled, Status Flag | Current Limiting (Adjustable), Over Temperature, UVLO | -40°C ~ 85°C (TA) | Surface Mount |
|
|
MP5016HGQH-PIC PWR SWITCH N-CHAN 1:1 10QFN |
2,590 | 1.17 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 22V | 2.7V ~ 22V | 5A | 43mOhm | - | Slew Rate Controlled | Over Current, Over Voltage | -40°C ~ 125°C (TJ) | Surface Mount |
|
|
MP62341DH-1-LF-PIC PWR SWITCH 1:2 8SOIC |
3,763 | 1.21 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Not For New Designs | General Purpose | 2 | 1:2 | High Side | - | On/Off | 2.7V ~ 5.5V | Not Required | 1A | 85mOhm | - | Load Discharge, Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | Surface Mount |
