| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | SwitchType | NumberofOutputs | Ratio-Input:Output | OutputConfiguration | OutputType | Interface | Voltage-Load | Voltage-Supply(Vcc/Vdd) | Current-Output(Max) | RdsOn(Typ) | InputType | Features | FaultProtection | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPS2551DBVRIC PWR SWITCH N-CHAN 1:1 SOT23-6 |
3,228 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | - | Not For New Designs | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 2.5V ~ 6.5V | Not Required | 1.1A | 85mOhm | Non-Inverting | Slew Rate Controlled | Current Limiting (Adjustable), Over Temperature, UVLO | -40°C ~ 150°C (TJ) | Surface Mount |
|
TPS2549RTETIC PWR SWITCH N-CHAN 1:1 16WQFN |
3,727 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | - | Active | USB Switch | 1 | 1:1 | High Side | N-Channel | On/Off | 4.5V ~ 6.5V | Not Required | 3A | 47mOhm | Non-Inverting | Load Discharge, Status Flag | Current Limiting (Adjustable), Over Temperature, Over Voltage, UVLO | -40°C ~ 125°C (TJ) | Surface Mount |
|
TPS1HA08CQPWPRQ1IC PWR SWTCH N-CHAN 1:1 16HTSSOP |
3,702 | 3.64 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q100 | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 8V ~ 18V | Not Required | 20A | 8mOhm | Inverting | Slew Rate Controlled | Current Limiting (Adjustable), Open Load Detect, Over Temperature, UVLO | -40°C ~ 125°C (TA) | Surface Mount |
|
|
TPS1HA08EQPWPRQ1POWER MANAGEMENT |
2,132 | 3.81 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q100 | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 8V ~ 18V | Not Required | 20A | 9mOhm | Inverting | Slew Rate Controlled | Current Limiting (Adjustable), Open Load Detect, Over Temperature, UVLO | -40°C ~ 125°C (TA) | Surface Mount |
|
TPS254900AIRVCTQ1IC PWR SWITCH N-CHAN 1:1 20WQFN |
3,353 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | Automotive, AEC-Q100 | Active | USB Switch | 1 | 1:1 | Low Side | N-Channel | - | 0.5V ~ 0.7V | 4.5V ~ 6.5V | 3.2A | - | Differential | - | Current Limiting, Over Voltage, UVLO | -40°C ~ 85°C (TJ) | Surface Mount |
|

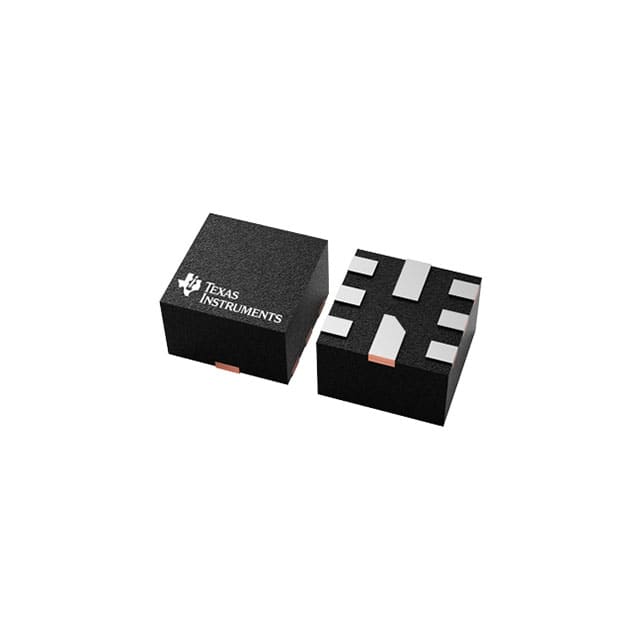

TPS22992SRXNR5.5-V, 6-A, 10-M LOAD SWITCH WIT |
2,806 | 0.60 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 1V ~ 5.5V | 1.5V ~ 5.5V | 6A | 8.7mOhm | Non-Inverting | Slew Rate Controlled | Current Limiting (Fixed), Over Temperature | -40°C ~ 125°C (TA) | Surface Mount |
|
|
TPS22992RXPR5.5-V, 6-A, 10-M LOAD SWITCH WIT |
3,151 | 0.60 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 0.1V ~ 5.5V | 1.5V ~ 5.5V | 6A | 8.7mOhm | Non-Inverting | Slew Rate Controlled | Current Limiting (Fixed), Over Temperature | -40°C ~ 125°C (TA) | Surface Mount |
|
TPS22950LYBHR5.5-V, 2-A, 40-M LOAD SWITCH WIT |
3,236 | 0.83 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 1.8V ~ 5.5V | Not Required | 2.7A | 34mOhm | Non-Inverting | Load Discharge | Current Limiting (Adjustable), Over Temperature, Reverse Current, Short Circuit | -40°C ~ 125°C (TA) | Surface Mount |
|
ULN2003BPWRIC PWR RELAY 7NPN 1:1 16TSSOP |
2,908 | 0.66 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | ULx200xA | Active | Relay, Solenoid Driver | 7 | 1:1 | Low Side | NPN | Parallel | 50V (Max) | Not Required | 500mA | - | Inverting | - | - | -40°C ~ 105°C (TA) | Surface Mount |
|
ULQ2003ADRIC PWR DRIVER NPN 1:1 16SOIC |
3,317 | 0.60 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | ULx200xA | Active | Relay, Solenoid Driver | 7 | 1:1 | Low Side | NPN | Parallel | 50V (Max) | Not Required | 500mA | - | Inverting | - | - | -40°C ~ 85°C (TA) | Surface Mount |
|
|
TPL7407LAQPWRQ1IC PWR DRIVER N-CHAN 1:1 16TSSOP |
3,347 | 0.62 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q100 | Active | Relay, Solenoid Driver | 7 | 1:1 | Low Side | N-Channel | Parallel | 30V (Max) | 6.5V ~ 30V | 500mA | - | CMOS | - | - | -40°C ~ 125°C (TA) | Surface Mount |
|
|
TPS22998RYZR5.5-V, 10-A, 4-MON-RESISTANCE LO |
3,155 | 0.68 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | - | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 0.2V ~ 5.5V | Not Required | 10A | 4mOhm | Non-Inverting | Load Discharge, Slew Rate Controlled | Over Temperature | -40°C ~ 105°C (TA) | Surface Mount | |
|
TPS22925BYPHRIC PWR SWITCH N-CHAN 1:1 6DSBGA |
3,734 | 0.56 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 0.65V ~ 3.6V | Not Required | 3A | 9.2mOhm | Non-Inverting | Load Discharge, Slew Rate Controlled | Reverse Current | -40°C ~ 105°C (TA) | Surface Mount |
|
TPS22976ADPUR2-CH, 5.7-V, 6-A, 14-M, LOAD SWI |
3,208 | 0.76 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | - | Active | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 2.5V ~ 5.7V | Not Required | 6A | 14mOhm | - | Load Discharge | Over Temperature | -40°C ~ 105°C (TA) | Surface Mount | |
|
TPS27081ADDCRIC PWR SWITCH 1:1 TSOT23-6 |
3,627 | 0.94 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | General Purpose | 1 | 1:1 | High Side | - | On/Off | 1.2V ~ 8V | Not Required | 3A | 32mOhm | - | Slew Rate Controlled | - | -40°C ~ 85°C (TA) | Surface Mount |
|
|
TPS22964C2YZPR5.5-V, 3-A, 14-M LOAD SWITCH WIT |
3,943 | 0.97 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 1V ~ 5.5V | Not Required | 3A | 13.3mOhm | Non-Inverting | Load Discharge, Slew Rate Controlled | Reverse Current | -40°C ~ 85°C (TA) | Surface Mount |
|
|
TPS27082LDDCRIC PWR SWTCH P-CHAN 1:1 TSOT23-6 |
2,272 | 0.95 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Not For New Designs | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 1.2V ~ 8V | Not Required | 3A | 32mOhm | - | Slew Rate Controlled | - | -40°C ~ 125°C (TA) | Surface Mount |
|
|
TPS22966TDPURQ1IC PWR SWITCH N-CHAN 1:1 14WSON |
3,802 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | Automotive, AEC-Q100 | Active | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 0.8V ~ 5.5V | - | 4A | 16mOhm | Non-Inverting | Load Discharge | - | -40°C ~ 105°C (TA) | Surface Mount |
|
|
TPS1HB50AQPWPRQ140-V, 50-M, 1-CH AUTOMOTIVE SMAR |
3,103 | 1.75 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q100 | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 6V ~ 18V | Not Required | 10A | 50mOhm | Non-Inverting | Slew Rate Controlled | Current Limiting (Adjustable), Over Temperature | -40°C ~ 125°C (TA) | Surface Mount |
|
|
TPS1HB35AQPWPRQ140-V, 35-M, 1-CH AUTOMOTIVE SMAR |
2,410 | 1.91 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q100 | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 6V ~ 18V | Not Required | 10A | 35mOhm | Non-Inverting | Slew Rate Controlled | Current Limiting (Adjustable), Over Temperature | -40°C ~ 125°C (TA) | Surface Mount |
