| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | SwitchType | NumberofOutputs | Ratio-Input:Output | OutputConfiguration | OutputType | Interface | Voltage-Load | Voltage-Supply(Vcc/Vdd) | Current-Output(Max) | RdsOn(Typ) | InputType | Features | FaultProtection | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ZXMS6004DT8QTAIC PWR DRIVER N-CHANNEL 1:1 SM8 |
2,947 | 0.58 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101, INTELLIFET® | Active | General Purpose | 2 | 1:1 | Low Side | N-Channel | On/Off | 60V (Max) | 3.3V, 5V | 1.2A | 350mOhm | Non-Inverting | Auto Restart | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 125°C (TA) | Surface Mount |
|
ZXMS6001N3QTAIC PWR DRIVER N-CHAN 1:1 SOT223 |
2,773 | 0.58 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101, INTELLIFET® | Active | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 60V (Max) | Not Required | 1.1A | 520mOhm | Non-Inverting | Auto Restart | Current Limiting (Fixed), Over Temperature, Over Voltage, Short Circuit | -40°C ~ 125°C (TA) | Surface Mount |
|
DPS1133FIA-13IC PWR SWITCH 1:1 V-QFN4040-17 |
3,238 | 0.65 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | General Purpose | 1 | 1:1 | High Side | - | On/Off | 4.5V ~ 24V | Not Required | 3.5A | 30mOhm | Non-Inverting | Load Discharge | Current Limiting (Adjustable), Over Temperature, Over Voltage, Reverse Current, UVLO | - | Surface Mount |
|
AP2142MPG-13IC PWR SWITCH P-CHAN 1:2 8MSOP |
3,523 | 0.66 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | USB Switch | 2 | 1:2 | High Side | P-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 500mA | 115mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | Surface Mount |
|
|
AP2162MPG-13IC PWR SWITCH P-CHAN 1:2 8MSOP |
5,984 | 1.52 |
RFQ |
Datasheet |
Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT) | - | Active | USB Switch | 2 | 1:2 | High Side | P-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 1A | 115mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | Surface Mount |
|
ZXMS6005DN8-13IC PWR DRIVER N-CHAN 1:1 8SOIC |
2,007 | 0.58 |
RFQ |
Datasheet |
Tape & Reel (TR) | INTELLIFET® | Active | General Purpose | 2 | 1:1 | Low Side | N-Channel | On/Off | 60V (Max) | 3.3V, 5V | 1.8A | 150mOhm | Non-Inverting | Auto Restart | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 125°C (TA) | Surface Mount |
|
|
AP2191MPG-13IC PWR SWITCH P-CHAN 1:1 8MSOP |
3,911 | 0.59 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | USB Switch | 1 | 1:1 | High Side | P-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 1.5A | 95mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | Surface Mount |
|

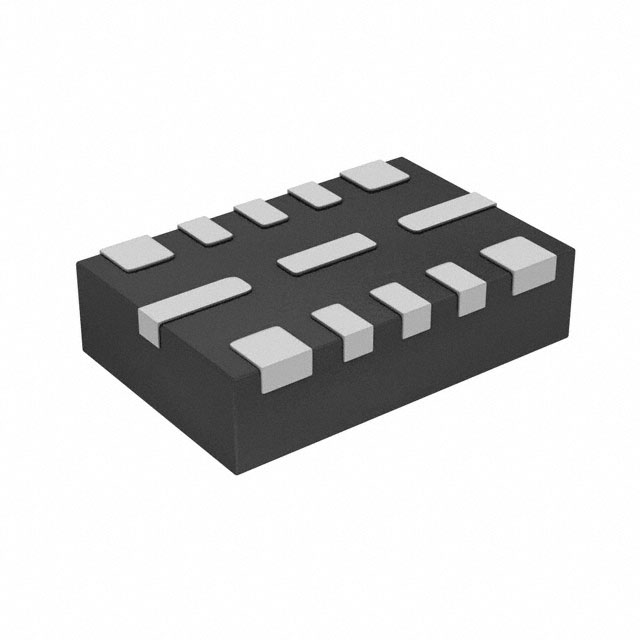

AP91352MN1-DT8-7IC PWR SWITCH N-CHAN 1:1 12WQFN |
2,389 | 0.60 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 3.6V ~ 12V | Not Required | 2.5A | 50mOhm | Non-Inverting | Slew Rate Controlled | Current Limiting (Fixed), Over Temperature, Over Voltage, UVLO | -40°C ~ 85°C (TA) | Surface Mount |
|
BSP75GQTCMOSFET N-CH 60V 1.6A SOT223 |
3,627 | 0.60 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101, INTELLIFET® | Active | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 60V (Max) | Not Required | 1.6A | 550mOhm | Non-Inverting | Auto Restart | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | Surface Mount |
|
|
ZXMS6005DN8Q-13IC PWR DRIVER N-CHAN 1:1 8SOIC |
2,967 | 0.61 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101, INTELLIFET® | Active | General Purpose | 2 | 1:1 | Low Side | N-Channel | On/Off | 60V (Max) | 3.3V, 5V | 1.8A | 150mOhm | Non-Inverting | Auto Restart | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 125°C (TA) | Surface Mount |
|
AP2192SG-13IC PWR SWITCH P-CHANNEL 1:2 8SOP |
2,783 | 1.43 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Cut Tape (CT) | - | Active | USB Switch | 2 | 1:2 | High Side | P-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 1.5A | 120mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | Surface Mount |
|
|
AP2162SG-13IC PWR SWITCH P-CHANNEL 1:2 8SOP |
9,236 | 1.42 |
RFQ |
Datasheet |
Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT) | - | Active | USB Switch | 2 | 1:2 | High Side | P-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 1A | - | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | Surface Mount |
|
|
AP2172SG-13IC PWR SWITCH P-CHANNEL 1:2 8SOP |
3,672 | 0.62 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | USB Switch | 2 | 1:2 | High Side | P-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 1A | 120mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | Surface Mount |
|
|
BSP75GQTAMOSFET N-CH 60V 1.6A SOT223 |
2,020 | 0.64 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101, INTELLIFET® | Active | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 60V (Max) | Not Required | 1.6A | 550mOhm | Non-Inverting | Auto Restart | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | Surface Mount |
|
|
AP2182SG-13IC PWR SWITCH P-CHANNEL 1:2 8SOP |
3,964 | 1.51 |
RFQ |
Datasheet |
Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT),Cut Tape (CT) | - | Active | USB Switch | 2 | 1:2 | High Side | P-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 1.5A | 120mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | Surface Mount |
|
|
DPS1135FIA-13IC PWR SWITCH N-CH V-QFN4040-17 |
2,514 | 0.66 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 4.5V ~ 24V | Not Required | 5A | 30mOhm | Non-Inverting | Load Discharge, Slew Rate Controlled, Status Flag | Current Limiting (Adjustable), Over Temperature, Over Voltage, Reverse Current, Short Circuit, UVLO | -40°C ~ 125°C (TJ) | Surface Mount |
|
|
AP2182MPG-13IC PWR SWITCH P-CHAN 1:2 8MSOP |
1,087 | 1.54 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Cut Tape (CT) | - | Active | USB Switch | 2 | 1:2 | High Side | P-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 1.5A | 115mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | Surface Mount |
|
|
AP2196SG-13IC PWR SWITCH P-CHANNEL 1:2 8SOP |
3,408 | 0.66 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | USB Switch | 2 | 1:2 | High Side | P-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 1.5A | 100mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | Surface Mount |
|
|
AP2172MPG-13IC PWR SWITCH P-CHAN 1:2 8MSOP |
3,498 | 0.66 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | USB Switch | 2 | 1:2 | High Side | P-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 1A | 115mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | Surface Mount |
|
AP2822AKBTR-G1IC PWR SWITCH N-CHAN 1:1 SOT23-5 |
3,756 | 0.68 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Not For New Designs | USB Switch | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 500mA | 85mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | Surface Mount |
