| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | SwitchType | NumberofOutputs | Ratio-Input:Output | OutputConfiguration | OutputType | Interface | Voltage-Load | Voltage-Supply(Vcc/Vdd) | Current-Output(Max) | RdsOn(Typ) | InputType | Features | FaultProtection | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AP2141FMG-7IC PWR SWITCH P-CHANNEL 1:1 6DFN |
3,000 | 0.63 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | USB Switch | 1 | 1:1 | High Side | P-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 500mA | 90mOhm | Non-Inverting | Load Discharge, Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | Surface Mount |
|
AP2192AMPG-13IC PWR SWITCH P-CHAN 1:2 8MSOP |
3,934 | 0.90 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | USB Switch | 2 | 1:2 | High Side | P-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 1.5A | 85mOhm | Non-Inverting | Load Discharge, Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | Surface Mount |
|
ZXMS6001N3TAIC PWR DRIVER N-CHAN 1:1 SOT223 |
800 | 1.14 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | INTELLIFET® | Active | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 60V (Max) | Not Required | 1.1A | 520mOhm | Non-Inverting | Auto Restart | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | Surface Mount |
|
|
AP2176MPG-13IC PWR SWITCH P-CHAN 1:2 8MSOP |
3,584 | 1.51 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | USB Switch | 2 | 1:2 | High Side | P-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 1A | 90mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | Surface Mount |
|

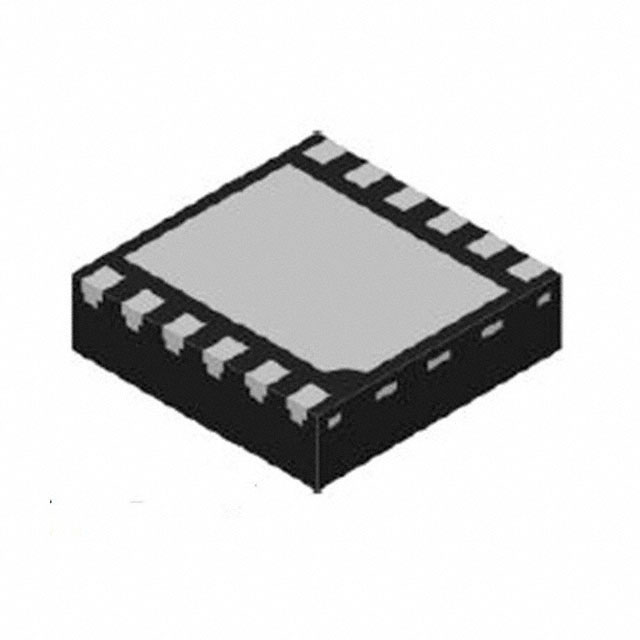

DML3009LDC-7IC PWR SWITCH N-CHAN 1:1 12VDFN |
3,057 | 1.93 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 0.5V ~ 13.5V | 3V ~ 5.5V | 20A | 6.1mOhm | Non-Inverting | - | Short-Circuit, Thermal Shutdown, UVLO | -40°C ~ 85°C (TA) | Surface Mount |
|
DPS1113FIA-13IC PWR SWITCH 1:1 V-QFN4040-17 |
2,649 | 1.24 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | USB Switch | 1 | 1:1 | High Side | - | On/Off | 4.5V ~ 5.5V | - | 3.5A | 29mOhm | - | Load Discharge | Current Limiting (Adjustable), Over Temperature, Over Voltage, Reverse Current, UVLO | -40°C ~ 125°C (TJ) | Surface Mount |
|
PI5USB2546QZHEXIC PWR SWITCH N-CHAN 1:1 16TQFN |
2,343 | 1.57 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q100 | Active | USB Switch | 1 | 1:1 | High Side | N-Channel | On/Off | 4.5V ~ 5.5V | Not Required | 2.5A | 73mOhm | Non-Inverting | Status Flag | Current Limiting (Adjustable), Over Temperature, UVLO | -40°C ~ 85°C (TA) | Surface Mount |
|
AP2822CKBTR-G1IC PWR SWITCH N-CHAN 1:1 SOT23-5 |
3,816 | 0.46 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Not For New Designs | USB Switch | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 1A | 85mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | Surface Mount |
|
AP2501S-13IC PWR SWITCH P-CHANNEL 1:1 8SO |
3,977 | 0.48 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | USB Switch | 1 | 1:1 | High Side | P-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 2.5A | 70mOhm | Non-Inverting | Load Discharge, Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | Surface Mount |
|
DML1010FDK-7IC PWR SWITCH N-CH 1:1 DFN2020 |
2,436 | 0.51 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 0.8V ~ 4V | Not Required | 6A | 8mOhm (Max) | - | Load Discharge | - | -40°C ~ 85°C (TA) | Surface Mount |
|
ULN2002AS16-13IC PWR RELAY 7NPN 1:1 16SO |
2,250 | 0.54 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | ULx200xA | Active | Relay, Solenoid Driver | 7 | 1:1 | Low Side | NPN | Parallel | 50V (Max) | Not Required | 500mA | - | Inverting | - | - | -40°C ~ 105°C (TA) | Surface Mount |
|
|
AP2411AMP-13IC PWR SWITCH P-CHAN 1:1 8MSOP |
3,943 | 0.55 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | USB Switch | 1 | 1:1 | High Side | P-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 2A | 70mOhm | Non-Inverting | Load Discharge, Slew Rate Controlled, Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | Surface Mount |
|
|
AP2191FMG-7IC PWR SWITCH P-CHANNEL 1:1 6DFN |
2,998 | 0.61 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | USB Switch | 1 | 1:1 | High Side | P-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 1.5A | 90mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | Surface Mount |
|

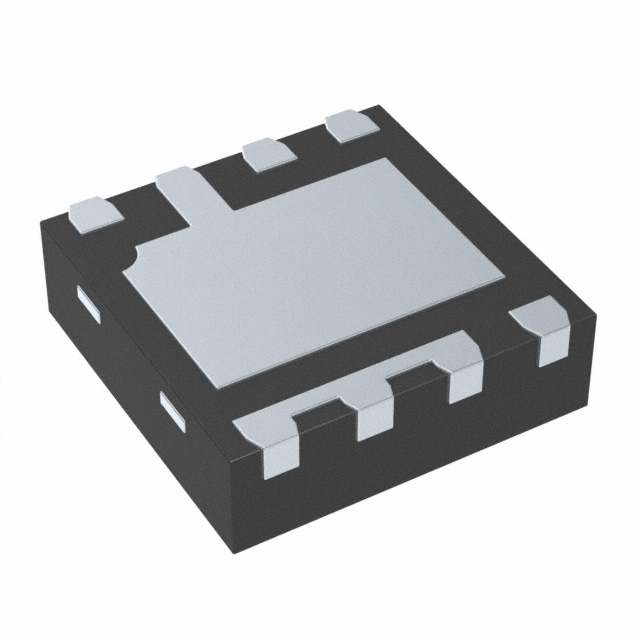

DML10M8LDS-13IC PWR SWITCH N-CHAN 1:1 8VDFN |
3,480 | 0.62 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 1.5V (Max) | 3.2V ~ 5.5V | 6A | 8mOhm | CMOS | Load Discharge | - | -40°C ~ 85°C (TA) | Surface Mount |
|
|
AP2101MPG-13IC PWR SWITCH P-CHAN 1:1 8MSOP |
2,313 | 0.71 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | USB Switch | 1 | 1:1 | High Side | P-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 2A | 90mOhm | Non-Inverting | Load Discharge, Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -35°C ~ 85°C (TA) | Surface Mount |
|
|
ZXMS6002GTAIC PWR DRIVER N-CHAN 1:1 SOT223 |
3,925 | 1.64 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | INTELLIFET® | Last Time Buy | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 60V (Max) | Not Required | 1.6A | 385mOhm | Non-Inverting | Auto Restart | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | Surface Mount |
|
AP22916CCA4-7LOAD SWITCH X1-WLB0808-4 T&R 3K |
2,338 | 0.45 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 1.3V ~ 5.5V | Not Required | 2A | 60mOhm | Non-Inverting | Load Discharge, Slew Rate Controlled | Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | Surface Mount |
|
AP22817BKBWT-7USBPOWERSWITCHTSOT25T&R3K |
2,020 | 0.46 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q100 | Active | USB Switch | 1 | 1:1 | High Side | N/P-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 1.5A | 75mOhm | Inverting | Load Discharge, Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, Short Circuit, UVLO | -40°C ~ 85°C (TA) | Surface Mount |
|
|
AP22818AKBWT-7USBPOWERSWITCHTSOT25T&R3K |
3,084 | 0.46 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q100 | Active | USB Switch | 1 | 1:1 | High Side | N/P-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 2A | 75mOhm | Non-Inverting | Load Discharge, Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, Short Circuit, UVLO | -40°C ~ 85°C (TA) | Surface Mount |
|
|
AP22817AKAWT-7USBPOWERSWITCHTSOT25T&R3K |
3,361 | 0.46 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q100 | Active | USB Switch | 1 | 1:1 | High Side | N/P-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 1.5A | 75mOhm | Non-Inverting | Load Discharge, Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, Short Circuit, UVLO | -40°C ~ 85°C (TA) | Surface Mount |
