| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | SwitchType | NumberofOutputs | Ratio-Input:Output | OutputConfiguration | OutputType | Interface | Voltage-Load | Voltage-Supply(Vcc/Vdd) | Current-Output(Max) | RdsOn(Typ) | InputType | Features | FaultProtection | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

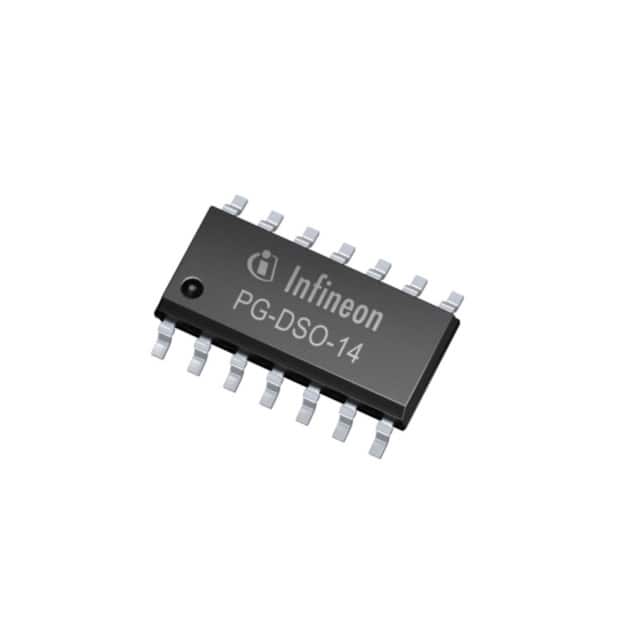

BTT60101EKAXUMA1IC PWR SWITCH N-CHAN 1:1 DSO-14 |
2,076 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | - | Last Time Buy | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 5V ~ 36V | Not Required | 9A | 10mOhm | Non-Inverting | - | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | Surface Mount |
|
BTS710336ESAXUMA1SPOC |
2,020 | 2.66 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q100, SPOC™ | Active | General Purpose | 6 | 1:1 | High Side | - | SPI | 6V ~ 18V | Not Required | 3A | 22.5mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | Surface Mount |
|
|
BTT60302EKAXUMA1IC PWR SWITCH N-CHAN 1:1 DSO-14 |
3,423 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | Automotive, AEC-Q100 | Last Time Buy | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 5V ~ 36V | Not Required | 4A | 32mOhm | Non-Inverting | - | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | Surface Mount |
|
BTS730XUMA1IC PWR SWITCH N-CHAN 1:1 DSO-20 |
2,953 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | - | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 5.9V ~ 16.9V | Not Required | 3A | 70mOhm (Max) | Non-Inverting | Auto Restart | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | Surface Mount |
|
BTT62004EMAXUMA1IC PWR SWITCH N-CHAN 1:1 24SSOP |
3,216 | 2.90 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Last Time Buy | General Purpose | 4 | 1:1 | High Side | N-Channel | On/Off | 5V ~ 36V | Not Required | 1A | 200mOhm | Non-Inverting | - | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | Surface Mount |
|
BTT60101ERBXUMA1IC PWR SWITCH N-CHAN 1:1 TDSO-14 |
3,046 | 2.93 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q100, PROFET® | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 5V ~ 36V | Not Required | 9A | 10mOhm | Non-Inverting | - | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | Surface Mount |
|
BTS500201TADATMA2IC PWR SWITCH N-CHAN 1:1 TO263-7 |
3,405 | 3.20 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q100, Reversave™ | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 8V ~ 18V | Not Required | 29A | 3mOhm | Non-Inverting | - | Over Temperature, Over Voltage, Reverse Battery, Short Circuit | -40°C ~ 150°C (TJ) | Surface Mount |
|
|
TLE7234SEXUMA1IC PWR DRIVER N-CHAN 3:8 DSO-20 |
58,838 | 2.46 |
RFQ |
Datasheet |
Tape & Reel (TR),Bulk | - | Not For New Designs | General Purpose | 8 | 3:8 | High Side or Low Side | N-Channel | SPI | 9V ~ 16V | 3V ~ 5.5V | 140mA, 280mA | 850mOhm, 1.6Ohm | - | - | Open Load Detect, Over Temperature | -40°C ~ 150°C (TJ) | Surface Mount |
|
|
TLE8104EXTIC PWR SWITCH N-CHAN 1:1 DSO-20 |
2,582 | 3.26 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Not For New Designs | General Purpose | 4 | 1:1 | Low Side | N-Channel | SPI | 4.5V ~ 5.5V | - | 1A | 320mOhm | - | - | Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | Surface Mount |
|
|
TLE7236SEXUMA1IC PWR DRIVER N-CHAN 1:8 DSO-20 |
2,433 | 3.30 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Not For New Designs | General Purpose | 8 | 1:8 | High Side or Low Side | N-Channel | SPI | 9V ~ 16V | 3V ~ 5.5V | 140mA, 280mA | 850mOhm, 1.6Ohm | - | - | Open Load Detect, Over Temperature | -40°C ~ 150°C (TJ) | Surface Mount |
|

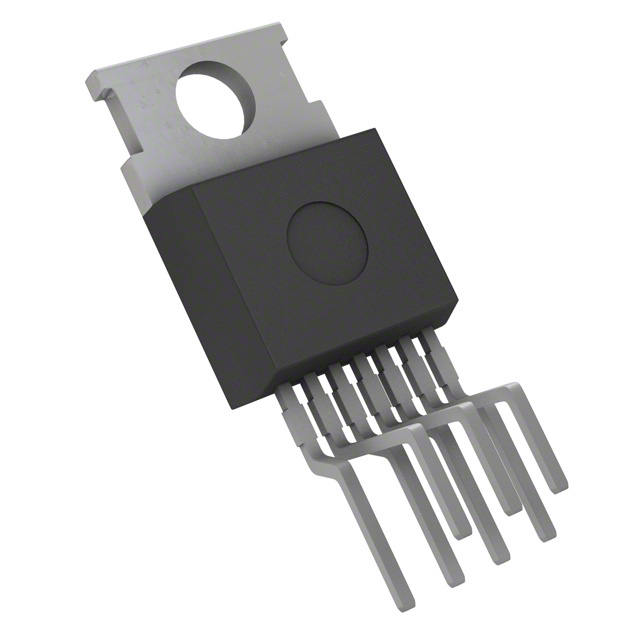

BTS500801TMCATMA1IC PWR SWITCH N-CHAN 1:1 TO220-7 |
3,756 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Bulk | PROFET® | Not For New Designs | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 5.5V ~ 38V | Not Required | 9.5A | 7mOhm | Non-Inverting | Auto Restart | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | Surface Mount |
|
TLE8104EXUMA2IC PWR SWITCH N-CHAN 1:1 DSO-20 |
3,598 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | Automotive, AEC Qualified | Not For New Designs | General Purpose | 4 | 1:1 | Low Side | N-Channel | SPI | 4.5V ~ 5.5V | - | 1A | 320mOhm | - | - | Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | Surface Mount |
|
BTS5482SFXUMA2IC PWR SWITCH N-CHAN 3:4 DSO-36 |
2,058 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | Automotive, AEC-Q100 | Not For New Designs | General Purpose | 4 | 3:4 | High Side | N-Channel | SPI | 4.5V ~ 28V | 3V ~ 5.5V | - | 4mOhm, 15mOhm | - | Slew Rate Controlled | Current Limiting (Fixed), Over Temperature, Over Voltage, UVLO | -40°C ~ 150°C (TJ) | Surface Mount |
|
|
BTS5460SFXUMA1IC PWR SWITCH N-CHAN 3:4 DSO-36 |
2,456 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Bulk | Reversave™ | Not For New Designs | General Purpose | 4 | 3:4 | High Side | N-Channel | SPI | 8V ~ 17V | 3V ~ 5.5V | - | 3.5mOhm, 11mOhm | - | Slew Rate Controlled | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | Surface Mount |
|
|
BTS5480SFXUMA1IC PWR SWITCH N-CHAN 3:4 DSO-36 |
3,639 | 5.47 |
RFQ |
Datasheet |
Tape & Reel (TR) | Reversave™ | Not For New Designs | General Purpose | 4 | 3:4 | High Side | N-Channel | SPI | 8V ~ 17V | 3V ~ 5.5V | - | 3.5mOhm, 11mOhm | - | Slew Rate Controlled | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | Surface Mount |
|
BTS500151TMAAKSA1IC PWR SWITCH N-CHAN 1:1 TO220-7 |
3,513 | 1.00 |
RFQ |
Datasheet |
Bulk,Tube | Automotive, AEC-Q100 | Not For New Designs | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 5.5V ~ 28V | Not Required | 33A | - | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | Through Hole |
|
|
TLE8110EEXUMA2IC PWR SWITCH N-CHAN 1:1 DSO-36 |
3,464 | 6.02 |
RFQ |
Datasheet |
Tape & Reel (TR),Bulk | Automotive | Not For New Designs | General Purpose | 10 | 1:1 | Low Side | N-Channel | SPI, Parallel | 3V ~ 5.5V | 4.5V ~ 5.5V | - | - | - | - | Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | Surface Mount |
|
TLE92464EDXUMA1TRANSMISSION_ICS PG-DSO-36 |
3,219 | 8.49 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q100 | Active | Relay, Solenoid Driver | 4 | 1:1 | Low Side | N-Channel | On/Off | 6V ~ 18V | 4.5V ~ 5.5V | 2.7A | 215mOhm (Max) | Non-Inverting | Slew Rate Controlled | Current Limiting (Adjustable), Open Load Detect, Over Temperature, Over Voltage, Reverse Current, Short Circuit | -40°C ~ 150°C (TJ) | Surface Mount |
|

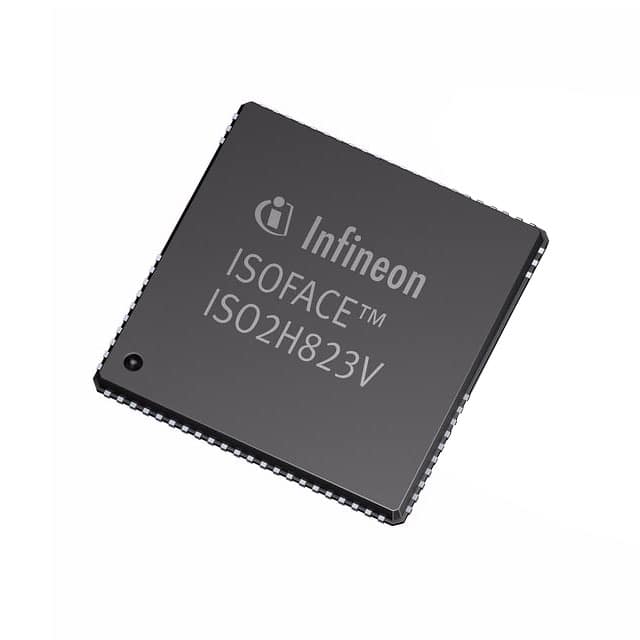

ISO2H823V25XUMA1IC PWR SWITCH P-CHAN 1:8 70VQFN |
3,289 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | ISOFACE™ | Active | General Purpose | 8 | 1:8 | High Side | P-Channel | SPI, Parallel | 11V ~ 35V | 2.75V ~ 3.6V | - | 210mOhm | - | - | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 85°C (TA) | Surface Mount |
|
TLE82452SAAUMA1IC PWR DRIVER N-CHAN 1:2 DSO-36 |
2,815 | 10.67 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Not For New Designs | Relay, Solenoid Driver | 2 | 1:2 | High Side or Low Side | N-Channel | SPI | 5.5V ~ 40V | 4.75V ~ 5.25V | 1.6A | 250mOhm (Max) | - | Slew Rate Controlled | Current Limiting (Fixed), Over Temperature | -40°C ~ 150°C (TJ) | Surface Mount |
