| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | SwitchType | NumberofOutputs | Ratio-Input:Output | OutputConfiguration | OutputType | Interface | Voltage-Load | Voltage-Supply(Vcc/Vdd) | Current-Output(Max) | RdsOn(Typ) | InputType | Features | FaultProtection | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAX893LESA+TIC PWR SWITCH P-CHAN 1:1 8SOIC |
8,180 | 2.54 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 1.2A | 70mOhm | Non-Inverting | - | Current Limiting (Adjustable), Over Temperature | -40°C ~ 85°C (TA) | Surface Mount |
|
|
MAX890LESA+TIC PWR SWITCH P-CHAN 1:1 8SOIC |
4,050 | 3.52 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 1.2A | 75mOhm | Non-Inverting | Status Flag | Current Limiting (Adjustable), Over Temperature | -40°C ~ 85°C (TA) | Surface Mount |
|
MAX891LEUA+TIC PWR SWITCH P-CHAN 1:1 8UMAX |
6,613 | 4.03 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 500mA | 120mOhm | Non-Inverting | Status Flag | Current Limiting (Adjustable), Over Temperature | -40°C ~ 85°C (TA) | Surface Mount |
|

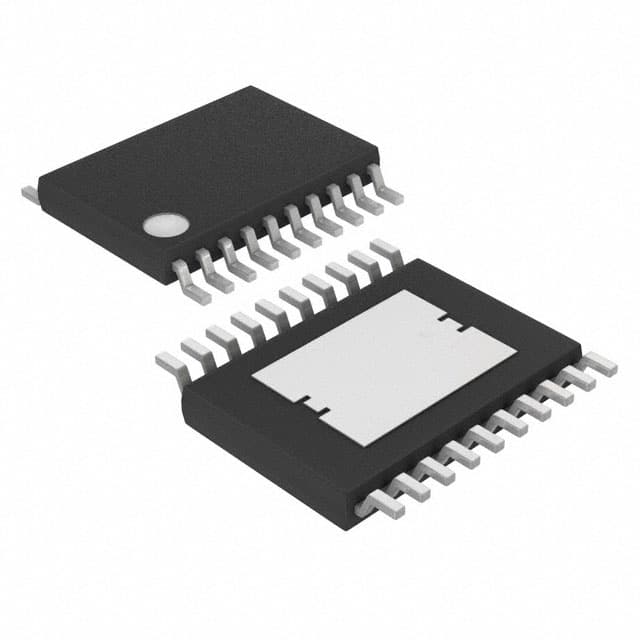

MAX4821EUP+TIC PWR DRIVER N-CHAN 1:8 20TSSOP |
5,748 | 4.58 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Relay, Solenoid Driver | 8 | 1:8 | Low Side | N-Channel | Parallel, Serial | 2.3V ~ 5.5V | - | 70mA | 2Ohm | - | - | - | -40°C ~ 85°C (TA) | Surface Mount |
|
MAX4820ETP+TIC PWR DRIVER N-CHAN 1:8 20TQFN |
2,180 | 4.58 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Relay, Solenoid Driver | 8 | 1:8 | Low Side | N-Channel | SPI | 2.3V ~ 5.5V | - | 70mA | 2Ohm | - | - | - | -40°C ~ 150°C (TJ) | Surface Mount |
|
|
MAX4820EUP+TIC PWR DRIVER N-CHAN 1:8 20TSSOP |
2,519 | 4.72 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Relay, Solenoid Driver | 8 | 1:8 | Low Side | N-Channel | SPI | 2.3V ~ 5.5V | - | 70mA | 2Ohm | - | - | - | -40°C ~ 85°C (TA) | Surface Mount |
|
|
MAX890LESA+IC PWR SWITCH P-CHAN 1:1 8SOIC |
3,375 | 3.42 |
RFQ |
Datasheet |
Tube | - | Active | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 1.2A | 75mOhm | Non-Inverting | Status Flag | Current Limiting (Adjustable), Over Temperature | -40°C ~ 85°C (TA) | Surface Mount |
|
|
MAX4822ETP+TIC PWR DRIVER N-CHAN 1:8 20TQFN |
4,078 | 6.33 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Relay, Solenoid Driver | 8 | 1:8 | Low Side | N-Channel | SPI | 2.3V ~ 5.5V | Not Required | 70mA | 2.7Ohm | Non-Inverting | - | - | -40°C ~ 85°C (TA) | Surface Mount |
|
|
MAX892LEUA+IC PWR SWITCH P-CHAN 1:1 8UMAX |
5,685 | 4.13 |
RFQ |
Datasheet |
Tube | - | Active | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 250mA | 250mOhm | Non-Inverting | Status Flag | Current Limiting (Adjustable), Over Temperature | -40°C ~ 85°C (TA) | Surface Mount |
|
MAX13253ATB+TIC PWR DRIVER N-CHAN 1:2 10TDFN |
4,619 | 8.27 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | General Purpose | 2 | 1:2 | Low Side | N-Channel | On/Off | 3V ~ 5.5V | Not Required | 1A | 145mOhm | - | Watchdog Timer | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 150°C (TJ) | Surface Mount |
|
|
MAX4896ETP+TIC PWR DRIVER N-CHAN 1:8 20TQFN |
3,657 | 7.81 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Relay, Solenoid Driver | 8 | 1:8 | Low Side | N-Channel | SPI | 2.7V ~ 5.5V | - | 410mA | 3Ohm | Non-Inverting | Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature | -40°C ~ 85°C (TA) | Surface Mount |
|
|
MAX4896ATP+TIC PWR DRIVER N-CHAN 1:8 20TQFN |
4,187 | 8.26 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Relay, Solenoid Driver | 8 | 1:8 | Low Side | N-Channel | SPI | 2.7V ~ 5.5V | - | 410mA | 3Ohm | Non-Inverting | Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature | -40°C ~ 125°C (TA) | Surface Mount |
|
|
MAX4820ETP+IC PWR DRIVER N-CHAN 1:8 20TQFN |
1,894 | 5.22 |
RFQ |
Datasheet |
Tube | - | Active | Relay, Solenoid Driver | 8 | 1:8 | Low Side | N-Channel | SPI | 2.3V ~ 5.5V | - | 70mA | 2Ohm | - | - | - | -40°C ~ 150°C (TJ) | Surface Mount |
|
|
MAX4820EUP+IC PWR DRIVER N-CHAN 1:8 20TSSOP |
6,223 | 5.33 |
RFQ |
Datasheet |
Tube | - | Active | Relay, Solenoid Driver | 8 | 1:8 | Low Side | N-Channel | SPI | 2.3V ~ 5.5V | - | 70mA | 2Ohm | - | - | - | -40°C ~ 150°C (TJ) | Surface Mount |
|
|
MAX4896ETP+IC PWR DRIVER N-CHAN 1:8 20TQFN |
2,241 | 7.97 |
RFQ |
Datasheet |
Tube | - | Active | Relay, Solenoid Driver | 8 | 1:8 | Low Side | N-Channel | SPI | 2.7V ~ 5.5V | - | 410mA | 3Ohm | Non-Inverting | Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature | -40°C ~ 85°C (TA) | Surface Mount |
|
MAX14917AFM+INDUSTRIAL OCTAL HIGH SIDE DRIVE |
135 | 9.47 |
RFQ |
Datasheet |
Strip | - | Active | General Purpose | 8 | 1:1 | High Side | - | SPI | 10V ~ 36V | Not Required | - | 120mOhm | Non-Inverting | Load Discharge | Current Limiting (Fixed), Over Temperature | -40°C ~ 125°C (TA) | Surface Mount |
|
MAX14916AFM+IC DVR OCTAL LOW SIDE |
3,320 | 11.04 |
RFQ |
Datasheet |
Strip | - | Active | General Purpose | 8 | 1:8 | High Side | - | SPI, Parallel | 10V ~ 36V | 2.5V ~ 5.5V | 1.67A | 120mOhm | - | Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature, UVLO | -40°C ~ 125°C (TA) | Surface Mount |
|

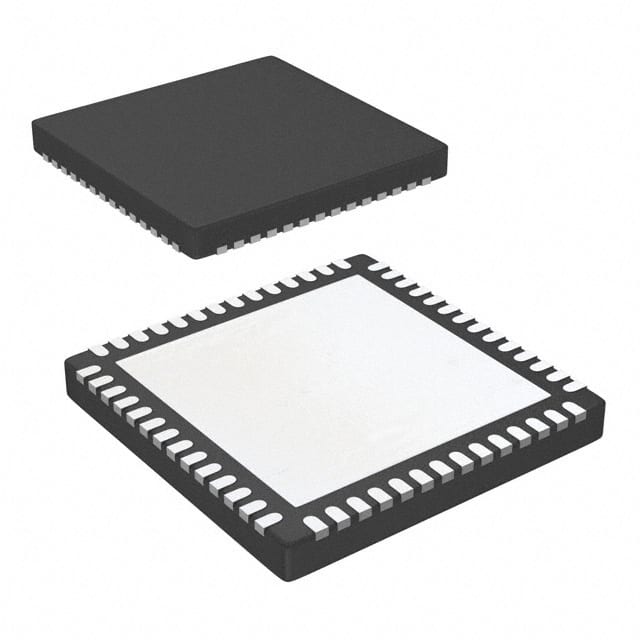

MAX14913AKN+IC PWR DRIVER 1:8 56QFN |
3,054 | 15.75 |
RFQ |
Datasheet |
Tube | - | Active | General Purpose | 8 | 1:8 | High Side | - | SPI, Parallel | 10.5V ~ 36V | 1.6V ~ 5.5V | - | 110mOhm | - | Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage, UVLO | -40°C ~ 125°C (TA) | Surface Mount |
|
MAX1693EUB+TIC PWR SWITCH P-CHAN 1:1 10UMAX |
3,057 | 2.54 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | USB Switch | 1 | 1:1 | High Side | P-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 700mA | 60mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature | -40°C ~ 85°C (TA) | Surface Mount |
|
|
MAX14919AATP+QUAD INDUSTRIAL LOW SIDE SWITCH |
1,930 | 3.98 |
RFQ |
Tray | - | Active | General Purpose | 4 | 1:1 | Low Side | - | Logic | 4.5V ~ 5.5V | Not Required | - | 140mOhm | - | Shutdown | Over Temperature, Reverse Current, UVLO | -40°C ~ 125°C (TA) | Surface Mount |
