Power Relays, Over 2 Amps(23635)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | CoilInsulation | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature | ContactMaterial |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

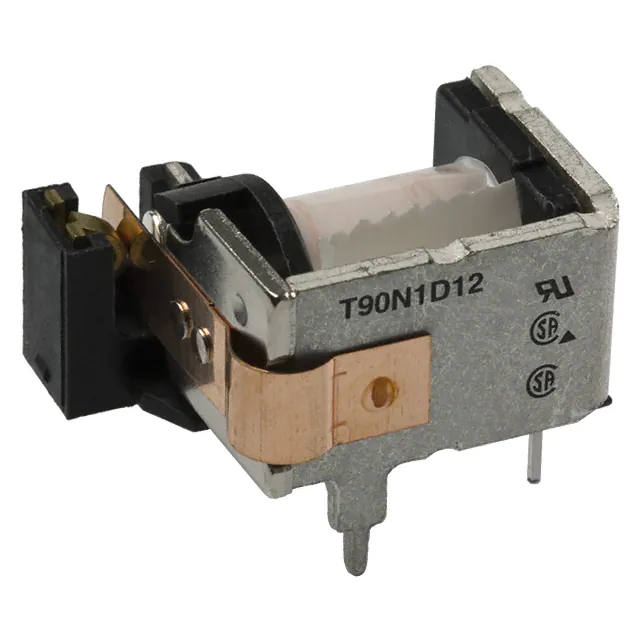

T90N5D42-12RELAY GEN PURPOSE SPDT 20A 12V |
3,245 | 0.00 |
RFQ |
Datasheet |
Tray | T90 | Active | Through Hole | 12VDC | SPDT (1 Form C) | 20 A | 240VAC, 28VDC - Max | 77 mA | Non Latching | - | PC Pin | - | Class F | 9 VDC | 1.2 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) |
|
|
T90N5D42-24RELAY GEN PURPOSE SPDT 20A 24V |
2,710 | 0.00 |
RFQ |
Datasheet |
Tray | T90 | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 20 A | 240VAC, 28VDC - Max | 36 mA | Non Latching | - | PC Pin | - | Class F | 18 VDC | 2.4 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) |
|

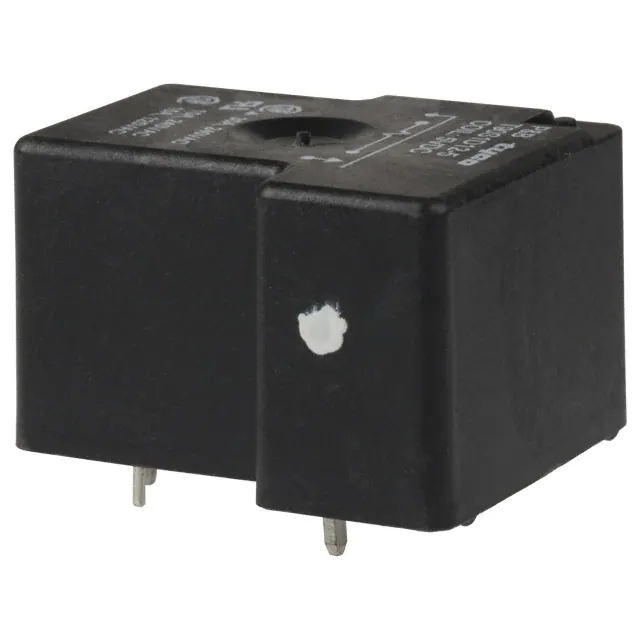

T90S1D42-110RELAY GEN PURPOSE SPST 30A 110V |
3,815 | 0.00 |
RFQ |
Datasheet |
Bulk | T90 | Obsolete | Through Hole | 110VDC | SPST-NO (1 Form A) | 30 A | 240VAC, 28VDC - Max | 8 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 82.5 VDC | 11 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) |
|
T9AV5D12-24RELAY GEN PURPOSE SPDT 20A 24V |
2,942 | 0.00 |
RFQ |
Datasheet |
Bulk | T9A | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 20 A | 277VAC - Max | 41.7 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 18 VDC | 2.4 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) |
|
|
T9AV1D12-18RELAY GEN PURPOSE SPST 30A 18V |
3,267 | 0.00 |
RFQ |
Datasheet |
Bulk | T9A | Obsolete | Through Hole | 18VDC | SPST-NO (1 Form A) | 30 A | 277VAC - Max | 55.6 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 13.5 VDC | 1.8 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) |
|
V23057A 1A401RELAY GEN PURPOSE SPDT 8A 6V |
3,507 | 0.00 |
RFQ |
Datasheet |
Tray | V23057, SCHRACK | Active | Through Hole | 6VDC | SPDT (1 Form C) | 8 A | 400VAC - Max | 75 mA | Non Latching | - | PC Pin | - | - | 4 VDC | 0.6 VDC | 7 ms | 3 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) |
|
|
V23057B 2A402RELAY GEN PURPOSE SPST 8A 12V |
3,736 | 0.00 |
RFQ |
Datasheet |
Tray | V23057, SCHRACK | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 8 A | 400VAC - Max | 36.3 mA | Non Latching | - | PC Pin | - | - | 8 VDC | 1.2 VDC | 7 ms | 3 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) |
|

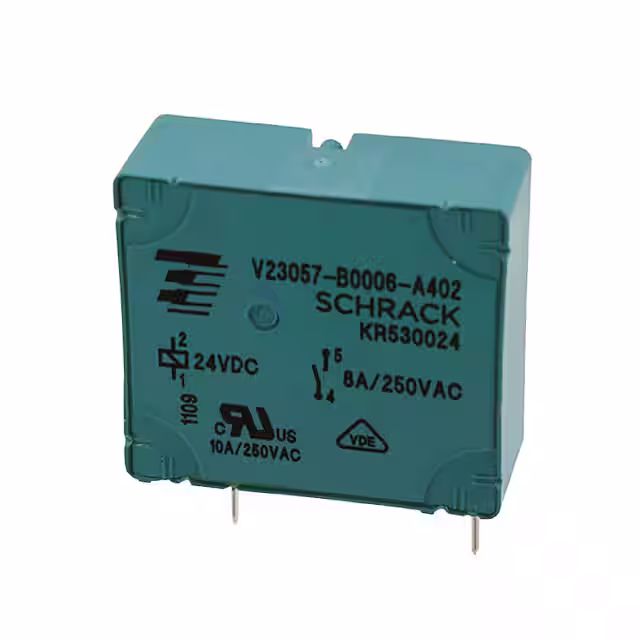

V23057B 6A402RELAY GEN PURPOSE SPST 8A 24V |
2,159 | 0.00 |
RFQ |
Datasheet |
Tray | V23057, SCHRACK | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 8 A | 400VAC - Max | 20 mA | Non Latching | - | PC Pin | - | - | 16 VDC | 2.4 VDC | 7 ms | 3 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) |
|
|
V23057B 2B101RELAY GEN PURPOSE SPDT 5A 12V |
3,586 | 0.00 |
RFQ |
Datasheet |
Tray | V23057, SCHRACK | Active | Through Hole | 12VDC | SPDT (1 Form C) | 5 A | 400VAC - Max | 36.3 mA | Non Latching | - | PC Pin | - | - | 8 VDC | 1.2 VDC | 7 ms | 3 ms | -40°C ~ 70°C | Silver Nickel (AgNi) |
|

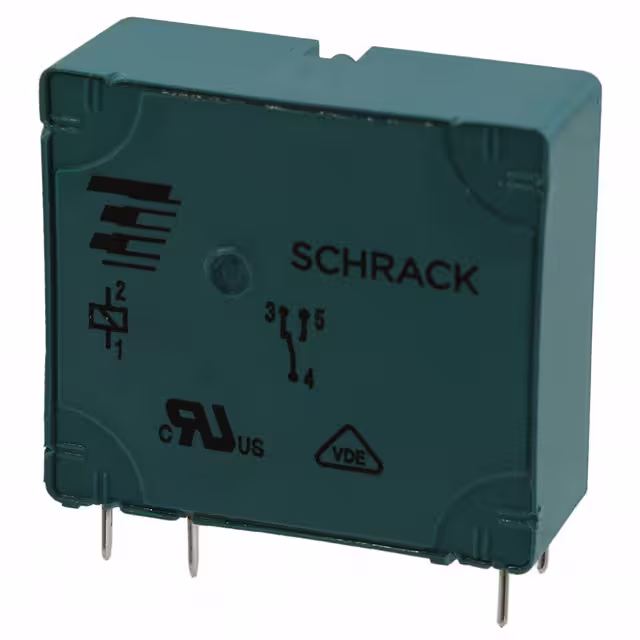

8-1393215-9RELAY GEN PURPOSE SPDT 5A 24V |
3,455 | 0.00 |
RFQ |
Datasheet |
Tray | V23057, SCHRACK | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 5 A | 400VAC - Max | 20 mA | Non Latching | - | PC Pin | - | - | 16 VDC | 2.4 VDC | 7 ms | 3 ms | -40°C ~ 70°C | Silver Nickel (AgNi) |
|
|
V23057B 13A101RELAY GEN PURPOSE SPDT 5A 48V |
2,517 | 0.00 |
RFQ |
Datasheet |
Tray | V23057, SCHRACK | Discontinued at Mosen | Through Hole | 48VDC | SPDT (1 Form C) | 5 A | 400VAC - Max | 10.2 mA | Non Latching | - | PC Pin | - | - | 32 VDC | 4.8 VDC | 7 ms | 3 ms | -40°C ~ 70°C | Silver Nickel (AgNi) |
|
REL30012RELAY GEN PURPOSE SPST 6A 12V |
2,219 | 0.00 |
RFQ |
Datasheet |
Tube | REL, SCHRACK | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 6 A | 400VAC - Max | 30 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 9 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) |
|
|

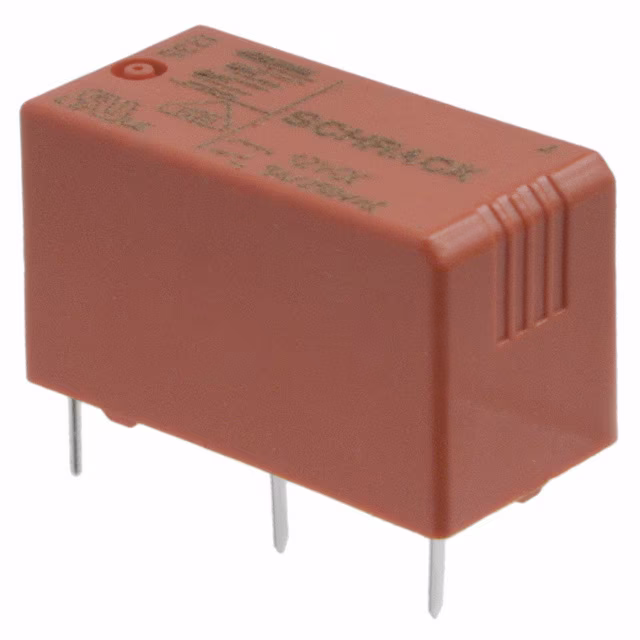

4-1393217-7RELAY GEN PURPOSE SPST 6A 24V |
3,544 | 0.00 |
RFQ |
Datasheet |
Tube | REL, SCHRACK | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 6 A | 400VAC - Max | 15 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 18 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) |
|
V23061A1002A402RELAY GEN PURPOSE SPST 8A 5V |
3,063 | 0.00 |
RFQ |
Datasheet |
Tube | MSR, SCHRACK | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 8 A | 400VAC - Max | 42.4 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 3.4 VDC | 0.5 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) |
|
|
V23061A1003A402RELAY GEN PURPOSE SPST 8A 6V |
2,682 | 0.00 |
RFQ |
Tube | MSR, SCHRACK | Obsolete | Through Hole | 6VDC | SPST-NO (1 Form A) | 8 A | 400VAC - Max | 36.3 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 4.1 VDC | 0.6 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | |
|
|
1-1393222-6RELAY GEN PURPOSE SPST 8A 9V |
2,221 | 0.00 |
RFQ |
Tube | MSR, SCHRACK | Obsolete | Through Hole | 9VDC | SPST-NO (1 Form A) | 8 A | 400VAC - Max | 24.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 6.1 VDC | 0.9 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | |
|
|
V23061A1009A402RELAY GEN PURPOSE SPST 8A 48V |
3,058 | 0.00 |
RFQ |
Tube | MSR, SCHRACK | Obsolete | Through Hole | 48VDC | SPST-NO (1 Form A) | 8 A | 400VAC - Max | 5.5 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 32.6 VDC | 4.8 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | |
|
|
V23061A1010A402RELAY GEN PURPOSE SPST 8A 60V |
2,627 | 0.00 |
RFQ |
Tube | MSR, SCHRACK | Obsolete | Through Hole | 60VDC | SPST-NO (1 Form A) | 8 A | 400VAC - Max | 4 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 40.8 VDC | 6 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | |
|
|
6-1393222-8RELAY GEN PURPOSE SPST 8A 5V |
3,963 | 0.00 |
RFQ |
Tube | MSR, SCHRACK | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 8 A | 400VAC - Max | 42.4 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class A | 3.4 VDC | 0.5 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | |
|
|
7-1393222-0RELAY GEN PURPOSE SPDT 8A 3V |
3,932 | 0.00 |
RFQ |
Tube | MSR, SCHRACK | Obsolete | Through Hole | 3VDC | SPDT (1 Form C) | 8 A | 400VAC - Max | 73.3 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 2.1 VDC | 0.3 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) |
