Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	MountingType	CoilVoltage	ContactForm	ContactRating(Current)	SwitchingVoltage	CoilCurrent	CoilType	Features	TerminationStyle	SealRating	CoilInsulation	MustOperateVoltage	MustReleaseVoltage	OperateTime	ReleaseTime	OperatingTemperature	ContactMaterial
DK1A-9V-F RELAY GEN PURPOSE SPST 10A 9V Panasonic Electric Works	100	10.04	RFQ	Datasheet	Box	DK	Active	Through Hole	9VDC	SPST-NO (1 Form A)	10 A	250VAC, 125VDC - Max	22.2 mA	Non Latching	-	PC Pin	Sealed - Fully	-	6.3 VDC	0.9 VDC	10 ms	8 ms	-40°C ~ 65°C	Silver Tin Oxide (AgSnO)
DSP1-L2-DC3V-F RELAY GEN PURPOSE DPST 5A 3V Panasonic Electric Works	3,132	10.13	RFQ	Datasheet	Bulk	DSP	Active	Through Hole	3VDC	DPST-NO/NC (1 Form A, 1 Form B)	5 A	250VAC, 30VDC - Max	100 mA	Latching, Dual Coil	-	PC Pin	Sealed - Fully	-	2.4 VDC	-	10 ms	5 ms	-40°C ~ 65°C	Silver Tin Oxide (AgSnO)

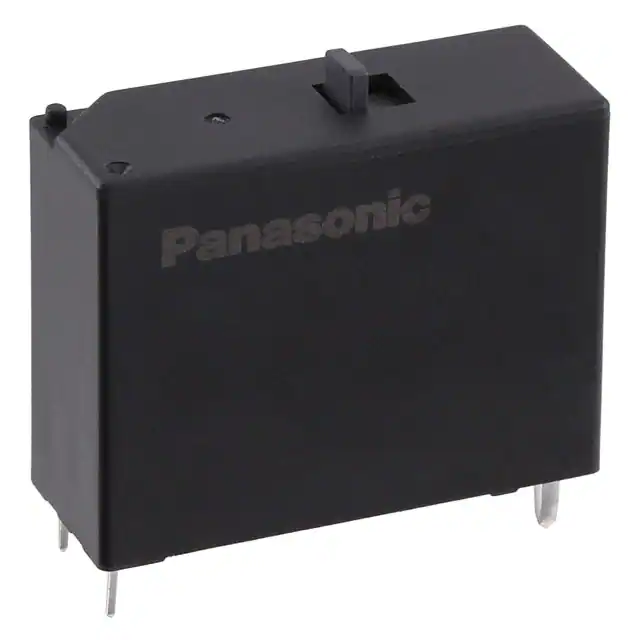

ADJH21124 RELAY GEN PURPOSE SPST 50A 24V Panasonic Electric Works	2,126	12.66	RFQ	Datasheet	Tray	ADJH	Active	Through Hole	24VDC	SPST-NO (1 Form A)	50 A	480VAC - Max	41.7 mA	Latching, Single Coil	Test Button	PC Pin	Sealed - Flux Protection	Class F	18 VDC	-	20 ms	20 ms	-40°C ~ 85°C	Silver Tin Oxide (AgSnO)
ADJH22012 RELAY GEN PURPOSE SPST 50A 12V Panasonic Electric Works	3,346	12.66	RFQ	Datasheet	Tray	ADJH	Active	Through Hole	12VDC	SPST-NO (1 Form A)	50 A	480VAC - Max	83.3 mA	Latching, Single Coil	-	PC Pin	Sealed - Flux Protection	Class F	9 VDC	-	20 ms	20 ms	-40°C ~ 85°C	Silver Tin Oxide (AgSnO)

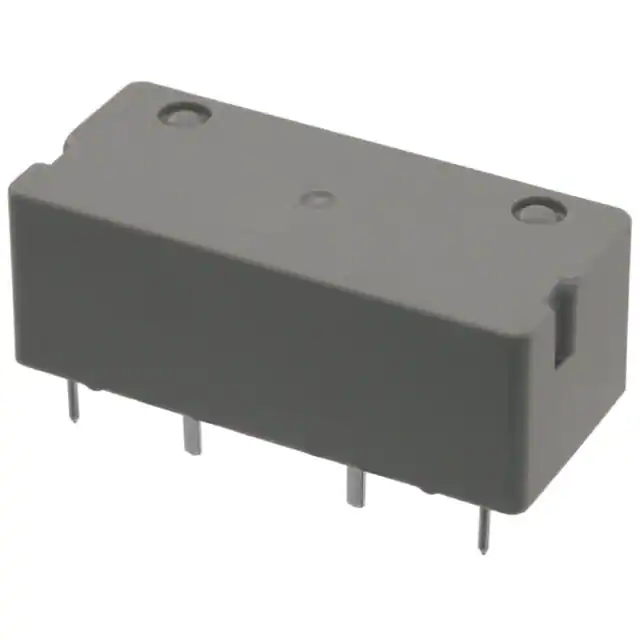

ST1-DC48V-F RELAY GEN PURPOSE DPST 8A 48V Panasonic Electric Works	3,242	12.73	RFQ	Datasheet	Box	ST	Active	Through Hole	48VDC	DPST-NO/NC (1 Form A, 1 Form B)	8 A	250VAC - Max	5.3 mA	Non Latching	-	PC Pin	Sealed - Fully	-	38.4 VDC	4.8 VDC	15 ms	10 ms	-40°C ~ 60°C	Silver Tin Oxide (AgSnO)
ADJH23124 RELAY GEN PURPOSE SPST 50A 24V Panasonic Electric Works	3,188	13.83	RFQ	Datasheet	Tray	ADJH	Active	Through Hole	24VDC	SPST-NO (1 Form A)	50 A	480VAC - Max	83.3 mA	Latching, Dual Coil	Test Button	PC Pin	Sealed - Flux Protection	Class F	18 VDC	-	20 ms	20 ms	-40°C ~ 85°C	Silver Tin Oxide (AgSnO)
ADJH24024 RELAY GEN PURPOSE SPST 50A 24V Panasonic Electric Works	3,903	13.83	RFQ	Datasheet	Tray	ADJH	Active	Through Hole	24VDC	SPST-NO (1 Form A)	50 A	480VAC - Max	83.3 mA	Latching, Dual Coil	-	PC Pin	Sealed - Flux Protection	Class F	18 VDC	-	20 ms	20 ms	-40°C ~ 85°C	Silver Tin Oxide (AgSnO)

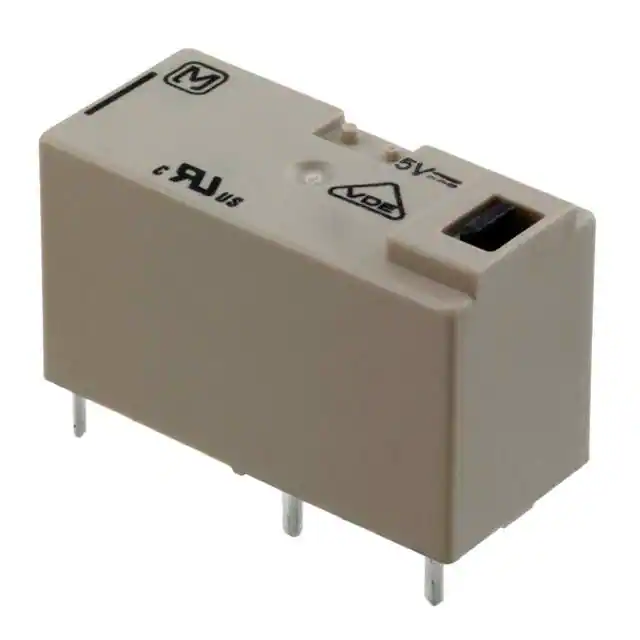

ADJ11105 RELAY GEN PURPOSE SPDT 16A 5V Panasonic Electric Works	3,952	14.68	RFQ	Datasheet	Tube	ADJ	Active	Through Hole	5VDC	SPDT (1 Form C)	16 A	250VAC - Max	30 mA	Latching, Single Coil	Test Button	PC Pin	Sealed - Flux Protection	-	3.5 VDC	-	20 ms	20 ms	-40°C ~ 70°C	Silver Tin Oxide (AgSnO)
DK2A-L2-24V RELAY GEN PURPOSE DPST 8A 24V Panasonic Electric Works	2,398	15.90	RFQ	Datasheet	Tube	DK	Active	Through Hole	24VDC	DPST-NO (2 Form A)	8 A	250VAC, 125VDC - Max	8.3 mA	Latching, Dual Coil	-	PC Pin	Sealed - Fully	-	16.8 VDC	-	10 ms	8 ms	-40°C ~ 65°C	Silver Nickel (AgNi)
DK2A-L2-12V RELAY GEN PURPOSE DPST 8A 12V Panasonic Electric Works	3,002	15.90	RFQ	Datasheet	Bulk	DK	Active	Through Hole	12VDC	DPST-NO (2 Form A)	8 A	250VAC, 125VDC - Max	16.7 mA	Latching, Dual Coil	-	PC Pin	Sealed - Fully	-	8.4 VDC	-	10 ms	8 ms	-40°C ~ 65°C	Silver Nickel (AgNi)
HE1AN-P-DC12V-H18 RELAY GEN PURPOSE SPST 35A 12V Panasonic Electric Works	2,753	16.35	RFQ	Datasheet	Bulk	HE-PV	Active	Through Hole	12VDC	SPST-NO (1 Form A)	35 A	250VAC - Max	160 mA	Non Latching	-	PC Pin	-	-	8.4 VDC	1.2 VDC	30 ms	10 ms	-50°C ~ 55°C	Silver Tin Oxide (AgSnO)
ST2-L2-DC48V-F RELAY GEN PURPOSE DPST 8A 48V Panasonic Electric Works	3,839	17.70	RFQ	Datasheet	Tube	ST	Active	Through Hole	48VDC	DPST-NO (2 Form A)	8 A	380VAC, 250VDC - Max	4.7 mA	Latching, Dual Coil	-	PC Pin	Sealed - Fully	-	38.4 VDC	-	10 ms	10 ms	-40°C ~ 60°C	Silver Tin Oxide (AgSnO)
S2EB-L2-24V RELAY GEN PURPOSE 4PST 4A 24V Panasonic Electric Works	2,704	20.51	RFQ	Datasheet	Tube	S	Active	Through Hole	24VDC	4PST-2NO/2NC (2 Form A, 2 Form B)	4 A	250VAC, 48VDC - Max	8.4 mA	Latching, Dual Coil	-	PC Pin	Sealed - Fully	-	16.8 VDC	-	15 ms	15 ms	-55°C ~ 65°C	Silver Alloy, Cadmium Free
S2EB-48V RELAY GEN PURPOSE 4PST 4A 48V Panasonic Electric Works	3,683	20.69	RFQ	Datasheet	Tray	S	Active	Through Hole	48VDC	4PST-2NO/2NC (2 Form A, 2 Form B)	4 A	250VAC, 48VDC - Max	5.6 mA	Non Latching	-	PC Pin	Sealed - Fully	-	33.6 VDC	4.8 VDC	15 ms	10 ms	-55°C ~ 65°C	Silver Alloy, Cadmium Free
HE2AN-Q-DC6V RELAY GEN PURPOSE DPST 25A 6V Panasonic Electric Works	3,857	21.77	RFQ	Datasheet	Bulk	HE	Active	Chassis Mount	6VDC	DPST-NO (2 Form A)	25 A	277VAC, 30VDC - Max	320 mA	Non Latching	-	Quick Connect - 0.250 (6.3mm)	-	-	4.2 VDC	0.6 VDC	30 ms	10 ms	-50°C ~ 55°C	Silver Tin Oxide (AgSnO)
AHES3190 RELAY GEN PURPOSE DPST 35A 6V Panasonic Electric Works	100	22.30	RFQ	Datasheet	Tray	HE-S	Active	Through Hole	6VDC	DPST-NO (2 Form A)	35 A	277VAC - Nom	313 mA	Non Latching	-	PC Pin	Sealed - Flux Protection	Class F	4.5 VDC	0.3 VDC	30 ms	10 ms	-40°C ~ 55°C	Silver Tin Oxide (AgSnO)

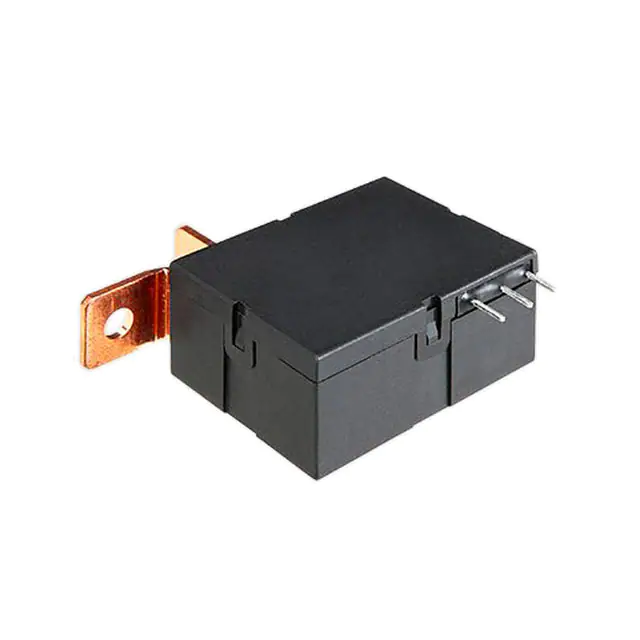

ADZS22124 RELAY GEN PURPOSE SPST 90A 24V Panasonic Electric Works	2,917	22.51	RFQ	Datasheet	Tray	ADZS	Active	Chassis Mount	24VDC	SPST-NO (1 Form A)	90 A	276VAC - Max	125 mA	Latching, Dual Coil	-	Screw Terminal	-	-	16.8 VDC	-	20 ms	20 ms	-40°C ~ 85°C	Silver Tin Oxide (AgSnO)
HE2AN-DC48V RELAY GEN PURPOSE DPST 25A 48V Panasonic Electric Works	2,952	22.56	RFQ	Datasheet	Bulk	HE	Active	Chassis Mount	48VDC	DPST-NO (2 Form A)	25 A	277VAC, 30VDC - Max	40 mA	Non Latching	-	Plug In, Quick Connect - 0.250 (6.3mm)	-	-	33.6 VDC	4.8 VDC	30 ms	10 ms	-50°C ~ 55°C	Silver Tin Oxide (AgSnO)
AHES3292 RELAY GEN PURPOSE DPST 35A 24V Panasonic Electric Works	3,475	23.12	RFQ	Datasheet	Tray	HE-S	Active	Through Hole	24VDC	DPST-NO (2 Form A)	35 A	277VAC - Nom	78 mA	Non Latching	-	PC Pin	Sealed - Flux Protection	Class F	18 VDC	1.2 VDC	30 ms	10 ms	-40°C ~ 55°C	Silver Tin Oxide (AgSnO)

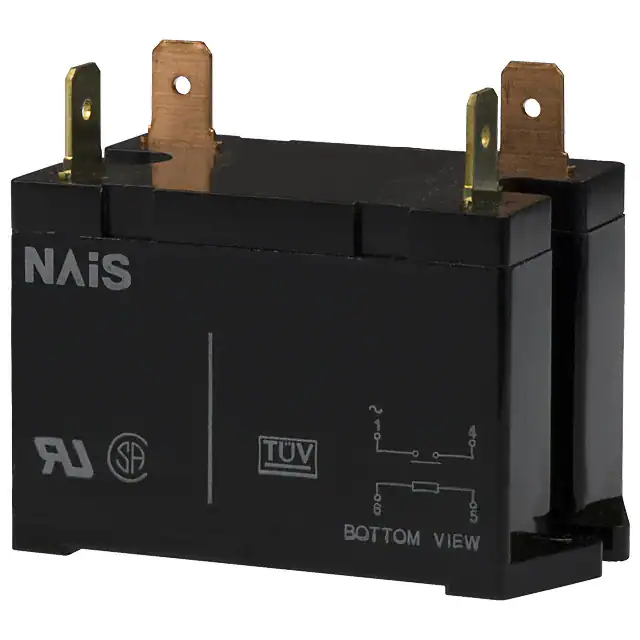

HE1AN-Q-DC24V RELAY GEN PURPOSE SPST 30A 24V Panasonic Electric Works	3,410	23.66	RFQ	Datasheet	Bulk	HE	Active	Chassis Mount	24VDC	SPST-NO (1 Form A)	30 A	277VAC, 30VDC - Max	80 mA	Non Latching	-	Quick Connect - 0.250 (6.3mm)	-	-	16.8 VDC	2.4 VDC	30 ms	10 ms	-50°C ~ 55°C	Silver Tin Oxide (AgSnO)
