| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | CoilInsulation | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature | ContactMaterial |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

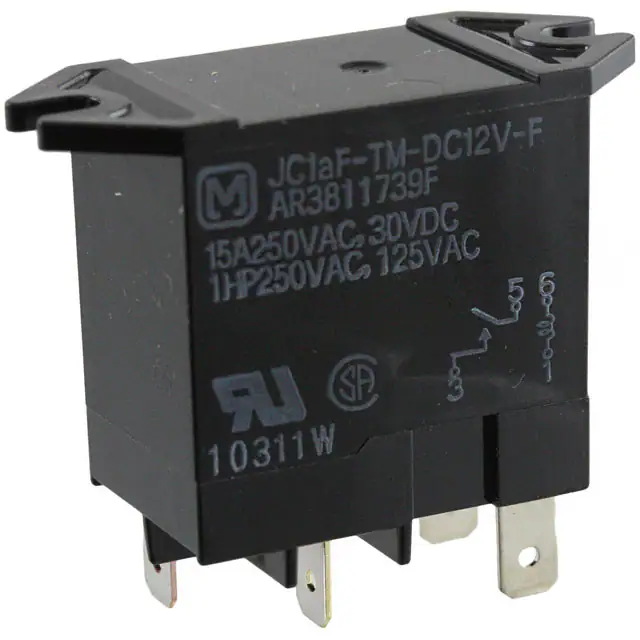

JC1AF-TM-DC12V-FRELAY GEN PURPOSE SPST 15A 12V |
3,241 | 0.00 |
RFQ |
Datasheet |
Bulk | JC | Obsolete | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 15 A | 250VAC - Max | 75 mA | Non Latching | - | Quick Connect - 0.187 (4.7mm) | - | - | 9.6 VDC | 1.2 VDC | 30 ms | 10 ms | -50°C ~ 60°C | Silver Tin Oxide (AgSnO) |
|

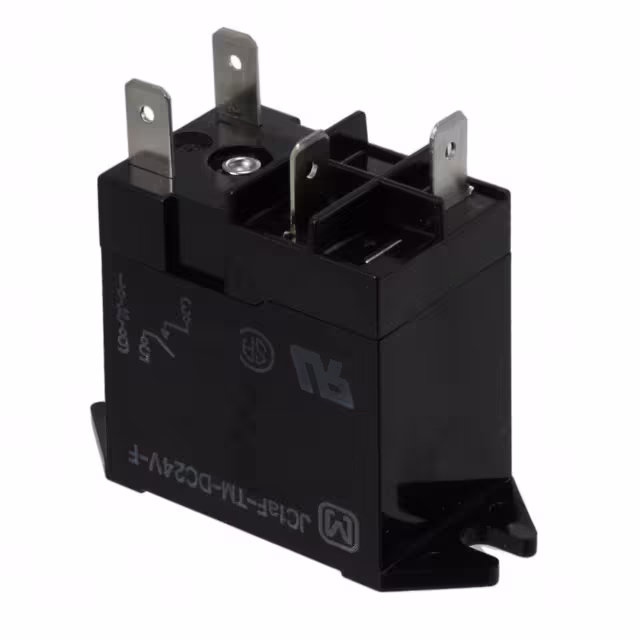

JC1AF-TM-DC24V-FRELAY GEN PURPOSE SPST 15A 24V |
3,935 | 0.00 |
RFQ |
Datasheet |
Bulk | JC | Obsolete | Chassis Mount | 24VDC | SPST-NO (1 Form A) | 15 A | 250VAC - Max | 37.5 mA | Non Latching | - | Quick Connect - 0.187 (4.7mm) | - | - | 19.2 VDC | 2.4 VDC | 30 ms | 10 ms | -50°C ~ 60°C | Silver Tin Oxide (AgSnO) |
|
JC2AF-DC48V-FRELAY GEN PURPOSE DPST 10A 48V |
3,951 | 0.00 |
RFQ |
Datasheet |
Bulk | JC | Obsolete | Through Hole | 48VDC | DPST-NO (2 Form A) | 10 A | 250VAC - Max | 20.8 mA | Non Latching | - | PC Pin | - | - | 38.4 VDC | 4.8 VDC | 30 ms | 10 ms | -50°C ~ 60°C | Silver Tin Oxide (AgSnO) |
|
JC2AF-TM-DC6V-FRELAY GEN PURPOSE DPST 10A 6V |
3,950 | 0.00 |
RFQ |
Datasheet |
Tray | JC | Obsolete | Chassis Mount | 6VDC | DPST-NO (2 Form A) | 10 A | 250VAC - Max | 167 mA | Non Latching | - | Quick Connect - 0.187 (4.7mm) | - | - | 4.8 VDC | 0.6 VDC | 30 ms | 10 ms | -50°C ~ 60°C | Silver Tin Oxide (AgSnO) |
|

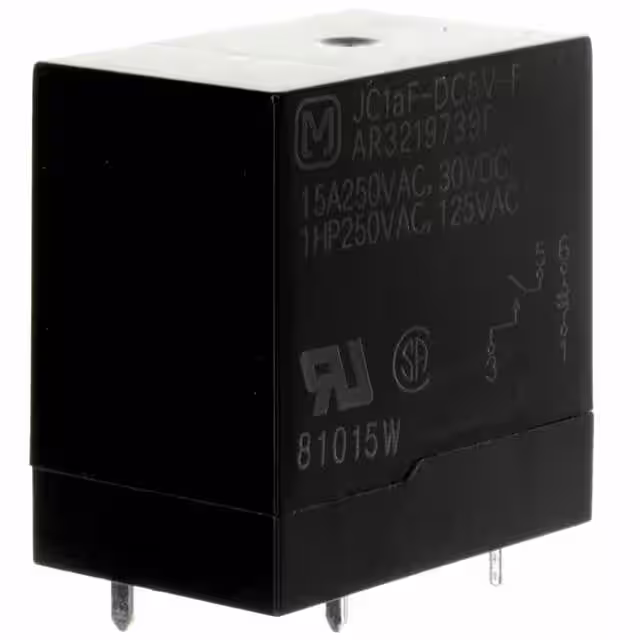

JC1AF-DC5V-FRELAY GEN PURPOSE SPST 15A 5V |
3,898 | 0.00 |
RFQ |
Datasheet |
Tray | JC | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 15 A | 250VAC - Max | 180 mA | Non Latching | - | PC Pin | - | - | 4 VDC | 0.5 VDC | 30 ms | 10 ms | -50°C ~ 60°C | Silver Tin Oxide (AgSnO) |
|

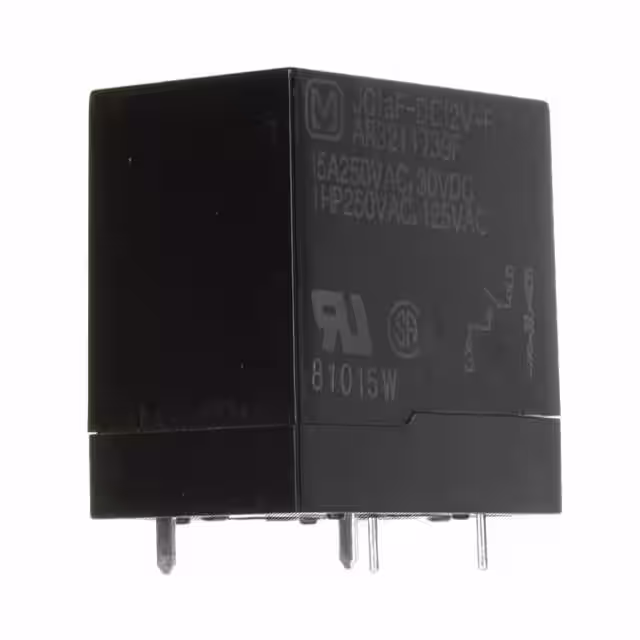

JC1AF-DC12V-FRELAY GEN PURPOSE SPST 15A 12V |
3,641 | 0.00 |
RFQ |
Datasheet |
Tray | JC | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 15 A | 250VAC - Max | 75 mA | Non Latching | - | PC Pin | - | - | 9.6 VDC | 1.2 VDC | 30 ms | 10 ms | -50°C ~ 60°C | Silver Tin Oxide (AgSnO) |
|
JC1AF-DC24V-FRELAY GEN PURPOSE SPST 15A 24V |
2,512 | 0.00 |
RFQ |
Datasheet |
Tray | JC | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 15 A | 250VAC - Max | 37.5 mA | Non Latching | - | PC Pin | - | - | 19.2 VDC | 2.4 VDC | 30 ms | 10 ms | -50°C ~ 60°C | Silver Tin Oxide (AgSnO) |
|
JC2AF-DC5V-FRELAY GEN PURPOSE DPST 10A 5V |
3,636 | 0.00 |
RFQ |
Datasheet |
Tray | JC | Obsolete | Through Hole | 5VDC | DPST-NO (2 Form A) | 10 A | 250VAC - Max | 200 mA | Non Latching | - | PC Pin | - | - | 4 VDC | 0.5 VDC | 30 ms | 10 ms | -50°C ~ 60°C | Silver Tin Oxide (AgSnO) |
|
|
JC2AF-DC6V-FRELAY GEN PURPOSE DPST 10A 6V |
2,644 | 0.00 |
RFQ |
Datasheet |
Tray | JC | Obsolete | Through Hole | 6VDC | DPST-NO (2 Form A) | 10 A | 250VAC - Max | 167 mA | Non Latching | - | PC Pin | - | - | 4.8 VDC | 0.6 VDC | 30 ms | 10 ms | -50°C ~ 60°C | Silver Tin Oxide (AgSnO) |
|

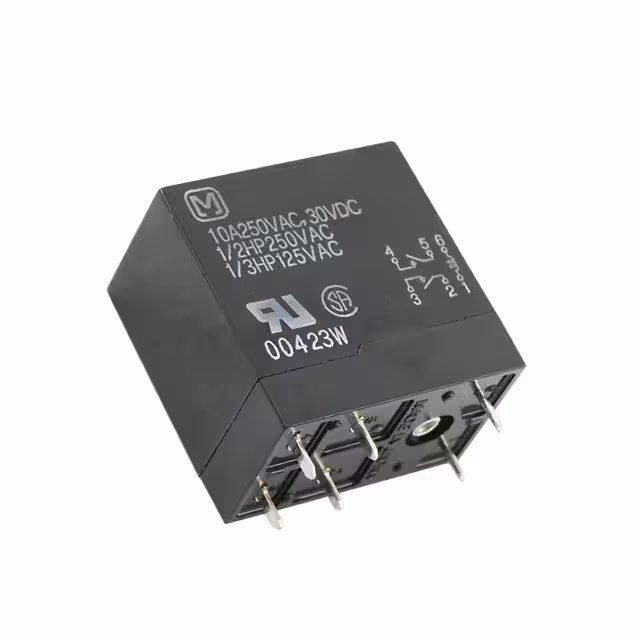

JC2AF-DC12V-FRELAY GEN PURPOSE DPST 10A 12V |
2,544 | 0.00 |
RFQ |
Datasheet |
Tray | JC | Obsolete | Through Hole | 12VDC | DPST-NO (2 Form A) | 10 A | 250VAC - Max | 83.3 mA | Non Latching | - | PC Pin | - | - | 9.6 VDC | 1.2 VDC | 30 ms | 10 ms | -50°C ~ 60°C | Silver Tin Oxide (AgSnO) |
|
|
JC2AF-DC24V-FRELAY GEN PURPOSE DPST 10A 24V |
2,980 | 0.00 |
RFQ |
Datasheet |
Tray | JC | Obsolete | Through Hole | 24VDC | DPST-NO (2 Form A) | 10 A | 250VAC - Max | 41.6 mA | Non Latching | - | PC Pin | - | - | 19.2 VDC | 2.4 VDC | 30 ms | 10 ms | -50°C ~ 60°C | Silver Tin Oxide (AgSnO) |
|

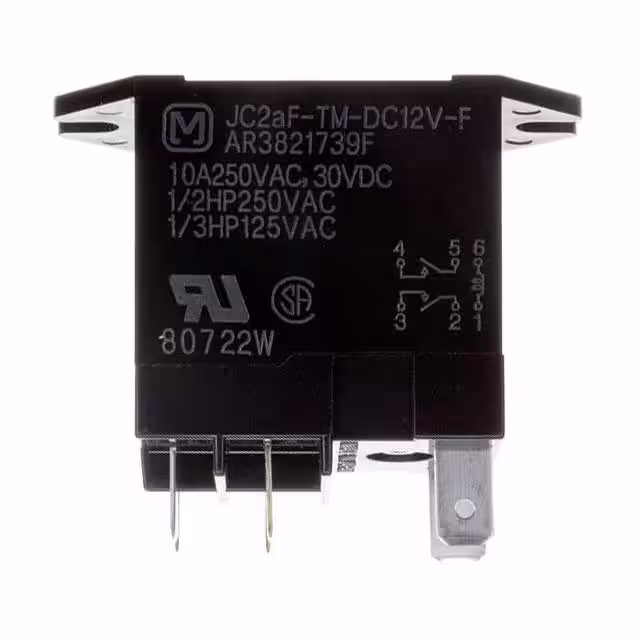

JC2AF-TM-DC12V-FRELAY GEN PURPOSE DPST 10A 12V |
3,267 | 0.00 |
RFQ |
Datasheet |
Tray | JC | Obsolete | Chassis Mount | 12VDC | DPST-NO (2 Form A) | 10 A | 250VAC - Max | 83.3 mA | Non Latching | - | Quick Connect - 0.187 (4.7mm) | - | - | 9.6 VDC | 1.2 VDC | 30 ms | 10 ms | -50°C ~ 60°C | Silver Tin Oxide (AgSnO) |
|

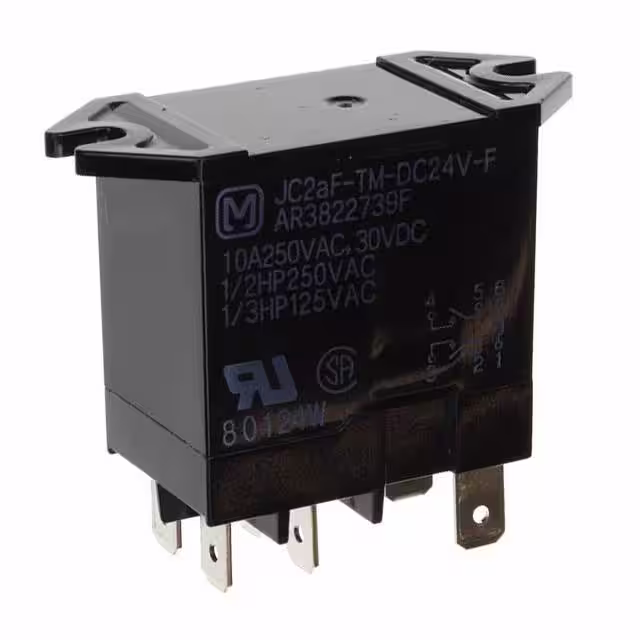

JC2AF-TM-DC24V-FRELAY GEN PURPOSE DPST 10A 24V |
3,395 | 0.00 |
RFQ |
Datasheet |
Tray | JC | Obsolete | Chassis Mount | 24VDC | DPST-NO (2 Form A) | 10 A | 250VAC - Max | 41.6 mA | Non Latching | - | Quick Connect - 0.187 (4.7mm) | - | - | 19.2 VDC | 2.4 VDC | 30 ms | 10 ms | -50°C ~ 60°C | Silver Tin Oxide (AgSnO) |
|
HL2-HP-DC100V-FRELAY GEN PURPOSE DPDT 10A 100V |
3,653 | 0.00 |
RFQ |
Datasheet |
Tray | HL | Obsolete | Through Hole | 100VDC | DPDT (2 Form C) | 10 A | 125VAC - Nom | 10 mA | Non Latching | - | PC Pin | - | - | 80 VDC | 10 VDC | 25 ms | 25 ms | -50°C ~ 70°C | Silver Tin Oxide (AgSnO) |
|
|
HL2-HP-DC110V-FRELAY GEN PURPOSE DPDT 10A 110V |
2,121 | 0.00 |
RFQ |
Datasheet |
Tray | HL | Obsolete | Through Hole | 110VDC | DPDT (2 Form C) | 10 A | 125VAC - Nom | 10 mA | Non Latching | - | PC Pin | - | - | 88 VDC | 11 VDC | 25 ms | 25 ms | -50°C ~ 70°C | Silver Tin Oxide (AgSnO) |
|
|
HL2-HP-AC115V-FRELAY GEN PURPOSE DPDT 10A 115V |
3,647 | 0.00 |
RFQ |
Datasheet |
Bulk | HL | Obsolete | Through Hole | 115VAC | DPDT (2 Form C) | 10 A | 125VAC - Nom | 10.4 mA | Non Latching | - | PC Pin | - | - | 92 VAC | 34.5 VAC | 25 ms | 25 ms | -50°C ~ 70°C | Silver Tin Oxide (AgSnO) |
|
|
HL2-HP-AC120V-FRELAY GEN PURPOSE DPDT 10A 120V |
3,871 | 0.00 |
RFQ |
Datasheet |
Tray | HL | Obsolete | Through Hole | 120VAC | DPDT (2 Form C) | 10 A | 125VAC - Nom | 10 mA | Non Latching | - | PC Pin | - | - | 96 VAC | 36 VAC | 25 ms | 25 ms | -50°C ~ 70°C | Silver Tin Oxide (AgSnO) |
|
HC2-H-AC240V-FRELAY GEN PURPOSE DPDT 7A 240V |
2,414 | 0.00 |
RFQ |
Datasheet |
Bulk | HC | Obsolete | Socketable | 240VAC | DPDT (2 Form C) | 7 A | 250VAC - Max | 5 mA | Non Latching | - | Plug In | - | - | 192 VAC | 72 VAC | 20 ms | 20 ms | -50°C ~ 70°C | Silver Alloy, Cadmium Free |
|
|
HC2-H-AC115V-FRELAY GEN PURPOSE DPDT 7A 115V |
2,458 | 0.00 |
RFQ |
Datasheet |
Bulk | HC | Obsolete | Socketable | 115VAC | DPDT (2 Form C) | 7 A | 250VAC - Max | 11.4 mA | Non Latching | - | Plug In | - | - | 92 VAC | 34.5 VAC | 20 ms | 20 ms | -50°C ~ 70°C | Silver Alloy, Cadmium Free |
|
|
HC2-H-AC6V-FRELAY GEN PURPOSE DPDT 7A 6V |
3,047 | 0.00 |
RFQ |
Datasheet |
Bulk | HC | Obsolete | Socketable | 6VAC | DPDT (2 Form C) | 7 A | 250VAC - Max | 200 mA | Non Latching | - | Plug In | - | - | 4.8 VAC | 1.8 VAC | 20 ms | 20 ms | -50°C ~ 70°C | Silver Alloy, Cadmium Free |
