Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	MountingType	CoilVoltage	ContactForm	ContactRating(Current)	SwitchingVoltage	CoilCurrent	CoilType	Features	TerminationStyle	SealRating	CoilInsulation	MustOperateVoltage	MustReleaseVoltage	OperateTime	ReleaseTime	OperatingTemperature	ContactMaterial

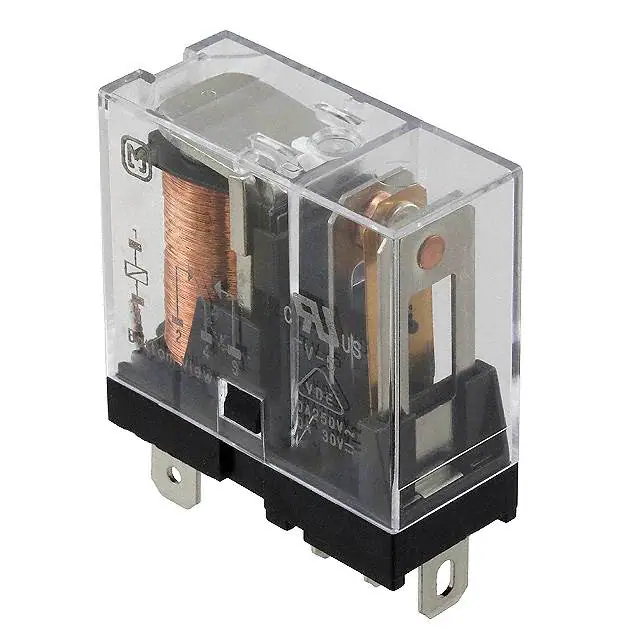

AHN12012 RELAY GEN PURPOSE SPDT 16A 12V Panasonic Electric Works	3,696	7.40	RFQ	Datasheet	Tube	AHN	Obsolete	Socketable	12VDC	SPDT (1 Form C)	16 A	250VAC, 30VDC - Max	44.4 mA	Non Latching	-	Plug In	-	-	8.4 VDC	1.2 VDC	15 ms	5 ms	-40°C ~ 50°C	Silver Nickel (AgNi)
JVN1AF-100V-F RELAY GEN PURPOSE SPST 16A 100V Panasonic Electric Works	2,267	7.48	RFQ	Datasheet	Bulk	JV-N	Active	Through Hole	100VDC	SPST-NO (1 Form A)	16 A	277VAC, 30VDC - Max	6 mA	Non Latching	-	PC Pin	Sealed - Flux Protection	-	60 VDC	4 VDC	8 ms	5 ms	-40°C ~ 60°C	Silver Tin Oxide (AgSnO)
ADJ13005 RELAY GEN PURPOSE SPDT 16A 5V Panasonic Electric Works	2,972	7.54	RFQ	Datasheet	Tube	ADJ	Active	Through Hole	5VDC	SPDT (1 Form C)	16 A	250VAC - Max	50 mA	Latching, Dual Coil	-	PC Pin	Sealed - Flux Protection	-	3.5 VDC	-	20 ms	20 ms	-40°C ~ 70°C	Silver Tin Oxide (AgSnO)
ADJ13024 RELAY GEN PURPOSE SPDT 16A 24V Panasonic Electric Works	2,058	7.54	RFQ	Datasheet	Tube	ADJ	Active	Through Hole	24VDC	SPDT (1 Form C)	16 A	250VAC - Max	10.4 mA	Latching, Dual Coil	-	PC Pin	Sealed - Flux Protection	-	16.8 VDC	-	20 ms	20 ms	-40°C ~ 70°C	Silver Tin Oxide (AgSnO)

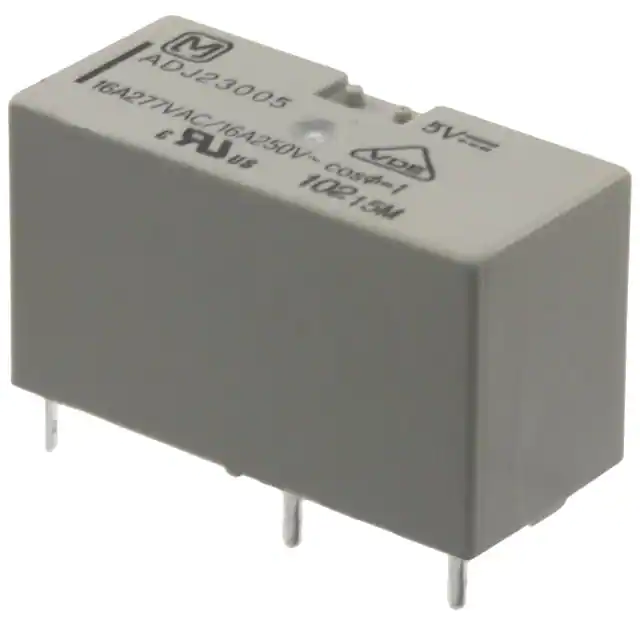

ADJ23005 RELAY GEN PURPOSE SPST 16A 5V Panasonic Electric Works	3,377	7.54	RFQ	Datasheet	Tube	ADJ	Active	Through Hole	5VDC	SPST-NO (1 Form A)	16 A	250VAC - Max	50 mA	Latching, Dual Coil	-	PC Pin	Sealed - Flux Protection	-	3.5 VDC	-	20 ms	20 ms	-40°C ~ 70°C	Silver Tin Oxide (AgSnO)
ADJ23024 RELAY GEN PURPOSE SPST 16A 24V Panasonic Electric Works	2,709	7.54	RFQ	Datasheet	Tube	ADJ	Active	Through Hole	24VDC	SPST-NO (1 Form A)	16 A	250VAC - Max	10.4 mA	Latching, Dual Coil	-	PC Pin	Sealed - Flux Protection	-	16.8 VDC	-	20 ms	20 ms	-40°C ~ 70°C	Silver Tin Oxide (AgSnO)
DK1A-L-12V-F RELAY GEN PURPOSE SPST 10A 12V Panasonic Electric Works	2,937	7.59	RFQ	Datasheet	Tube	DK	Active	Through Hole	12VDC	SPST-NO (1 Form A)	10 A	250VAC, 125VDC - Max	16.7 mA	Latching, Single Coil	-	PC Pin	Sealed - Fully	-	8.4 VDC	-	10 ms	8 ms	-40°C ~ 65°C	Silver Tin Oxide (AgSnO)
AHN12024 RELAY GEN PURPOSE SPDT 16A 24V Panasonic Electric Works	2,156	7.70	RFQ	Datasheet	Tube	AHN	Obsolete	Socketable	24VDC	SPDT (1 Form C)	16 A	250VAC, 30VDC - Max	22 mA	Non Latching	-	Plug In	-	-	16.8 VDC	2.4 VDC	15 ms	5 ms	-40°C ~ 50°C	Silver Nickel (AgNi)
ADY12012 RELAY GEN PURPOSE SPST 10A 12V Panasonic Electric Works	3,428	7.74	RFQ	Datasheet	Box	ADY	Active	Through Hole	12VDC	SPST-NO (1 Form A)	10 A	250VAC, 125VDC - Max	16.6 mA	Latching, Dual Coil	-	PC Pin	Sealed - Fully	-	8.4 VDC	-	10 ms	8 ms	-40°C ~ 70°C	Silver Tin Oxide (AgSnO), Gold (Au)
ADY12003 RELAY GEN PURPOSE SPST 10A 3V Panasonic Electric Works	3,798	7.74	RFQ	Datasheet	Box	ADY	Active	Through Hole	3VDC	SPST-NO (1 Form A)	10 A	250VAC, 125VDC - Max	66.6 mA	Latching, Dual Coil	-	PC Pin	Sealed - Fully	-	2.1 VDC	-	10 ms	8 ms	-40°C ~ 70°C	Silver Tin Oxide (AgSnO), Gold (Au)
ADY12005 RELAY GEN PURPOSE SPST 10A 5V Panasonic Electric Works	2,706	7.74	RFQ	Datasheet	Box	ADY	Active	Through Hole	5VDC	SPST-NO (1 Form A)	10 A	250VAC, 125VDC - Max	40 mA	Latching, Dual Coil	-	PC Pin	Sealed - Fully	-	3.5 VDC	-	10 ms	8 ms	-40°C ~ 70°C	Silver Tin Oxide (AgSnO), Gold (Au)
ADY12006 RELAY GEN PURPOSE SPST 10A 6V Panasonic Electric Works	2,134	7.74	RFQ	Datasheet	Box	ADY	Active	Through Hole	6VDC	SPST-NO (1 Form A)	10 A	250VAC, 125VDC - Max	33.3 mA	Latching, Dual Coil	-	PC Pin	Sealed - Fully	-	4.2 VDC	-	10 ms	8 ms	-40°C ~ 70°C	Silver Tin Oxide (AgSnO), Gold (Au)
DSP1-L2-DC12V-R-F RELAY GEN PURPOSE DPST 5A 12V Panasonic Electric Works	2,360	7.76	RFQ	Datasheet	Box	DSP	Active	Through Hole	12VDC	DPST-NO/NC (1 Form A, 1 Form B)	5 A	250VAC, 125VDC - Max	25 mA	Latching, Dual Coil	-	PC Pin	Sealed - Fully	-	9.6 VDC	-	10 ms	5 ms	-40°C ~ 65°C	Silver Tin Oxide (AgSnO), Gold (Au)
DK1A-L2-9V-F RELAY GEN PURPOSE SPST 10A 9V Panasonic Electric Works	2,142	7.96	RFQ	Datasheet	Tube	DK	Active	Through Hole	9VDC	SPST-NO (1 Form A)	10 A	250VAC, 125VDC - Max	22.2 mA	Latching, Dual Coil	-	PC Pin	Sealed - Fully	-	6.3 VDC	-	10 ms	8 ms	-40°C ~ 65°C	Silver Tin Oxide (AgSnO)
DSP2A-L2-DC6V RELAY GEN PURPOSE DPST 5A 6V Panasonic Electric Works	3,724	8.04	RFQ	Datasheet	Bulk	DSP	Active	Through Hole	6VDC	DPST-NO (2 Form A)	5 A	250VAC, 30VDC - Max	50 mA	Latching, Dual Coil	-	PC Pin	Sealed - Fully	-	4.8 VDC	-	10 ms	5 ms	-40°C ~ 60°C	Silver Tin Oxide (AgSnO)

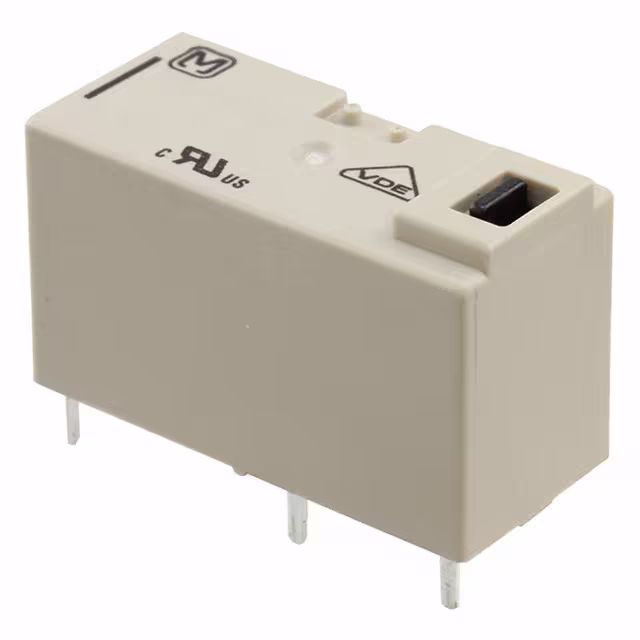

ADJ13112 RELAY GEN PURPOSE SPDT 16A 12V Panasonic Electric Works	2,194	8.27	RFQ	Datasheet	Tube	ADJ	Active	Through Hole	12VDC	SPDT (1 Form C)	16 A	250VAC - Max	20.8 mA	Latching, Dual Coil	Test Button	PC Pin	Sealed - Flux Protection	-	8.4 VDC	-	20 ms	20 ms	-40°C ~ 70°C	Silver Tin Oxide (AgSnO)

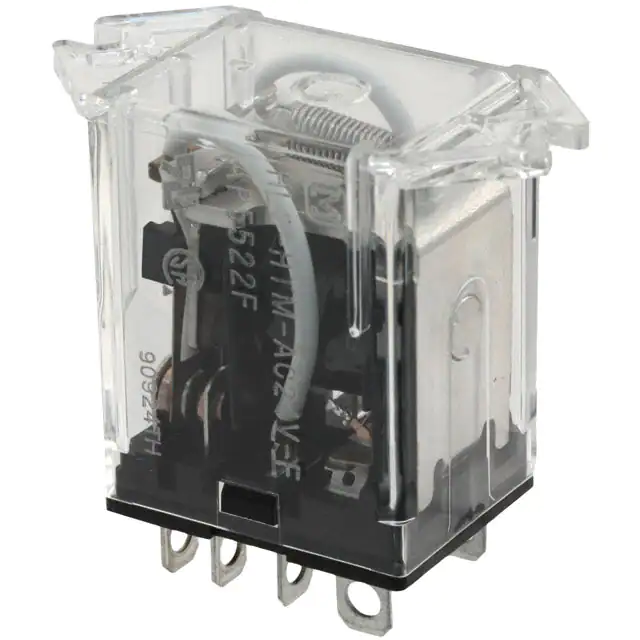

HL2-HTM-AC120V-F RELAY GEN PURPOSE DPDT 10A 120V Panasonic Electric Works	3,600	8.28	RFQ	Datasheet	Bulk	HL	Obsolete	Chassis Mount	120VAC	DPDT (2 Form C)	10 A	125VAC - Nom	10 mA	Non Latching	-	Quick Connect - 0.187 (4.7mm)	-	-	96 VAC	36 VAC	25 ms	25 ms	-50°C ~ 70°C	Silver Tin Oxide (AgSnO)
ADY32003 RELAY GEN PURPOSE DPST 8A 3V Panasonic Electric Works	2,126	8.45	RFQ	Datasheet	Box	ADY	Active	Through Hole	3VDC	DPST-NO/NC (1 Form A, 1 Form B)	8 A	250VAC, 125VDC - Max	66.6 mA	Latching, Dual Coil	-	PC Pin	Sealed - Fully	-	2.1 VDC	-	10 ms	8 ms	-40°C ~ 70°C	Silver Tin Oxide (AgSnO), Gold (Au)
ADY32005 RELAY GEN PURPOSE DPST 8A 5V Panasonic Electric Works	3,004	8.45	RFQ	Datasheet	Box	ADY	Active	Through Hole	5VDC	DPST-NO/NC (1 Form A, 1 Form B)	8 A	250VAC, 125VDC - Max	40 mA	Latching, Dual Coil	-	PC Pin	Sealed - Fully	-	3.5 VDC	-	10 ms	8 ms	-40°C ~ 70°C	Silver Tin Oxide (AgSnO), Gold (Au)
ADY32006 RELAY GEN PURPOSE DPST 8A 6V Panasonic Electric Works	2,642	8.45	RFQ	Datasheet	Box	ADY	Active	Through Hole	6VDC	DPST-NO/NC (1 Form A, 1 Form B)	8 A	250VAC, 125VDC - Max	33.3 mA	Latching, Dual Coil	-	PC Pin	Sealed - Fully	-	4.2 VDC	-	10 ms	8 ms	-40°C ~ 70°C	Silver Tin Oxide (AgSnO), Gold (Au)
