Power Relays, Over 2 Amps(23635)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | CoilInsulation | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature | ContactMaterial |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

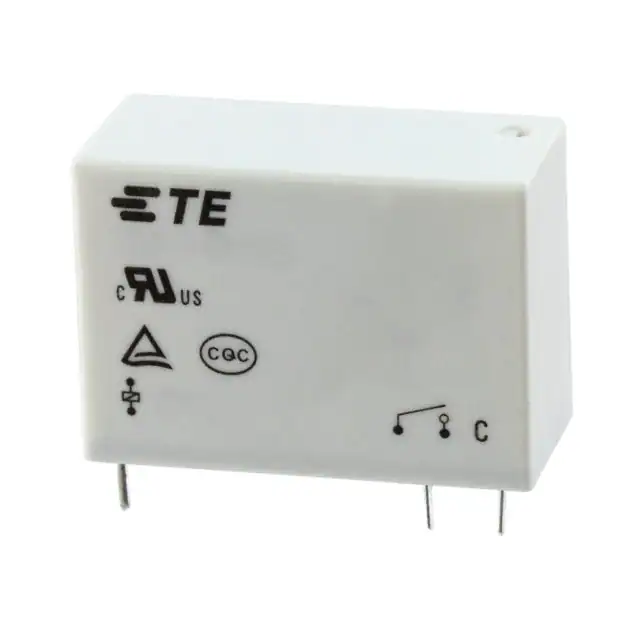

OZ-SS-112LM1F,000RELAY GEN PURPOSE SPST 16A 12V |
119 | 3.55 |
RFQ |
Datasheet |
Tube | OZ, OEG | Last Time Buy | Through Hole | 12VDC | SPST-NO (1 Form A) | 16 A | 240VAC, 24VDC - Max | 44.4 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 9 VDC | 0.6 VDC | 20 ms | 8 ms | -30°C ~ 105°C | Silver Tin Oxide (AgSnO) |
|
OZ-SS-124LM1,200RELAY GEN PURPOSE SPST 16A 24V |
218 | 3.63 |
RFQ |
Datasheet |
Tube | OZ, OEG | Last Time Buy | Through Hole | 24VDC | SPST-NO (1 Form A) | 16 A | 240VAC, 24VDC - Max | 21.8 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class A | 18 VDC | 1.2 VDC | 20 ms | 8 ms | -30°C ~ 70°C | Silver Tin Oxide (AgSnO) |
|
6-1415355-1RELAY GEN PURPOSE SPDT 6A 24V |
2,770 | 3.68 |
RFQ |
Datasheet |
Bulk | PBH, SCHRACK | Active | Through Hole | 24VDC | SPDT (1 Form C) | 6 A | 400VAC | - | Non Latching | - | PC Pin | - | Class F | 18 VDC | 2.4 VDC | 10 ms | 20 ms | -20°C ~ 105°C | Silver Nickel (AgNi) |
|
|
7-1415356-1RELAY GEN PURPOSE SPDT 6A 9V |
865 | 3.68 |
RFQ |
Datasheet |
Tube | PBH, SCHRACK | Active | Through Hole | 9VDC | SPDT (1 Form C) | 6 A | 400VAC - Max | 40 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 6.75 VDC | 0.9 VDC | 10 ms | 20 ms | -20°C ~ 105°C | Silver Nickel (AgNi) |
-SH-1(05,12)(D,L),394, OMI-SH-124(D,L),300, OUDH-SS-112D,000.jpg)
|

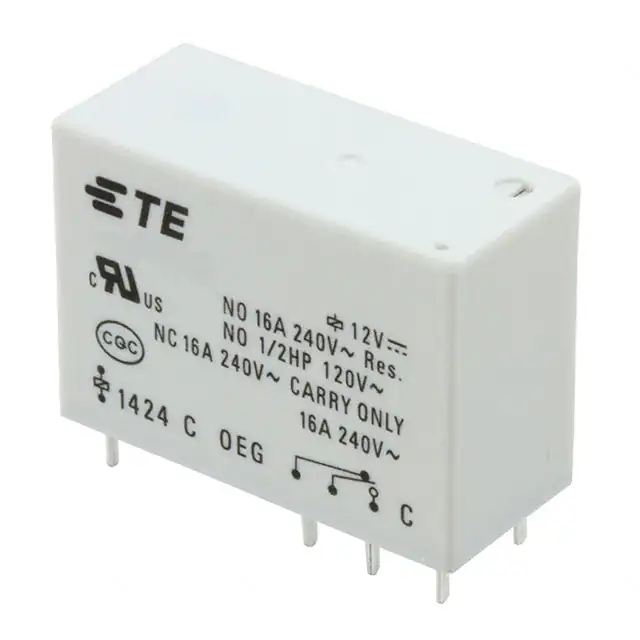

OMIH-SS-112L,300RELAY GEN PURPOSE SPDT 16A 12V |
2,312 | 3.72 |
RFQ |
Datasheet |
Bulk | OMIH, OEG | Last Time Buy | Through Hole | 12VDC | SPDT (1 Form C) | 16 A | 250VAC, 30VDC - Max | 45 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 9 VDC | 0.6 VDC | 20 ms | 8 ms | -30°C ~ 70°C | Silver Tin Oxide (AgSnO) |
|
|
OMIH-SH-112D,394RELAY GEN PURPOSE SPDT 16A 12V |
3,249 | 3.72 |
RFQ |
Datasheet |
Tube | OMIH, OEG | Last Time Buy | Through Hole | 12VDC | SPDT (1 Form C) | 16 A | 250VAC, 30VDC - Max | 60 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 8.4 VDC | 0.6 VDC | 15 ms | 8 ms | -30°C ~ 60°C | Silver Tin Oxide (AgSnO) |
|
|
1-1956171-4RELAY GEN PURPOSE SPST 8A 12V |
560 | 3.78 |
RFQ |
Tube | RY, SCHRACK | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 8 A | 400VAC | - | Non Latching | - | PC Pin | - | Class F | - | - | - | - | - | Silver Nickel (AgNi) | |
|

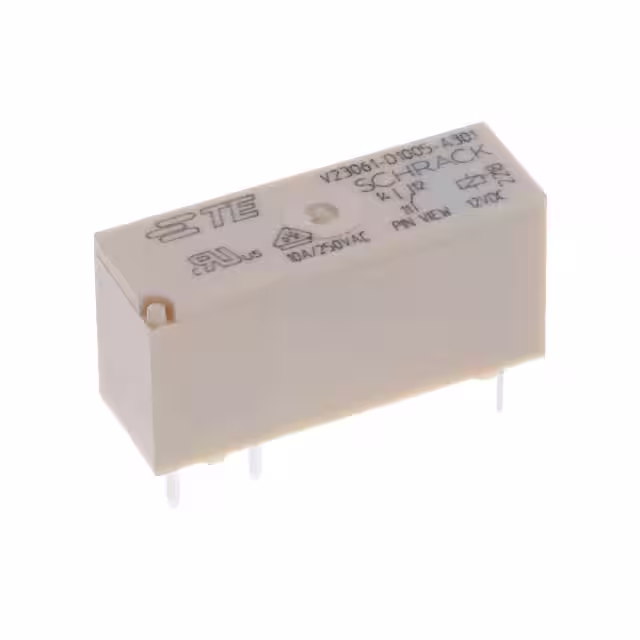

7-1416200-7RELAY GEN PURPOSE SPDT 10A 12V |
3,310 | 3.85 |
RFQ |
Tube | MSR, SCHRACK | Active | Through Hole | 12VDC | SPDT (1 Form C) | 10 A | 400VAC | - | Non Latching | - | PC Pin | - | Class F | 8.2 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | |
|
|
4-1416200-6RELAY GEN PURPOSE SPDT 10A 24V |
996 | 3.85 |
RFQ |
Tube | MSR, SCHRACK | Active | Through Hole | 24VDC | SPDT (1 Form C) + SPST-NO (1 Form A) | 10 A | 400VAC | - | Non Latching | - | PC Pin | - | Class F | 16.3 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | |
|
|
OMIH-SS-124L,000RELAY GEN PURPOSE SPDT 16A 24V |
127 | 3.96 |
RFQ |
Datasheet |
Bulk | OMIH, OEG | Last Time Buy | Through Hole | 24VDC | SPDT (1 Form C) | 16 A | 250VAC | - | Non Latching | - | PC Pin | Sealed - Flux Protection | Class A | 18 VDC | 1.2 VDC | 20 ms | 8 ms | -30°C ~ 70°C | Silver Cadmium Oxide (AgCdO) |
|
|
7-1415538-7RELAY GEN PURPOSE DPDT 8A 24V |
2,803 | 2.61 |
RFQ |
Datasheet |
Bulk,Tube | RT2, SCHRACK | Active | Through Hole | 24VDC | DPDT (2 Form C) | 8 A | 400VAC - Max | 16.7 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 16.8 VDC | 2.4 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) |
|
|
1-1416200-5RELAY GEN PURPOSE SPST 10A 12V |
759 | 4.12 |
RFQ |
Datasheet |
Tube | MSR, SCHRACK | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 400VAC - Max | 18.4 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 8.2 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|

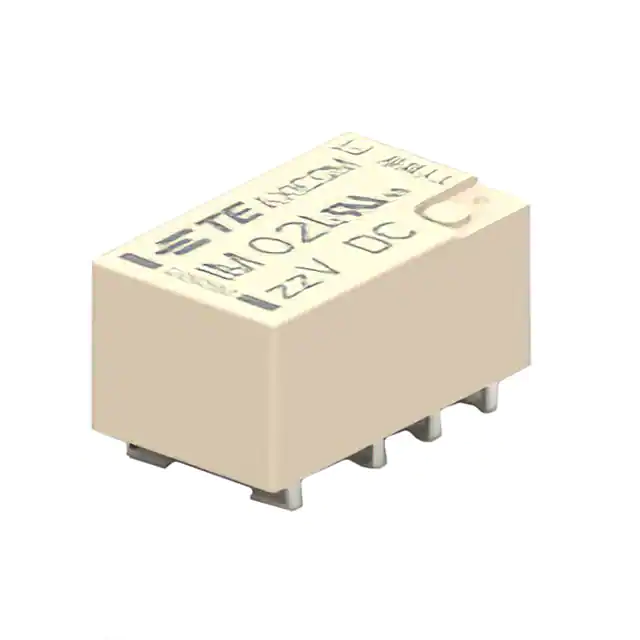

IM02IJRRELAY TELECOM DPDT 5A 4.5V |
467 | 4.18 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Surface Mount | 4.5VDC | DPDT (2 Form C) | 5 A | 250VAC, 220VDC - Max | 31.1 mA | Non Latching | - | Gull Wing | Sealed - Hermetically | - | 3.38 VDC | 0.45 VDC | 3 ms | 3 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) |
|
RY530005RELAY GEN PURPOSE SPST 8A 5V |
280 | 4.90 |
RFQ |
Datasheet |
Tube | RY, SCHRACK | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 8 A | 400VAC - Max | 44.6 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 3.5 VDC | 0.5 VDC | 9 ms | 5 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) |
|
V23105A5478A201RELAY TELECOM DPDT 3A 48V |
502 | 4.94 |
RFQ |
Datasheet |
Tube | V23105, AXICOM | Active | Through Hole | 48VDC | DPDT (2 Form C) | 3 A | 250VAC, 220VDC - Max | 12 mA | Non Latching | - | PC Pin | - | - | - | - | 6 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi) |
|
OZ-SS-112LF,000RELAY GEN PURPOSE SPDT 16A 12V |
819 | 4.95 |
RFQ |
Datasheet |
Tube | OZ, OEG | Last Time Buy | Through Hole | 12VDC | SPDT (1 Form C) | 16 A | 240VAC | - | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 9 VDC | 0.6 VDC | 20 ms | 8 ms | -30°C ~ 70°C | Silver Cadmium Oxide (AgCdO) |
|
|
2-1419142-2RELAY GEN PURPOSE SPDT 5A 3V |
164 | 3.79 |
RFQ |
Bulk,Tube | PE, SCHRACK | Active | Through Hole | 3VDC | SPDT (1 Form C) | 5 A | 400VAC | - | Non Latching | - | PC Pin | - | - | 2.25 VDC | 0.3 VDC | 8 ms | 8 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | |
|
V23061B1007A301RELAY GEN PURPOSE SPDT 8A 24V |
641 | 5.14 |
RFQ |
Datasheet |
Tube | MSR, SCHRACK | Active | Through Hole | 24VDC | SPDT (1 Form C) | 8 A | 400VAC - Max | 10.6 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 16.3 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
|
PCN-124D3MHZ,001BRELAY GEN PURPOSE SPST 5A 24V |
2,086 | 5.19 |
RFQ |
Datasheet |
Tray | PCN, SCHRACK | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 5 A | 277VAC, 125VDC - Max | 5 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 16.8 VDC | 2.4 VDC | - | - | -40°C ~ 85°C | Silver Nickel (AgNi) |
|
|
3-1956170-2RELAY GEN PURPOSE SPDT 8A 24V |
226 | 5.26 |
RFQ |
Tube | RY, SCHRACK | Active | Through Hole | 24VDC | SPDT (1 Form C) | 8 A | 400VAC | - | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 16.8 VDC | 2.4 VDC | 9 ms | 5 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) |
