Power Relays, Over 2 Amps(23635)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | CoilInsulation | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature | ContactMaterial |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KHAU-11D11-12RELAY GEN PURPOSE DPDT 3A 12V |
2,788 | 0.00 |
RFQ |
Datasheet |
Bulk | KHA | Active | Socketable | 12VDC | DPDT (2 Form C) | 3 A | 240VAC - Max | 75 mA | Non Latching | - | Plug In | - | Class B | 9 VDC | - | 13 ms | 6 ms | -45°C ~ 70°C | Silver (Ag) |
|
PCLH-205D1SP,000RELAY GEN PURPOSE DPDT 15A 110V |
2,221 | 0.00 |
RFQ |
Datasheet |
Tray | PCLH, OEG | Obsolete | Through Hole | 110VDC | DPDT (2 Form C) | 15 A | 120VAC - Max | 10 mA | Non Latching | - | PC Pin | - | Class F | 88 VDC | 11 VDC | 15 ms | 8 ms | -40°C ~ 55°C | Silver Cadmium Oxide (AgCdO) |
|
PCL-403DS,000RELAY GEN PURPOSE 4PDT 3A 24V |
2,745 | 0.00 |
RFQ |
Datasheet |
Tray | PCL, OEG | Obsolete | Socketable | 24VDC | 4PDT (4 Form C) | 3 A | 250VAC, 24VDC - Max | 37.5 mA | Non Latching | - | Plug In | - | Class F | 19.2 VDC | 2.4 VDC | 15 ms | 8 ms | -40°C ~ 55°C | Silver (Ag) |
|
|
KHAU-11A12-120RELAY GEN PURPOSE DPDT 5A 120V |
3,058 | 0.00 |
RFQ |
Datasheet |
Bulk | KHA | Obsolete | Socketable | 120VAC | DPDT (2 Form C) | 5 A | 240VAC - Max | 11 mA | Non Latching | - | Plug In | - | Class B | 102 VAC | - | 13 ms | 6 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) |
|
R10-E1Y6-115VRELAY GEN PURPOSE 6PDT 3A 115V |
3,057 | 0.00 |
RFQ |
Datasheet |
Bulk | R10 | Obsolete | Socketable | 115VAC | 6PDT (6 Form C) | 3 A | 120VAC, 30VDC - Max | - | Non Latching | - | Plug In | - | - | 86 VAC | - | - | - | -55°C ~ 75°C | Silver (Ag) |
|
|
KHAU-17D12-48RELAY GEN PURPOSE 4PDT 5A 48V |
2,113 | 0.00 |
RFQ |
Datasheet |
Tray | KHA | Active | Socketable | 48VDC | 4PDT (4 Form C) | 5 A | 240VAC - Max | 18.8 mA | Non Latching | - | Plug In | - | Class B | 36 VDC | - | 13 ms | 6 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) |
|
|
KHAU-17D12L-48RELAY GEN PURPOSE 4PDT 5A 48V |
3,391 | 0.00 |
RFQ |
Datasheet |
Bulk | KHA | Active | Socketable | 48VDC | 4PDT (4 Form C) | 5 A | 240VAC - Max | 18.8 mA | Non Latching | Lighted Indicator | Plug In | - | - | 36 VDC | - | 13 ms | 6 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) |
-SH-1(05,12)(D,L),394, OMI-SH-124(D,L),300, OUDH-SS-112D,000.jpg)
|
OMIH-SH-124D,394RELAY GEN PURPOSE SPDT 16A 24V |
2,615 | 0.00 |
RFQ |
Datasheet |
Tube | OMIH, OEG | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 16 A | 250VAC, 30VDC - Max | 30 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 16.8 VDC | 1.2 VDC | 15 ms | 8 ms | -30°C ~ 60°C | Silver Tin Oxide (AgSnO) |
|
MT331220RELAY GEN PURPOSE 3PDT 10A 220V |
2,904 | 0.00 |
RFQ |
Datasheet |
Bulk | MT, SCHRACK | Obsolete | Socketable | 220VDC | 3PDT (3 Form C) | 10 A | 400VAC - Max | 5.5 mA | Non Latching | Test Button | Plug In, 11 Pin (Octal) | - | - | 165 VDC | 22 VDC | 15 ms | 10 ms | -40°C ~ 60°C | Silver Nickel (AgNi) |
|
|
MT226048RELAY GEN PURPOSE DPDT 10A 48V |
2,674 | 0.00 |
RFQ |
Datasheet |
Tray | MT, SCHRACK | Obsolete | Socketable | 48VAC | DPDT (2 Form C) | 10 A | 400VAC - Max | - | Non Latching | Test Button | Plug In, 8 Pin (Octal) | - | - | 38.4 VAC | 19.2 VAC | 15 ms | 10 ms | -40°C ~ 50°C | Silver Nickel (AgNi) |
|
V23061A1007A402RELAY GEN PURPOSE SPST 8A 24V |
2,657 | 0.00 |
RFQ |
Datasheet |
Tube | MSR, SCHRACK | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 8 A | 400VAC - Max | 10.6 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 16.3 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) |
|

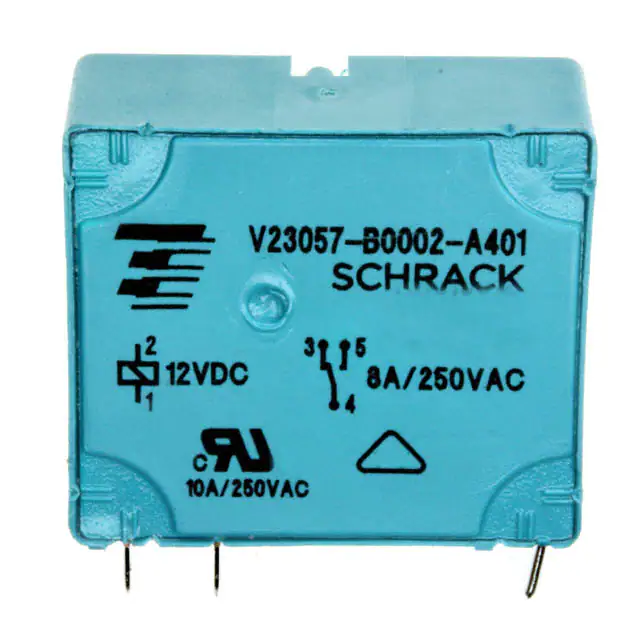

V23057B 2A401RELAY GEN PURPOSE SPDT 8A 12V |
3,263 | 0.00 |
RFQ |
Datasheet |
Tube | V23057, SCHRACK | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 8 A | 400VAC - Max | 36.3 mA | Non Latching | - | PC Pin | - | - | 8 VDC | 1.2 VDC | 7 ms | 3 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) |
|

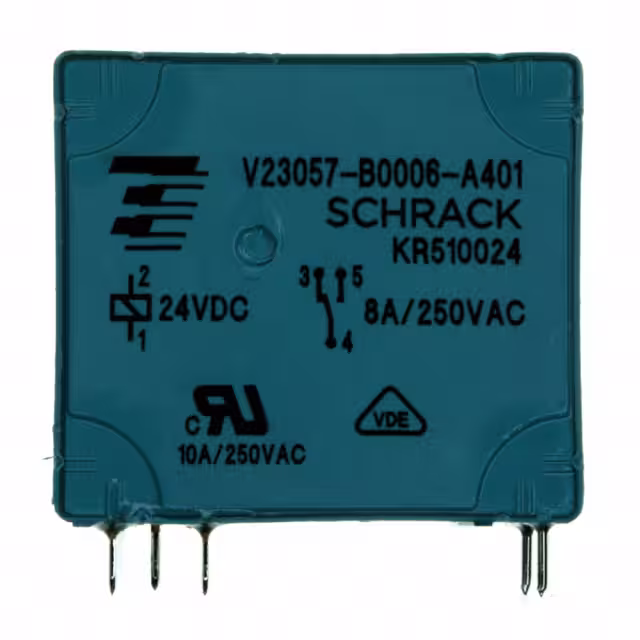

V23057B 6A401RELAY GEN PURPOSE SPDT 8A 24V |
2,343 | 0.00 |
RFQ |
Datasheet |
Tube | V23057, SCHRACK | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 8 A | 400VAC - Max | 20 mA | Non Latching | - | PC Pin | - | - | 16 VDC | 2.4 VDC | 7 ms | 3 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) |
|
|
MT321110RELAY GEN PURPOSE 3PDT 10A 110V |
3,926 | 0.00 |
RFQ |
Datasheet |
Bulk | MT, SCHRACK | Obsolete | Socketable | 110VDC | 3PDT (3 Form C) | 10 A | 400VAC - Max | 11 mA | Non Latching | Test Button | Plug In, 11 Pin (Octal) | - | - | 82.5 VDC | 11.5 VDC | 15 ms | 10 ms | -40°C ~ 60°C | Silver Nickel (AgNi) |
|
|
RM703615RELAY GEN PURPOSE 3PDT 16A 115V |
2,604 | 0.00 |
RFQ |
Datasheet |
Bulk | RM, SCHRACK | Obsolete | Chassis Mount | 115VAC | 3PDT (3 Form C) | 16 A | 440VAC - Max | - | Non Latching | Mechanical Indicator | Quick Connect - 0.187 (4.7mm) | - | - | 92 VAC | 34.5 VAC | - | - | -45°C ~ 50°C | Silver Cadmium Oxide (AgCdO) |
|
RM302615RELAY GEN PURPOSE 3PDT 10A 115V |
3,239 | 0.00 |
RFQ |
Datasheet |
Bulk | RM, SCHRACK | Obsolete | Socketable | 115VAC | 3PDT (3 Form C) | 10 A | 440VAC - Max | - | Non Latching | Mechanical Indicator | Plug In, Quick Connect - 0.187 (4.7mm) | - | - | 92 VAC | 34.5 VAC | 15 ms | 10 ms | -45°C ~ 55°C | Silver Cadmium Oxide (AgCdO) |
|
|
RM207615RELAY GEN PURPOSE DPDT 16A 115V |
2,384 | 0.00 |
RFQ |
Datasheet |
Bulk | RM, SCHRACK | Obsolete | Through Hole | 115VAC | DPDT (2 Form C) | 16 A | 440VAC - Max | - | Non Latching | Mechanical Indicator | PC Pin | - | - | 92 VAC | 34.5 VAC | 15 ms | 10 ms | -45°C ~ 60°C | Silver Cadmium Oxide (AgCdO) |
|
RM205524RELAY GEN PURPOSE DPDT 16A 24V |
2,204 | 0.00 |
RFQ |
Datasheet |
Bulk | RM, SCHRACK | Obsolete | Chassis Mount | 24VAC | DPDT (2 Form C) | 16 A | 440VAC - Max | - | Non Latching | Mechanical Indicator | Quick Connect - 0.250 (6.3mm) | - | - | 19.2 VAC | 7.2 VAC | - | - | -45°C ~ 60°C | Silver Cadmium Oxide (AgCdO) |
|
|
RM205730RELAY GEN PURPOSE DPDT 16A 230V |
3,866 | 0.00 |
RFQ |
Datasheet |
Bulk | RM, SCHRACK | Obsolete | Chassis Mount | 230VAC | DPDT (2 Form C) | 16 A | 440VAC - Max | - | Non Latching | Mechanical Indicator | Quick Connect - 0.250 (6.3mm) | - | - | 184 VAC | 69 VAC | - | - | -45°C ~ 60°C | Silver Cadmium Oxide (AgCdO) |
|
|
RM332024RELAY GEN PURPOSE 3PDT 10A 24V |
2,721 | 0.00 |
RFQ |
Datasheet |
Bulk | RM, SCHRACK | Obsolete | Socketable | 24VDC | 3PDT (3 Form C) | 10 A | 440VAC - Max | 50 mA | Non Latching | Mechanical Indicator, Test Button | Plug In, Quick Connect - 0.187 (4.7mm) | - | - | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -45°C ~ 60°C | Silver Cadmium Oxide (AgCdO) |
