Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Voltage-Primary	Voltage-Secondary(FullLoad)	Current-Output(Max)	PrimaryWinding(s)	SecondaryWinding(s)	CenterTap	Power-Max	MountingType	TerminationStyle	Size/Dimension	Height-Seated(Max)	Voltage-Isolation
56-160-LPI PWR XFMR SEMI-TORO 9VA TH Signal Transformer	2,048	18.54	RFQ	Datasheet	Box	LPI	Active	Semi-Toroidal	115V, 230V	Parallel 28V, Series 56V	Parallel 320mA, Series 160mA	Dual	Dual	No	9VA	Through Hole	PC Pin	60.20mm L x 42.10mm W	27.40mm	4000Vrms
241-8-12L PWR XFMR LAMINATED 100VA CHAS MT Signal Transformer	3,765	29.61	RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V	12.6V	8A	Single	Single	Yes	100VA	Chassis Mount	Wire Leads	102.40mm L x 58.50mm W	67.70mm	2500Vrms
A41-80-10 PWR XFMR LAMINATED 80VA CHAS MT Signal Transformer	3,300	30.35	RFQ	Datasheet	Bulk	All-4-One™	Active	Laminated Core	115V, 230V	Parallel 5V, Series 10V	Parallel 16A, Series 8A	Dual	Dual	No	80VA	Chassis Mount	Solder, Quick Connect	63.50mm L x 64.30mm W	76.20mm	4000Vrms
A41-80-20L PWR XFMR LAMINATED 80VA CHAS MT Signal Transformer	2,245	30.35	RFQ	Datasheet	Box	All-4-One™	Active	Laminated Core	115V, 230V	Parallel 10V, Series 20V	Parallel 8A, Series 4A	Dual	Dual	No	80VA	Chassis Mount	Wire Leads	63.50mm L x 64.30mm W	76.20mm	4000Vrms
MT-8-15 PWR XFMR LAMINATED 8VA CHAS MT Signal Transformer	2,659	32.08	RFQ	Datasheet	Bulk	MT	Active	Laminated Core	115V	5V, 15V	4A, 500mA	Single	Dual	Yes	8VA	Chassis Mount	Solder, Quick Connect	102.40mm L x 58.50mm W	67.70mm	2500Vrms
A41-175-24L PWR XFMR LAMINATED 175VA CHAS MT Signal Transformer	3,823	40.92	RFQ	Datasheet	Box	All-4-One™	Active	Laminated Core	115V, 230V	Parallel 12V, Series 24V	Parallel 14.6A, Series 7.3A	Dual	Dual	No	175VA	Chassis Mount	Wire Leads	79.40mm L x 79.70mm W	95.30mm	4000Vrms
A41-130-16 PWR XFMR LAMINATED 130VA CHAS MT Signal Transformer	2,326	40.94	RFQ	Datasheet	Box	All-4-One™	Active	Laminated Core	115V, 230V	Parallel 8V, Series 16V	Parallel 16.2A, Series 8.1A	Dual	Dual	No	130VA	Chassis Mount	Solder, Quick Connect	71.40mm L x 76.20mm W	85.70mm	4000Vrms
ECO-330-230 PWR XFMR LAMINATED 330VA CHAS MT Signal Transformer	2,345	130.08	RFQ	Datasheet	Box	EcoTran	Active	Laminated Core	115V, 230V	Parallel 115V, Series 230V	Parallel 2.8A, Series 1.4A	Dual	Dual	No	330VA	Chassis Mount	Terminal Block	126.00mm L x 136.00mm W	114.30mm	4000Vrms

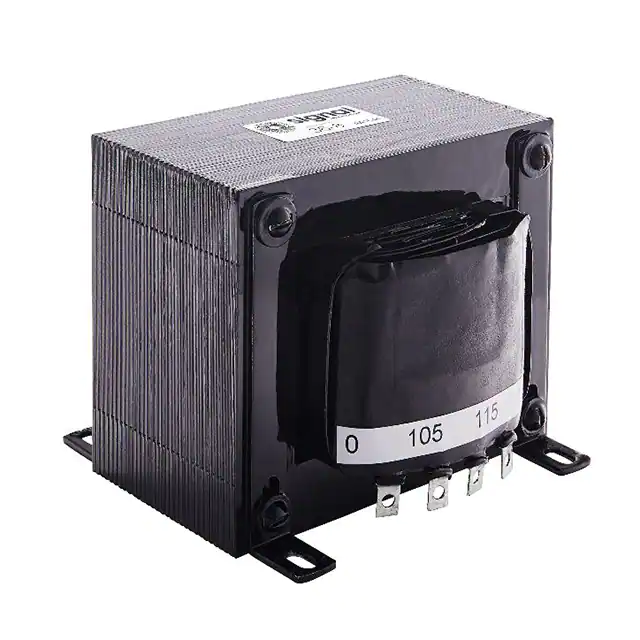

36-8 PWR XFMR LAMINATED 288VA CHAS MT Signal Transformer	3,543	132.64	RFQ	Datasheet	Box	-	Active	Laminated Core	105V, 115V, 125V	Parallel 18V, Series 36V	Parallel 16A, Series 8A	Single, Multiple Taps	Dual	Yes	288VA	Chassis Mount	Solder, Quick Connect	114.30mm L x 114.30mm W	95.30mm	1500Vrms
MPI-200-12 PWR XFMR LAMINATED 200VA CHAS MT Signal Transformer	2,531	132.72	RFQ	Datasheet	Bulk	MPI	Active	Laminated Core	100V, 115V, 200V, 215V, 230V	Parallel 6V, Series 12V	Parallel 33.3A, Series 16.7A	Dual, Multiple Taps	Dual	No	200VA	Chassis Mount	Terminal Block	95.30mm L x 113.30mm W	93.10mm	4000Vrms
ECO-450-230 PWR XFMR LAMINATED 450VA CHAS MT Signal Transformer	3,034	142.55	RFQ	Datasheet	Box	EcoTran	Active	Laminated Core	115V, 230V	Parallel 115V, Series 230V	Parallel 4A, Series 2A	Dual	Dual	No	450VA	Chassis Mount	Terminal Block	126.00mm L x 136.00mm W	124.50mm	4000Vrms
M4L-2-4 PWR XFMR LAMINATED 450VA CHAS MT Signal Transformer	2,032	150.75	RFQ	Datasheet	Box	M4L	Active	Laminated Core	250V, 230V, 210V	115V	3.9A	Single, Multiple Taps	Single	No	450VA	Chassis Mount	Terminal Block	113.28mm L x 110.00mm W	114.30mm	4000Vrms
12.8-25 PWR XFMR LAMINATED 320VA CHAS MT Signal Transformer	2,678	150.92	RFQ	Datasheet	Box	-	Active	Laminated Core	105V, 115V, 125V	Parallel 6.4V, Series 12.8V	Parallel 50A, Series 25A	Single, Multiple Taps	Single, Multiple Taps	Yes	320VA	Chassis Mount	Solder, Quick Connect	133.40mm L x 108.00mm W	111.10mm	1500Vrms
MTT-300 PWR XFMR LAMINATED 300VA CHAS MT Signal Transformer	2,160	167.45	RFQ	Datasheet	Bulk	MTT	Active	Laminated Core	100V, 115V, 120V	Parallel 12V, Series 24V	Parallel 25A, Series 12.5A	Single	Triple	No	300VA	Chassis Mount	Terminal Block	104.80mm L x 128.10mm W	98.20mm	4000Vrms
M4L-1-6 PWR XFMR LAMINATED 600VA CHAS MT Signal Transformer	3,329	170.50	RFQ	Datasheet	Bulk	M4L	Active	Laminated Core	125V, 115V, 105V	115V	5.2A	Single, Multiple Taps	Single	No	600VA	Chassis Mount	Terminal Block	113.28mm L x 129.03mm W	114.30mm	4000Vrms
24-25 PWR XFMR LAMINATED 600VA CHAS MT Signal Transformer	2,761	208.15	RFQ	Datasheet	Box	-	Active	Laminated Core	105V, 115V, 125V	Parallel 12V, Series 24V	Parallel 50A, Series 25A	Single, Multiple Taps	Dual	Yes	600VA	Chassis Mount	Solder, Quick Connect	133.40mm L x 142.90mm W	111.10mm	1500Vrms

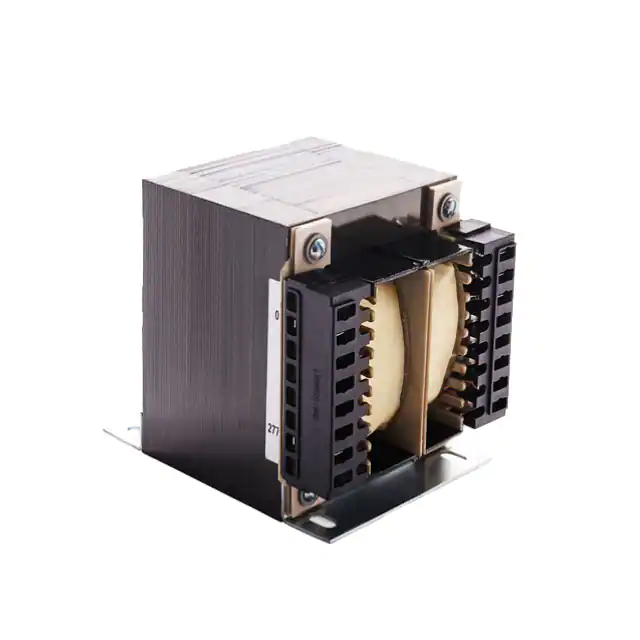

SLT-1000 PWR XFMR LAMINATED 1000VA CHAS Signal Transformer	2,969	242.32	RFQ	Datasheet	Bulk	SLT	Active	Laminated Core	277V	120V	8.33A	Single	Single	Yes	1000VA	Chassis Mount	Terminal Block	142.20mm L x 144.78mm W	133.40mm	4000Vrms
36-30 PWR XFMR LAMINATED 1080VA CHAS Signal Transformer	2,152	318.47	RFQ	Datasheet	Box	-	Active	Laminated Core	105V, 115V, 125V	Parallel 18V, Series 36V	Parallel 60A, Series 30A	Single, Multiple Taps	Dual	Yes	1080VA	Chassis Mount	Solder, Quick Connect	162.00mm L x 152.40mm W	134.90mm	1500Vrms
DST-4-120 PWR XFMR LAMINATED 6VA TH Signal Transformer	3,302	13.32	RFQ	Datasheet	Bulk	DST	Active	Laminated Core	115V, 230V	Parallel 60V, Series 120V	Parallel 100mA, Series 50mA	Dual	Dual	No	6VA	Through Hole	PC Pin	41.30mm L x 33.30mm W	33.30mm	2500Vrms
LP-10-600 PWR XFMR SEMI-TORO 6VA TH Signal Transformer	2,172	16.06	RFQ	Datasheet	Bulk	LP	Active	Semi-Toroidal	115V, 230V	Parallel 5V, Series 10V	Parallel 1.2A, Series 600mA	Dual	Dual	No	6VA	Through Hole	PC Pin	47.50mm L x 39.60mm W	21.60mm	1500Vrms
